Advanced ESB Communication Backbone for Modern Distributed Control Systems

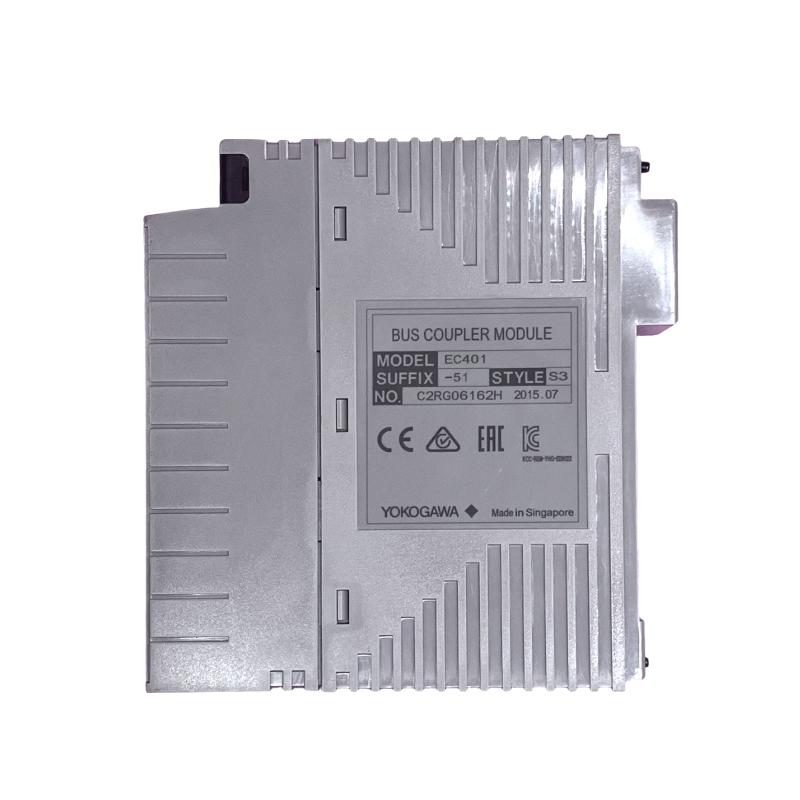

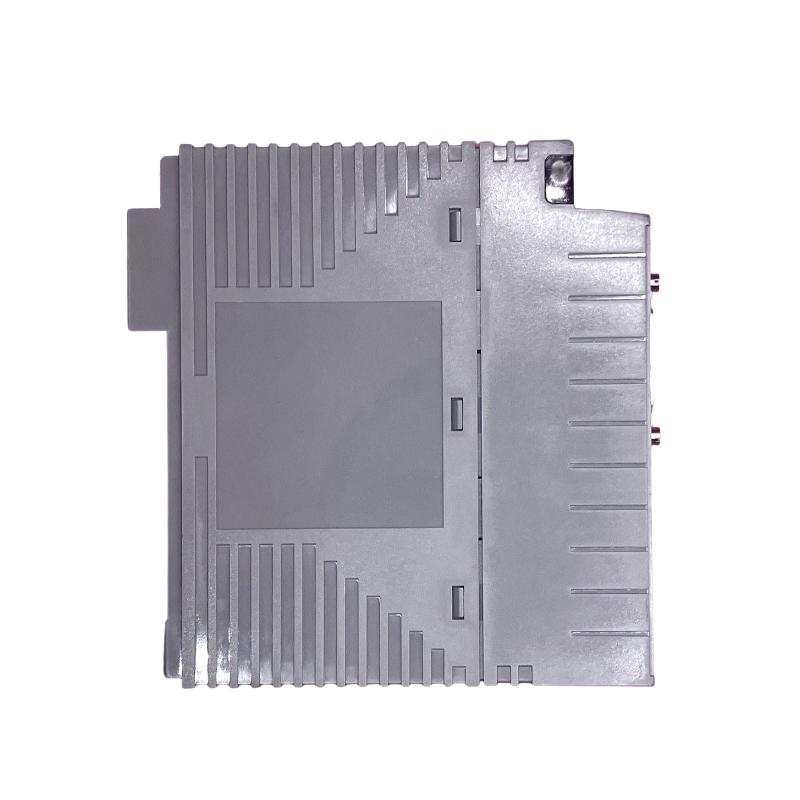

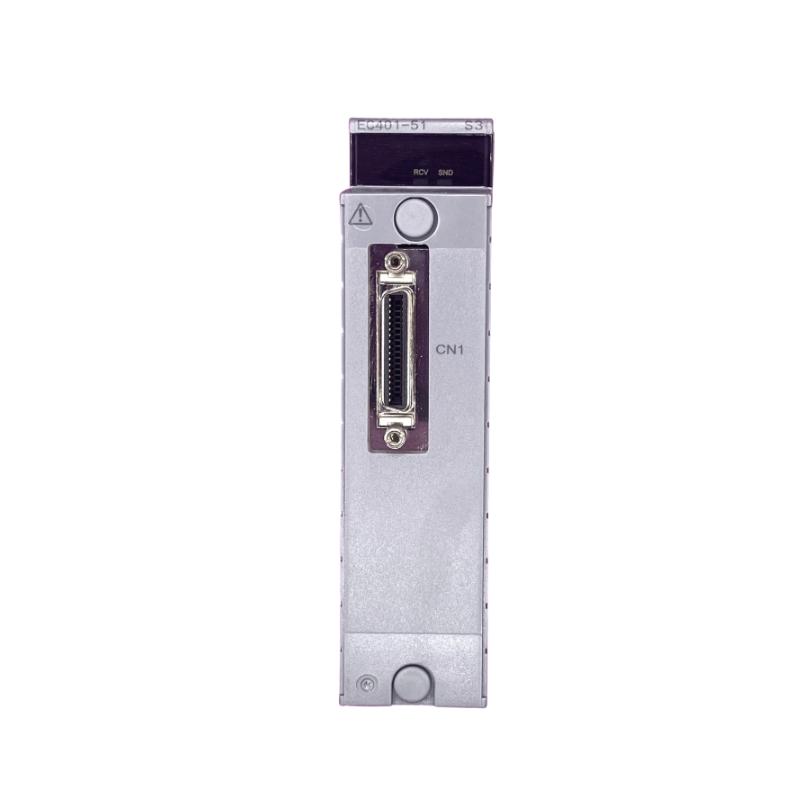

The Yokogawa EC401-51 S3 ESB Bus Coupler Module is a high-reliability communication interface designed for CENTUM VP and FIO-based distributed control architectures. It serves as the critical bridge between the Field Control Unit (FCU) and Node Units, enabling fast, deterministic, and stable data exchange over the ESB (Extended System Bus) network.
The S3 revision enhances system compatibility and supports updated processor integration requirements, making it a preferred choice for modernized Yokogawa control environments that demand scalability, redundancy, and long-term operational stability.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | ESB Bus Coupler Module |
| Model | EC401-51 S3 |
| System Compatibility | Yokogawa CENTUM VP / CS 3000 / FIO systems |
| Function | FCU to Node Unit ESB communication interface |
| Bus Type | ESB (Extended System Bus) |
| Transmission Speed | 128 Mbps |
| Maximum Connectable Units | Up to 9 units |
| Transmission Distance | Max. 10 m |
| Power Consumption | Approx. 0.5 A |
| Module Weight | Approx. 0.24 kg |
| Installation Slot | FCU Slot 7 (redundant: Slot 7 & 8) |
| Redundancy Support | Yes (dual-module configuration supported) |
| Processor Compatibility | CP471 compatibility with S3 or later |
| Operating Temperature | Industrial-grade (-10°C to +55°C typical) |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
Industrial Applications
The EC401-51 S3 is widely used in large-scale process industries requiring robust distributed control:
- Oil & gas production and offshore platforms
- Petrochemical refining and processing plants
- Power generation and turbine control systems
- Chemical manufacturing facilities
- Large continuous-process industrial plants
Its architecture supports long-distance I/O distribution while maintaining precise synchronization and data integrity.
Engineering Advantages
The EC401-51 S3 is designed to combine high-speed communication with system flexibility and long-term reliability. It supports modern control system expansion while minimizing wiring and configuration complexity.
Key advantages include:
-
High-speed ESB communication (128 Mbps) for deterministic control performance
-
Supports up to 9 node units per module for flexible system expansion
-
Dual-redundant architecture support for high system availability
-
Compact rack-mounted design optimized for FCU integration
-
Reduced installation complexity through distributed I/O design
-
Stable long-term operation in industrial environments
This makes it a strong foundation for scalable and resilient Yokogawa DCS architectures.
Technical FAQs
1. What is the main function of the EC401-51 S3 module?
It connects the Field Control Unit with Node Units via the ESB bus.
2. What systems is it compatible with?
CENTUM VP, CS 3000, and FIO-based control systems.
3. How many nodes can it support?
Up to 9 ESB-connected node units.
4. What is the communication speed?
128 Mbps for real-time I/O data transmission.
5. What is the maximum transmission distance?
Approximately 10 meters.
6. Does it support redundancy?
Yes, dual-module redundancy is supported in FCU Slot 7 and 8.
7. What is the significance of S3 version?
It provides updated compatibility with CP471 processor and system enhancements.
8. Where is it installed?
Inside the Field Control Unit rack (specific FCU slots).
9. What industries use it most?
Oil & gas, chemical, power generation, and manufacturing sectors.
10. Why is it important in system design?
It enables scalable distributed I/O architecture with reliable communication.
