Core Communication Backbone for Distributed Control Systems

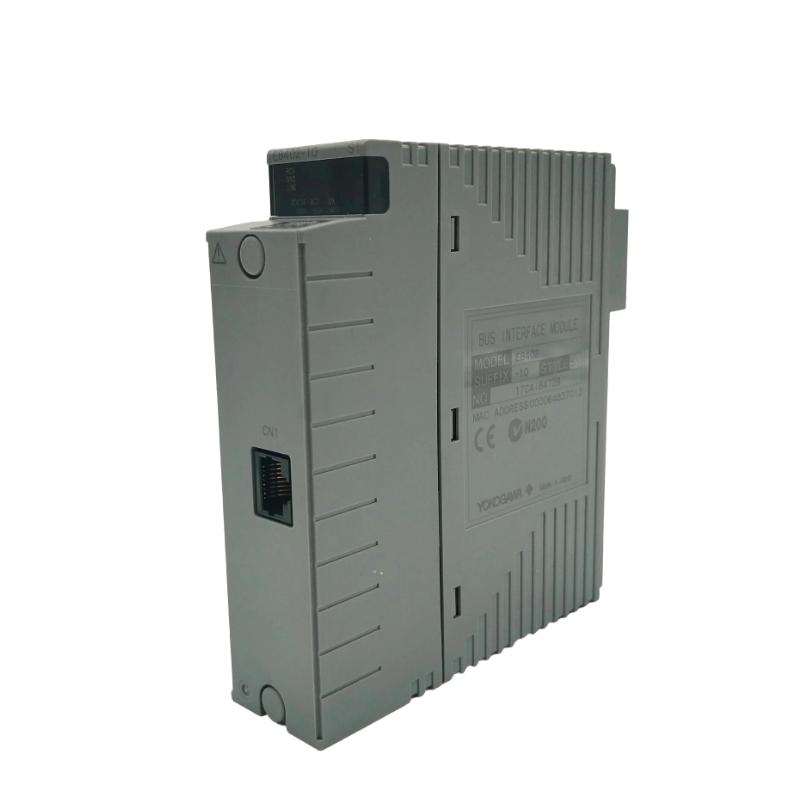

The Yokogawa EB402-50 ER Bus Interface Master Module is a high-performance communication interface designed for Yokogawa CENTUM VP and CS 3000 distributed control systems. It functions as the master node of the ER (Extended Remote) Bus, enabling structured, high-speed data exchange between Field Control Units (FCUs) and remote I/O stations.
In large-scale automation architectures, this module plays a critical role in extending control networks, reducing wiring complexity, and ensuring deterministic communication across distributed field environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | ER Bus Interface Master Module |
| Model | EB402-50 |
| System Compatibility | Yokogawa CENTUM VP / CS 3000 / ProSafe-RS |
| Function | ER Bus master communication interface |
| Bus Type | ER (Extended Remote) Bus |
| Communication Speed | 10 Mbps |
| Physical Layer Interface | IEEE 802.3 10BASE-2 |
| Connector Type | BNC |
| Transmission Distance | Up to 185 m (with YCB141 cable) |
| Device Capacity | Up to 32 field devices per module |
| Power Consumption | ~0.7 A |
| Isolation | Industrial signal isolation (system-level) |
| Mounting | Yokogawa FCS / FCU rack slot installation |
| Operating Temperature | Industrial-grade (typically -10°C to +55°C) |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Weight | ~0.3 kg |
System Role and Function
The EB402-50 acts as the central communication bridge in Yokogawa’s ER Bus architecture. It connects Field Control Stations (FCS) with remote I/O nodes, allowing distributed control over long distances without compromising signal integrity.
Key functional responsibilities include:
-
Coordinating communication between FCU and remote I/O nodes
-
Managing deterministic data transmission across ER Bus networks
-
Supporting redundant configurations for higher system availability
-
Enabling distributed plant architecture with reduced field wiring
In practical deployment, it allows I/O modules to be positioned closer to field instruments, improving signal quality and simplifying plant layout design.
Industrial Applications
This module is widely used in large-scale process automation environments where distributed control is required:
-
Oil & gas production and offshore platforms
-
Petrochemical and refining facilities
-
Power generation plants
-
Chemical processing industries
-
Large-scale continuous manufacturing systems
Its architecture is especially valuable in systems requiring long-distance, noise-resistant communication between control layers and field devices.
Engineering Advantages
The EB402-50 is designed to balance communication speed, reliability, and system scalability in industrial environments. Its ER Bus architecture allows engineers to build flexible distributed systems without excessive wiring complexity.
Key advantages include:
-
High-speed deterministic communication at 10 Mbps
-
Supports up to 32 connected field devices per module
-
Extended transmission distance up to 185 meters
-
Redundant network capability for improved system availability
-
Reduced field wiring complexity through distributed I/O architecture
-
Industrial-grade reliability suitable for continuous operation environments
These characteristics make it a core component in Yokogawa’s distributed control strategy.
