Smart Signal Acquisition for Demanding Industrial Environments

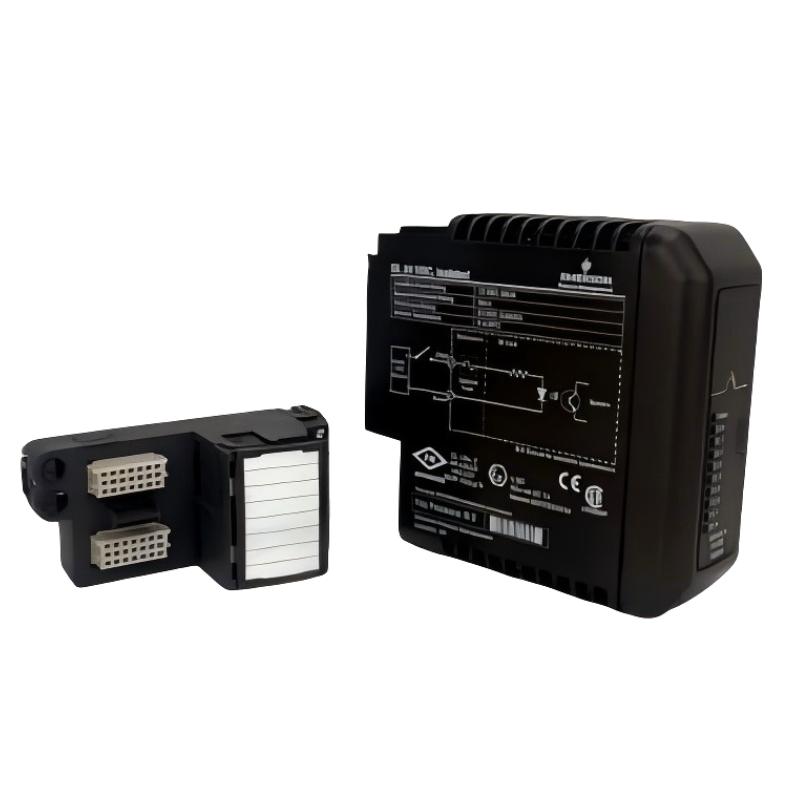

The Emerson VE4001S2T1B2 (KJ3206X1-BA1) Input Module is a high-reliability discrete input solution developed for the DeltaV™ distributed control system. Designed to convert field-level digital signals into accurate control data, this module ensures stable monitoring of critical process conditions.
With its isolated input architecture and industrial-grade durability, it performs consistently in environments where signal integrity, fast response, and long-term reliability are essential. It is widely used in modern automation systems that require precise digital status tracking and seamless system integration.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Discrete Input Module |
| Model | VE4001S2T1B2 / KJ3206X1-BA1 |
| System Compatibility | Emerson DeltaV Distributed Control System |
| Input Channels | 8 channels |
| Input Voltage | 24 VDC (isolated) |
| Local Bus Power | 12 VDC @ 100 mA |
| Field Circuit Power | 24 VDC @ 5 mA per channel |
| Signal Type | Digital / discrete field signals |
| Isolation | Channel-to-system electrical isolation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Shock Resistance | 10 g, 11 ms half-sine |
| Vibration Resistance | 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Dimensions (HxWxD) | Approx. 130 × 100 × 50 mm |
| Weight | Approx. 0.5 kg |
Application Areas
The VE4001S2T1B2 module is designed for industries where reliable digital signal monitoring is essential:
-
Oil & gas production and pipeline monitoring
-
Chemical and petrochemical processing systems
-
Power generation and turbine control
-
Water treatment and utility automation
-
Manufacturing lines and safety interlock systems
Its ability to process high-speed digital signals ensures accurate system feedback in both continuous and batch processes.
Performance Advantages
This module is engineered to deliver consistent input signal acquisition under demanding industrial conditions. Its isolated channel design protects both the control system and field devices from electrical disturbances, improving overall system resilience.
Key advantages include:
-
Fast and accurate signal processing for real-time monitoring
-
Electrical isolation to minimize noise and protect system components
-
Compact modular design for efficient cabinet installation
-
Low power consumption for optimized system efficiency
-
High environmental tolerance for harsh industrial applications
These features make it a dependable choice for engineers building stable and scalable DeltaV automation systems.
Technical FAQs
1. What is the primary function of this module?
It captures discrete digital signals from field devices and transmits them to the control system.
2. How many input channels are available?
It supports 8 isolated digital input channels.
3. What voltage does it operate on?
It uses 24 VDC field input signals.
4. Is it compatible with DeltaV systems?
Yes, it is fully designed for DeltaV DCS integration.
5. Does it include electrical isolation?
Yes, each channel is isolated to protect against interference.
6. What is the operating temperature range?
It operates from -40°C to +70°C.
7. What type of signals can it handle?
Digital ON/OFF signals such as switches, relays, and contact inputs.
8. Is it suitable for harsh environments?
Yes, it is designed with vibration and shock resistance for industrial use.
9. Does it require external power?
It uses both backplane power and field circuit supply.
10. Why is isolation important in this module?
It prevents electrical noise and voltage spikes from affecting system performance.
