High-Capacity Vertical Power Architecture for DeltaV Systems

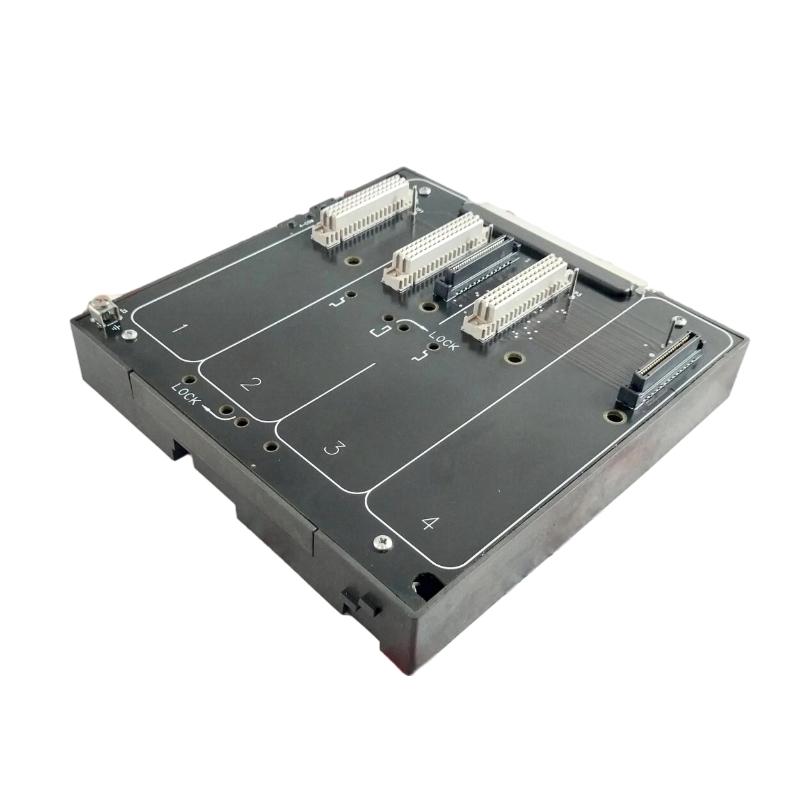

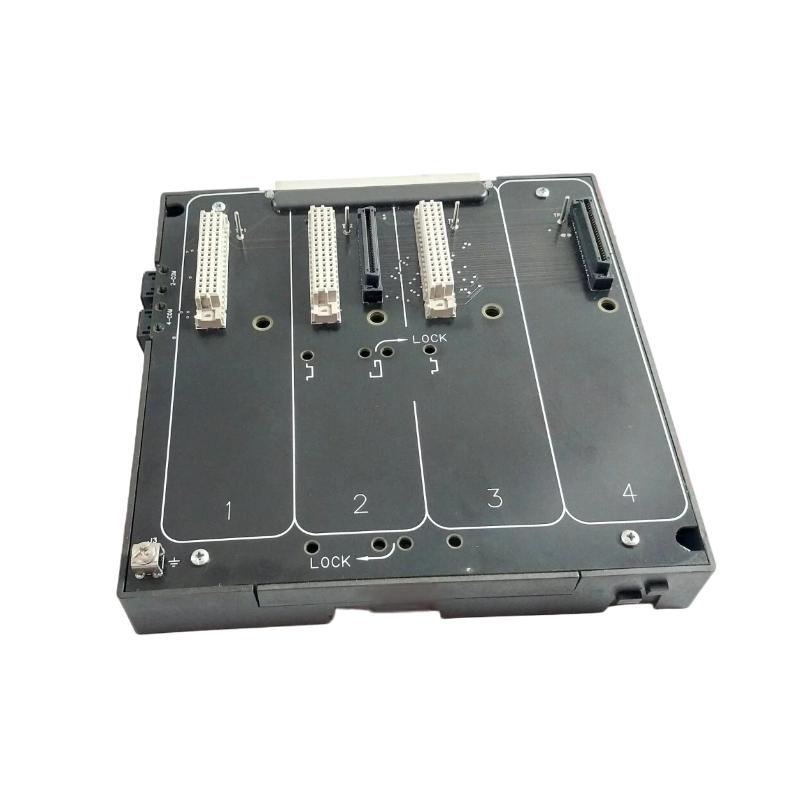

The Emerson VE3055M2 Power Controller is a 4-wide bottom vertical-mount carrier designed for DeltaV™ distributed control systems, providing structured power distribution and controller integration in high-density automation cabinets.
As part of Emerson’s modular control infrastructure, this unit supports stable backplane power delivery and system-level coordination for connected controllers and I/O modules. It is typically used in combination with the VE3055M1 top carrier to form a complete vertical control stack, enabling efficient space utilization and scalable system design.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Power / Controller Carrier |
| Model | VE3055M2 |
| System Compatibility | Emerson DeltaV M-Series / S-Series architectures |
| Configuration | 4-wide bottom vertical-mount carrier |
| Function | Power distribution + controller support interface |
| System Role | Bottom section of vertical carrier stack |
| Power Interface | Integrated system backplane supply |
| Communication Support | Internal DeltaV backplane network |
| Mounting Type | Vertical cabinet mounting |
| Redundancy Support | System-dependent (architecture-based) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (HxWxD) | Approx. 130 × 229 × 110 mm |
| Weight | Approx. 0.8 – 1.5 kg |
Industrial Applications
The VE3055M2 is widely deployed in large-scale automation environments where high-density control architecture is required:
-
Oil & gas production and refining facilities
-
Petrochemical processing plants
-
Power generation and turbine systems
-
Heavy manufacturing automation lines
-
Utility and infrastructure control systems
Its vertical bottom-mount design makes it especially suitable for stacked cabinet configurations where space optimization is critical.
Engineering Strengths and System Value
The VE3055M2 is more than a mounting platform—it is a structural foundation for high-capacity DeltaV control systems. Its design ensures stable power distribution and seamless integration with controller modules installed in the upper carrier section.
Key engineering advantages include:
-
Optimized cabinet density with 4-wide vertical architecture
-
Stable system power distribution across connected modules
-
Clean modular separation between upper and lower control layers
-
Reduced wiring complexity through integrated backplane design
-
Industrial-grade durability for harsh operating environments
When paired with VE3055M1, it forms a complete vertical control stack that enhances scalability and system organization.
Technical FAQs
1. What is the main function of VE3055M2?
It serves as the bottom vertical carrier for power distribution and controller integration in DeltaV systems.
2. Is it used alone or with other modules?
It is typically used with VE3055M1 as part of a full vertical stack.
3. Does it supply power directly to controllers?
It distributes system backplane power to connected modules.
4. What type of mounting does it use?
Vertical rack or control cabinet installation.
5. Can it be used in redundant systems?
Yes, depending on overall system architecture.
6. Is it compatible with all DeltaV controllers?
It is designed for compatible M-series/S-series DeltaV systems.
7. What is its role in system architecture?
It acts as the lower structural and power foundation of a vertical control stack.
8. Does it require external wiring between modules?
Minimal wiring is needed due to integrated backplane connectivity.
9. What industries commonly use it?
Oil & gas, chemical, power generation, and manufacturing industries.
10. Why use a vertical carrier system?
To maximize cabinet space while improving modular system organization.
