A Controller Built for Scalable Process Intelligence

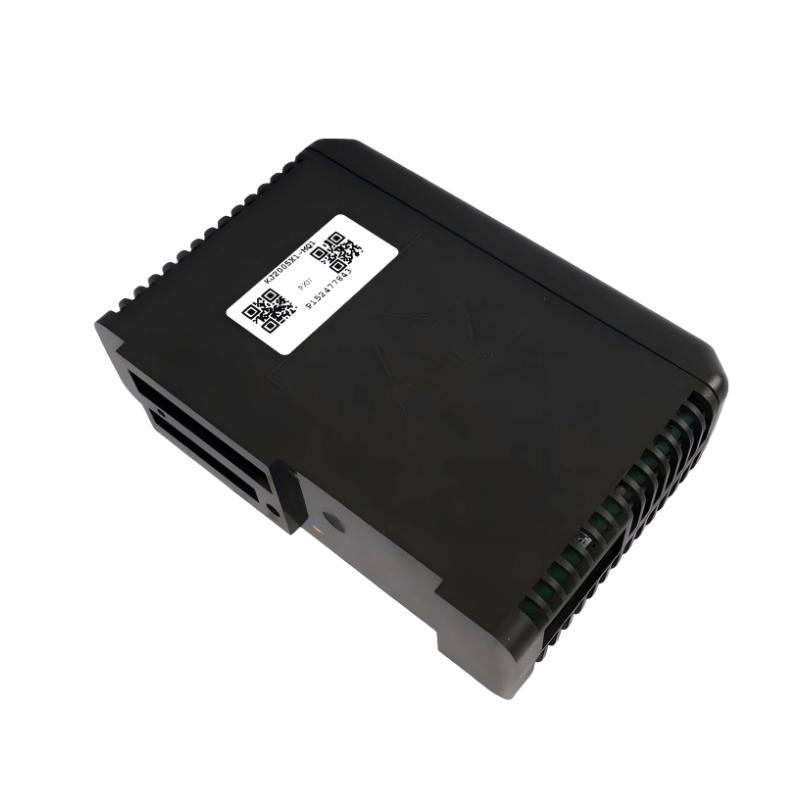

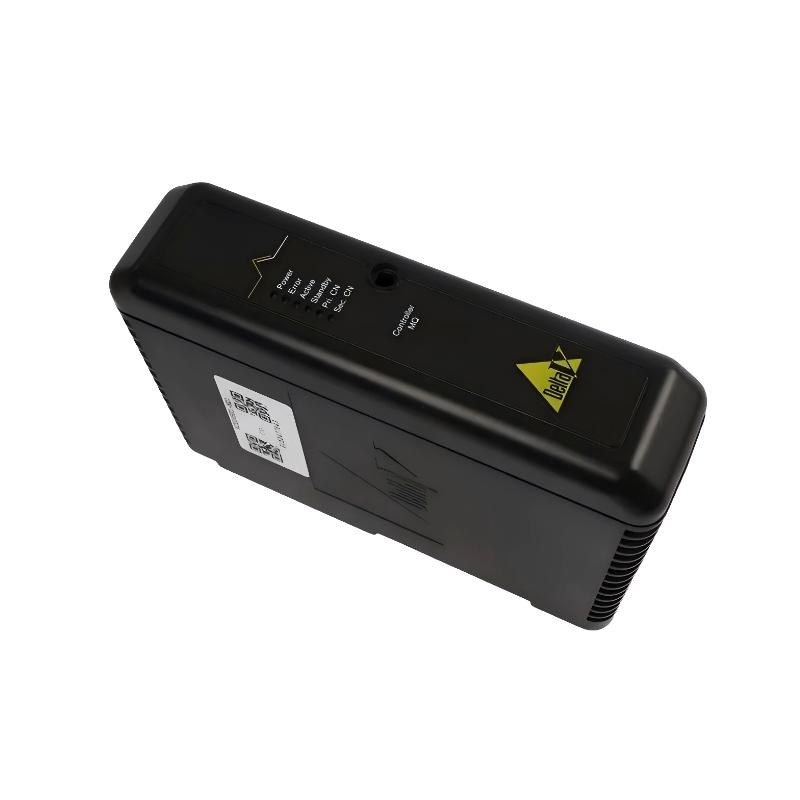

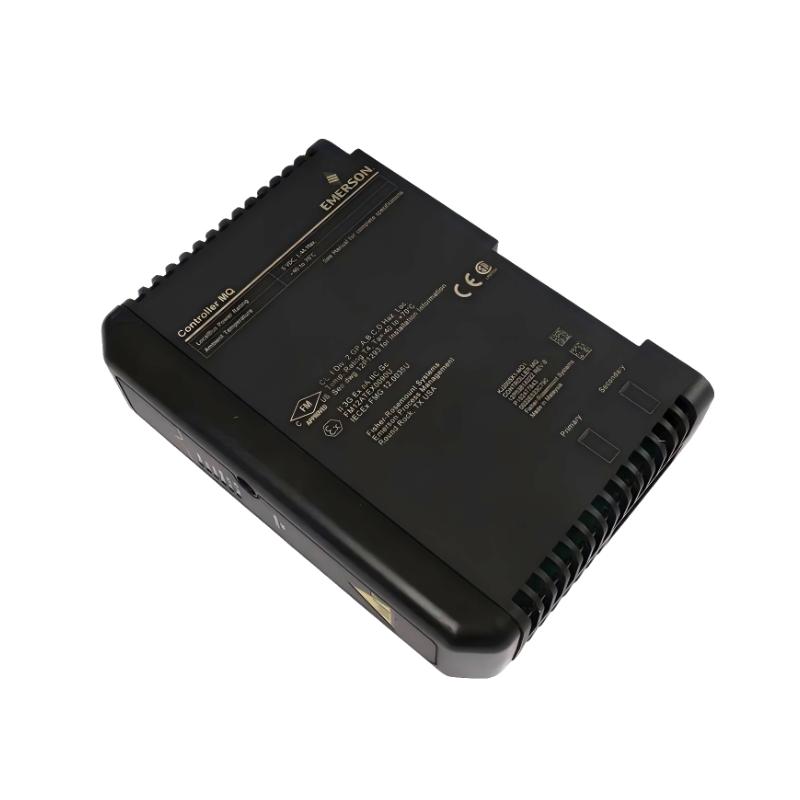

The Emerson VE3008 KJ2005X1-MQ1 Controller Module represents a robust and highly adaptable control solution within the DeltaV™ distributed control system. Designed to bridge field devices and control networks seamlessly, this MQ controller delivers efficient process execution, real-time data handling, and stable communication across industrial environments.
Engineers value this module not only for its processing capability, but also for its ability to simplify system expansion and migration from legacy platforms—making it a strategic investment for evolving automation infrastructures.
Technical Specifications Breakdown
| Parameter | Specification |
|---|
| Product Type | MQ Controller Module |
| Model | VE3008 / KJ2005X1-MQ1 |
| System Compatibility | DeltaV Distributed Control System |
| User Memory | 48 MB |
| Power Supply | 5 VDC via system carrier |
| Power Consumption | 5 W typical, 7 W max |
| Communication Interfaces | Dual RJ-45 Ethernet (Primary/Redundant) |
| Network Speed | 100 Mbps (Full Duplex) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| I/O Capability | Supports analog & digital I/O integration |
| Mounting | Power/Controller Carrier slot |
| Dimensions (HxWxD) | Approx. 125 × 100 × 35 mm |
| Weight | Approx. 0.33 – 0.50 kg |
Typical Deployment Scenarios
The VE3008 controller is widely implemented in industries where continuous operation and precise control are essential:
-
Oil & gas exploration and refining
-
Chemical and petrochemical plants
-
Power generation and turbine control
-
Water and wastewater treatment facilities
-
Pulp & paper and heavy manufacturing
Its ability to manage I/O communication and execute control strategies makes it a central component in distributed automation architectures.
Functional Advantages in Practice
What distinguishes the VE3008 is its balance between processing efficiency and system flexibility. It acts as both a control engine and communication hub, enabling synchronized operations across complex process systems.
The controller supports automatic device recognition and self-addressing within the DeltaV network, reducing engineering time and minimizing configuration errors.
Its redundant Ethernet capability enhances reliability, while built-in data protection ensures that configuration changes and operational data are consistently preserved. The module also supports advanced control strategies and batch operations, making it suitable for high-level process optimization.
Additionally, its compatibility with legacy system migration (such as PROVOX or RS3) allows facilities to modernize without full infrastructure replacement—an important advantage in cost-sensitive upgrades.
Technical FAQs
1. What is the primary function of the VE3008 module?
It manages control strategies and communication between field devices and the DeltaV control network.
2. Does it support redundant networks?
Yes, it includes dual Ethernet ports for primary and redundant communication.
3. What type of memory does it offer?
It provides approximately 48 MB of user-configurable memory.
4. Can it operate in harsh environments?
Yes, it is designed for industrial environments with wide temperature tolerance.
5. Is it suitable for hazardous areas?
Yes, certain versions support Zone 2/Class 1 Div 2 installations.
6. How fast is its communication speed?
It supports up to 100 Mbps full-duplex Ethernet.
7. Can it integrate with existing DeltaV systems?
Yes, it is fully compatible with DeltaV architecture and supports system expansion.
8. Does it support advanced control strategies?
Yes, including batch control and predictive control functions.
9. What happens during power failure?
It supports automatic restart with preserved configuration data.
10. Is migration from legacy systems supported?
Yes, it supports migration from systems like PROVOX and RS3.
