Introduction

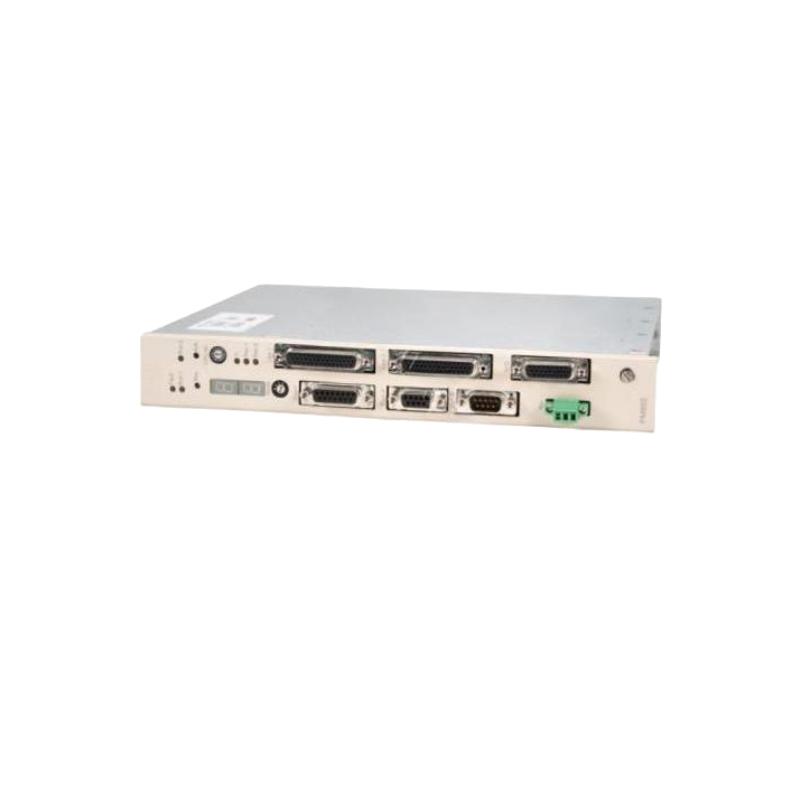

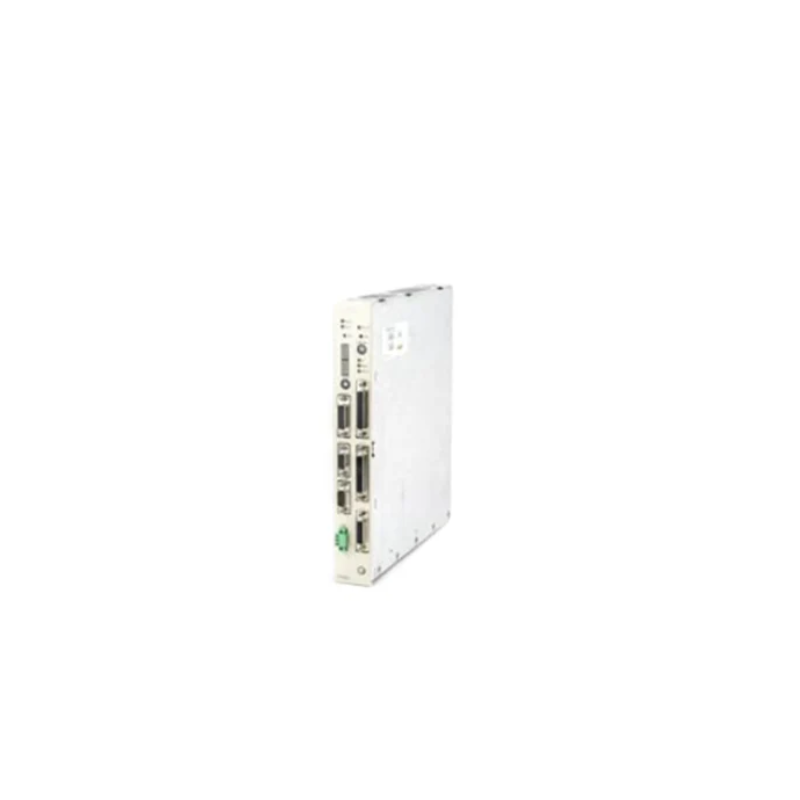

The ABB PM645A (3BDS005799R1) CPU Processor Unit is a high-availability industrial controller module designed for ABB Advant Master and related distributed control system (DCS) architectures. It is engineered for redundant and mission-critical automation environments where continuous operation, fault tolerance, and real-time process control are essential.
Built on ABB’s proven processor platform, the PM645A integrates high-speed processing, redundancy management, and system communication capabilities into a single control unit, making it suitable for complex industrial processes such as power generation, oil & gas, and large-scale manufacturing systems.
Technical Specifications
| Parameter | Details |
|---|
| Model | PM645A |
| Part Number | 3BDS005799R1 |
| Manufacturer | ABB |
| Module Type | CPU / Processor Unit |
| System Family | ABB Advant Controller / AC160 platform |
| Processor Architecture | Industrial-grade PowerPC-based CPU |
| Redundancy Support | Built-in redundancy voter system |
| Communication | High-speed system link |
| I/O Capacity | Supports distributed I/O systems |
| Operating Voltage | 24 V DC system supply |
| Memory | Non-volatile + runtime system memory |
| Functionality | Process control, logic execution, system coordination |
| Operating Temperature | 0°C to +55°C |
| Mounting Type | Rack-mounted control system module |
| Weight | Approx. 0.2 – 2.0 kg (system-dependent configuration) |
Applications
The ABB PM645A CPU Processor Unit is widely used in large-scale industrial automation systems requiring high reliability and continuous process control:
-
Power plant control systems (thermal, hydro, and nuclear auxiliary systems)
-
Oil & gas processing and pipeline automation
-
Chemical and petrochemical production plants
-
Pulp, paper, and continuous manufacturing lines
-
Heavy industrial process control systems
-
Distributed control system (DCS) installations
Its redundancy capability makes it particularly suitable for safety-critical and uninterrupted production environments.
Advantages
The PM645A is built around a redundant processing architecture, allowing a secondary processor to take over instantly in case of failure. This significantly improves system availability and reduces downtime risk in mission-critical operations.
Its high-speed communication link ensures fast synchronization between CPU, I/O modules, and other system controllers, enabling deterministic control performance even in complex automation networks.
Another key advantage is its tight integration with ABB Advant systems, allowing seamless expansion with distributed I/O modules and field devices without major system redesign. This modularity improves scalability and simplifies long-term system upgrades.
In addition, the module is engineered for industrial robustness, supporting continuous operation in demanding environments with stable thermal and electrical performance.
Technical FAQs
1. What is the main function of the PM645A?
It acts as a central CPU controlling industrial processes in ABB DCS systems.
2. Does it support redundancy?
Yes, it includes a built-in redundancy voter for high availability operation.
3. What systems is it used in?
It is used in ABB Advant Controller and AC160-based automation systems.
4. What is its processor type?
It uses an industrial PowerPC-based processing architecture.
5. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial process control environments.
6. What kind of communication does it support?
High-speed internal system communication links for module synchronization.
7. Can it handle distributed I/O systems?
Yes, it integrates with ABB distributed I/O architectures.
8. What industries use this CPU module?
Power generation, oil & gas, chemical, and heavy manufacturing industries.
9. Is it modular or standalone?
It is modular and operates within a rack-based control system.
10. What is its key advantage?
High availability through redundancy and stable real-time control performance.
