Introduction

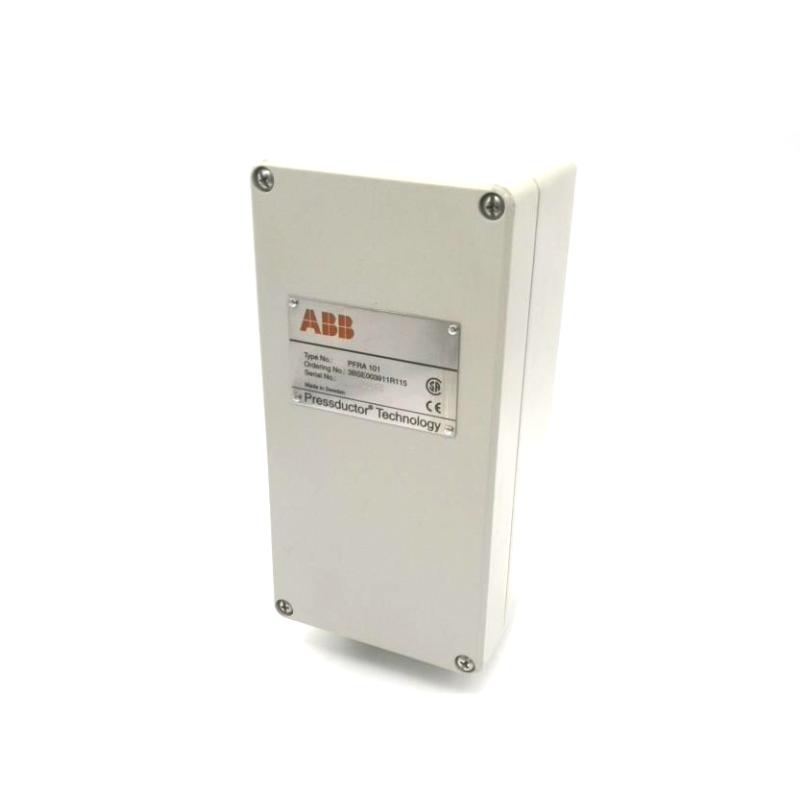

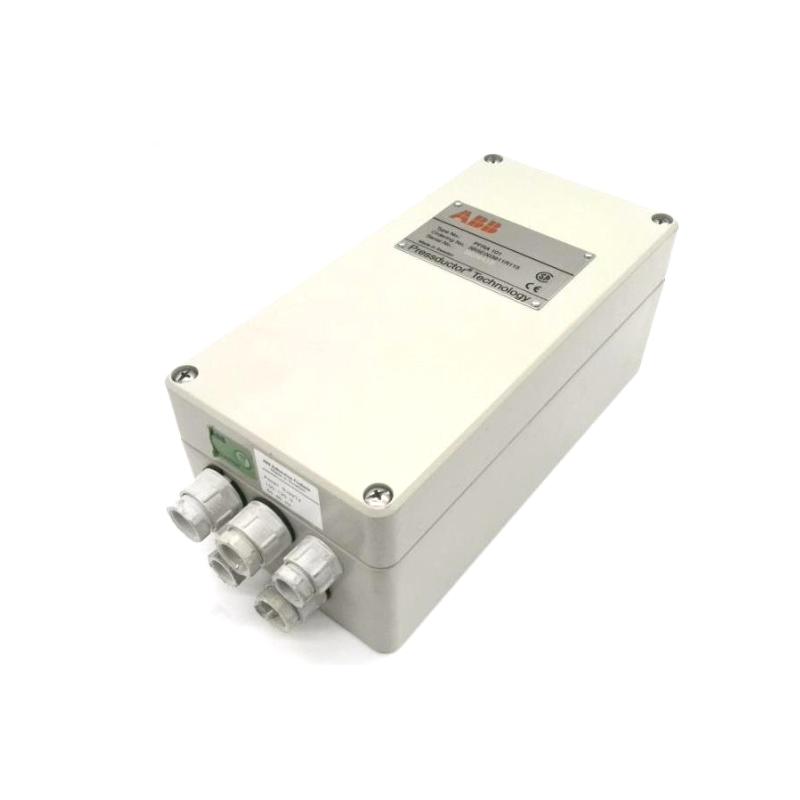

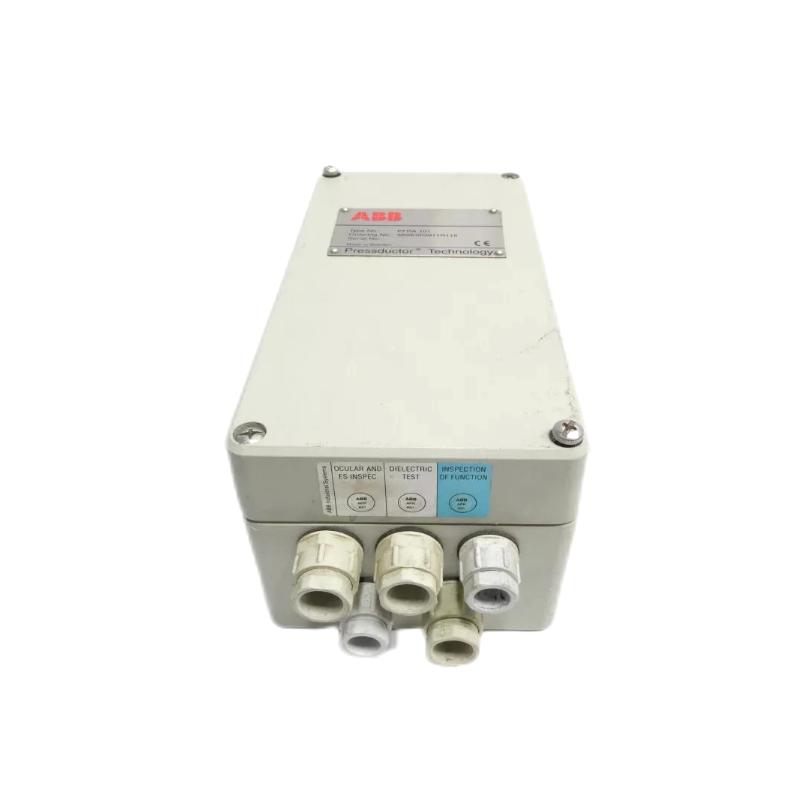

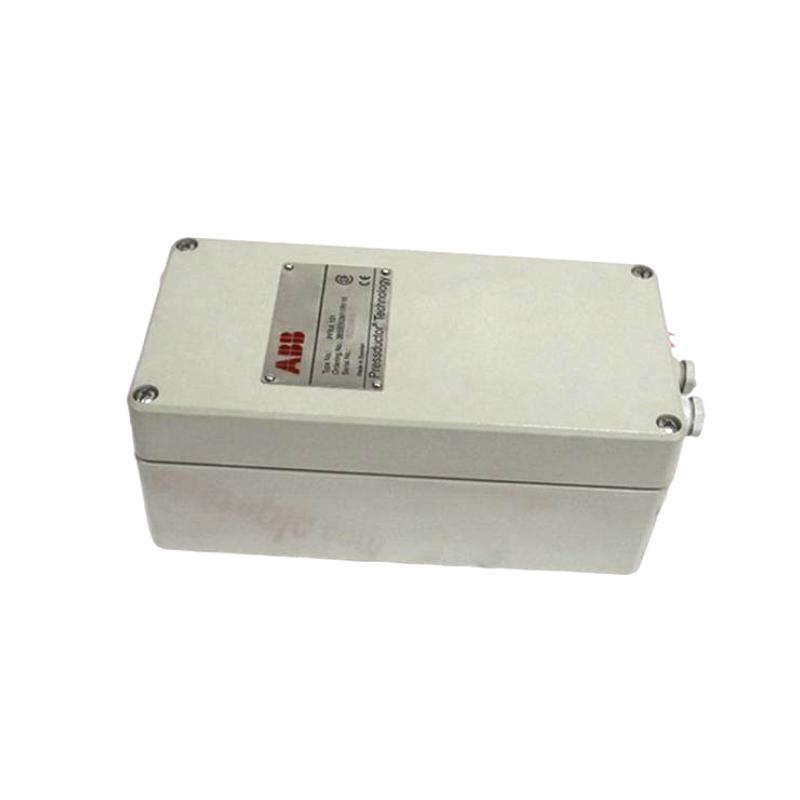

The ABB PFRA101 (3BSE003911R230) Press Control Unit is an industrial-grade controller designed for high-precision force and press regulation within ABB’s Pressductor-based measurement systems. It acts as the central processing element that interprets force signals from load cells and converts them into stable, real-time control actions for hydraulic or mechanical press systems.
Built for heavy-duty industrial environments, this unit is widely used in applications where consistent pressing force, safety interlocking, and process repeatability are critical. It is especially valued in metal forming and high-load manufacturing lines where precision directly impacts product quality.
Technical Specifications
| Parameter | Details |
|---|
| Model | PFRA101 |
| Order Number | 3BSE003911R230 |
| Manufacturer | ABB |
| Product Type | Press Control Unit / Force Control Module |
| System Compatibility | ABB Pressductor Measurement Systems |
| Supply Voltage | 100–120 V AC ±10% |
| Power Consumption | ≤ 25 VA |
| Input Current | Up to 10 A max |
| Output Power | Up to 2 kW (system dependent) |
| Isolation | 2.5 kV AC galvanic isolation |
| Control Method | Closed-loop press/force regulation |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% RH (non-condensing) |
| Weight | ~2.0–3.8 kg |
| Mounting | Industrial cabinet / rack installation |
Applications
The ABB PFRA101 is widely deployed in industrial systems requiring controlled force application and press automation:
-
Metal stamping and forming presses
-
Hydraulic press control systems
-
Industrial molding and shaping machines
-
Assembly line force regulation stations
-
Material compression and testing systems
-
Heavy manufacturing automation lines
Its tight integration with Pressductor sensors makes it especially effective in processes where force accuracy determines dimensional quality and structural integrity.
Advantages
The PFRA101 is designed for high-stability closed-loop press control, continuously adjusting output based on real-time feedback from force measurement sensors. This ensures consistent pressing force even under changing load conditions.
A key strength is its high electrical isolation (2.5 kV AC), which enhances system safety and protects sensitive control electronics from industrial electrical disturbances.
Its robust industrial design allows reliable operation under vibration, temperature variation, and humidity, making it suitable for continuous-duty manufacturing environments. The unit also supports stable signal conditioning and fast response behavior, improving overall press accuracy and repeatability.
From a system perspective, it enables seamless integration into ABB Pressductor architectures, reducing engineering complexity while improving process transparency and long-term reliability
Technical FAQs
1. What is the main function of the PFRA101?
It controls and regulates pressing force in industrial systems using sensor feedback.
2. What systems is it compatible with?
It works with ABB Pressductor force measurement and tension systems.
3. What is the input voltage?
Typically 100–120 V AC ±10%.
4. What is the power consumption?
Approximately ≤ 25 VA.
5. Does it support force feedback control?
Yes, it operates in a closed-loop system using force sensor inputs.
6. What is its isolation rating?
It provides 2.5 kV AC electrical isolation.
7. What industries use this module?
Metal forming, manufacturing, material processing, and industrial automation.
8. Is it suitable for harsh environments?
Yes, it is designed for industrial conditions with vibration and temperature variation.
9. Can it run continuously?
Yes, it is built for continuous-duty industrial operation.
10. What is its main advantage?
High-precision force control with strong system reliability and protection.
