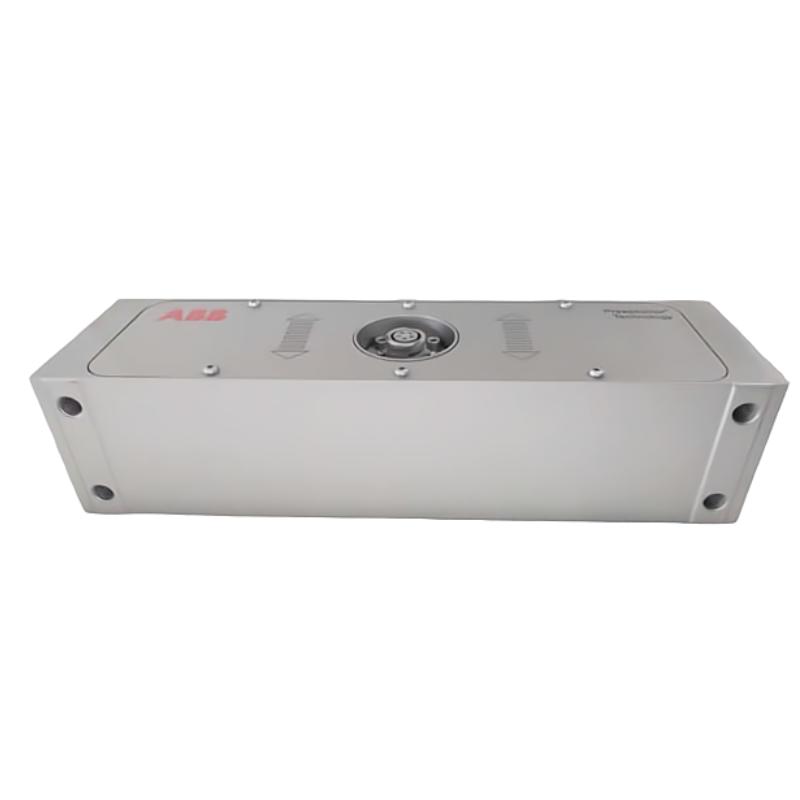

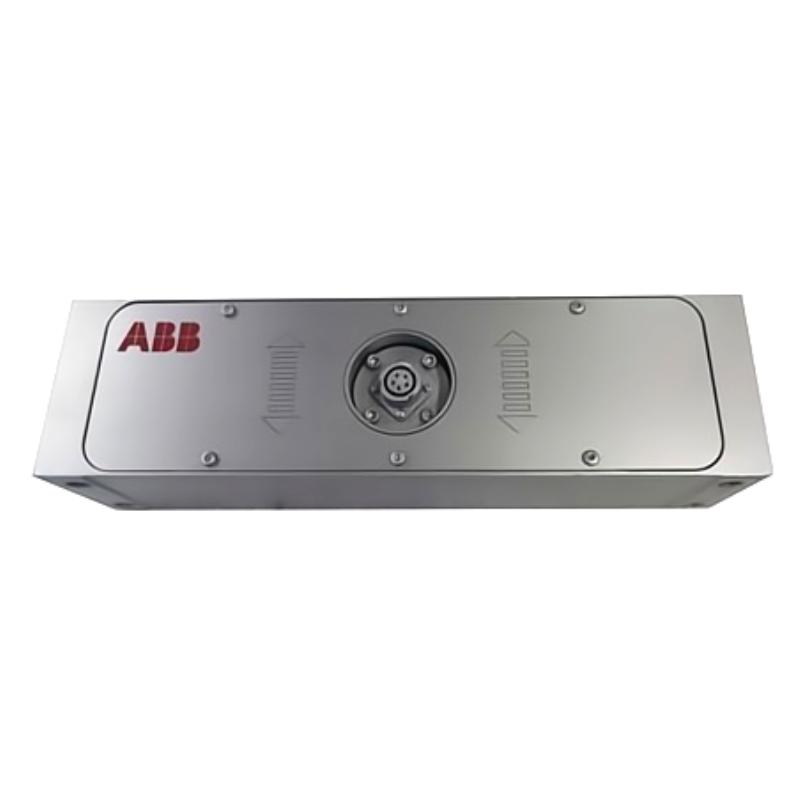

The ABB PFCL201CE 3BSX804008-108 Load Cell is part of ABB’s advanced Pressductor® pillow block series, engineered for highly accurate force and tension measurement in demanding industrial environments. Designed with a solid stainless-steel body and integrated sensing technology, it delivers exceptional durability and measurement stability even under heavy mechanical stress.
This model is particularly optimized for vertical force measurement in strip tension systems, making it a preferred solution in industries such as metal processing, paper production, and continuous manufacturing lines where precision and reliability are essential.
Technical Specifications
| Parameter | Details |
|---|
| Model | PFCL201CE |
| Part Number | 3BSX804008-108 |
| Manufacturer | ABB |
| Module Type | Load Cell (Pressductor Pillow Block) |
| Measuring Direction | Vertical force |
| Nominal Load Range | 5 kN / 10 kN / 20 kN / 50 kN |
| Extended Load Capacity | Up to 75 kN (variant dependent) |
| Accuracy Class | ±0.5% |
| Repeatability | < ±0.05% |
| Overload Capacity | Up to 1000% of nominal load |
| Material | Stainless steel (single-piece construction) |
| Technology | Pressductor® (magnetoelastic sensing) |
| Cable Type | Fixed cable with protective hose |
| Operating Temperature | Industrial standard range |
| Mounting | Pillow block / bearing-mounted installation |
| Dimensions | Approx. 342 × 259 × 74 mm (variant dependent) |
| Weight | Approx. 3.0 – 3.6 kg |
Applications
The PFCL201CE is widely used in industrial processes where continuous force or tension monitoring is critical. Typical applications include:
-
Strip tension measurement in steel and aluminum processing lines
-
Paper and pulp manufacturing systems (web tension control)
-
Galvanizing and pickling lines
-
Continuous rolling mills
-
Coil processing and winding systems
Its ability to measure vertical force components with high accuracy makes it especially effective in systems where indirect tension measurement is required.
Advantages
The PFCL201CE stands out for its exceptional mechanical robustness and measurement reliability. Its one-piece stainless steel construction provides superior resistance to overload, shock, and vibration, making it suitable for harsh industrial environments.
The integration of ABB’s Pressductor® technology ensures stable and drift-free measurements over time, even under fluctuating temperatures and continuous operation. Each unit is factory-calibrated and temperature-compensated, reducing commissioning time and improving long-term accuracy.
Another key advantage is its fixed cable design with protective hose, which enhances durability in environments exposed to mechanical wear or contaminants. This makes it a reliable choice for heavy-duty applications such as steel mills and processing lines.
Overall, it offers a combination of durability, precision, and low maintenance—ideal for mission-critical tension measurement systems.
Technical FAQs
1. What is the primary function of the PFCL201CE load cell?
It measures vertical force for tension monitoring in industrial processes.
2. What technology does it use?
It uses ABB Pressductor® magnetoelastic sensing technology.
3. What load ranges are available?
Typical nominal ranges include 5 kN, 10 kN, 20 kN, and 50 kN.
4. Is it suitable for harsh environments?
Yes, it is designed for high resistance to shock, dust, and corrosion.
5. What is the accuracy level?
It provides approximately ±0.5% accuracy with excellent repeatability.
6. How is it installed?
It is mounted under bearing housings in a pillow block configuration.
7. Does it require calibration after installation?
It is factory-calibrated, but system-level calibration is recommended.
8. What industries commonly use this module?
Steel processing, paper manufacturing, and continuous production lines.
9. What makes the CE version different?
It includes a fixed connection cable with protective hose.
10. Can it handle overload conditions?
Yes, it supports overloads up to 1000% of nominal capacity.
