GE IC697MDL753 Discrete Output Module

Brand:GE Fanuc PLC
Item No.:IC697MDL753
Product Origin:USA
Product Dimensions:320 × 140 × 80 mm
Product Weight:2.0 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

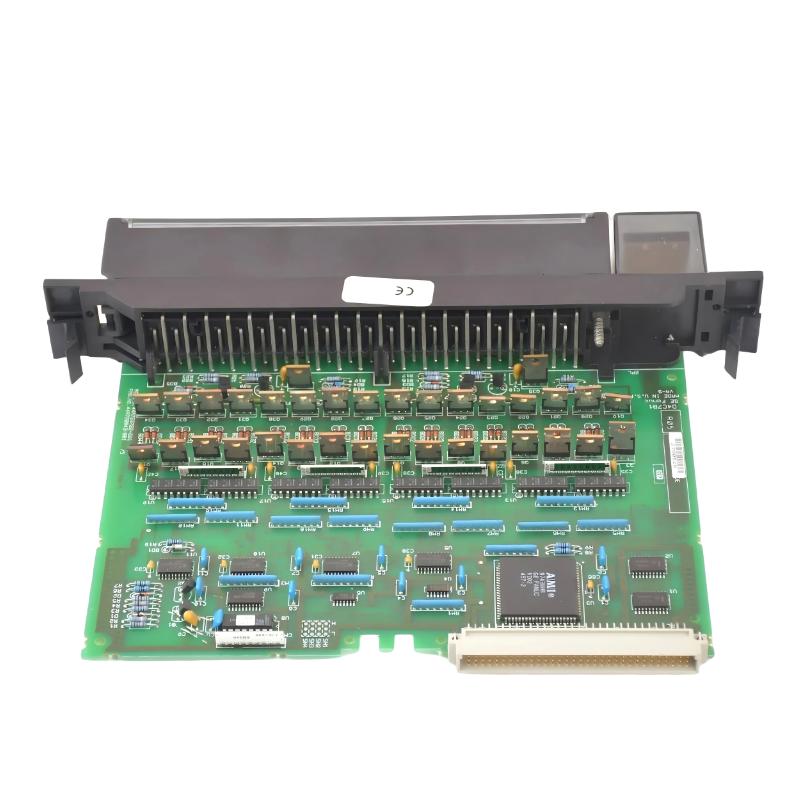

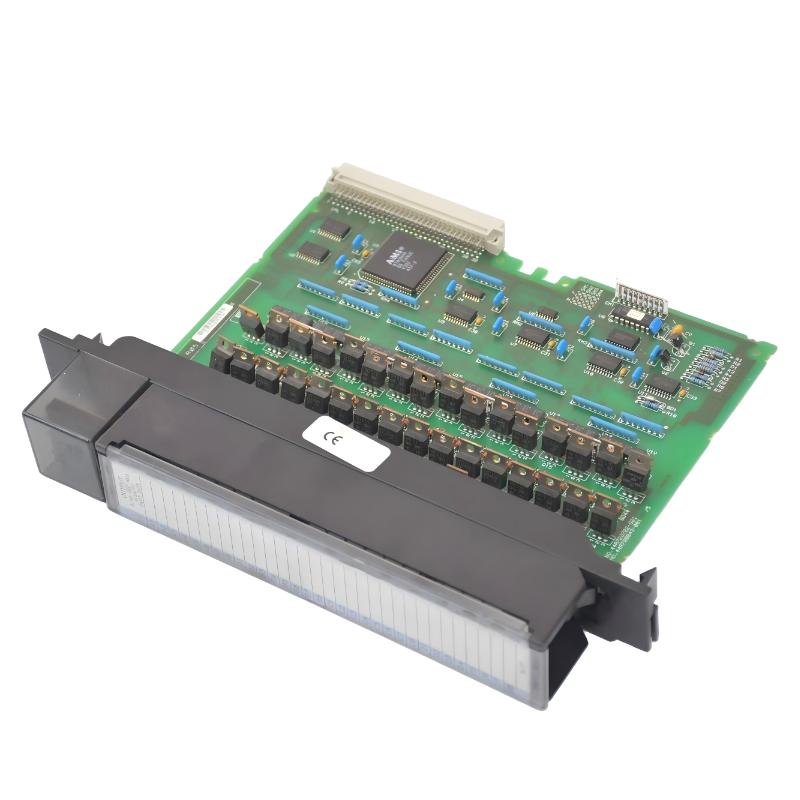

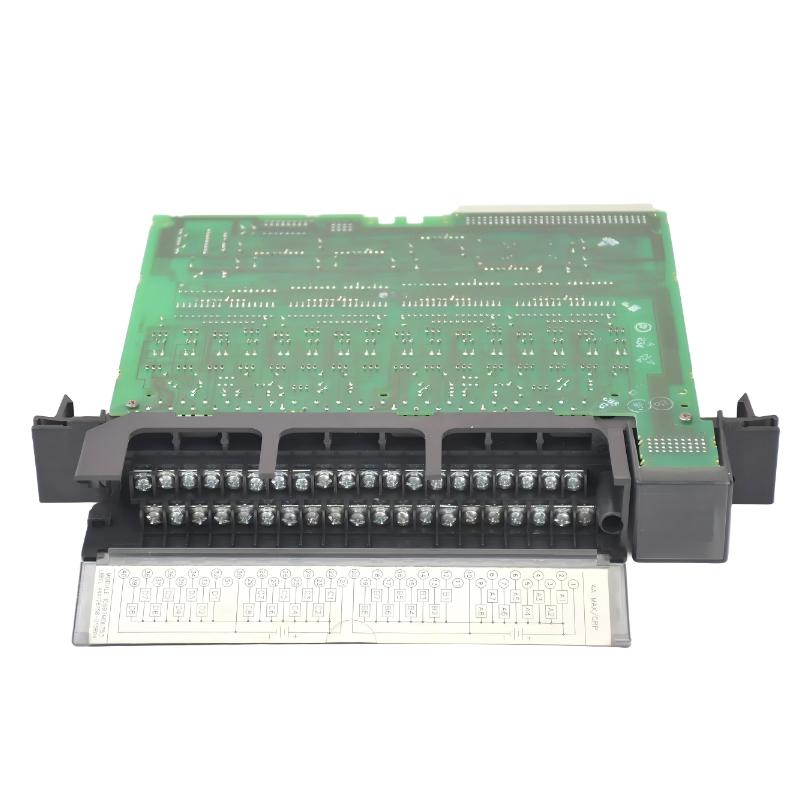

IC697MDL753-4IC697MDL753-3IC697MDL753-1IC697MDL753-2

Product Overview

The GE IC697MDL753 Discrete Output Module is a high-density industrial control solution designed for the Series 90-70 PLC platform. Built for stable switching performance and strong electrical isolation, it delivers reliable DC output control for complex automation systems. With 32 channels in a compact rack format, it is engineered for applications that demand precision, scalability, and continuous operational stability in harsh industrial environments.

Technical Specifications

ParameterDetails
ModelIC697MDL753
SeriesSeries 90-70
Module TypeDiscrete Output Module
Output Points32 (2 groups of 16)
Logic TypeNegative / Sinking Output
Rated Voltage5 V DC or 10–60 V DC
Output Voltage Range5 – 60 V DC
Output Current0.5 A per point
Group Current4 A per group
Inrush CurrentUp to 10× rated current
Response Time≤ 0.5 ms (ON/OFF)
Isolation Voltage1500 V (field to logic), 250 V (between groups)
Backplane Current~0.25 A
Power Consumption~260 mA @ 5 V DC
DimensionsApprox. 320 × 140 × 80 mm
WeightApprox. 2.0 kg
MountingRack-mounted (Series 90-70 baseplate)


Industrial Applications

The IC697MDL753 is widely used in large-scale automation environments where high channel density and fast response are essential. It supports control of solenoids, relays, indicator lamps, and industrial actuators across manufacturing lines, power generation systems, and process control facilities. Its strong isolation design also makes it suitable for electrically noisy environments such as heavy machinery plants and distributed control systems.


Key Advantages

This module stands out for its flexible voltage support and robust output architecture. It can handle both low-level TTL signals and higher DC load conditions, making it highly adaptable across mixed-voltage industrial setups. The dual isolated groups improve system safety and reduce interference between load zones, while the ultra-fast 0.5 ms response ensures real-time control accuracy.

Its high inrush capability allows it to drive inductive loads without performance degradation, which is critical in real-world automation where motors and coils frequently cycle on and off. LED indicators on each channel also provide immediate diagnostics, improving maintenance efficiency and reducing downtime.


Technical FAQs

1. How many outputs does the module provide?
It offers 32 discrete output points divided into two isolated groups of 16.

2. What voltage range does it support?
It supports a wide range from 5 V DC up to 60 V DC.

3. What is the current rating per output?
Each channel supports up to 0.5 A output current.

4. What is the response speed?
Typical ON/OFF response time is 0.5 ms or less.

5. Does it support inductive loads?
Yes, it supports high inrush current loads suitable for inductive devices.

6. What type of logic does it use?
It uses negative logic (sinking output configuration).

7. How is isolation implemented?
It provides 1500 V isolation between field and logic circuits.

8. How are outputs grouped?
Outputs are split into two isolated groups of 16 channels each.

9. What is the backplane current requirement?
Approximately 0.25 A from the PLC backplane.

10. Is it compatible with other PLC systems?
It is specifically designed for GE Series 90-70 PLC architectures.
