Industrial Applications
This module is ideally suited for automation systems requiring dependable discrete output control. It is commonly deployed in manufacturing plants, energy facilities, water treatment systems, and process industries. Its ability to drive inductive loads makes it particularly effective in controlling valves, contactors, and indicator systems across distributed control architectures.
Performance Highlights

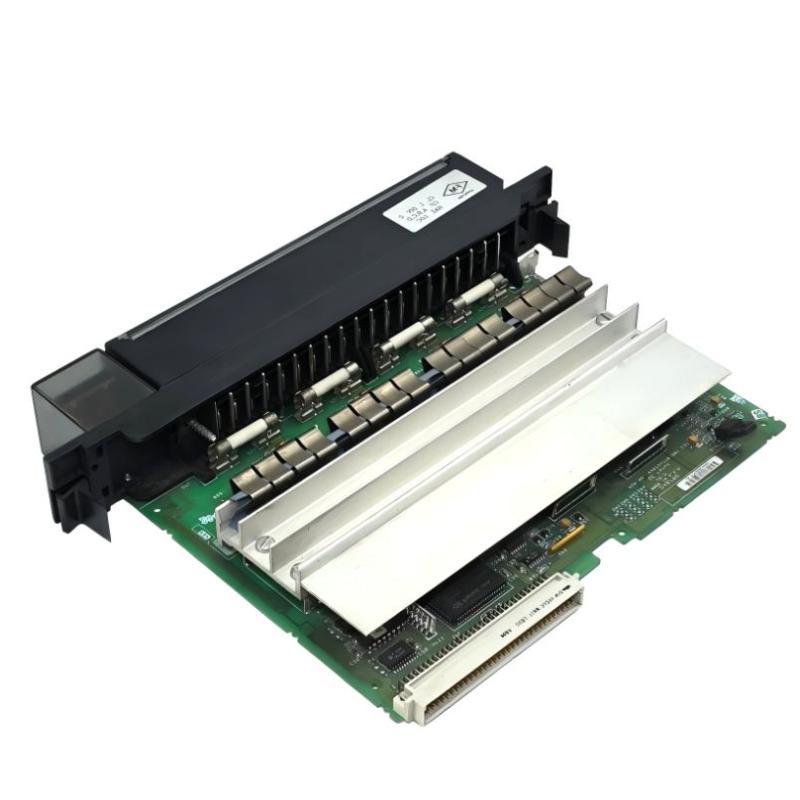

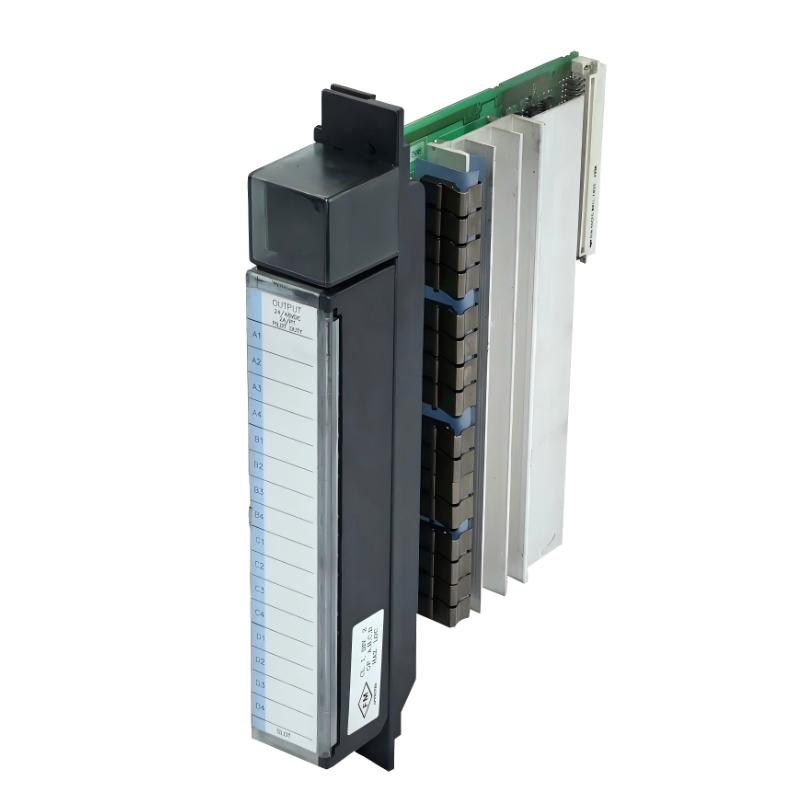

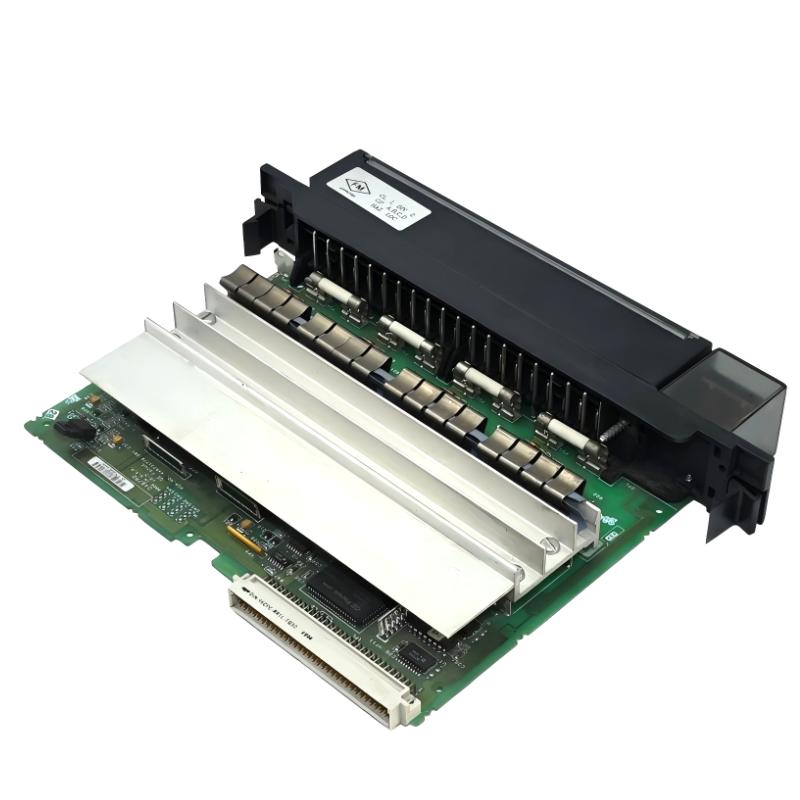

What sets the IC697MDL740 apart is its balance of power and precision. Each output channel is engineered to handle demanding loads with consistent performance, while grouped fusing enhances protection and system safety. The module’s fast 2 ms response ensures real-time control, making it suitable for high-speed automation tasks.
Its high inrush current capability allows it to handle startup surges without compromising reliability, which is essential in applications involving inductive equipment. Additionally, integrated LED indicators provide immediate visual diagnostics, reducing maintenance time and improving operational efficiency.
Technical FAQs
1. How many outputs does this module support?
It provides 16 discrete outputs grouped into four isolated sections.
2. What voltage range does it operate in?
It operates within a 20 to 60 V DC range, typically rated at 24/48 V DC.
3. What is the current capacity per channel?
Each output supports up to 2 A continuous current.
4. Is the module protected against overload?
Yes, each group includes a 10 A fuse for protection.
5. Can it handle inductive loads?
Yes, its high inrush capacity makes it suitable for inductive devices like solenoids and relays.
6. What is the switching speed?
The module features a fast response time of approximately 2 milliseconds.
7. Does it require manual configuration switches?
No, configuration is handled via software without DIP switches.
8. What diagnostic features are included?
LED indicators display output status and fuse conditions for easy monitoring.
9. Is isolation provided between outputs?
Yes, outputs are grouped with electrical isolation for improved safety.
10. What systems is it compatible with?
It is designed for GE Series 90-70 PLC systems.
