Introduction — Stable Analog Control for High-Precision Industrial Systems

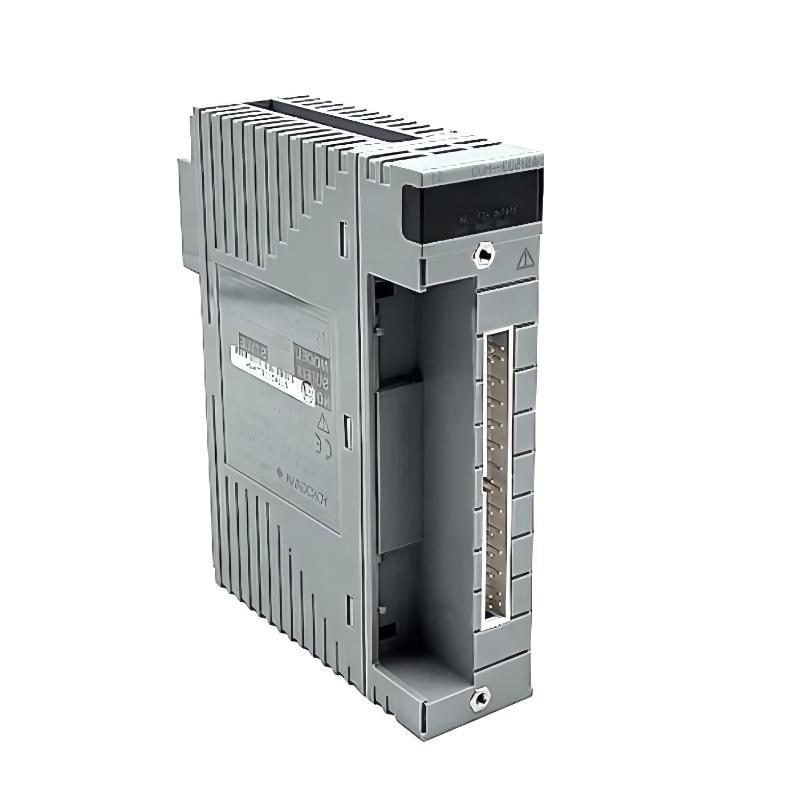

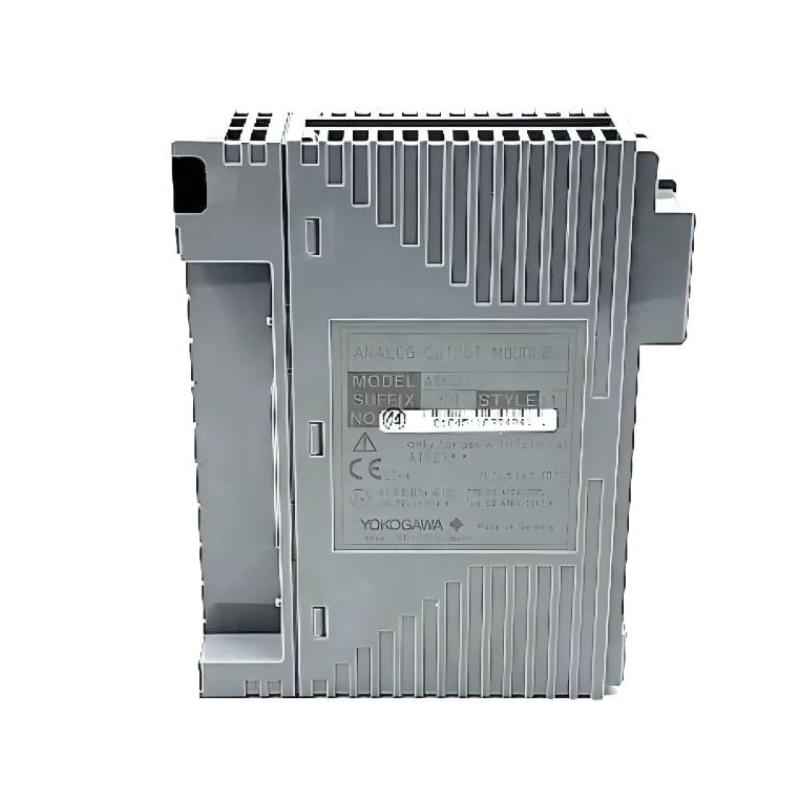

The Yokogawa ASI533-S00 S1 Analog Output Module is a high-reliability control component designed for advanced process automation systems requiring accurate and stable analog signal generation. As part of Yokogawa’s distributed control and safety ecosystem, this module converts control logic into precise analog outputs used to regulate valves, actuators, and other final control elements in continuous industrial processes.
The S1 version typically refers to an enhanced configuration variant used in safety-oriented or system-specific deployments, ensuring consistent performance in both standard and mission-critical environments. Its design emphasizes signal integrity, electrical isolation, and long-term operational stability.
Technical Specifications
| Parameter | Specification |
|---|
| Module Type | Analog Output Module |
| Model Variant | ASI533-S00 S1 |
| Output Channels | 8 isolated channels |
| Output Signal | 4–20 mA DC (standard industrial loop) |
| Maximum Output Current | ~23 mA per channel |
| Load Resistance | 0–750 Ω (typical at 20 mA) |
| Resolution | 16-bit precision (system dependent) |
| Accuracy | ±0.1% full scale (typical configuration) |
| Update Cycle | ~10 ms per channel |
| Response Time | ~100 ms |
| Isolation Voltage | Up to 1500 V AC |
| Power Supply | 24 V DC system supply |
| Power Consumption | ~6 W typical |
| Operating Temperature | -10°C to +60°C (varies by system design) |
| Dimensions (H × W × D) | 130 mm × 107.5 mm × 32.8 mm |
| Weight | ~0.3–0.5 kg |
Applications — Engineered for Critical Process Execution
The ASI533-S00 S1 is widely used in industries where precise analog output control directly impacts process stability and product quality:
-
Oil & gas refining and pipeline control systems
-
Petrochemical and chemical processing plants
-
Power generation and turbine control loops
-
Water treatment and desalination systems
-
Pharmaceutical and fine chemical manufacturing
-
Distributed Control Systems (DCS) and safety instrumented systems
It is particularly effective in applications requiring smooth modulation of control valves and actuators under continuous operation.
Advantages — Enhanced Stability with Industrial-Grade Precision
The ASI533-S00 S1 stands out due to its combination of precision engineering and operational resilience:
-
High-accuracy analog output for fine process control
-
Strong channel-to-channel isolation reduces electrical interference
-
Stable long-term signal performance under continuous load
-
Fast update cycle supports responsive control loops
-
Compact modular design simplifies system integration
-
Reliable operation in electrically noisy industrial environments
-
Compatible with Yokogawa DCS and safety architectures
These characteristics make it a dependable choice for engineers prioritizing system uptime and control accuracy.
Technical FAQs
1. What is the main function of the ASI533-S00 S1 module?
It generates precise analog output signals to control field devices such as valves and actuators.
2. How many output channels does it provide?
It supports 8 individually isolated analog output channels.
3. What signal type does it output?
Standard 4–20 mA DC current loop signals.
4. What does the “S1” version indicate?
It typically refers to a configuration variant used in specific system or safety-oriented setups.
5. What is the accuracy level?
Around ±0.1% full-scale depending on system calibration.
6. Is the module electrically isolated?
Yes, each channel is isolated to ensure stable and interference-free operation.
7. What is the typical response time?
Approximately 100 milliseconds.
8. What systems is it compatible with?
Yokogawa CENTUM VP and related distributed control platforms.
9. What is the operating temperature range?
Typically -10°C to +60°C depending on installation conditions.
10. What is the weight of the module?
Approximately 0.3–0.5 kg.
