Introduction — High-Precision Signal Acquisition for Industrial Intelligence

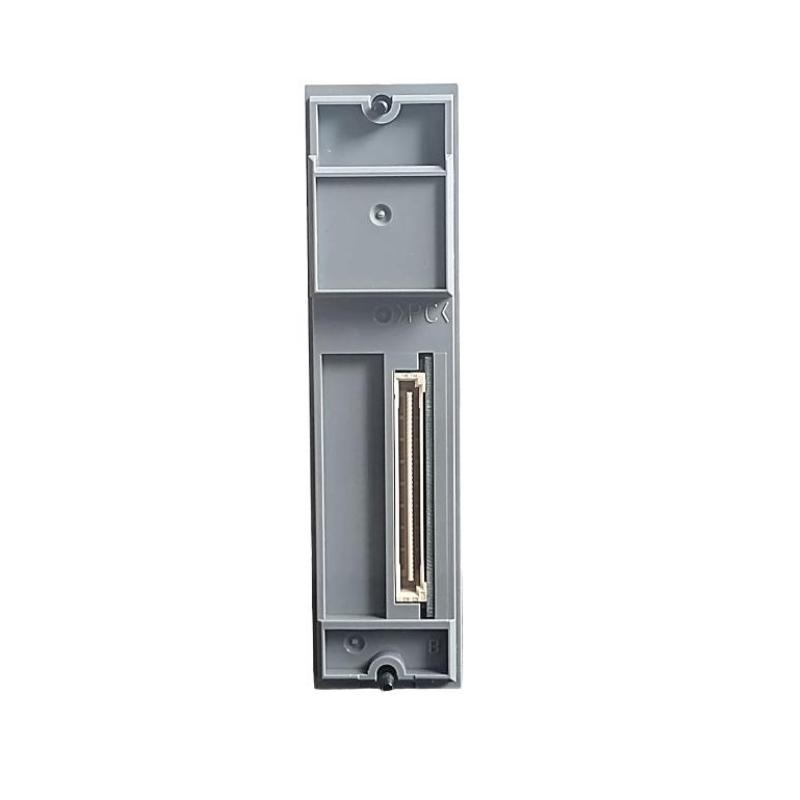

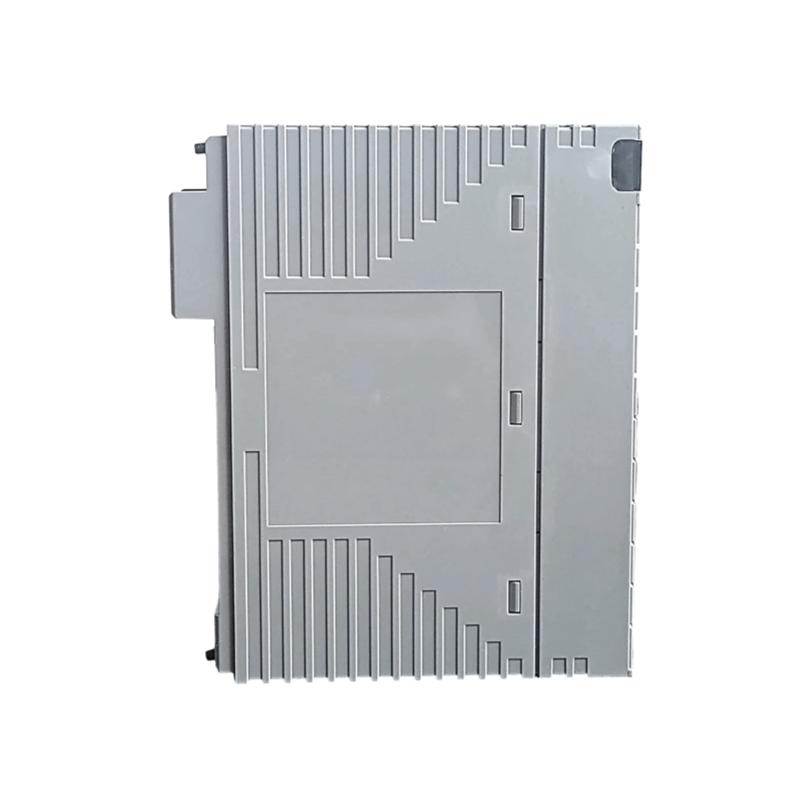

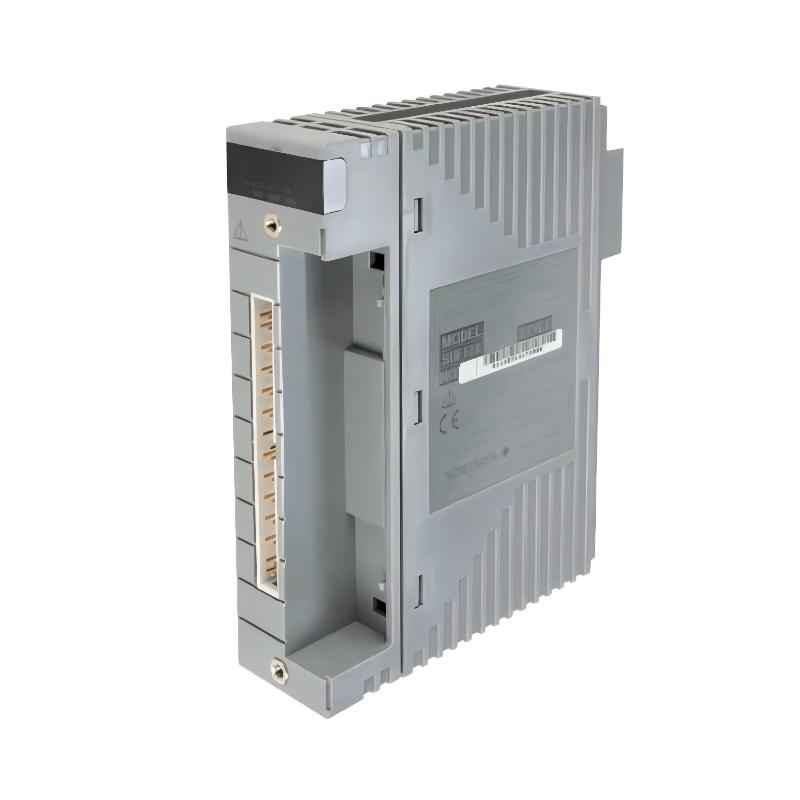

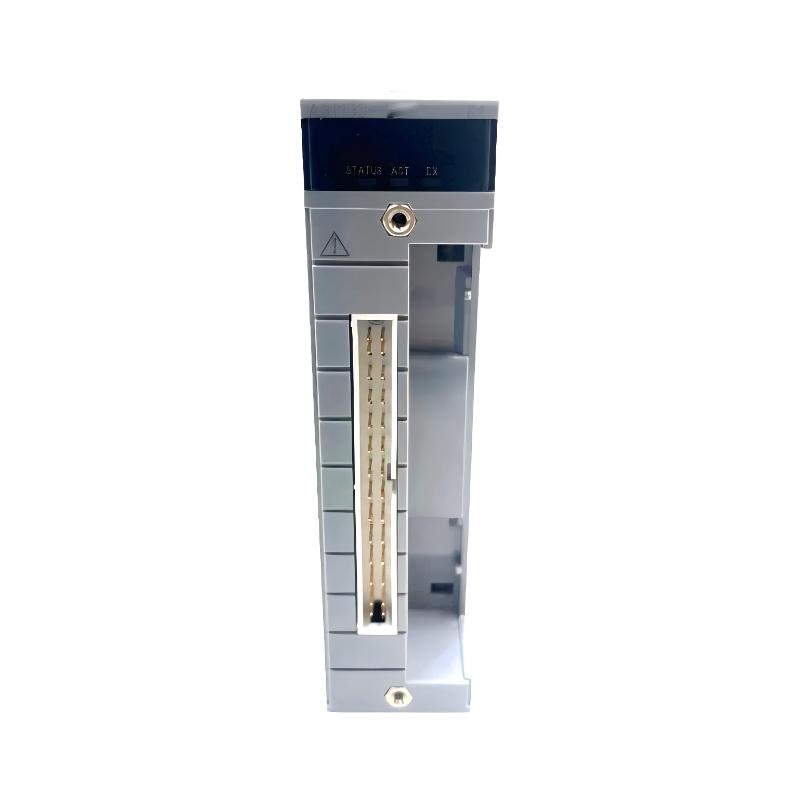

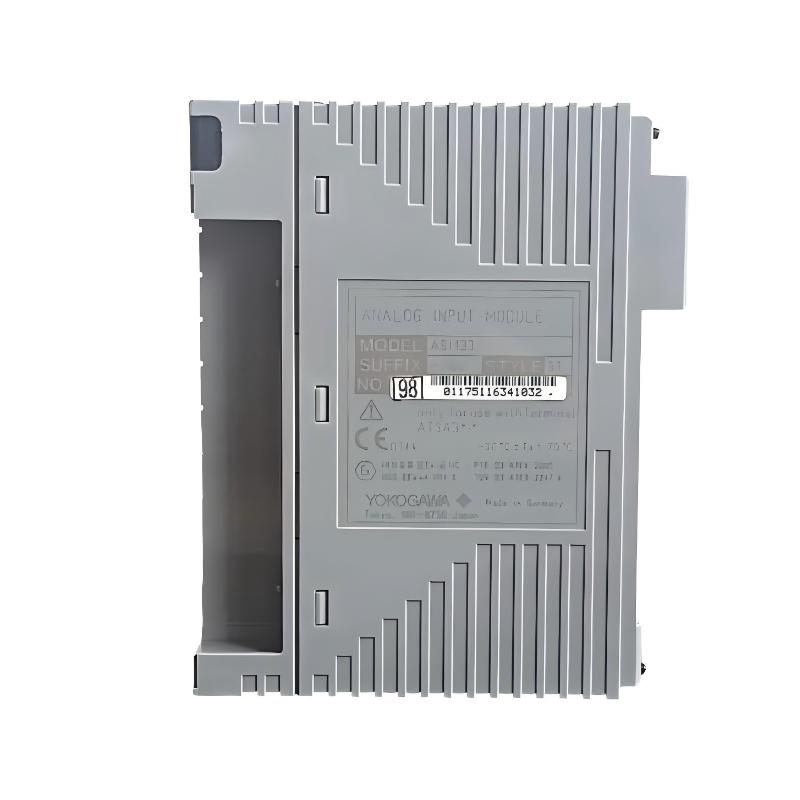

The Yokogawa ASI133-H00 Analog Input Module is designed for demanding process automation environments where signal accuracy, stability, and electrical integrity are essential. As part of Yokogawa’s distributed control architecture, this module converts real-world analog signals into precise digital data, enabling reliable monitoring and control of critical industrial processes.
Built for long-term industrial operation, it is widely applied in environments that require consistent measurement of variables such as pressure, temperature, and flow. Its engineering focus is not only accuracy, but also robustness under continuous load and electrically noisy conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module |
| Input Channels | 8 isolated channels |
| Signal Type | 4–20 mA DC (industrial standard) |
| Accuracy | ±16 µA typical |
| Response Time | ~100 ms |
| Isolation | Channel-to-channel & system isolation |
| Communication | HART supported (depending on system configuration) |
| Operating Temperature | -20°C to +70°C |
| Power Consumption | Approx. 150 mA @ 5 V DC |
| Dimensions (H × W × D) | 130 mm × 107.5 mm × 32.8 mm |
| Weight | ~0.3 kg |
