Precision Analog Control Designed for High-Integrity Industrial Systems

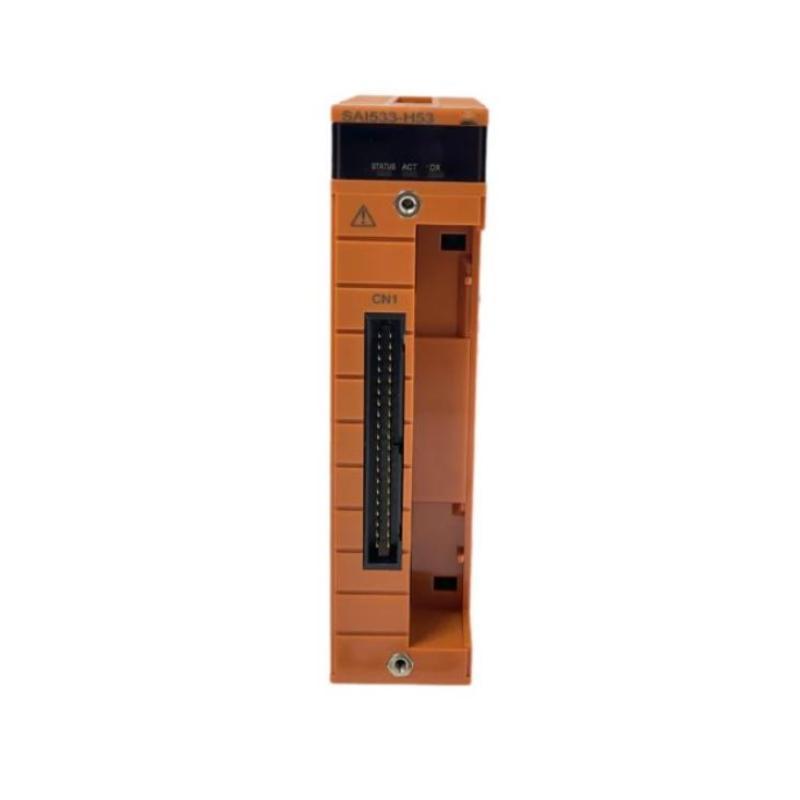

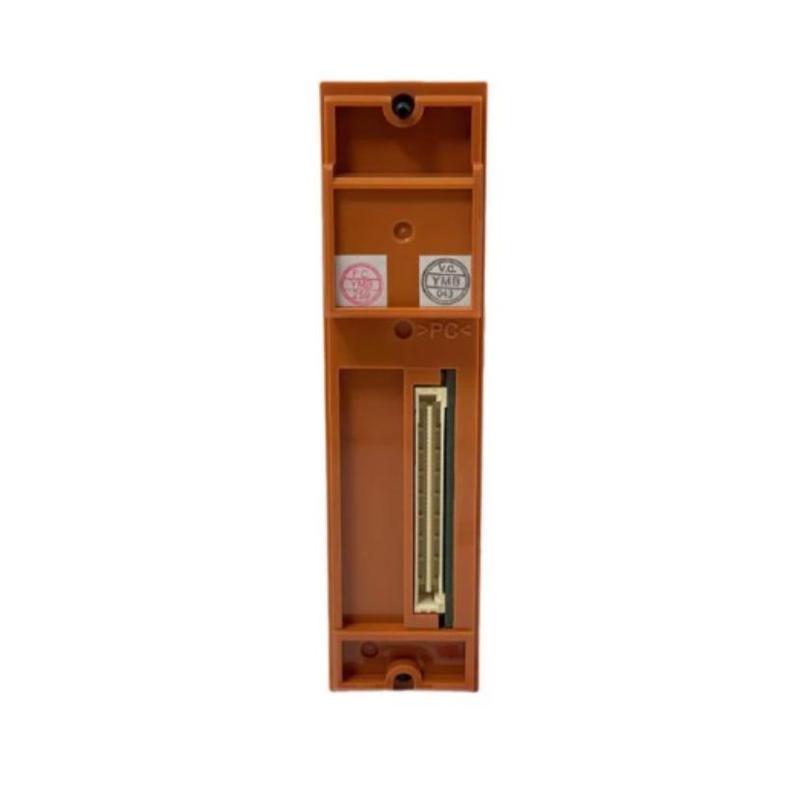

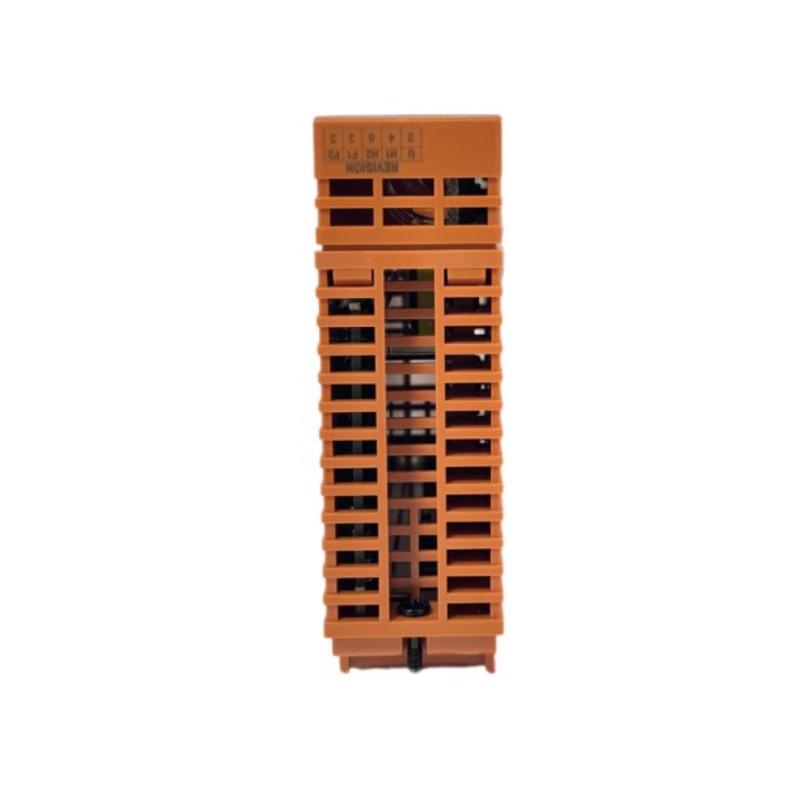

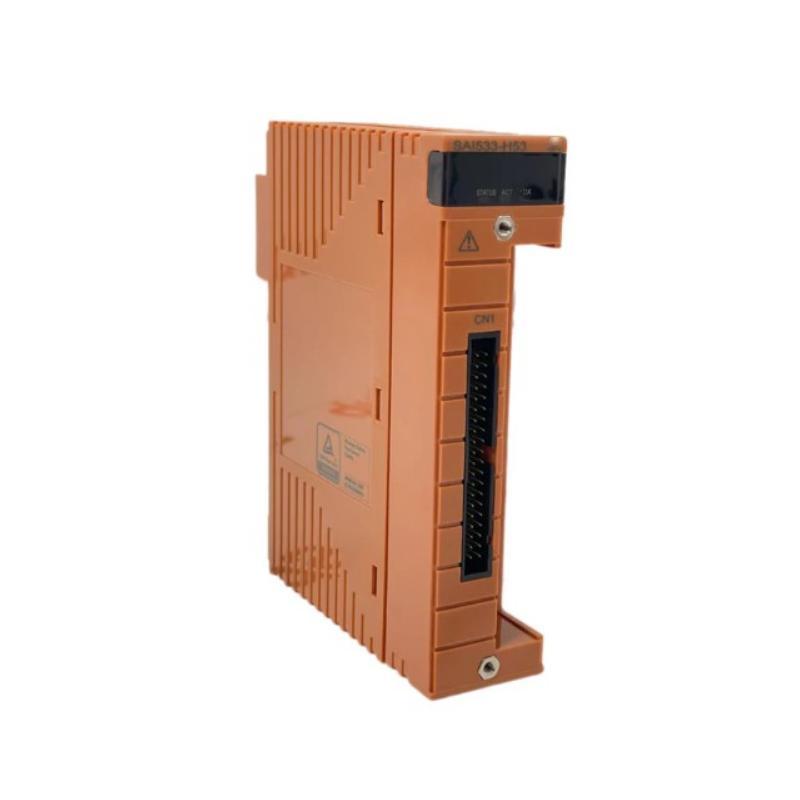

The Yokogawa SAI533-H53 Analog Output Module is a high-reliability control component engineered for delivering accurate analog signals in advanced process automation and safety systems. Designed for integration within Yokogawa’s ProSafe-RS and distributed control architectures, it provides stable current outputs used to drive control valves, actuators, and other field instruments with precision.
Built with a strong focus on signal integrity and system safety, this module ensures consistent analog performance even in demanding industrial environments where accuracy and stability directly impact operational quality.
Technical Specifications
| Parameter | Specification |
|---|
| Model | SAI533-H53 |
| Module Type | Analog Output Module |
| Output Channels | 8 isolated channels |
| Output Signal | 4–20 mA DC current output |
| Output Range | 1.25 – 23 mA |
| Accuracy | ±48 µA |
| Load Resistance | 230 – 600 Ω |
| Data Update Time | 40 ms |
| Temperature Drift | ±16 µA / 10°C |
| Isolation | Channel-to-system isolation |
| Withstanding Voltage | 1.5 kV AC (1 minute) |
| Communication | HART protocol support |
| Power Consumption | Approx. 320 mA (5 V DC) / 300 mA (24 V DC) |
| Operating Temperature | -20°C to +70°C |
| Dimensions (H × W × D) | 13.0 × 12.4 × 3.28 cm |
| Weight | Approx. 0.33 kg |
Application Scenarios
The SAI533-H53 is widely used in process industries where precise analog signal control is essential for stable operation. Typical applications include:
-
Chemical and petrochemical processing systems
-
Power generation and energy distribution plants
-
Oil and gas refining and control systems
-
Industrial flow, pressure, and temperature regulation loops
-
Safety instrumented systems requiring controlled actuation signals
Its ability to deliver stable 4–20 mA outputs makes it ideal for controlling proportional valves and process actuators in continuous production environments.
Key Advantages and Engineering Value
One of the core strengths of the SAI533-H53 is its high precision analog output capability, ensuring minimal signal drift and consistent process control over long operating periods.
The module’s channel isolation design enhances system robustness by reducing interference between outputs, which is critical in electrically noisy industrial environments.
Its HART communication support enables advanced device diagnostics and configuration without interrupting process operations, improving maintainability and system transparency.
Additionally, the module’s fast update cycle (40 ms) allows responsive control adjustments, making it suitable for dynamic process conditions where stability and timing are equally important.
Compact construction and modular design also contribute to efficient system integration and reduced cabinet footprint.
Technical FAQs
1. What type of output signal does this module provide?
It provides 4–20 mA DC analog current outputs.
2. How many output channels are available?
The module supports 8 isolated analog output channels.
3. Is the output electrically isolated?
Yes, each channel is isolated from the system for stable operation.
4. Does it support HART communication?
Yes, it supports HART for diagnostics and configuration.
5. What is the accuracy level?
Approximately ±48 µA under normal operating conditions.
6. What devices can it control?
Control valves, actuators, and process instrumentation devices.
7. What is the update time?
Around 40 milliseconds per data cycle.
8. What is the load resistance range?
Between 230 and 600 Ω.
9. What is the operating temperature range?
-20°C to +70°C.
10. What makes it suitable for safety systems?
Stable output control, isolation design, and diagnostic capabilities.
