High-Density Output Control Built for Reliable Automation

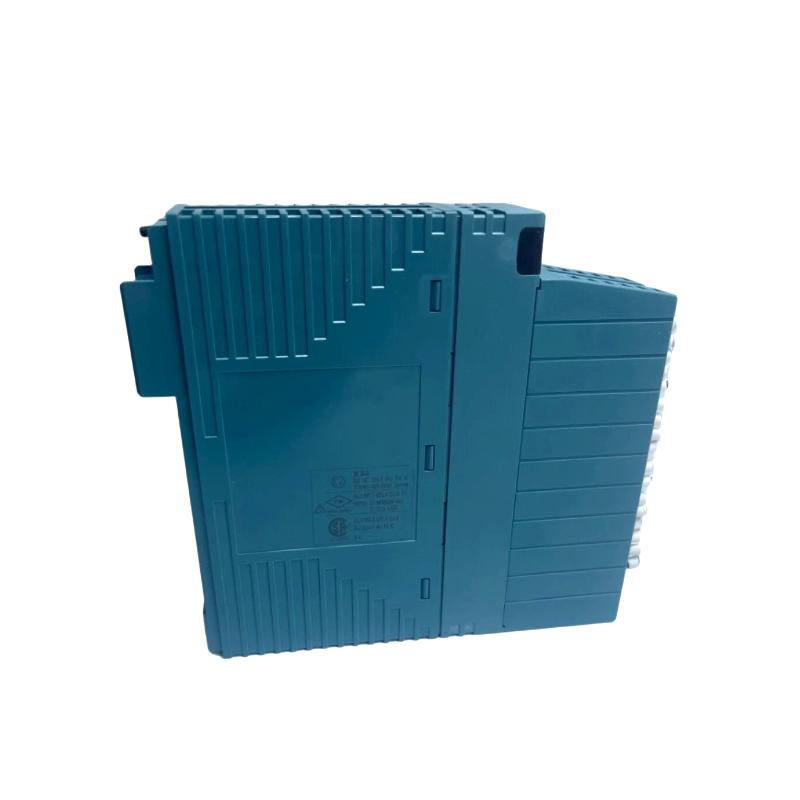

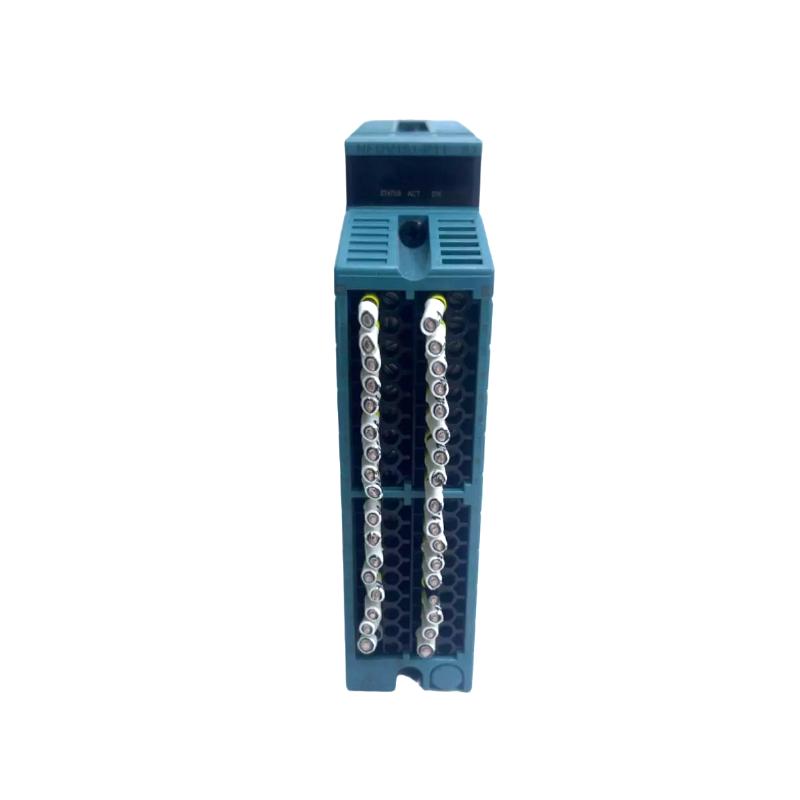

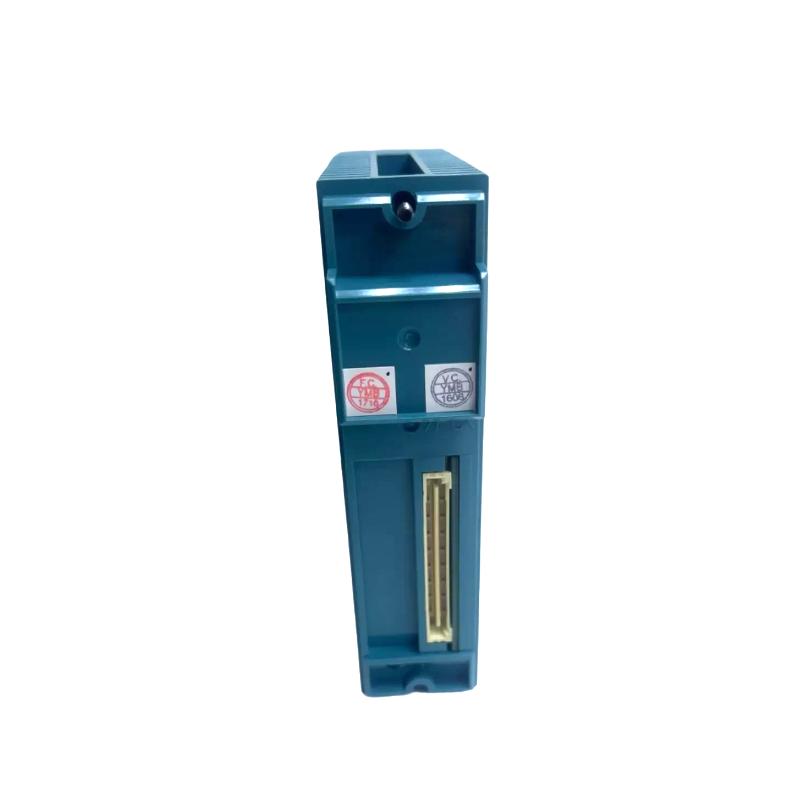

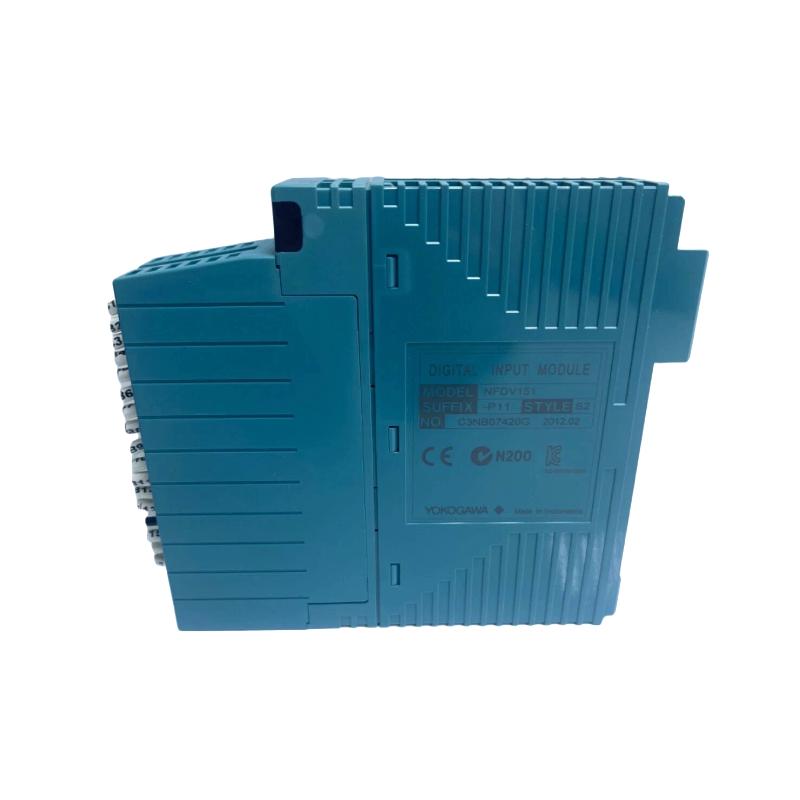

The Yokogawa NFDV551-P11 Digital Output Module is a robust industrial-grade solution designed for precise and stable control of field actuators in distributed control systems (DCS). It converts controller logic signals into reliable ON/OFF outputs, driving devices such as solenoid valves, relays, alarms, and interlocking systems.
Engineered for high-density installations, this module supports efficient cabinet design while maintaining strong signal integrity and fast response performance. It is widely used in Yokogawa CENTUM VP and ProSafe-RS environments where reliability and operational continuity are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Model | NFDV551-P11 |
| Module Type | Digital Output Module |
| Output Channels | 32 channels |
| Output Type | Current sink transistor output |
| Rated Voltage | 24 V DC |
| Operating Voltage Range | 20.4 – 26.4 V DC |
| Max Load Current | 100 mA per channel |
| Output ON Voltage | ≤ 2 V DC |
| OFF Leakage Current | ≤ 0.1 mA |
| Response Time | ≤ 3 ms |
| Isolation | Optical/electrical isolation between system and field |
| Withstanding Voltage | 2000 V AC (signal to system) |
| Power Consumption | ~700 mA @ 5 V DC |
| Field Supply Consumption | ~60 mA @ 24 V DC |
| Mounting | Rack-mounted I/O base system |
| External Connection | MIL connector / pressure clamp terminal |
| Dimensions (H × W × D) | 13.0 × 12.4 × 12.6 cm |
| Weight | Approx. 0.2–0.4 kg |
Industrial Applications
The NFDV551-P11 is designed for process industries where dependable discrete control is critical. It is commonly used in oil and gas facilities, petrochemical plants, power generation systems, and large-scale manufacturing operations.
Its 32-channel configuration makes it ideal for controlling multiple field devices simultaneously, including valves, motor starters, alarm systems, and safety interlocks. The fast switching response ensures accurate execution of control commands in real time, supporting both continuous operations and safety-related logic sequences.
Key Advantages and Engineering Value
One of the main strengths of the NFDV551-P11 is its combination of high channel density and strong electrical isolation. This allows engineers to optimize space usage inside control cabinets while maintaining system stability under industrial electrical noise conditions.
The module’s fast response time (≤ 3 ms) ensures precise timing for automation tasks, improving overall process synchronization. Additionally, its low leakage current and stable sink-type output design contribute to long-term operational reliability.
Its compatibility with Yokogawa DCS and SIS platforms also simplifies system integration, reducing engineering effort during expansion or upgrades.
Technical FAQs
1. How many output channels does the module provide?
It supports 32 digital output channels.
2. What type of output signal does it use?
It uses sink-type transistor outputs for 24 V DC systems.
3. What is the maximum load per channel?
Up to 100 mA per channel.
4. What devices can it control?
Relays, solenoid valves, alarms, and industrial actuators.
5. What is the switching response time?
Typically 3 milliseconds or less.
6. Does it support electrical isolation?
Yes, it provides channel-to-system isolation for signal stability.
7. What systems is it compatible with?
Yokogawa CENTUM VP and ProSafe-RS platforms.
8. What is the operating voltage range?
20.4 to 26.4 V DC.
9. What ensures stable operation in noisy environments?
Optical/electrical isolation and low leakage output design.
10. Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 mission-critical environments.
