High-Integrity Output Control for Critical Automation Systems

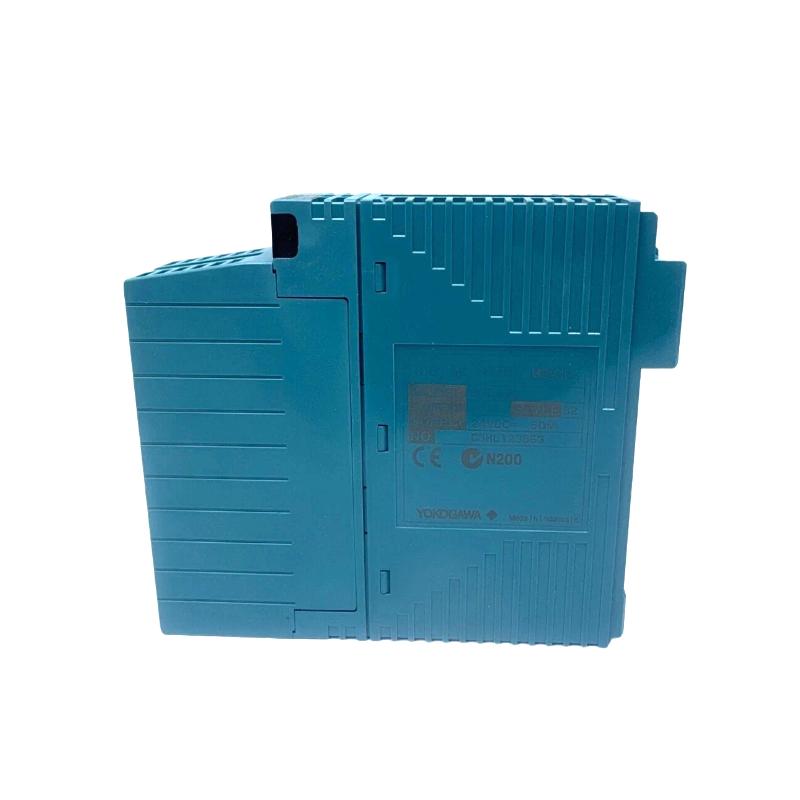

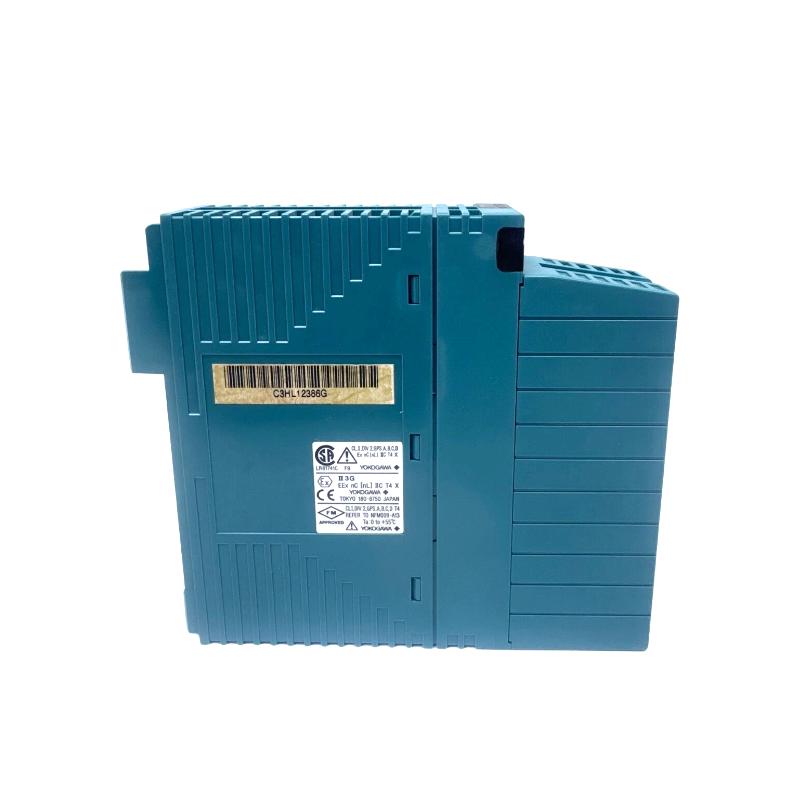

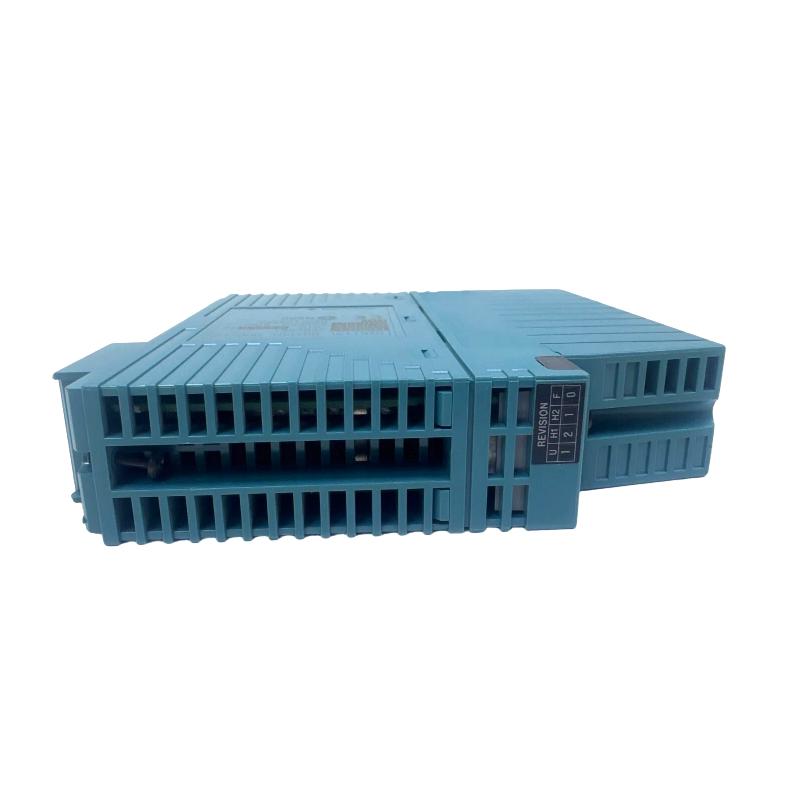

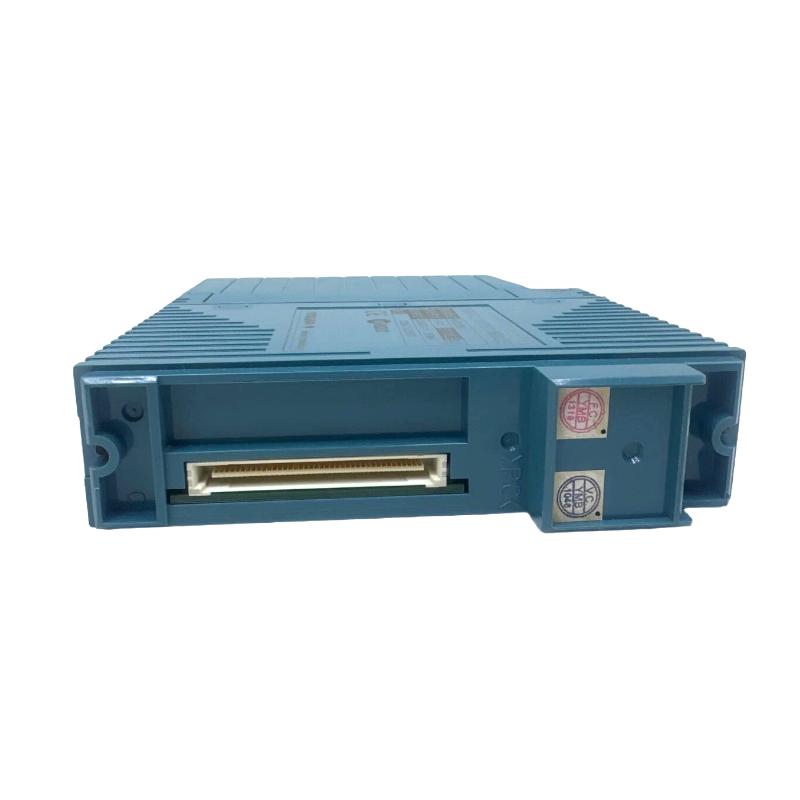

The Yokogawa NFDV551-P10 S2 Digital Output Module is engineered for reliable, high-density control of field actuators in advanced distributed control and safety systems. Designed for seamless integration with Yokogawa CENTUM VP and ProSafe-RS platforms, it delivers precise ON/OFF control signals to devices such as solenoid valves, relays, alarm units, and interlock mechanisms.
The S2 revision enhances system compatibility, diagnostics, and electrical stability, making it well-suited for modern industrial automation architectures that demand continuous uptime and predictable output behavior.
Technical Specifications
| Parameter | Specification |
|---|
| Model | NFDV551-P10 S2 |
| Module Type | Digital Output Module |
| Output Channels | 32 channels |
| Output Type | Sink-type transistor output |
| Rated Output Voltage | 24 V DC |
| Operating Range | 20.4 – 26.4 V DC |
| Max Output Current | 50–100 mA per channel |
| Response Time | ≤ 3 ms |
| Isolation | Channel-to-system electrical isolation |
| Redundancy Support | Available in dual-redundant systems |
| Diagnostics | Self-check, channel fault detection |
| Power Consumption | Approx. 3–4 W |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (H × W × D) | 13.0 × 10.75 × 3.28 cm |
| Weight | Approx. 0.2–0.4 kg |
Industrial Application Scenarios
This module is widely adopted in process-intensive industries where stable output execution is essential. Typical applications include oil and gas facilities, petrochemical plants, power generation stations, and continuous manufacturing systems.
It is commonly used to control actuators in safety shutdown systems, process interlocks, alarm signaling networks, and automated sequencing operations. Its fast response time ensures accurate execution of control logic in real time, improving overall system responsiveness.
Engineering Advantages and Operational Value
The NFDV551-P10 S2 offers a strong balance of density, speed, and reliability. With 32 output channels in a compact footprint, it optimizes cabinet space while maintaining strong control capability across multiple field devices.
Electrical isolation between channels improves system robustness by reducing noise interference and protecting internal circuitry. The fast switching capability (≤3 ms) supports time-critical automation tasks where precise synchronization is required.
The S2 upgrade introduces improved diagnostics and enhanced system compatibility, enabling easier maintenance and more reliable long-term operation in complex control environments.
Technical FAQs
1. How many output channels does the module support?
It supports 32 independent digital output channels.
2. What type of output does it use?
It uses sink-type transistor outputs for 24 V DC control systems.
3. Is it suitable for safety systems?
Yes, it is widely used in safety instrumented and interlock applications.
4. What is the response time?
The switching response is typically ≤ 3 milliseconds.
5. Does it support redundancy?
Yes, it can be configured in redundant system architectures.
6. What devices can it control?
Relays, solenoid valves, alarms, indicators, and actuators.
7. How is signal isolation implemented?
Through channel-to-system electrical isolation design.
8. What is the operating temperature range?
-20°C to +55°C for stable industrial operation.
9. What systems is it compatible with?
Yokogawa CENTUM VP and ProSafe-RS platforms.
10. What improves its reliability in the S2 version?
Enhanced diagnostics, updated compatibility, and improved system stability.
