System Insight

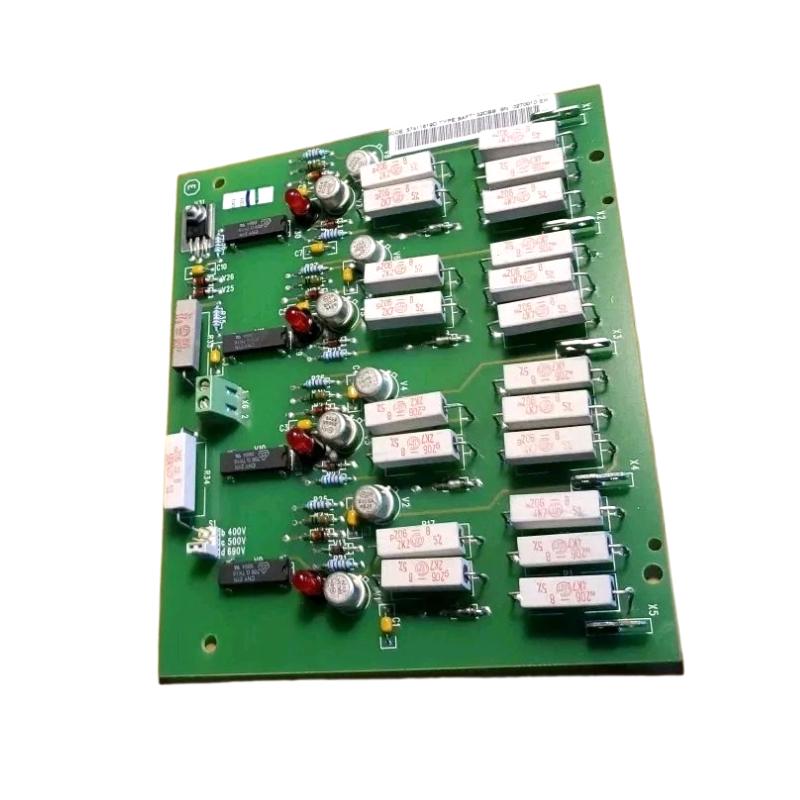

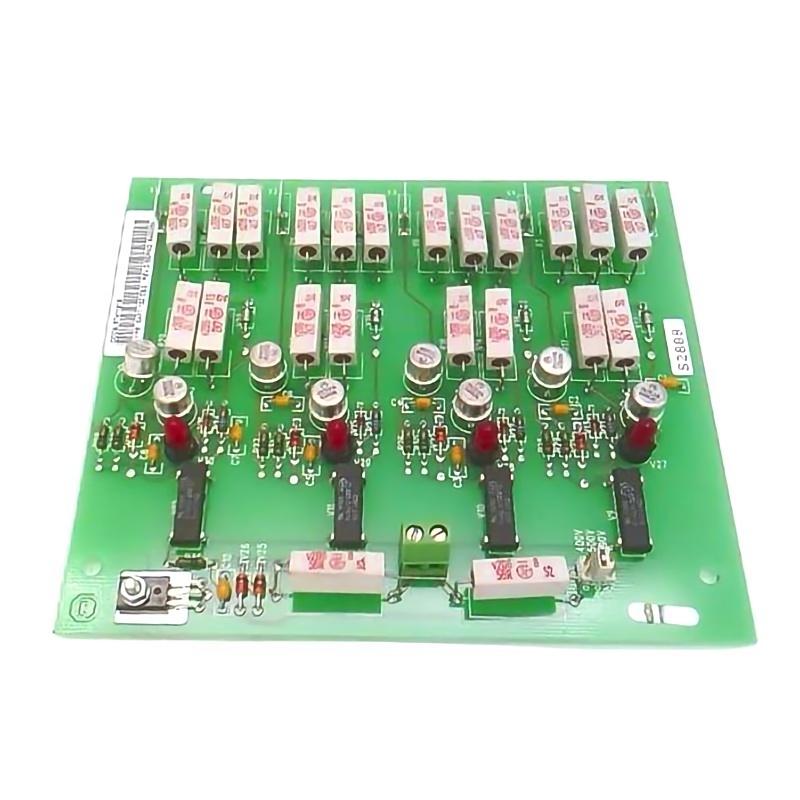

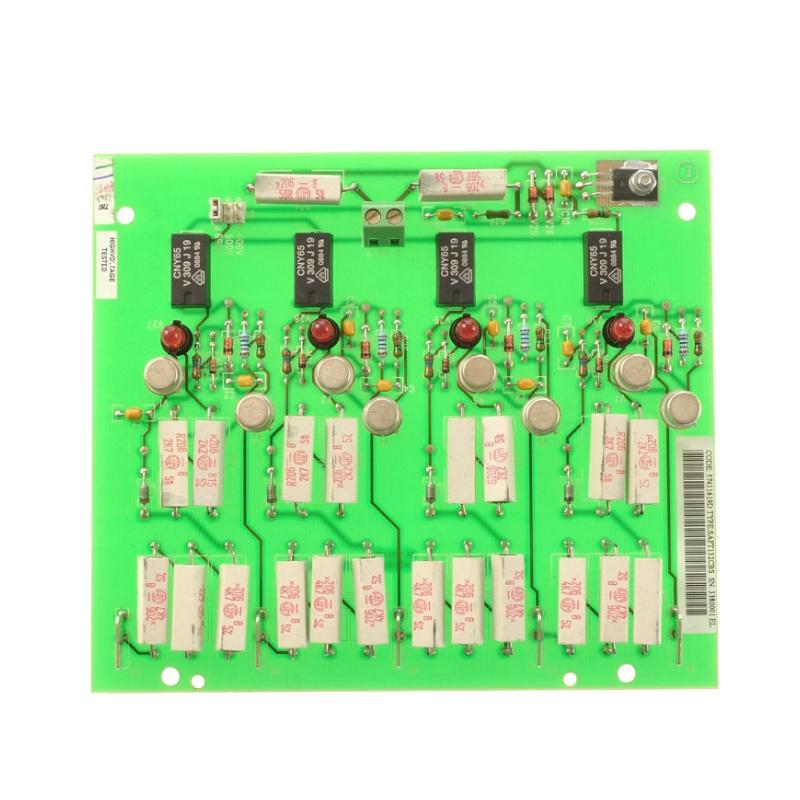

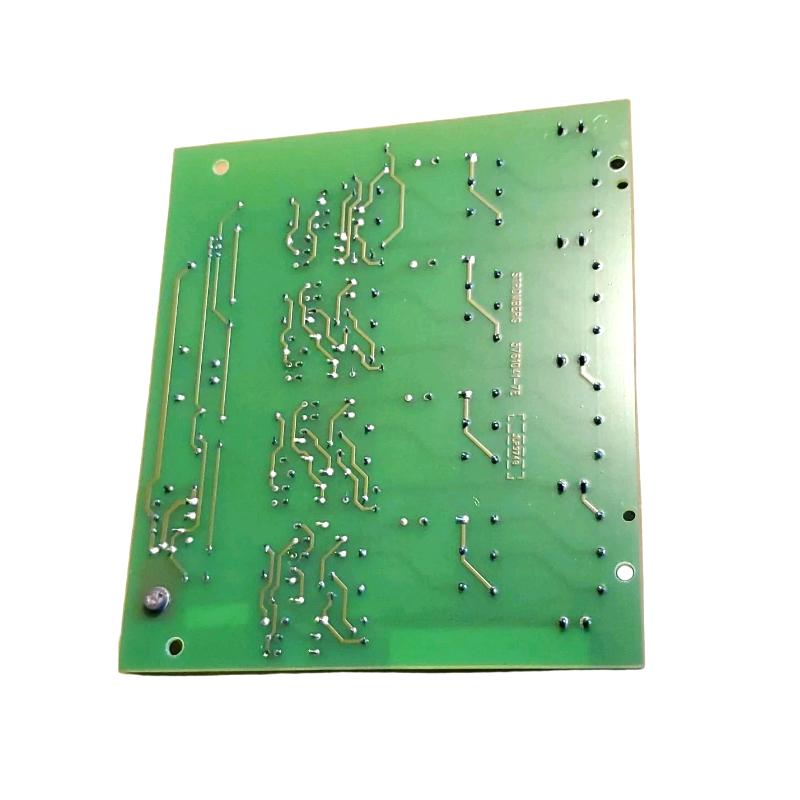

The ABB SAFT132CBS 57411619D Monitoring Circuit Board Card is a supervision-focused control module designed to provide real-time monitoring, diagnostics, and operational oversight within ABB drive and automation systems. Commonly referred to as a Supervision Board, it plays a central role in maintaining system transparency by continuously tracking operational parameters and system status.
This module is particularly valuable in legacy ABB drive platforms and industrial automation systems where consistent monitoring and early fault detection are critical to maintaining uptime and process safety.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | SAFT132CBS |
| Part Number | 57411619D |
| Module Type | Monitoring / Supervision Circuit Board |
| Function | System monitoring & supervisory control |
| System Compatibility | ABB drive & automation systems |
| Input Voltage | 90–264 VAC / 12–24 VDC (variant dependent) |
| Power Consumption | ≤15 W |
| Communication Protocol | Modbus RTU (system dependent) |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L×W×H) | Approx. 220 × 150 × 35 mm |
| Weight | Approx. 0.1–0.5 kg |
Application Scenarios
The SAFT132CBS supervision board is widely used in environments where continuous monitoring and system diagnostics are essential:
-
ABB drive systems (Stromberg / ACS legacy platforms)
-
Industrial automation and process control systems
-
Power generation and energy management systems
-
Manufacturing and production line monitoring
-
Chemical and heavy industry control systems
It enables operators and control systems to maintain real-time visibility of system health, improving operational efficiency and reducing unexpected downtime.
Key Advantages
The SAFT132CBS stands out for its ability to deliver continuous system supervision with high reliability. By monitoring key parameters and system states in real time, it allows early detection of irregularities, helping prevent faults before they escalate.
Its compact design ensures easy integration into existing control cabinets, making it ideal for both system upgrades and maintenance replacements. The module is built with industrial-grade components, ensuring stable performance under electrical noise, temperature fluctuations, and continuous operation.
Additionally, its compatibility with standard industrial communication protocols enhances system integration and data accessibility.
Technical FAQs
1. What is the main function of SAFT132CBS?
It provides real-time system monitoring and supervision.
2. What does “Supervision Board” mean?
It refers to a module that monitors system status and detects faults.
3. Where is it commonly used?
In ABB drive systems and industrial automation platforms.
4. Does it control power directly?
No, it supervises and monitors rather than controlling power circuits.
5. What happens if it fails?
Loss of system monitoring and delayed fault detection may occur.
6. Is it suitable for modern systems?
It is mainly used in legacy ABB platforms.
7. What communication protocol does it support?
Typically Modbus RTU or system-specific communication.
8. Can it operate continuously?
Yes, it is designed for 24/7 industrial operation.
9. What is its typical weight?
Approximately 0.1–0.5 kg depending on variant.
10. What is its key benefit?
Improved system reliability through continuous monitoring.
