Functional Overview

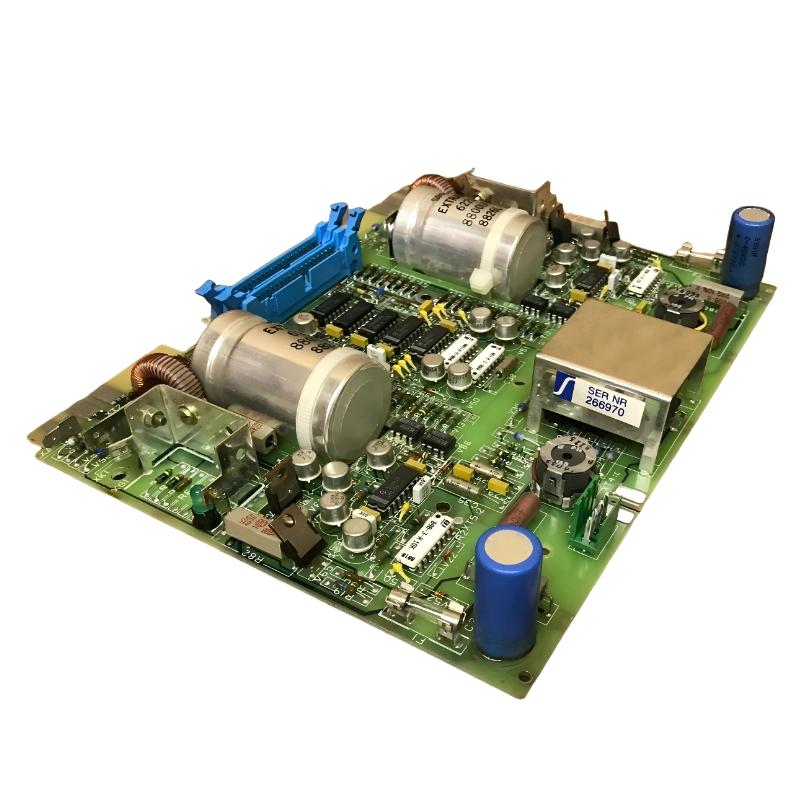

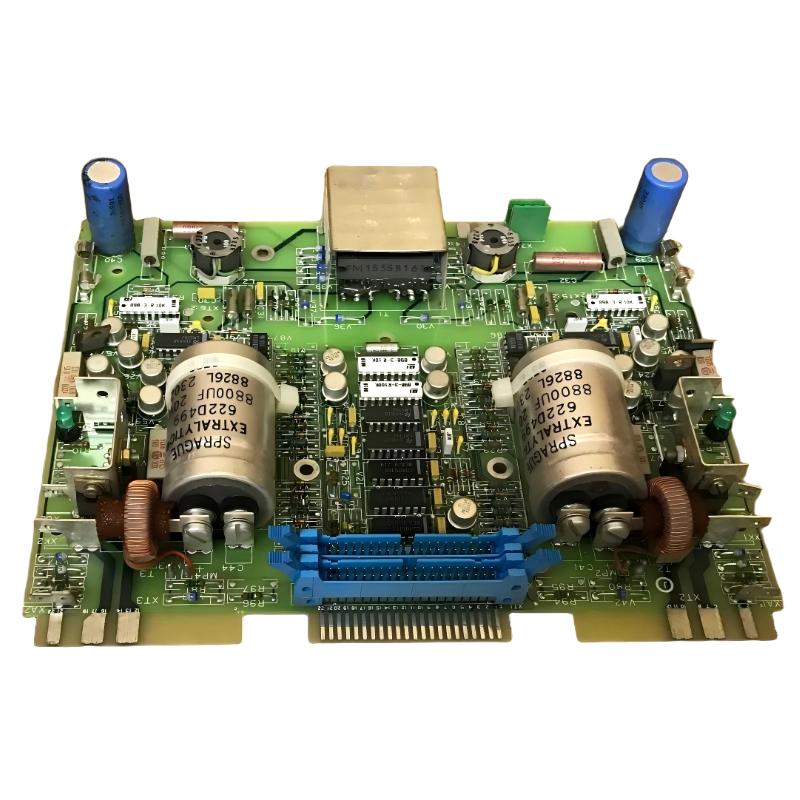

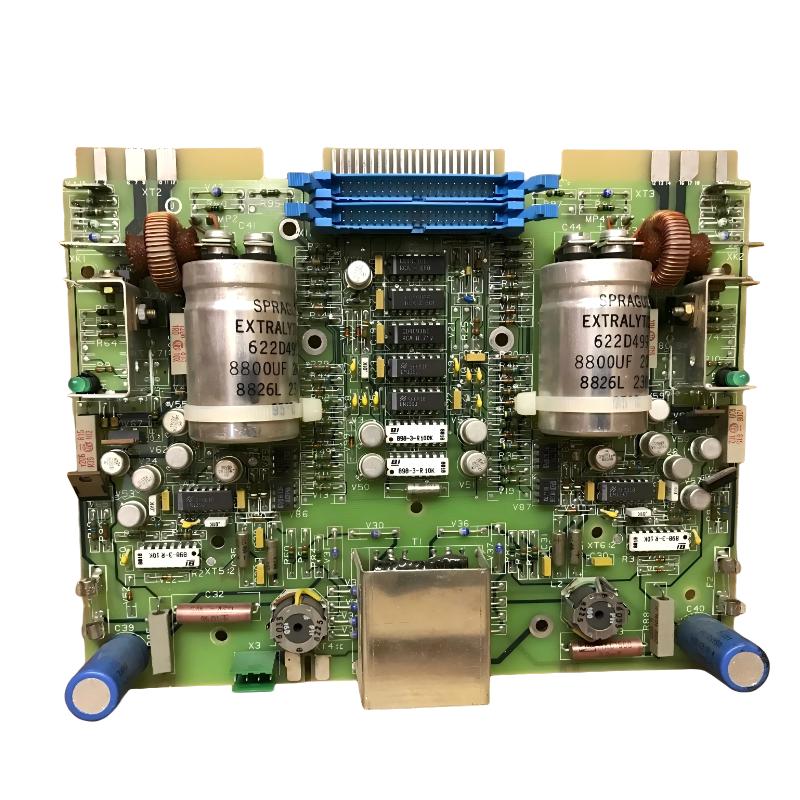

The ABB SAFT 120 PAC 57411490 Pulse Amplifier Board is a core signal amplification module used in ABB drive and inverter systems, particularly within legacy Stromberg and Advant platforms. Its primary role is to amplify low-level control pulses and deliver precise, high-integrity signals to power semiconductor switching devices.
This board is essential in maintaining accurate switching timing and stable operation of industrial motor drives. By ensuring clean and distortion-free pulse transmission, it directly contributes to efficient energy conversion and reliable drive performance in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | SAFT 120 PAC |
| Part Number | 57411490 |
| Module Type | Pulse Amplifier Board |
| Function | Pulse amplification & signal conditioning |
| System Compatibility | ABB drive / inverter systems |
| Application Platform | ABB Stromberg / Advant drives |
| Operating Temperature | -10°C to +50°C (typical range) |
| Installation Type | Plug-in PCB module |
| Dimensions (L×W×H) | 203 × 254 × 76 mm |
| Weight | Approx. 0.6 kg |
| Country of Origin | Finland / Sweden |
Application Scenarios
The SAFT 120 PAC is widely applied in industrial environments requiring precise switching control and signal amplification:
-
ABB variable frequency drives (VFDs)
-
Industrial motor control systems
-
Power converter and inverter cabinets
-
Petrochemical and energy processing systems
-
Heavy-duty machinery with high dynamic loads
It ensures that control pulses are accurately transmitted to power devices, enabling smooth motor operation and reducing switching errors.
Key Advantages
The SAFT 120 PAC stands out for its precise pulse amplification capability, ensuring high signal fidelity even in electrically noisy environments. This leads to improved switching accuracy and reduced stress on IGBT or thyristor components.
Its industrial-grade construction supports continuous operation under thermal stress and vibration, making it suitable for mission-critical applications. The board also contributes to reduced harmonic distortion and improved motor response when integrated within ABB drive systems.
Additionally, its modular design simplifies maintenance and replacement, minimizing system downtime in legacy installations.
Technical FAQs
1. What is the main function of SAFT 120 PAC?
It amplifies control pulses for accurate switching of power devices.
2. Which systems use this board?
ABB Stromberg and Advant drive systems.
3. Is it a power module?
No, it is a signal amplification and control interface board.
4. What happens if it fails?
Drive instability or incorrect switching behavior may occur.
5. Is it still available?
It is discontinued but widely available as surplus or refurbished.
6. What industries use it?
Energy, petrochemical, manufacturing, and heavy industry.
7. Can it operate continuously?
Yes, it is designed for 24/7 industrial operation.
8. Does it require programming?
No, it operates at hardware signal level.
9. What is its typical weight?
Approximately 0.6 kg.
10. What is its key benefit?
High-precision pulse amplification for stable and reliable drive performance.
