Industrial Overview

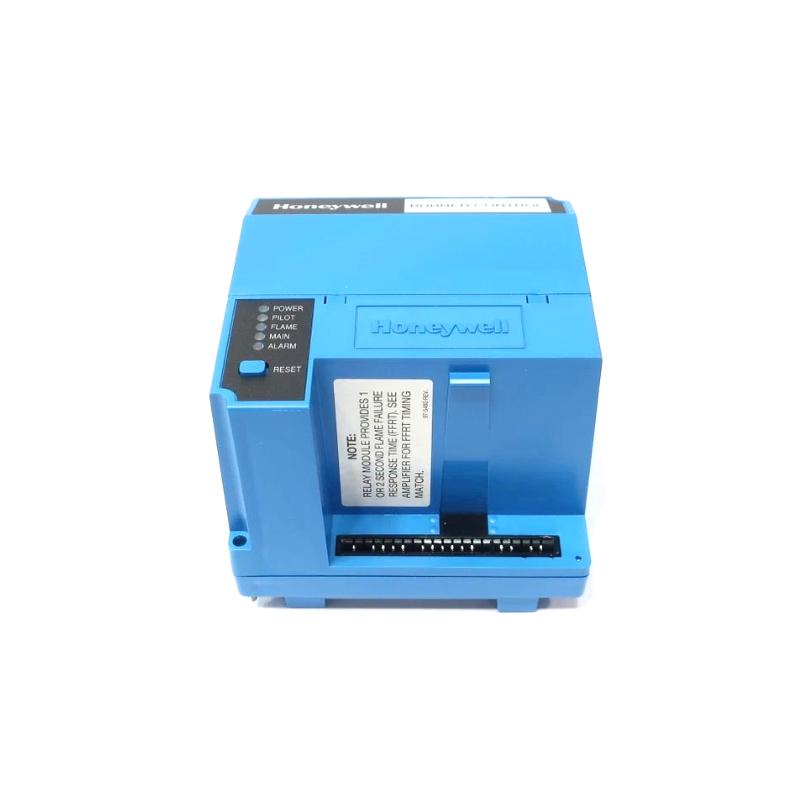

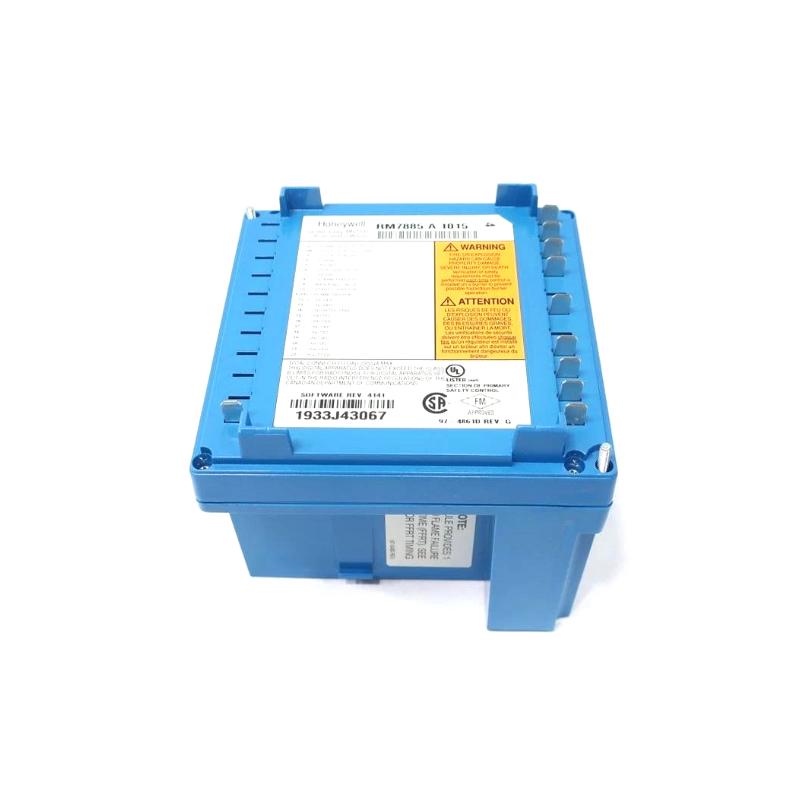

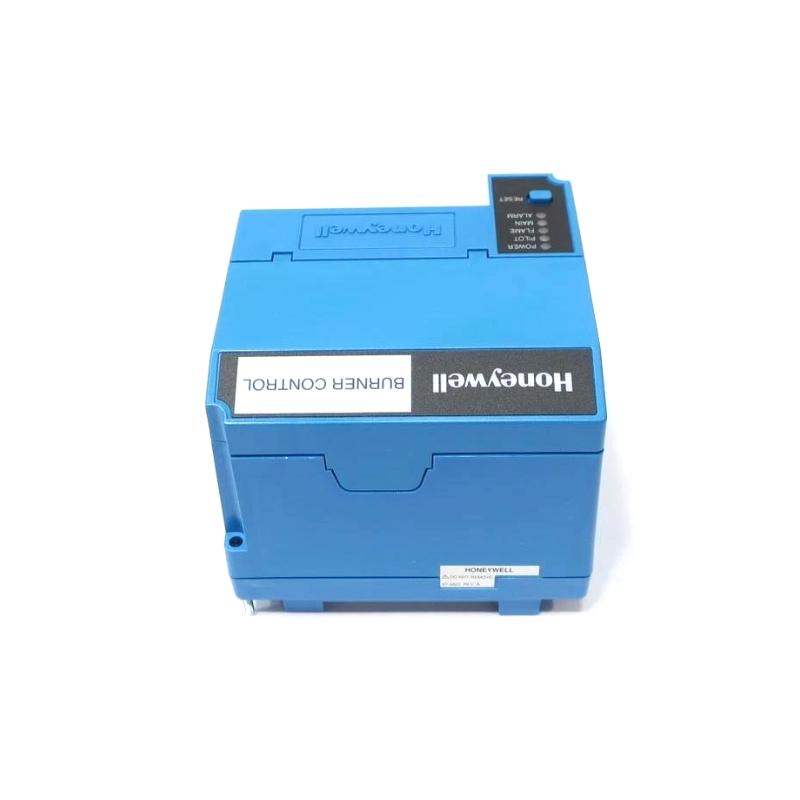

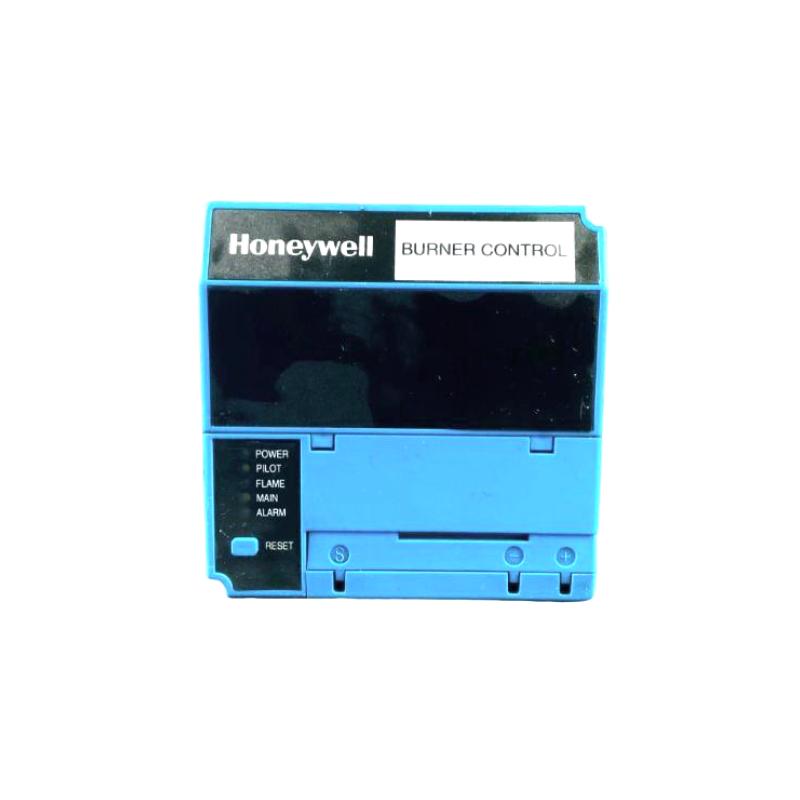

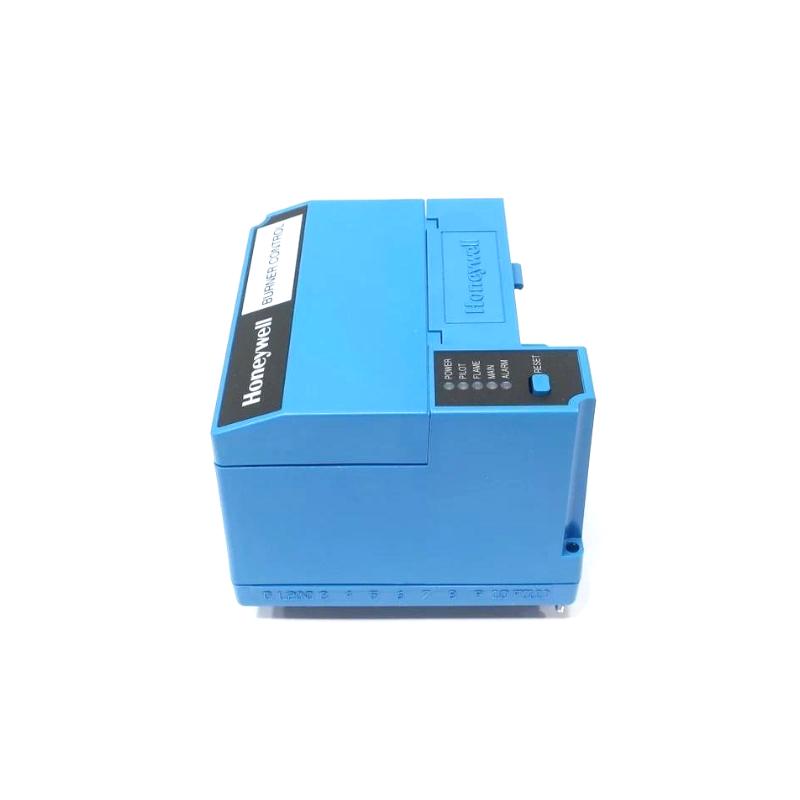

The Honeywell RM7885A1015 Burner Control is a microprocessor-based burner management relay module from the Honeywell 7800 Series Flame Safeguard system. It is designed for industrial single-burner applications using gas, oil, coal, or combination fuels, providing fully automated sequencing, flame supervision, and safety interlocking.
This control unit is widely used in semi-automatic burner systems where manual start commands initiate a fully controlled ignition, purge, and flame monitoring cycle. It ensures safe combustion by continuously monitoring flame presence and executing lockout protection if unsafe conditions are detected.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Honeywell |
| Model | RM7885A1015 |
| Series | 7800 Series Burner Control |
| Module Type | Burner Control / Relay Module |
| Application | Single burner (gas / oil / coal / dual fuel) |
| Supply Voltage | 120 VAC (±10%) |
| Frequency | 50/60 Hz |
| Control Type | Microprocessor-based sequencing control |
| Operation Mode | Semi-automatic manual start system |
| Flame Detection | Compatible with Honeywell flame amplifiers |
| Fuel Compatibility | Gas, oil, coal, combination fuels |
| Purge Function | Pre-purge and post-purge cycles |
| Pre-Purge Time | Configurable system-dependent (typ. ~30–35 s) |
| Pilot Establishing Time | Up to ~15 minutes (intermittent pilot mode) |
| Safety Functions | Flame supervision, interlock monitoring, lockout |
| Diagnostics | Built-in self-check and status indication |
| Memory | Non-volatile fault history storage |
| Mounting | Q7800 series wiring subbase |
| Operating Temperature | -40°C to +60°C |
| Weight | ~0.8–1.1 kg |
Application Scenarios
The RM7885A1015 is widely used in industrial combustion systems requiring safe and repeatable burner operation:
-
Industrial boilers and fired heaters
-
Process heating systems in chemical plants
-
Oil & gas thermal processing units
-
Power plant auxiliary burner systems
-
Manufacturing furnaces and heat treatment lines
It is particularly suited for semi-automatic burner systems, where operators initiate start commands but all safety sequencing is handled automatically by the controller.
Engineering Advantages
The RM7885A1015 is engineered for high-integrity combustion safety and repeatable burner sequencing. Its microprocessor-based architecture ensures precise control over ignition timing, purge cycles, and flame verification.
A key advantage is its advanced flame supervision logic, which continuously monitors flame stability and triggers immediate shutdown or lockout if unsafe combustion conditions are detected.
It also provides non-volatile fault memory, allowing technicians to diagnose shutdown events even after power loss, significantly improving maintenance efficiency.
Another strength is its modular 7800 Series architecture, which supports interchangeable flame amplifiers, wiring subbases, and optional communication modules for system flexibility.
Additionally, its industrial-grade safety design ensures reliable operation in high-temperature and vibration-prone environments typical of burner and boiler installations.
Technical FAQs
1. What is the main function of RM7885A1015?
It controls burner ignition, sequencing, and flame safety supervision.
2. What system does it belong to?
Honeywell 7800 Series burner management system.
3. What type of burners does it support?
Gas, oil, coal, and combination fuel burners.
4. Is it fully automatic?
It is semi-automatic—manual start with automatic sequencing.
5. What is its operating voltage?
120 VAC supply power.
6. Does it support flame detection?
Yes, via external Honeywell flame amplifier modules.
7. What is its main safety function?
Flame monitoring and automatic lockout on unsafe conditions.
8. What happens during a fault?
It triggers shutdown and stores diagnostic information in memory.
9. What industries use it most?
Power generation, oil & gas, chemical processing, and industrial heating.
10. Is it still widely used today?
Yes, especially in installed base 7800 Series burner systems.
