Industrial Overview

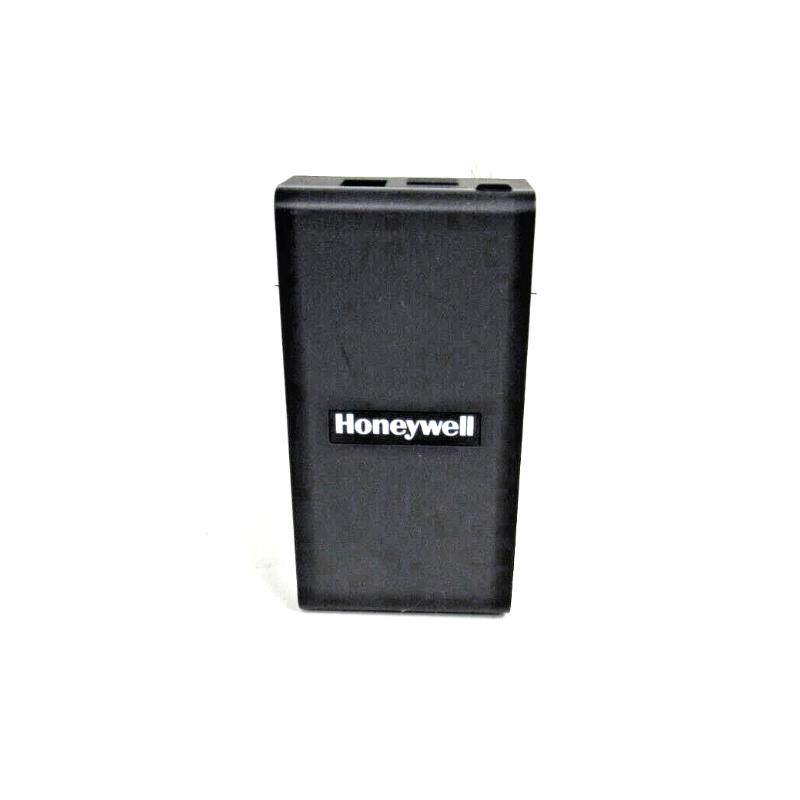

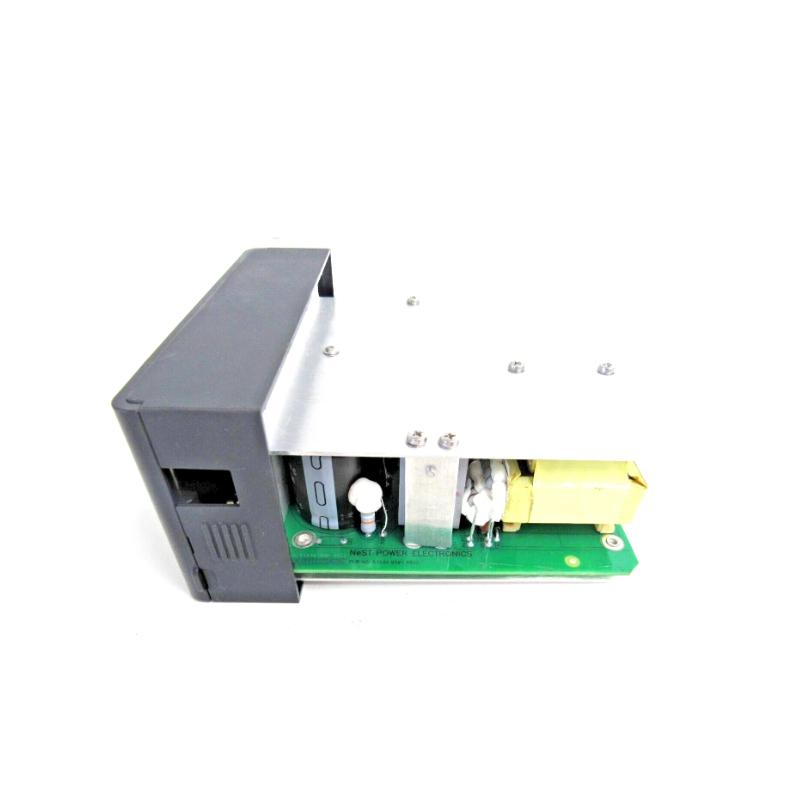

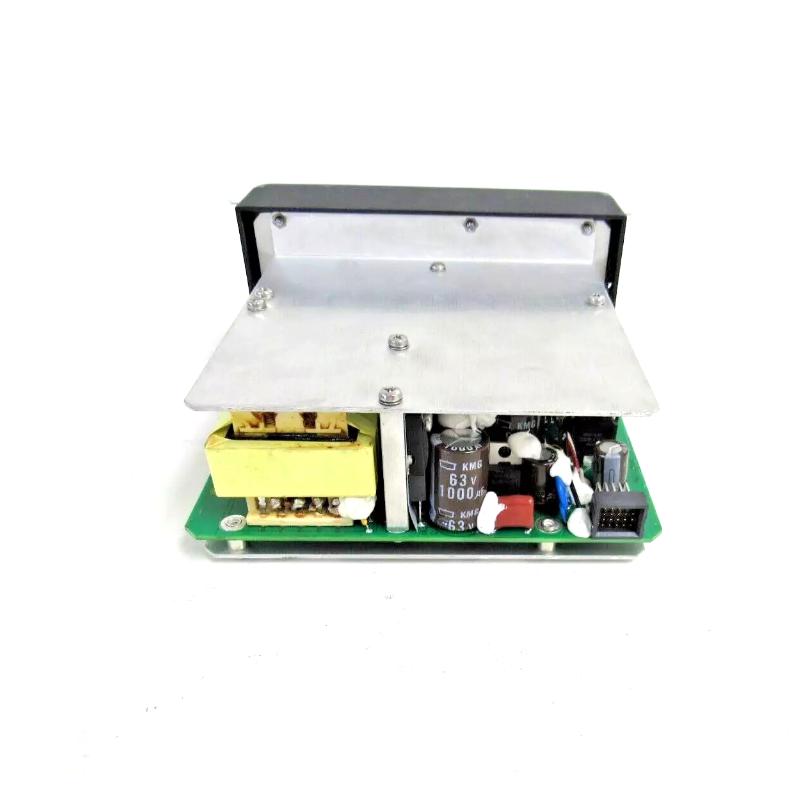

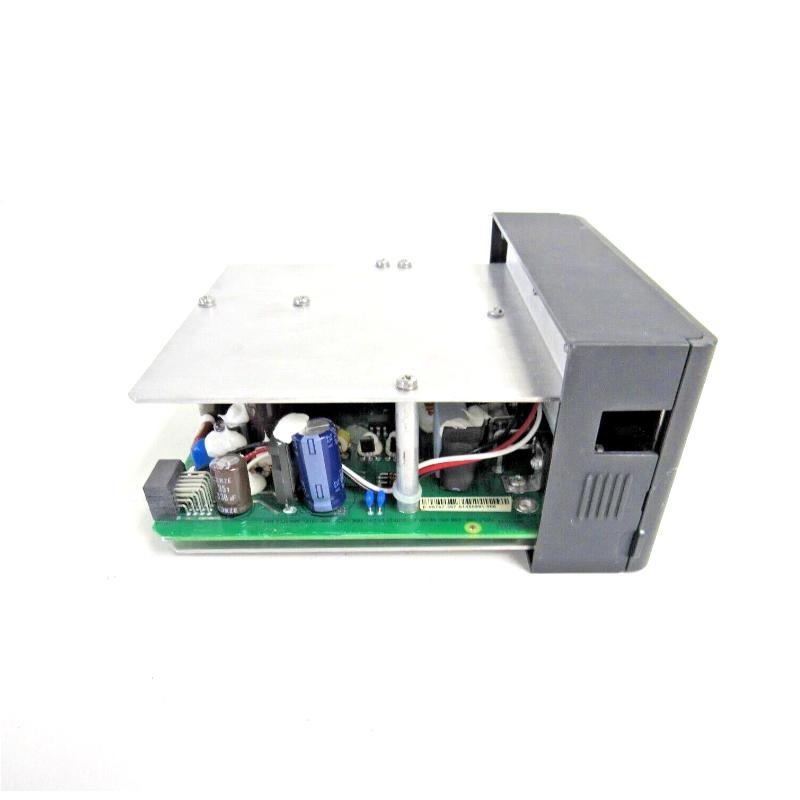

The Honeywell 900P02-0301 Power Supply Module is part of the Honeywell ControlEdge HC900 process controller platform, designed to provide stable DC power to controller racks and I/O backplanes in industrial automation systems. It is a compact, rack-integrated power unit responsible for supplying regulated 5 VDC and 24 VDC power rails required by HC900 CPUs, scanners, and I/O modules.
This module is widely used in process control environments where stable, redundant-ready power distribution is critical for continuous operation of control logic, safety interlocks, and field data acquisition.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Honeywell |
| Model | 900P02-0301 |
| Platform | ControlEdge HC900 / HC900 Process Controller |
| Module Type | Power Supply Module |
| Output Voltages | 5 VDC, 24 VDC (backplane supply) |
| Output Power | ~28 W class system power supply (P02 family) |
| Input Voltage | 120/240 VAC, 50/60 Hz (system dependent) |
| Efficiency | Industrial-grade regulated switching supply |
| Protection Features | Overcurrent, overvoltage, internal fuse |
| Power Architecture | Backplane integrated supply |
| Operating Temperature | -40°C to +70°C (typical HC900 platform range) |
| Humidity Range | 0–95% non-condensing |
| Mounting Type | Rack-mounted HC900 controller chassis |
| Dimensions (approx.) | 178 × 108 × 70 mm |
| Weight | ~0.5–1.2 kg (varies by configuration) |

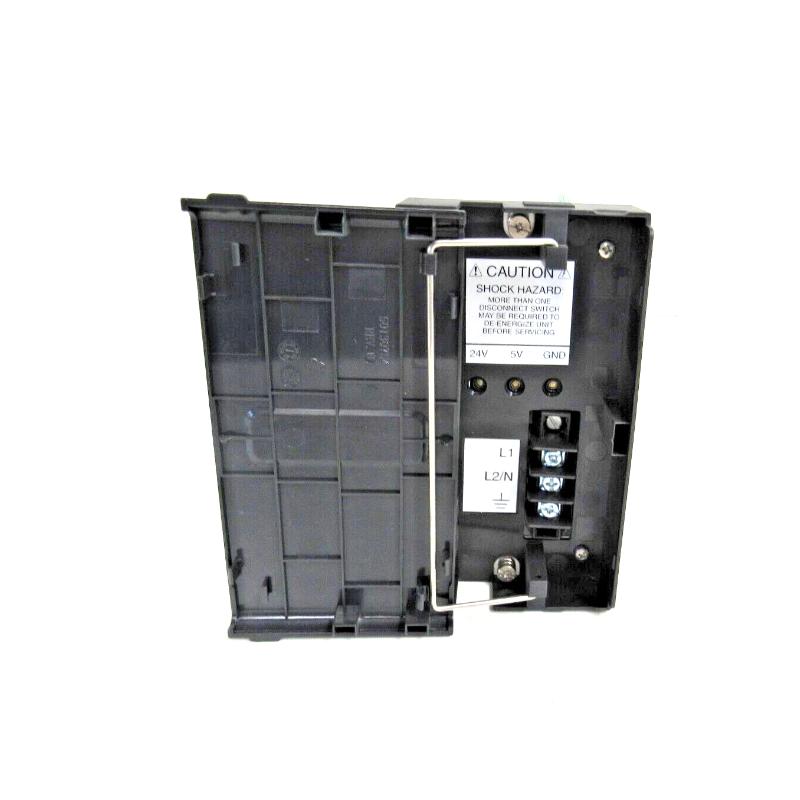

Functional Role in HC900 System
The 900P02-0301 is not a standalone industrial PSU—it is tightly integrated into the HC900 architecture. Its main functions include:
-
Supplying regulated 5 VDC logic power to CPU and communication modules
-
Providing 24 VDC field/backplane power for I/O modules
-
Supporting controller rack operation with stable voltage rails
-
Enabling safe operation of modular plug-in HC900 components
-
Maintaining system stability under continuous industrial load conditions
In HC900 systems, the power supply is directly tied to the backplane architecture, ensuring synchronized operation between control execution and field I/O processing.
Engineering Advantages
The 900P02-0301 HC900 power supply module is engineered for compact efficiency and reliable process continuity, making it well-suited for medium-scale control applications.
A key advantage is its integrated backplane power design, which eliminates complex external wiring and ensures clean power distribution across all controller modules.
It also features industrial-grade protection circuitry, including internal fuse protection and fault isolation behavior, improving system resilience in harsh electrical environments.
Another benefit is its modular replacement capability, allowing maintenance or upgrade without redesigning the full control system architecture.
Additionally, its design supports long operational life cycles, which is essential in continuous-process industries such as refining, water treatment, and power generation.
Technical FAQs
1. What is the main function of 900P02-0301?
It supplies regulated DC power to the HC900 controller backplane.
2. What voltages does it provide?
5 VDC and 24 VDC system power rails.
3. What system is it used in?
Honeywell ControlEdge HC900 / HC900 Process Controller.
4. Is it a standalone power supply?
No, it is a rack-integrated controller power module.
5. What is its typical power capacity?
Approximately 28 W class power supply design for smaller configurations.
6. What is its operating temperature range?
Typically -40°C to +70°C depending on system configuration.
7. Does it support redundancy?
Redundancy is supported at system architecture level, depending on rack design.
8. What industries use it?
Oil & gas, power generation, chemical processing, and utilities.
9. Is it hot-swappable?
In HC900 systems, many modules support controlled insertion/removal depending on configuration.
10. What is its main design purpose?
To provide stable, compact, and reliable power for HC900 controller racks.
