Introduction

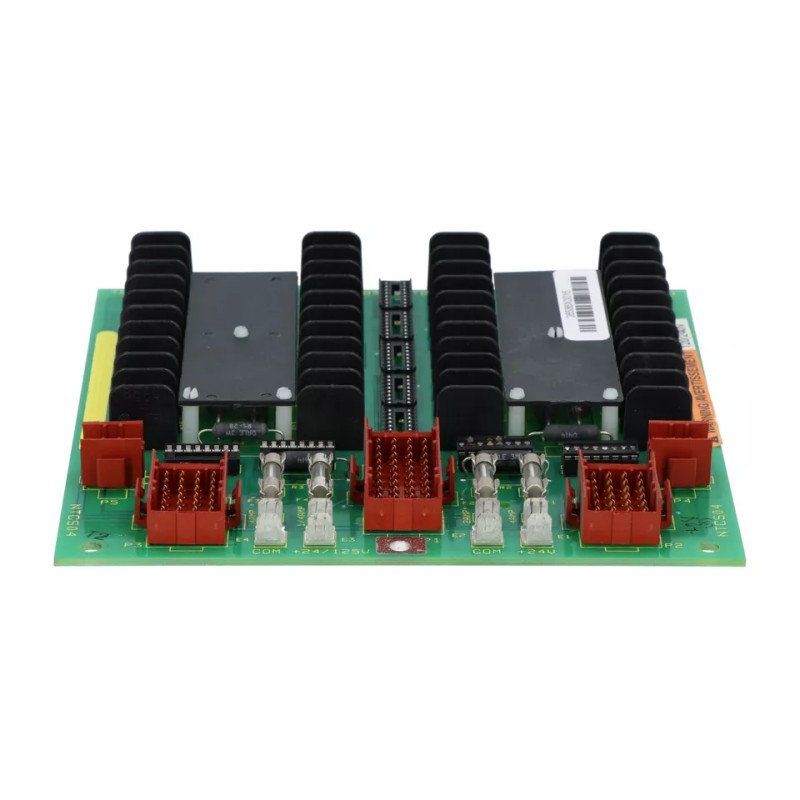

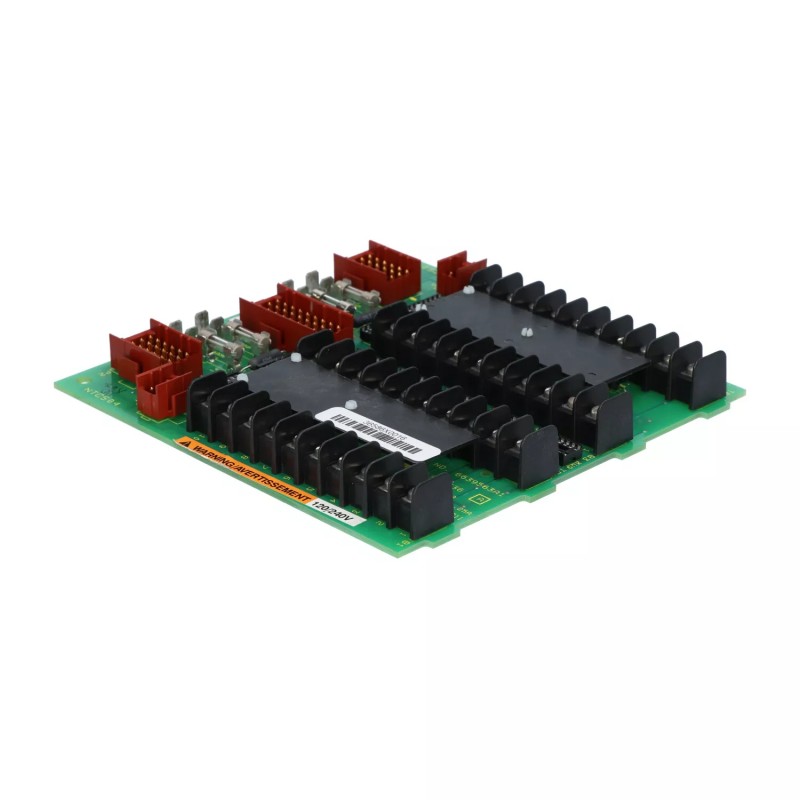

The ABB Bailey NTCS04 Control I/O Termination Unit is a robust interface solution engineered for the INFI 90 Distributed Control System (DCS), designed to streamline field signal integration while maintaining exceptional reliability in mission-critical industrial environments.
Built to handle complex I/O architectures, NTCS04 acts as a centralized termination hub between field devices and control modules, ensuring precise signal routing, reduced wiring complexity, and improved system stability. Its design reflects ABB’s long-standing commitment to operational continuity in demanding process industries where uptime and signal integrity are non-negotiable.
This unit is widely valued in legacy automation infrastructures that continue to operate efficiently in global industrial plants.
Technical Specifications
| Parameter | Details |
|---|
| Model | NTCS04 |
| System | ABB Bailey INFI 90 / Network 90 |
| Module Type | Control I/O Termination Unit |
| Function | Field signal termination & I/O interfacing |
| Supported Signal Types | Analog, Digital, Pulse (system dependent) |
| Compatible Modules | IMCIS02 / IMQRS02 / NKTU series |
| Power Requirement | 24 VDC |
| Current Consumption | Low power design (~20–40 mA typical) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Mounting Type | Cabinet / DIN-rail termination assembly |
| Dimensions (HxWxD) | Approx. 203 × 51 × 178 mm |
| Weight | Approx. 0.4–0.8 kg |
Applications
The NTCS04 is designed for high-density industrial control environments where structured and reliable signal termination is essential.
Typical applications include:
-
Oil & gas production and refining systems
-
Power generation and turbine control stations
-
Petrochemical and chemical processing plants
-
Water and wastewater treatment facilities
-
Industrial manufacturing automation lines
-
Legacy DCS maintenance and system lifecycle extension projects
Its versatility allows it to support both small-scale control stations and large distributed I/O architectures within INFI 90 systems.
Technical FAQs
1. What is the main function of the NTCS04?
It provides structured termination for control and I/O signals within ABB INFI 90 systems.
2. What systems is it compatible with?
It is used in ABB Bailey INFI 90 and Network 90 DCS platforms.
3. What types of signals does it support?
It supports analog, digital, and pulse signals depending on system configuration.
4. What is its power requirement?
It operates on a standard 24 VDC supply with low current consumption.
5. What modules does it typically interface with?
It works with IMCIS02, IMQRS02, and related INFI 90 I/O modules.
6. Is it an active processing module?
No, it functions as a passive termination interface unit.
7. What is its operating temperature range?
-20°C to +70°C for stable industrial performance.
8. How is it installed?
It is mounted inside control cabinets on termination panels or DIN rails.
9. What is its main advantage in system design?
It simplifies wiring while improving signal reliability across distributed systems.
10. Is it still widely used today?
Yes, it remains in service within many operational legacy INFI 90 installations worldwide.
