Industrial Overview

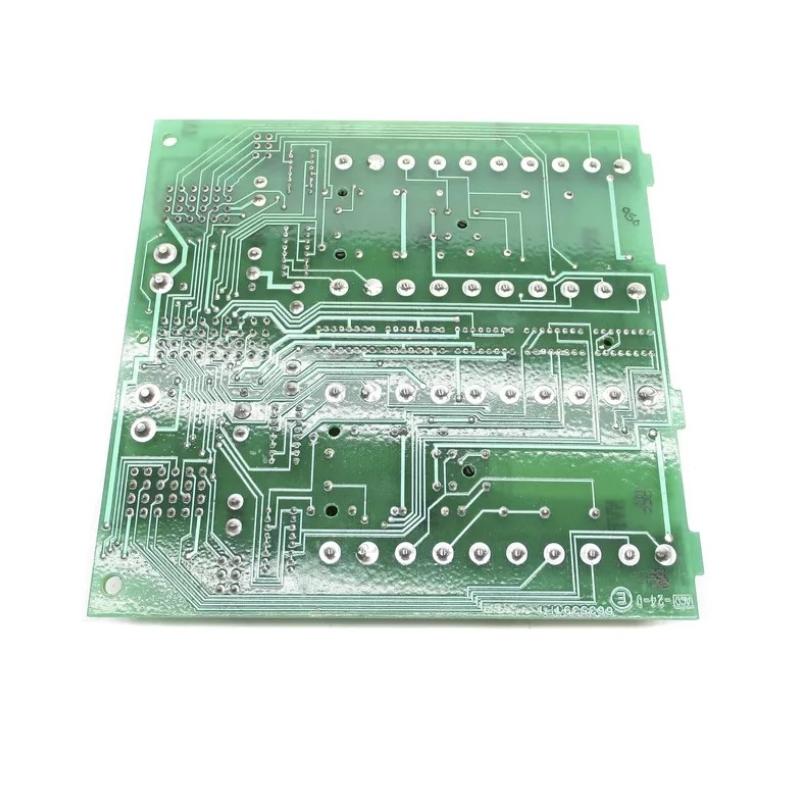

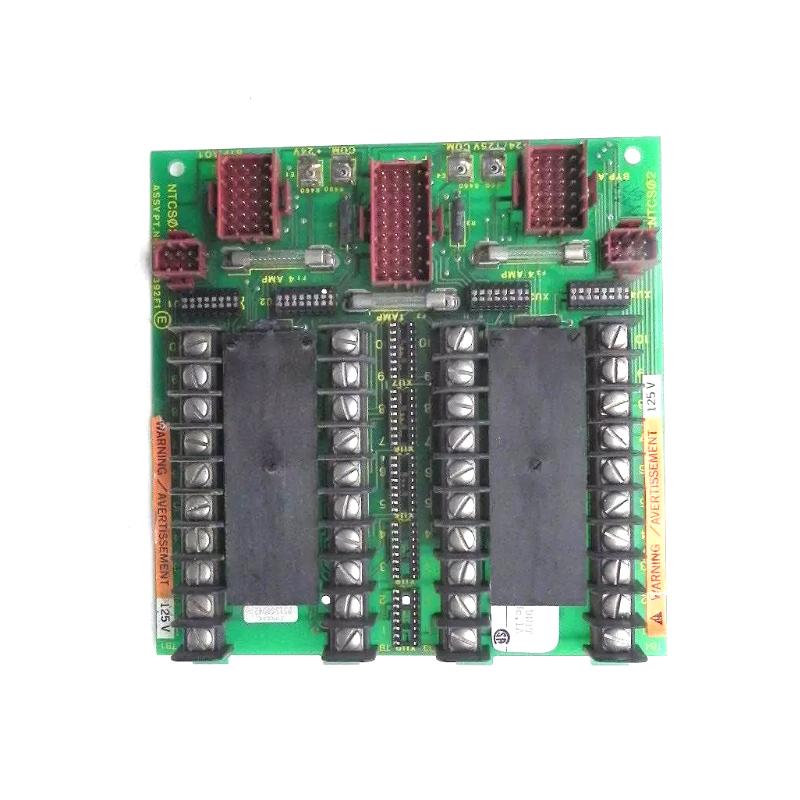

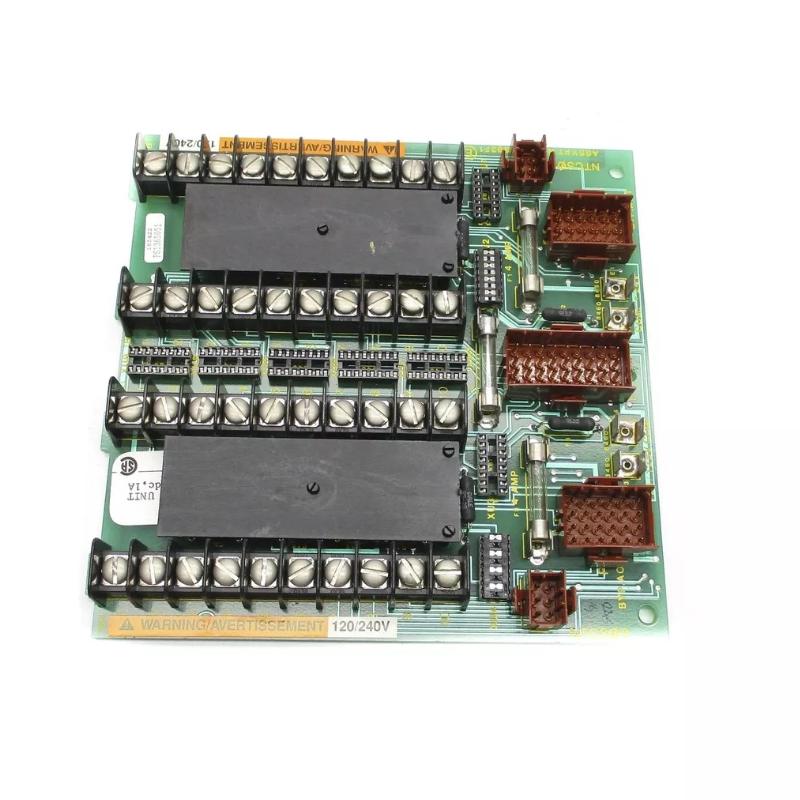

The ABB Bailey NTCS02 Control I/O Termination Unit is a reliable interface module used in the INFI 90 Distributed Control System (DCS). It is designed to provide structured and stable termination for control and I/O signal connections, ensuring accurate signal routing between field devices and system processing modules.
This unit is an important part of ABB Bailey’s legacy automation architecture, helping to simplify wiring, improve signal integrity, and maintain consistent communication performance in complex industrial environments such as power plants, refineries, and process manufacturing facilities.
Engineered for long-term operation, the NTCS02 supports high-density I/O termination while maintaining resistance to electrical noise and environmental stress.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | NTCS02 |
| System | ABB Bailey INFI 90 / Network 90 |
| Type | Control I/O Termination Unit |
| Function | Field signal termination for I/O modules |
| Supported Modules | INFI 90 I/O and control interface systems |
| Signal Type | Analog & Digital I/O (system dependent) |
| Power Requirement | 24 VDC |
| Power Consumption | ~20–30 mA (low power design) |
| Mounting Type | Cabinet / termination panel mounted |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (HxWxD) | Approx. 203 × 51 × 178 mm |
| Weight | Approx. 0.35–0.45 kg |
