Industrial Overview

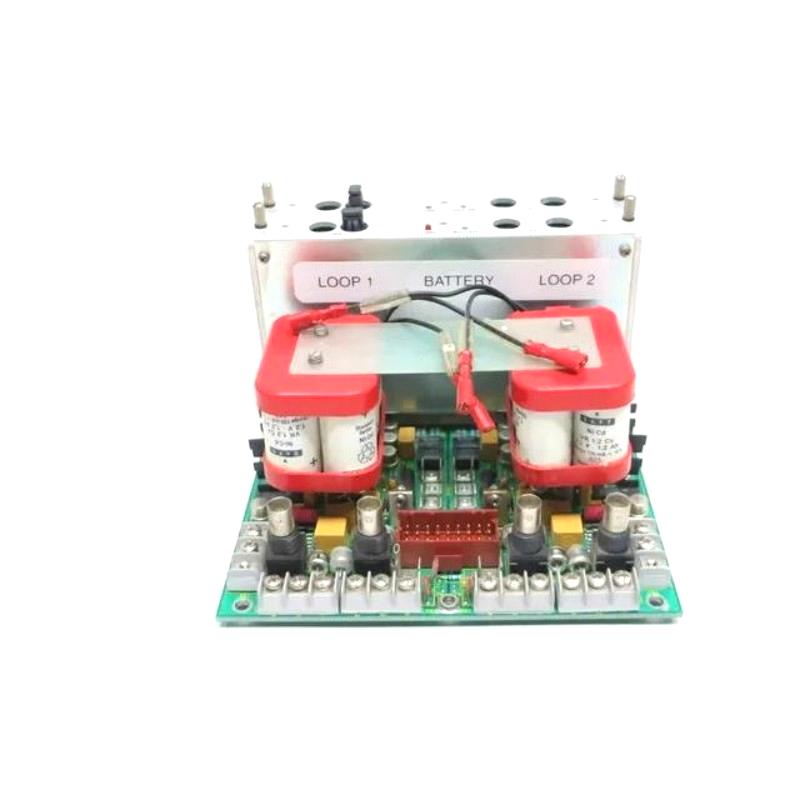

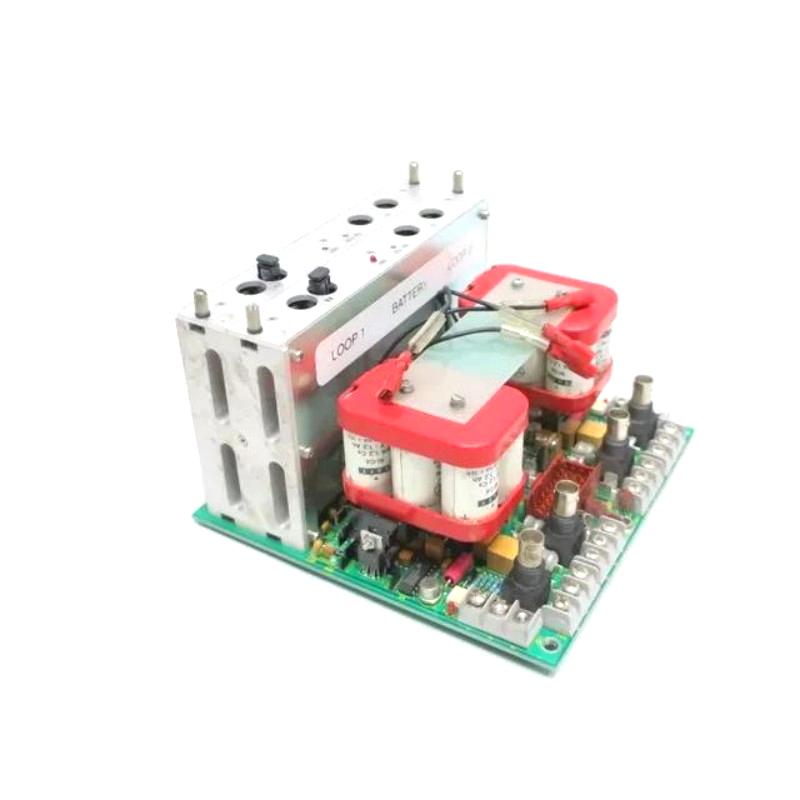

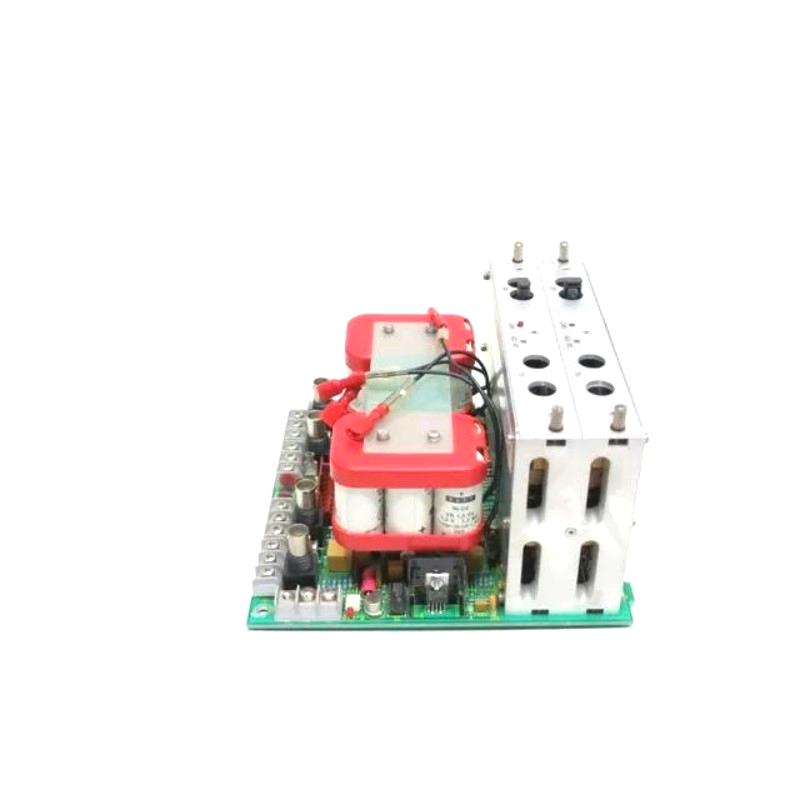

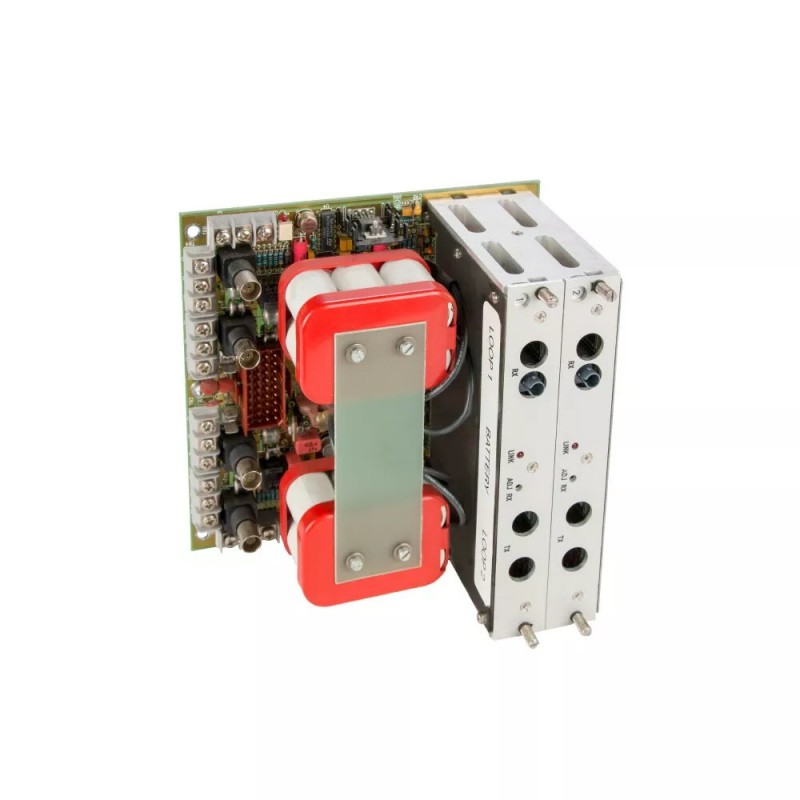

The ABB Bailey NTCF02 Termination Unit is a specialized interface component used within the INFI 90 Distributed Control System (DCS). It is designed to provide reliable fiber optic to electrical signal conversion and termination, enabling stable communication between field devices and control system modules.
Built for legacy industrial automation systems, the NTCF02 plays a critical role in maintaining signal integrity across long-distance communication networks, especially in environments where electromagnetic interference and harsh operating conditions are present.
This module is commonly found in long-running industrial plants where INFI 90 systems are still in operation, ensuring continued system reliability and communication stability.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | NTCF02 |
| System | ABB Bailey INFI 90 |
| Type | Fiber Optic to Electrical Termination Unit |
| Function | Optical signal conversion & termination |
| Communication Type | INFI-NET / fiber optic interface |
| Power Requirement | 24 VDC (low power consumption) |
| Power Consumption | ~0.2–0.25 kg equivalent system load |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Mounting Type | DIN rail / termination panel mounted |
| Dimensions (HxWxD) | Approx. 127 × 178 × 178 mm |
| Weight | Approx. 0.2 kg |
