Industrial Overview

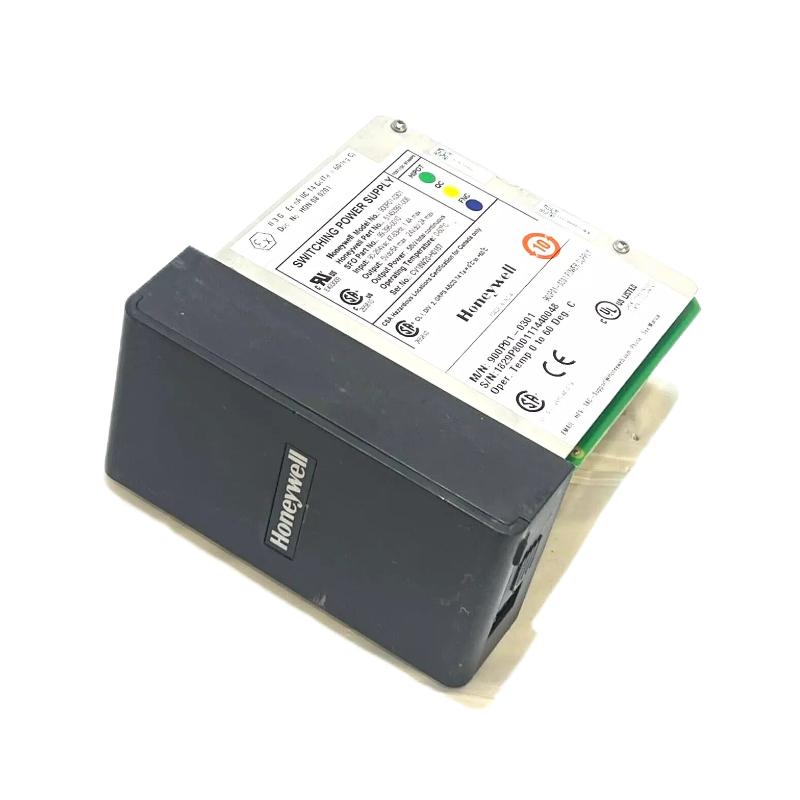

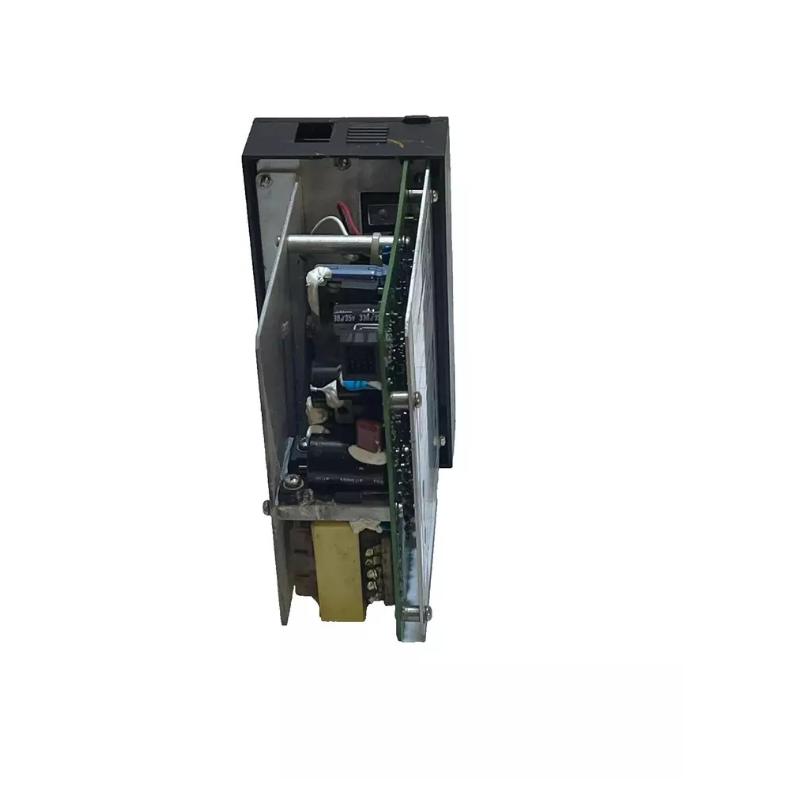

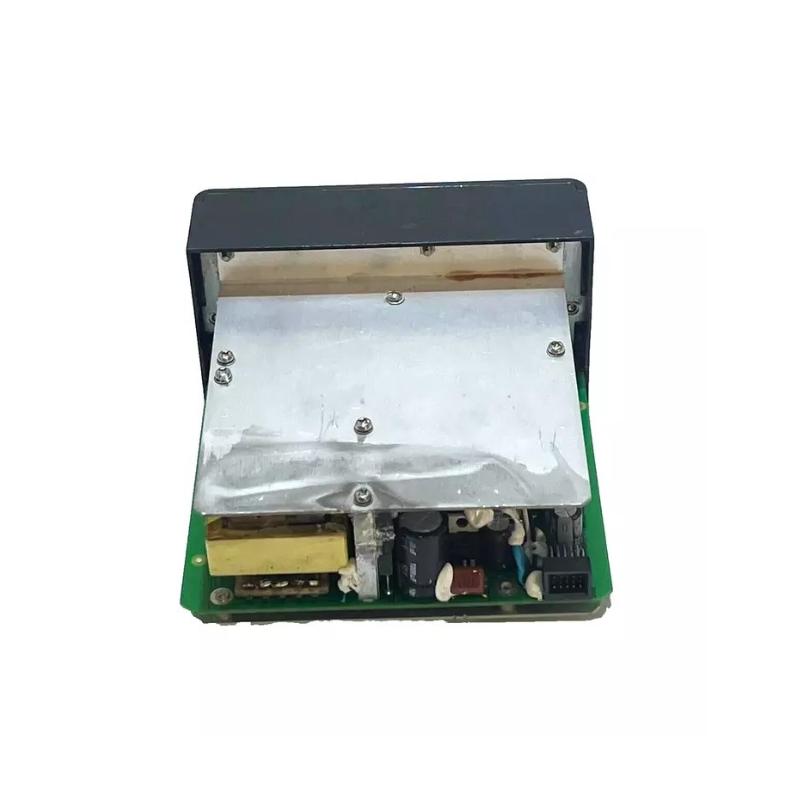

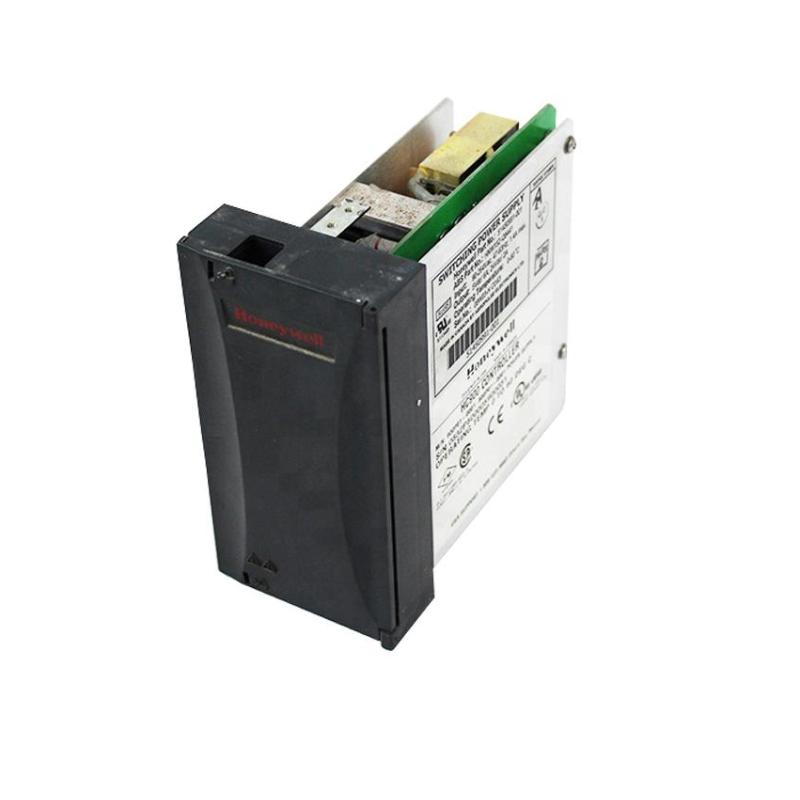

The Honeywell 900P01-0001 Power Supply Module, also identified as 51450991-001, is a dedicated switching power unit designed for the ControlEdge HC900 platform. It provides stable and regulated power distribution to the controller, backplane, and connected I/O modules, ensuring continuous and reliable system operation in industrial automation environments.
Built for mission-critical control systems, this module delivers dual-voltage outputs with high efficiency and protection features, making it a core foundation of HC900 system stability and uptime performance.
Technical Specifications
| Parameter | Details |
|---|
| Model | 900P01-0001 / 51450991-001 |
| Platform | Honeywell ControlEdge HC900 |
| Module Type | Switching Power Supply Module |
| Input Voltage | 90–264 VAC (universal input) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 5 VDC + 24 VDC regulated |
| Output Current | 5 VDC / 6 A, 24 VDC / 2 A |
| Total Output Power | Approx. 58–60 W |
| Inrush Current | High transient protection (design limited) |
| Protection Features | Overvoltage, overload, thermal protection |
| Fuse | Internal non-replaceable fuse |
| Efficiency | High-efficiency industrial switching design |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10–90% non-condensing |
| Dimensions (HxWxD) | Approx. 137 × 72 × 150 mm |
| Weight | Approx. 0.3–0.8 kg |
System Role & Applications
The 900P01-0001 is not just a power module—it is the electrical backbone of the HC900 system architecture, ensuring stable operation across all connected modules.
Typical applications include:
-
Process automation systems
-
Oil & gas production control panels
-
Power generation control cabinets
-
Water and wastewater treatment systems
-
Chemical and petrochemical plants
-
Continuous manufacturing operations
Its dual-output design ensures both logic-level and field-level power stability within the same integrated control rack.
Technical FAQs
1. What is the main function of the 900P01-0001 module?
It supplies regulated 5V and 24V DC power to the HC900 controller and I/O system.
2. What input voltage does it support?
It supports a universal AC input range of 90–264 VAC.
3. What outputs does it provide?
It provides 5V DC (logic power) and 24V DC (field power).
4. What is the total output power?
Approximately 58–60 watts depending on load conditions.
5. Is the module hot-swappable?
It supports controlled maintenance replacement depending on system configuration.
6. Does it include protection features?
Yes, including overload, thermal, and overvoltage protection.
7. What systems is it compatible with?
It is designed specifically for Honeywell ControlEdge HC900 systems.
8. Can it operate in harsh environments?
Yes, it is designed for standard industrial temperature and humidity ranges.
9. What happens if overload occurs?
The module will limit or shut down output to protect connected equipment.
10. How is it installed?
It is mounted directly into the HC900 controller rack backplane.
