Industrial Overview

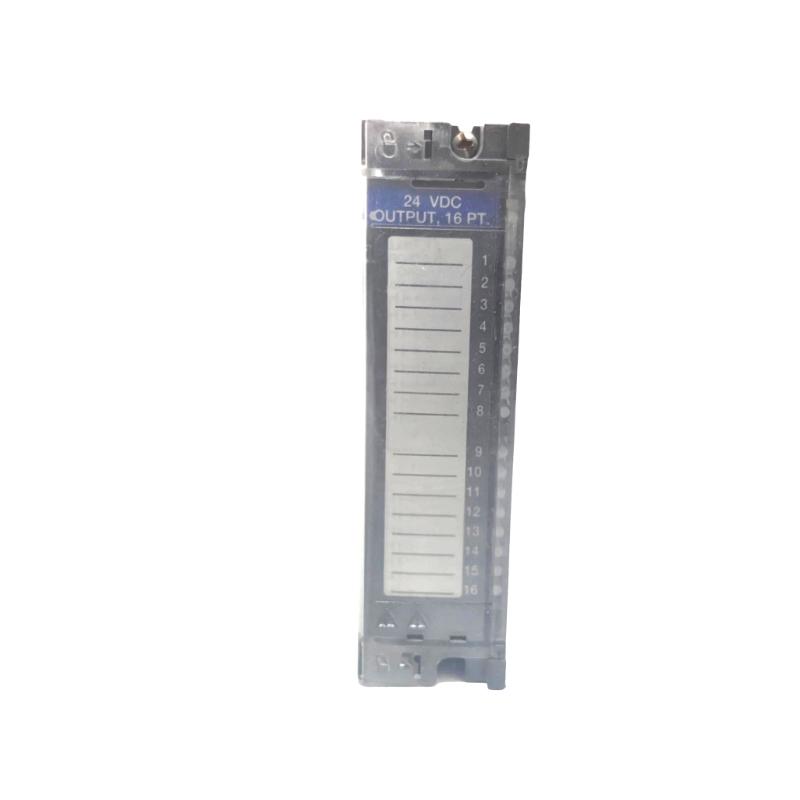

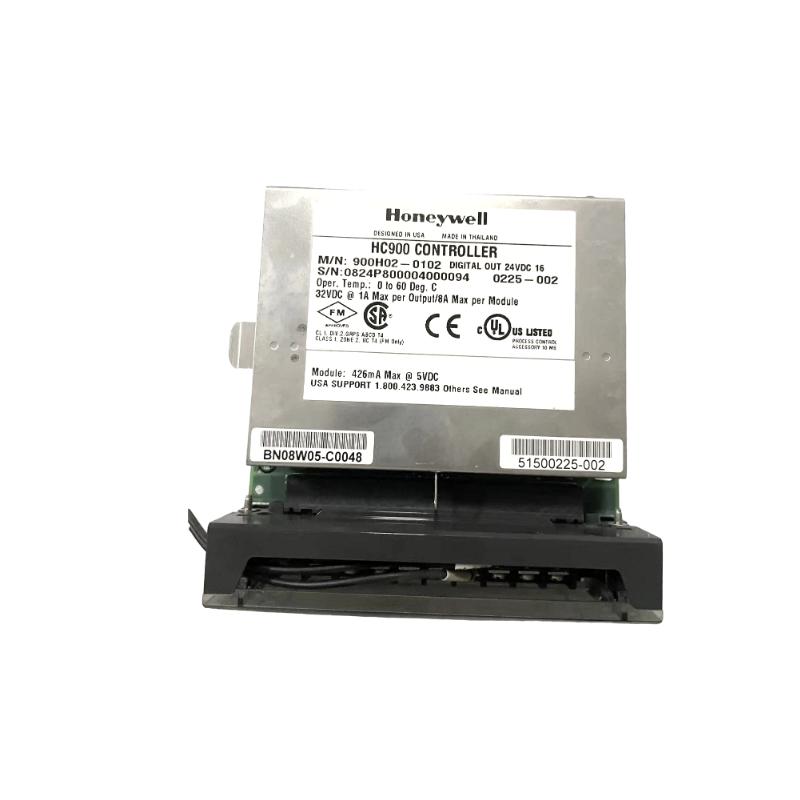

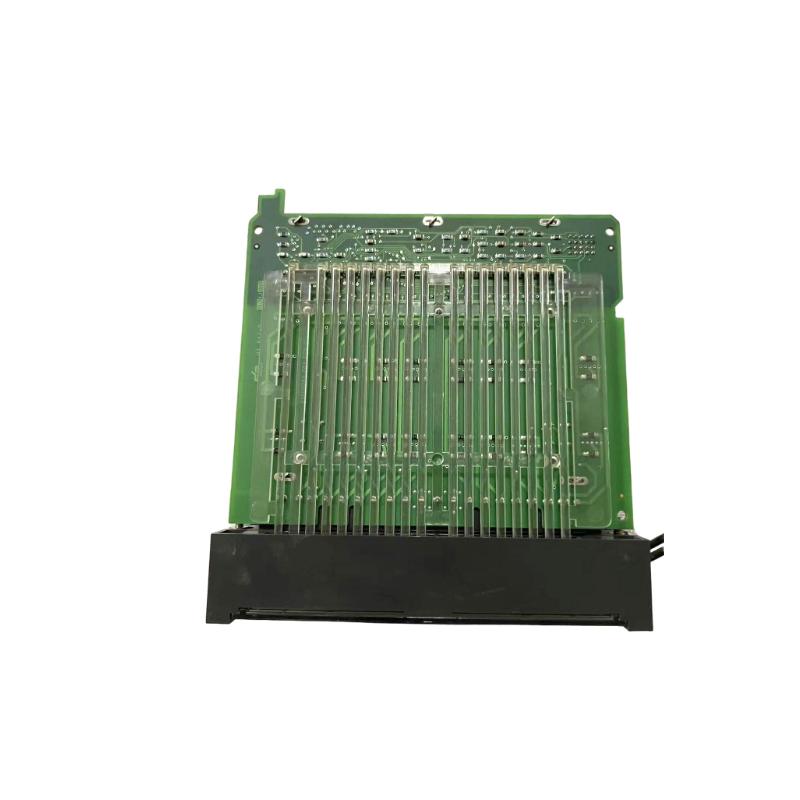

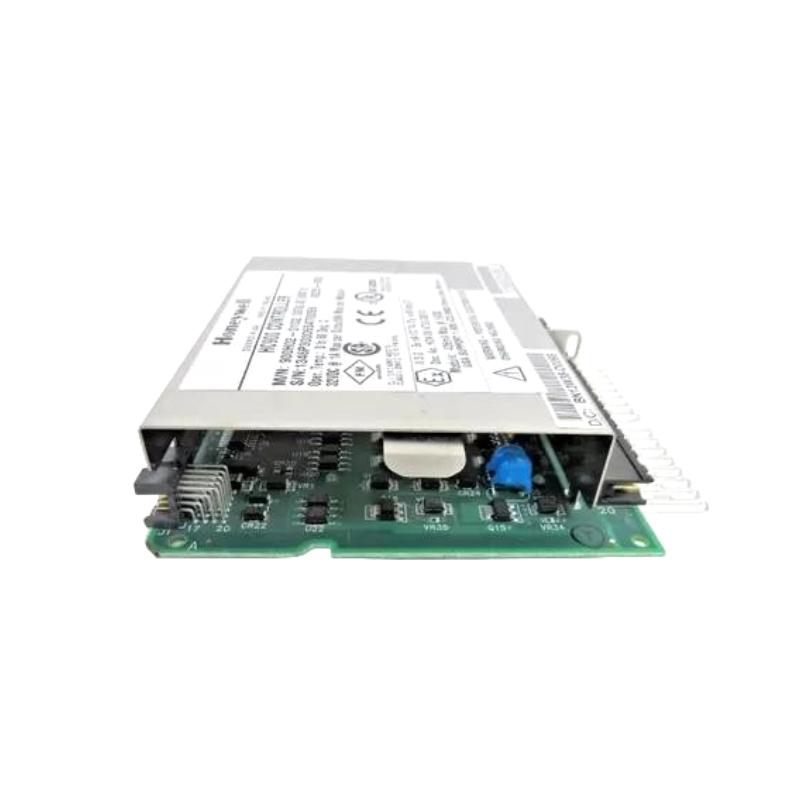

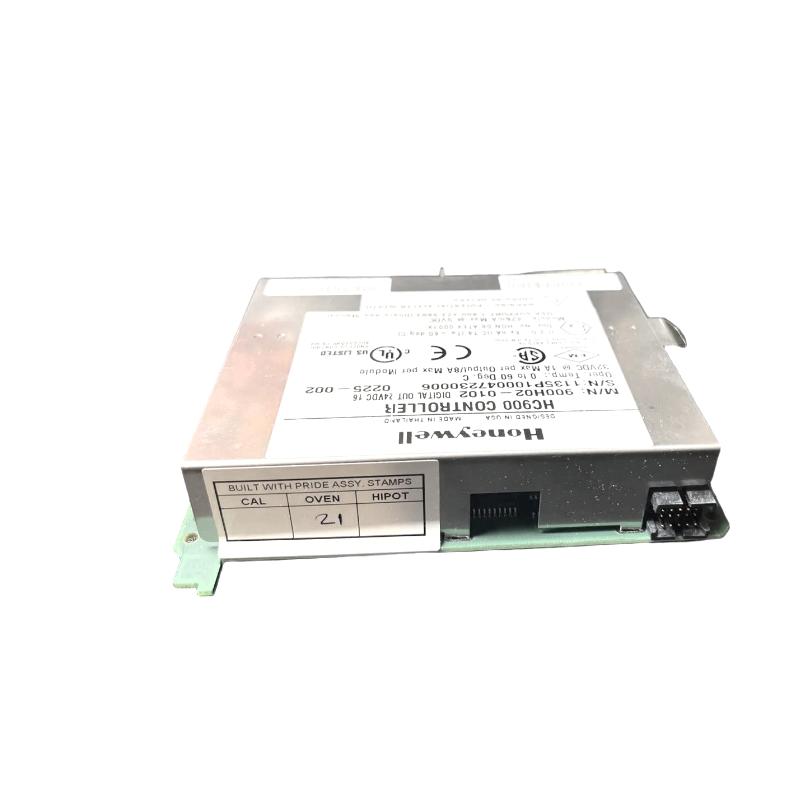

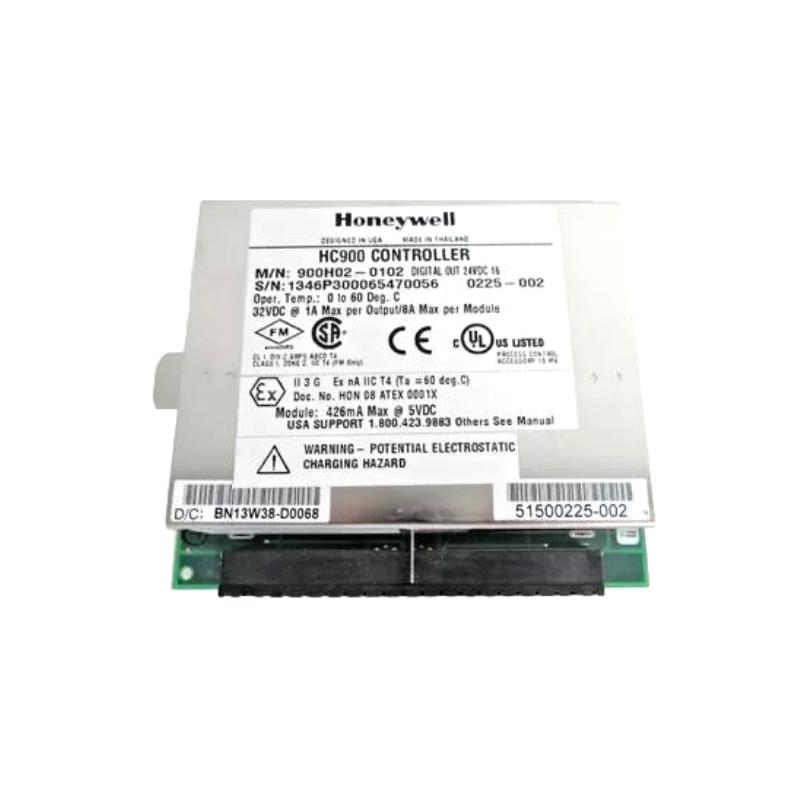

The Honeywell 900H02-0102 Digital Output Module is a high-performance DC output solution designed for the ControlEdge HC900 / ControlEdge 900 automation platform, delivering reliable and fast switching control for industrial actuators, solenoids, alarms, and process interlocks.
Engineered for precision and durability, this module uses 16-channel low-side (current-sinking) transistor outputs, providing stable control of 24VDC field devices. With built-in electronic protection and group isolation, it is widely adopted in continuous process industries where output reliability directly impacts system uptime and operational safety.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 900H02-0102 |
| Platform | ControlEdge HC900 / 900 |
| Module Type | Digital Output Module (DC) |
| Output Channels | 16 (2 groups of 8) |
| Output Type | Low-side switching (current sinking) |
| Output Voltage Range | 6.5 – 32 VDC |
| Peak Voltage | 34 VDC |
| Max Load Current | 1 A per channel / 8 A per module |
| Output Protection | Electronic overload & thermal protection |
| Response Time | ON ≤ 6 ms / OFF ≤ 6 ms |
| Isolation | Group-to-group galvanic isolation |
| Status Indicators | Per-channel LED + module diagnostic LEDs |
| Power Consumption | ~5V backplane, ~340 mA |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Dimensions (HxWxD) | Approx. 140 x 38 x 150 mm |
| Weight | Approx. 0.3–0.4 kg |
