Introduction

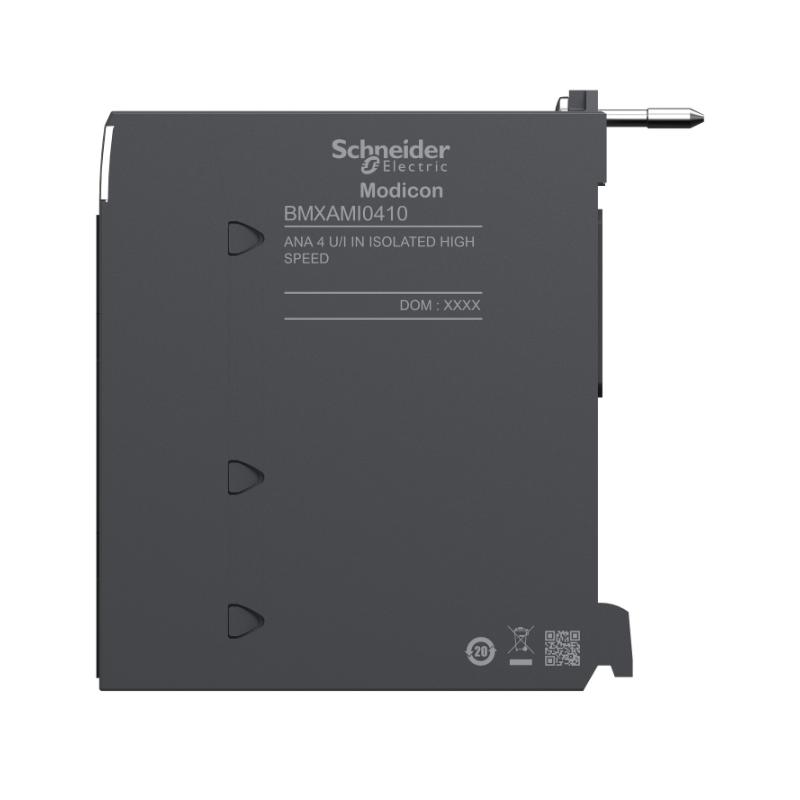

The Schneider BMXAMI0410 is an isolated high-level analog input module designed for precise process signal acquisition in Modicon M580 and X80 automation systems. It converts real-world analog signals into accurate digital data for PLC processing while maintaining strong electrical isolation between field devices and control systems.
This design improves system stability and measurement accuracy in environments with high electrical noise or long cable runs. Its compact form factor allows efficient rack integration without sacrificing channel density or performance.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Analog Isolated High-level Input Module |
| Model | BMXAMI0410 |
| Platform Compatibility | Modicon M580 / X80 |
| Input Type | High-level analog inputs |
| Isolation | Channel-to-system isolation |
| Communication | X80 backplane communication |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 104 × 33 × 93 mm |
| Weight | 0.15 kg (0.33 lb) |
Applications
The Schneider BMXAMI0410 is designed for high-accuracy analog signal acquisition in industrial automation systems where electrical isolation and signal stability are critical. It is widely used in Modicon M580 and X80 architectures to interface real-world process variables with PLC control logic.
Typical applications include:
-
Process control in water and wastewater treatment plants
-
Temperature, pressure, and flow monitoring systems
-
Chemical dosing and mixing control systems
-
Energy management and utility monitoring
-
Industrial HVAC and environmental control systems
-
Food and beverage production process measurement
-
Continuous manufacturing process instrumentation
Its isolated input design ensures reliable measurement even in electrically noisy industrial environments.
Advantages
The BMXAMI0410 provides accurate analog data acquisition while protecting control systems from electrical interference and ground loops.
Key benefits include:
-
Electrical isolation for each input channel
-
High-level analog signal compatibility
-
Improved noise immunity in industrial environments
-
Stable signal conversion for process accuracy
-
Seamless integration with Modicon M580/X80 systems
-
Compact design for efficient rack utilization
-
Reliable long-term measurement performance
These advantages make it suitable for applications where measurement precision directly impacts process quality.
Technical FAQs
1. What type of signals does the BMXAMI0410 support?
It supports high-level analog input signals used in industrial process measurement.
2. Why is isolation important in this module?
Isolation prevents electrical noise and ground loop issues from affecting signal accuracy.
3. Can it be used in temperature monitoring systems?
Yes, when paired with appropriate transmitters converting temperature to analog signals.
4. Is it compatible with Modicon M580 systems?
Yes, it is fully compatible with M580 and X80 I/O architectures.
5. How many input channels does it support?
It provides multiple isolated analog input channels for flexible configuration.
6. Does it require external signal conditioning?
It depends on the sensor; many industrial transmitters can be connected directly.
7. How is data transmitted to the controller?
Data is transmitted via the X80 backplane to the CPU module.
8. Can it handle noisy industrial environments?
Yes, its isolation design significantly improves noise immunity.
9. Is calibration required after installation?
Basic system calibration is recommended depending on process accuracy requirements.
10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial process monitoring.
