Introduction

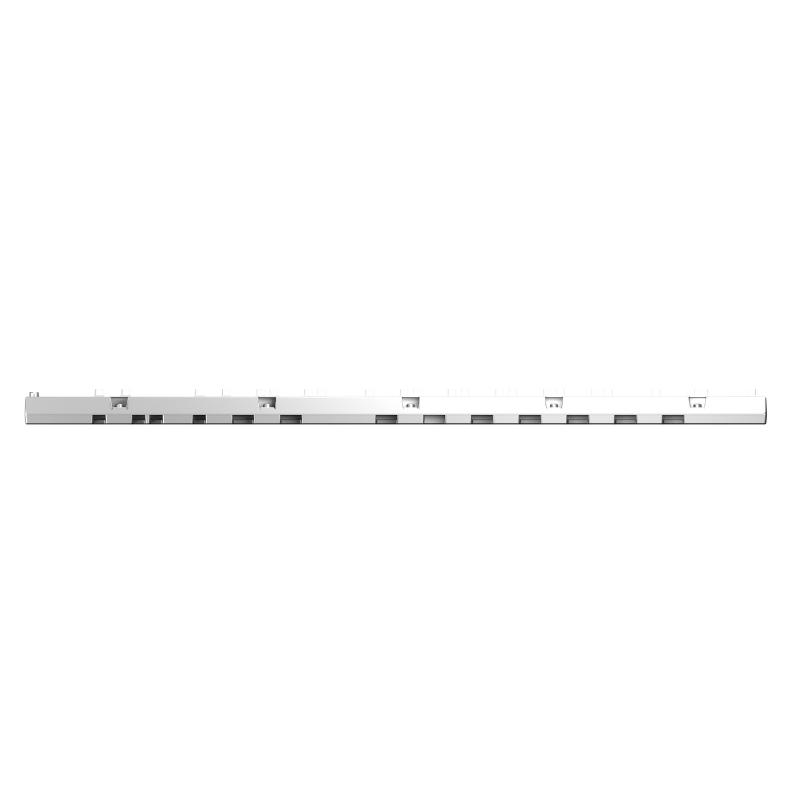

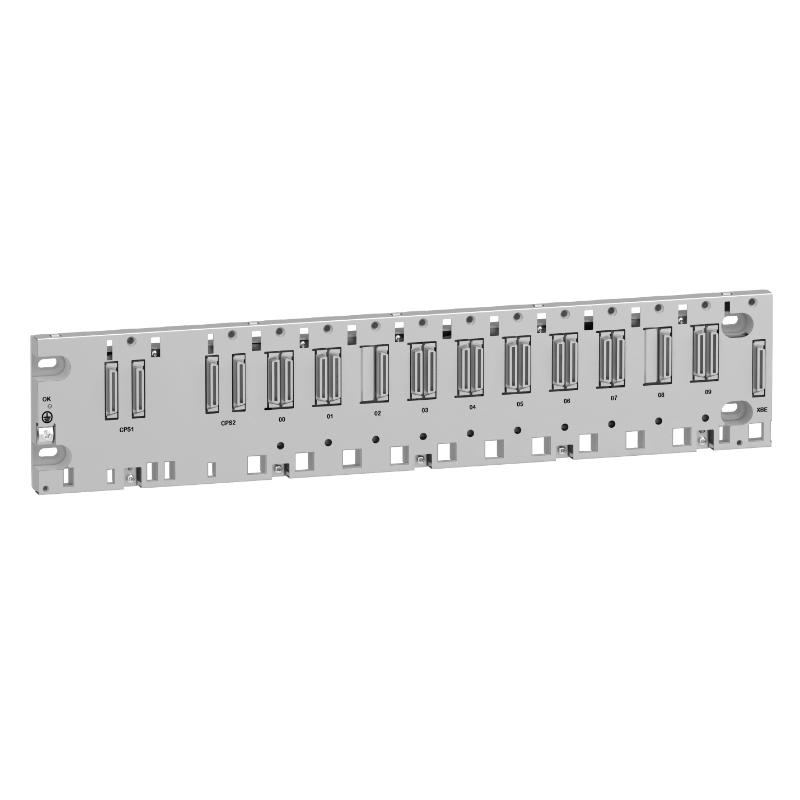

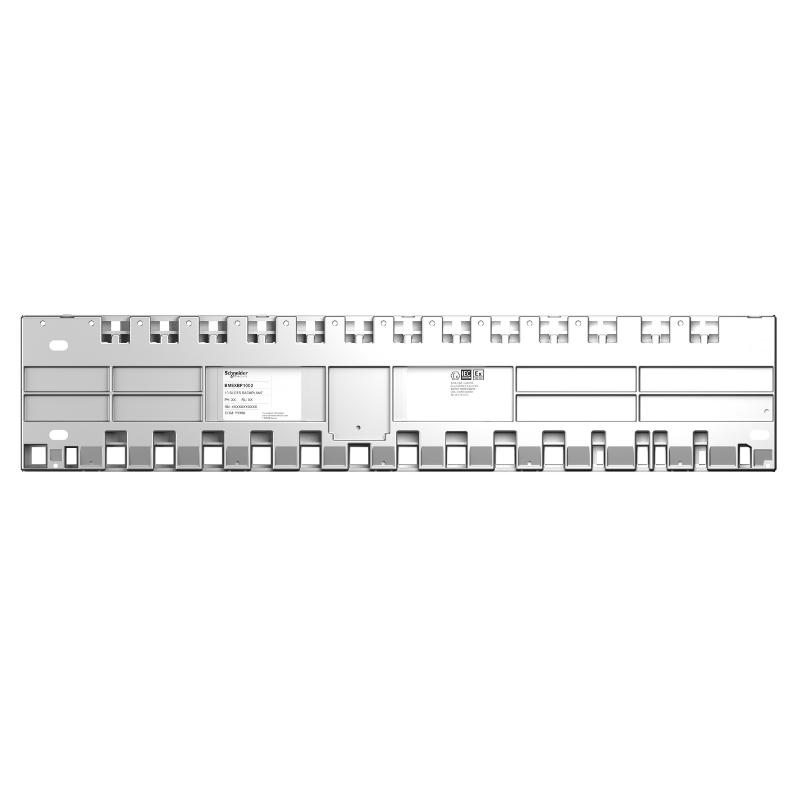

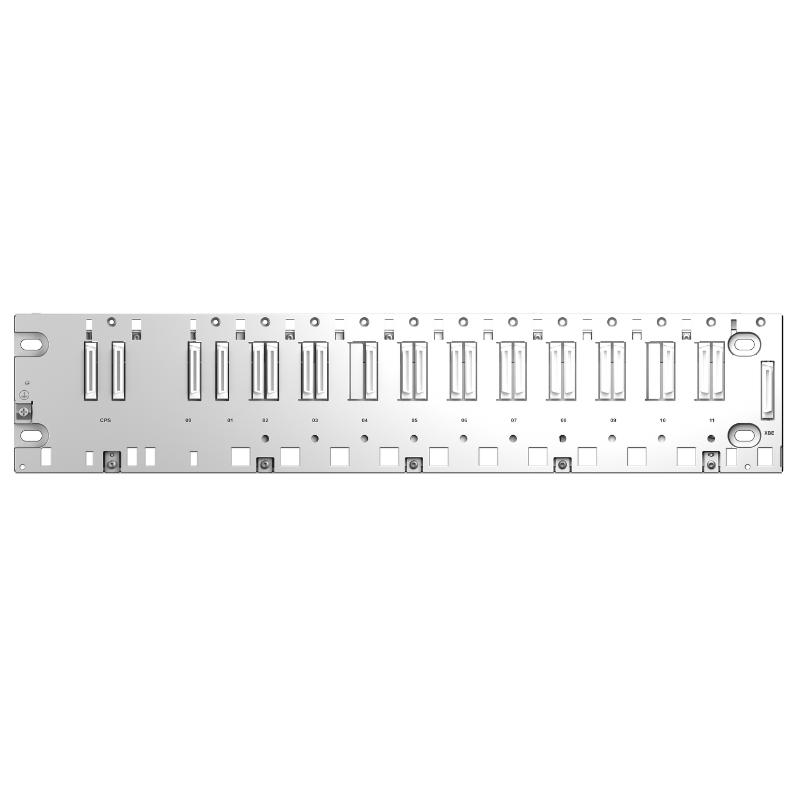

The Schneider BMEXBP1002 is a 10-slot Ethernet backplane developed to provide a stable infrastructure platform for high-density industrial automation systems. It forms the communication and mechanical foundation for Modicon M580 and X80 modules, helping engineers design efficient and expandable control systems.
Its long-format rack design is particularly useful in installations that require multiple processors, communication modules, and distributed I/O. Built for industrial durability, the BMEXBP1002 supports reliable long-term operation in both process and discrete automation environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | 10-Slot Ethernet Backplane |
| Model | BMEXBP1002 |
| Platform Compatibility | Modicon M580 / X80 |
| Slot Capacity | 10 module slots |
| Communication Interface | Ethernet backplane bus |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 506.2 × 19 × 105.11 mm |
| Weight | 1.37 kg (3.02 lb) |
Applications
The Schneider BMEXBP1002 is designed for industrial control systems that require expanded rack capacity, stable module communication, and flexible system layout. As a 10-slot Ethernet backplane, it supports larger Modicon X80 and M580 architectures where multiple I/O, communication, and processor modules must operate in coordination.
Typical applications include:
-
Large-scale distributed process control systems
-
Water treatment and utility automation plants
-
Oil and gas production facilities
-
High-density manufacturing and assembly lines
-
Material handling and logistics systems
-
Power monitoring and substation automation
-
Infrastructure and transport control networks
Its extended slot capacity makes it well suited for systems that need higher module density without compromising communication reliability.
Advantages
The BMEXBP1002 is built to support long-term system expansion while maintaining communication stability across all installed modules.
Key benefits include:
-
10-slot capacity for higher rack integration density
-
Stable Ethernet backplane communication for control modules
-
Simplifies system expansion and future upgrades
-
Supports modular control architecture design
-
Rugged industrial construction for continuous operation
-
Helps reduce cabinet complexity in large systems
-
Maintenance-friendly rack infrastructure
These features make it a practical choice for engineers building scalable and high-availability control platforms.
Technical FAQs
1. What is the main purpose of the BMEXBP1002?
It provides the physical and communication backbone for installing and interconnecting up to 10 Schneider automation modules.
2. Which Schneider systems is it compatible with?
It is designed for Modicon M580 and X80 platform architectures.
3. Does it support hot-swappable module replacement?
Yes, supported modules can typically be serviced according to Schneider maintenance procedures.
4. How does the backplane improve system reliability?
It ensures stable internal communication and organized power distribution across installed modules.
5. Can it support remote I/O systems?
Yes, it is commonly used in both local and distributed automation racks.
6. Is it suitable for process-critical environments?
Yes, it is built for demanding industrial automation applications.
7. Does it require special mounting hardware?
It is designed for standard rack/cabinet mounting configurations.
8. Can multiple communication modules be installed?
Yes, depending on system architecture and available slot allocation.
9. What role does it play in diagnostics?
It supports system-level module communication and status monitoring.
10. Is it suitable for future system expansion?
Yes, the 10-slot layout is ideal for scalable system growth.
