Introduction

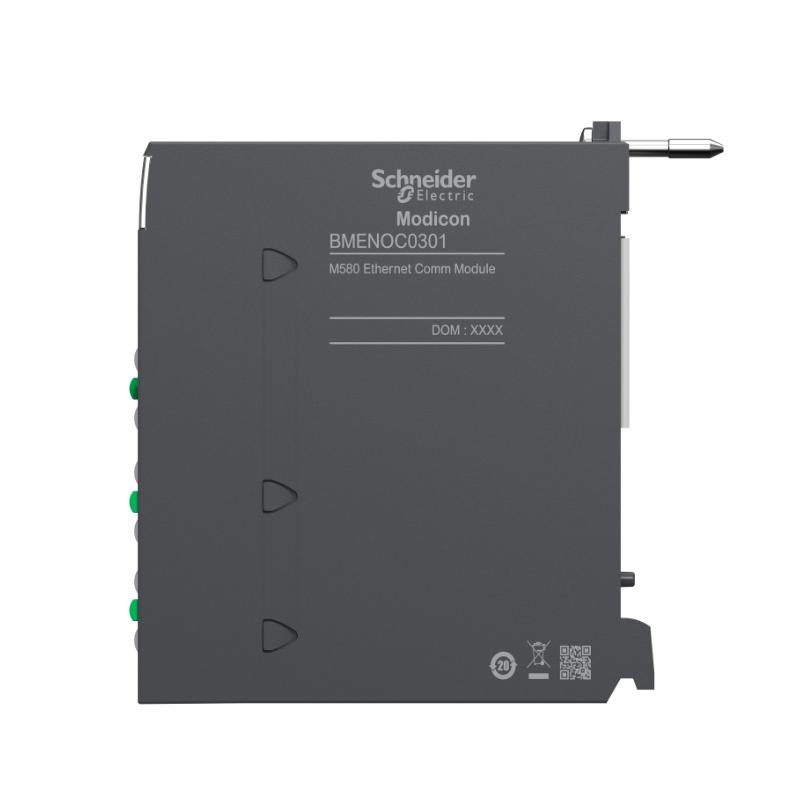

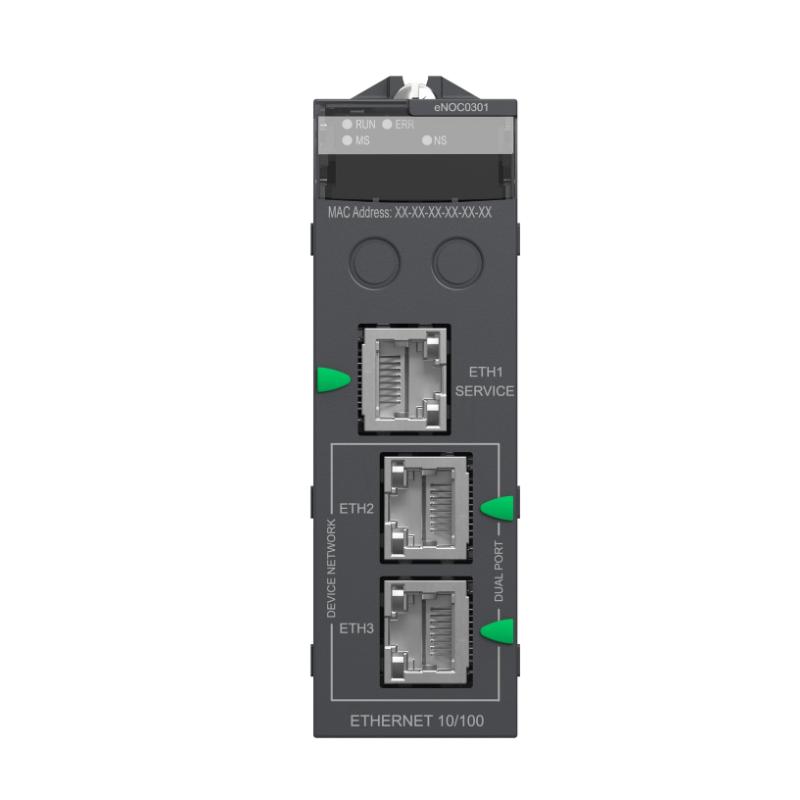

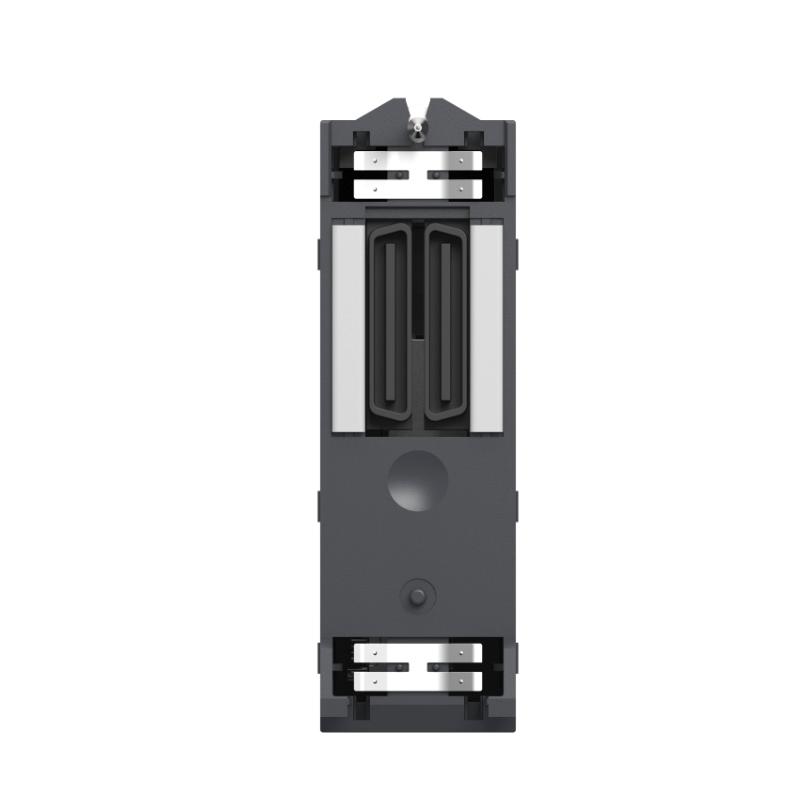

The Schneider BMENOC0301 is an Ethernet communication module built for Modicon M580 automation systems that require reliable network connectivity, remote diagnostics, and efficient industrial data exchange. It helps separate communication tasks from core control processing, improving overall system responsiveness.
Designed for modern connected plants, this module supports scalable network architectures while maintaining dependable communication performance. Its compact design and industrial-grade reliability make it well suited for both new automation projects and system upgrades.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Ethernet Communication Module |
| Model | BMENOC0301 |
| Platform Compatibility | Modicon M580 / X80 |
| Communication Interface | Industrial Ethernet |
| Network Services | Controller, SCADA, HMI integration |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 103.7 × 32 × 86 mm |
| Weight | 0.2 kg (0.44 lb) |
Applications
The Schneider BMENOC0301 is designed to provide secure and efficient Ethernet connectivity for industrial automation systems. As part of the Modicon M580 platform, it enables seamless communication between controllers, remote devices, and supervisory systems across plant networks.
Typical applications include:
-
Plant-wide SCADA communication networks
-
Remote monitoring and diagnostics systems
-
Distributed process control architectures
-
Manufacturing execution system (MES) integration
-
Industrial data acquisition systems
-
Utility and infrastructure automation
-
Multi-rack controller communication environments
Its dedicated network communication role makes it highly effective in systems that require reliable data exchange and flexible architecture expansion.
Advantages
The BMENOC0301 enhances industrial network performance while improving system transparency and maintainability.
Key benefits include:
-
Dedicated Ethernet communication for control architectures
-
Supports high-speed industrial data exchange
-
Reduces controller communication load
-
Improves system scalability and network segmentation
-
Built-in diagnostics for network health monitoring
-
Supports secure remote access and maintenance
-
Designed for reliable long-term industrial use
These features help engineers create more responsive and manageable automation systems.
Technical FAQs
1. What is the primary function of the BMENOC0301?
It provides dedicated Ethernet communication for Modicon M580 automation systems.
2. Which controller platforms is it compatible with?
It is designed for Modicon M580 and compatible X80 system architectures.
3. What communication services does it support?
It supports industrial Ethernet services for controller, HMI, SCADA, and remote system integration.
4. Can it support remote diagnostics?
Yes, it enables remote access for diagnostics, monitoring, and maintenance.
5. Does it improve network performance?
Yes, by offloading communication tasks from the main processor.
6. Is network redundancy supported?
It supports robust industrial Ethernet topologies depending on system design.
7. How is configuration performed?
Configuration is typically completed through EcoStruxure Control Expert.
8. Can it be used in cybersecurity-focused systems?
Yes, it supports secure industrial network deployment practices.
9. Does it support online maintenance?
Yes, it supports online diagnostics and maintenance workflows.
10. Is it suitable for harsh industrial environments?
Yes, it is designed for control cabinet installation in industrial settings.
