Product Introduction

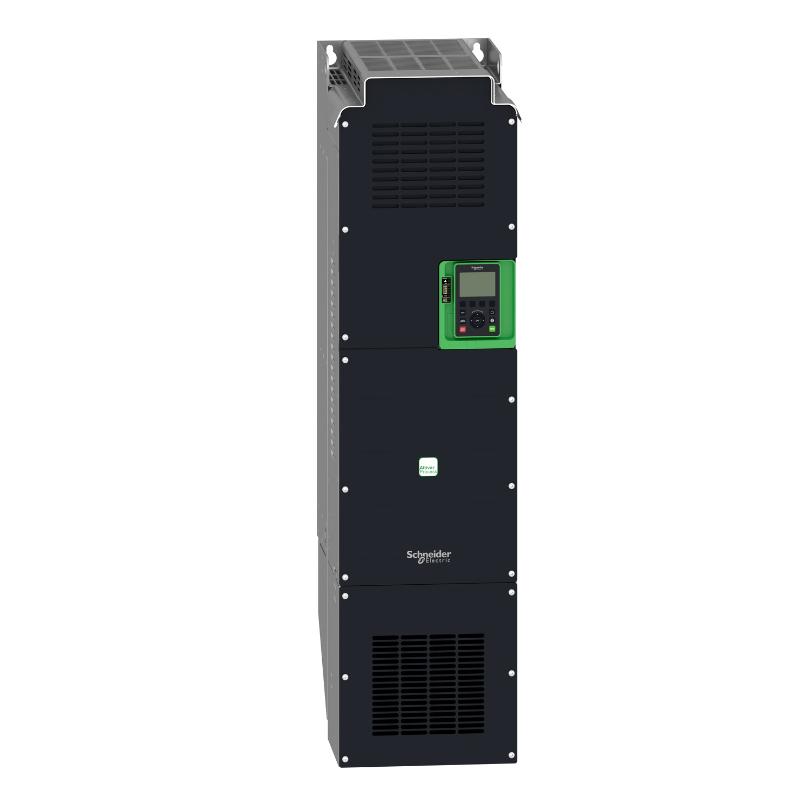

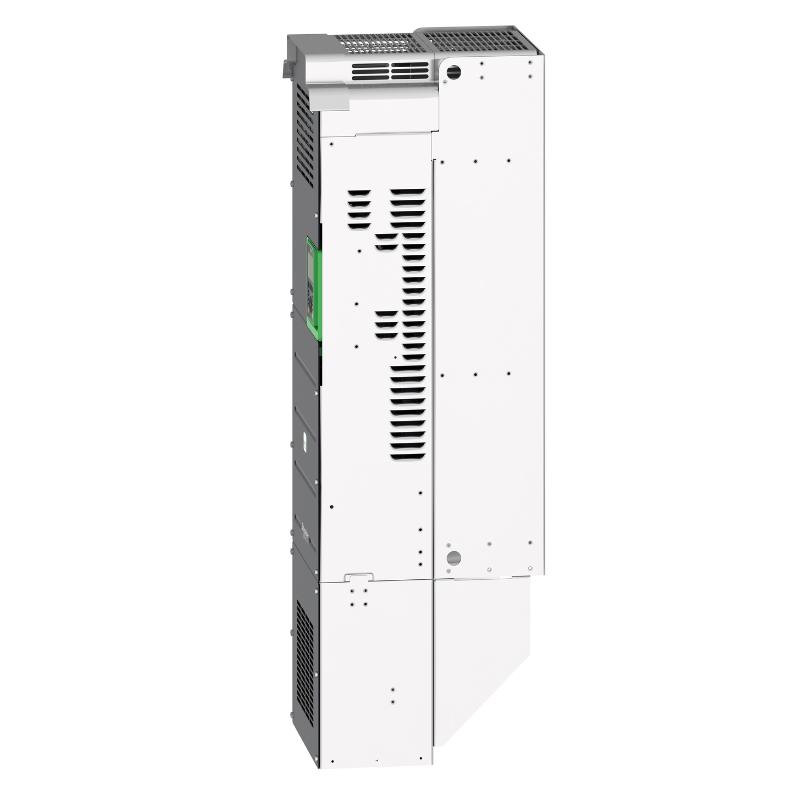

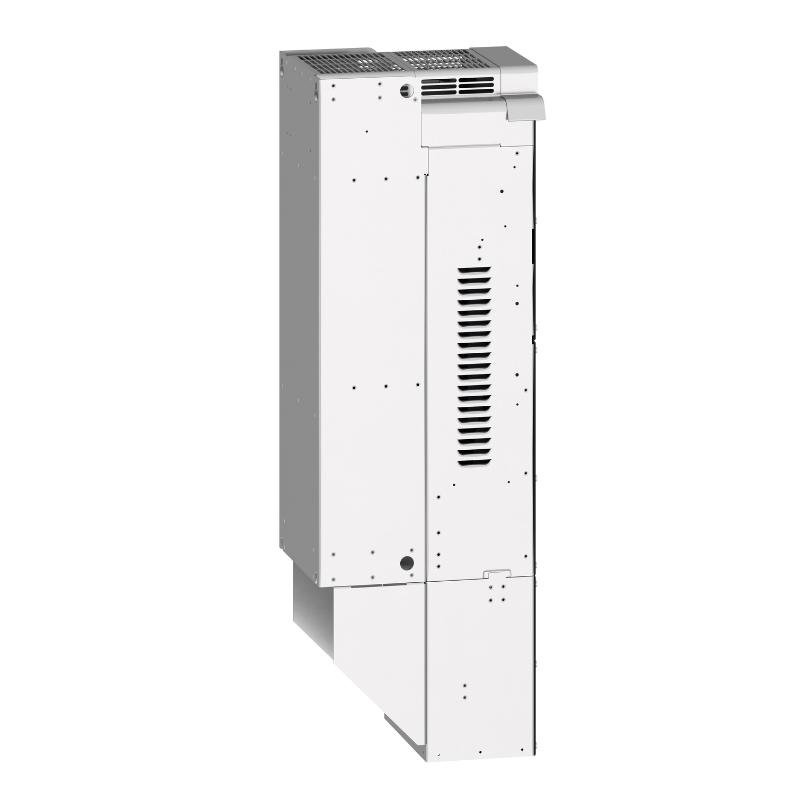

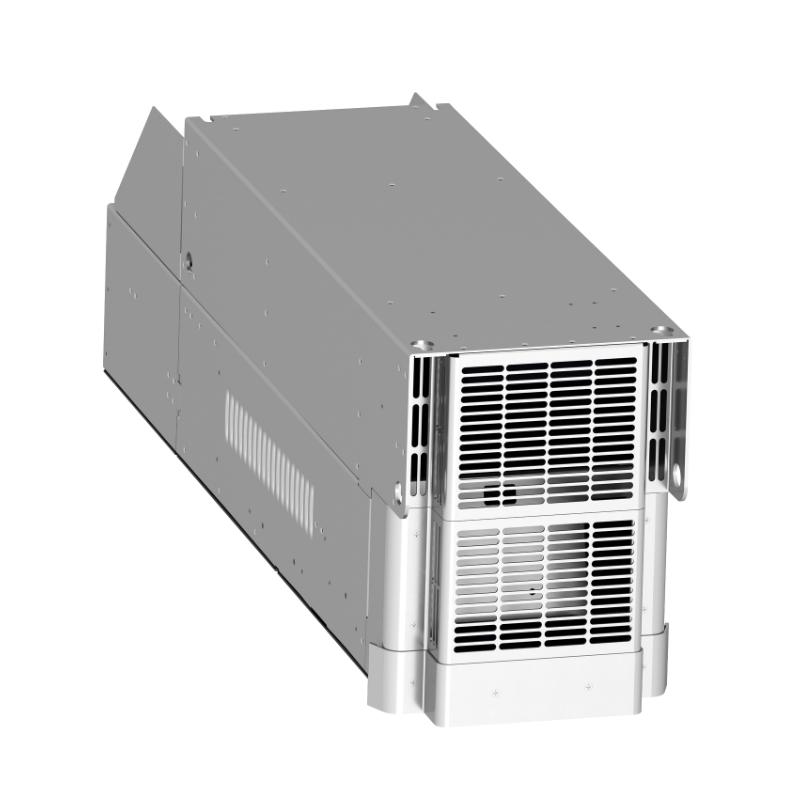

The Schneider ATV930C16N4 is part of the Altivar Process ATV900 range, designed for modern industrial environments where drives function as intelligent nodes in automation systems. Unlike traditional VFDs, it integrates motor control with diagnostics, energy optimization, and network communication.
Its design focus is on long-term industrial reliability and system-level visibility, making it suitable for plants that require continuous operation and data-driven maintenance strategies.
From an engineering standpoint, it is often chosen for large-scale infrastructure where efficiency, connectivity, and process stability are equally critical.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Variable Speed Drive |
| Model | ATV930C16N4 |
| Series | Altivar Process ATV900 |
| Motor Power | 160 kW |
| Input Voltage | 380–480 V AC |
| Phase | 3 Phase |
| Line Current | ~237–284 A depending on load |
| Output Current | ~250–302 A |
| Output Frequency | 0.1–500 Hz |
| Control Modes | V/F, SFVC, FVC |
| Communication | Modbus TCP, Ethernet/IP |
| Safety Functions | STO (Safe Torque Off) |
| EMC Filter | Integrated |
| Protection Rating | IP21 |
| Mounting Type | Wall Mount |
| Dimensions | 1205 × 320 × 393 mm |
| Weight | 104 kg (229.28 lb) |
Industrial Application Overview
The Schneider ATV930C16N4 Variable Speed Drive belongs to the Altivar Process ATV900 series, designed for high-power industrial process control where energy efficiency, system integration, and continuous monitoring are critical. It is widely used in:
-
Large pumping and water distribution systems
-
Oil & gas compression and pipeline networks
-
Mining and bulk material transport systems
-
Heavy-duty HVAC and district cooling plants
-
Industrial conveyors, crushers, and mills
-
Process industries requiring 24/7 operation
This drive is engineered not only for motor control but also for digital process optimization in complex industrial infrastructures.
Engineering Advantages in Real Operation
The ATV930C16N4 is built for high-load industrial environments where reliability, connectivity, and energy optimization are essential.
Key advantages
-
160 kW (400 V class) high-power motor control for heavy industrial systems
-
Advanced vector control (sensorless + closed-loop) for precise torque and speed regulation
-
Integrated Ethernet communication (Modbus TCP / Ethernet/IP) for SCADA integration
-
Energy optimization functions for pumps and fans to reduce operating cost
-
Built-in braking and overload capability for demanding transient conditions
-
Wide output frequency range up to 500 Hz
-
Safe Torque Off (STO) safety function integrated for industrial safety compliance
-
Modular expansion for fieldbus and encoder feedback systems
In real industrial use, this model is selected when process control and digital connectivity are as important as raw motor power.
Technical FAQs
1. What is the power rating of this drive?
It supports up to 160 kW (400 V class) for industrial motor applications.
2. What voltage does it operate on?
It operates on 380–480 V three-phase industrial supply systems.
3. Does it support Ethernet communication?
Yes, it supports Ethernet/IP and Modbus TCP for industrial networks.
4. What is the maximum output frequency?
Up to 500 Hz.
5. Does it support vector control?
Yes, both sensorless and closed-loop vector control are supported.
6. Is it suitable for pump and fan systems?
Yes, it includes dedicated process control functions for energy-efficient operation.
7. Does it include safety functions?
Yes, it integrates Safe Torque Off (STO) and related safety functions.
8. Can it integrate into SCADA systems?
Yes, it is designed for full SCADA and PLC integration.
9. What type of motors are supported?
It supports both synchronous and asynchronous industrial motors.
10. What makes it different from standard VFDs?
It combines motor control, process optimization, and industrial communication into one platform.
