Product Introduction

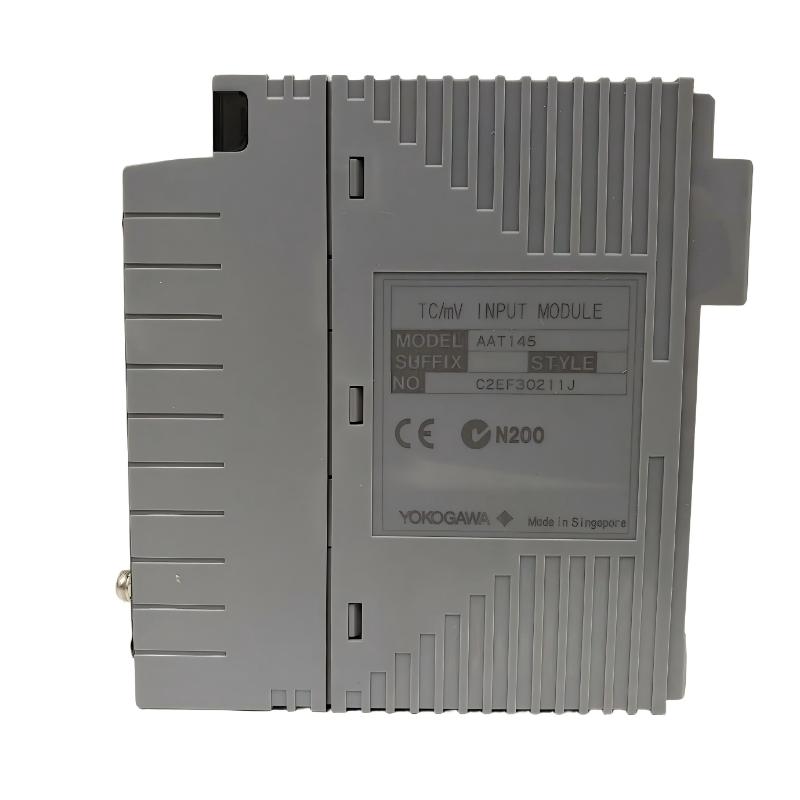

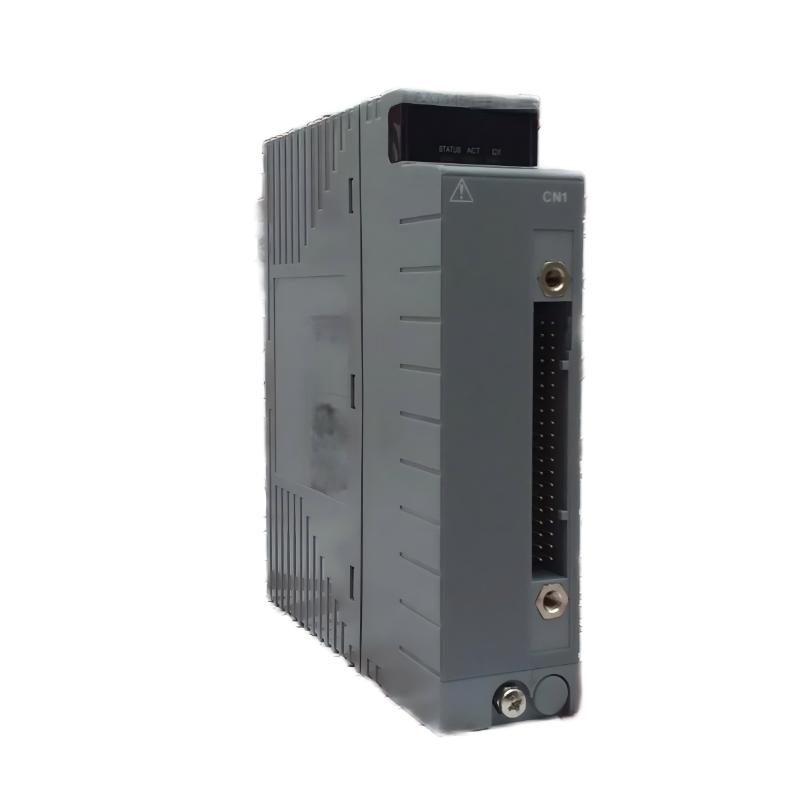

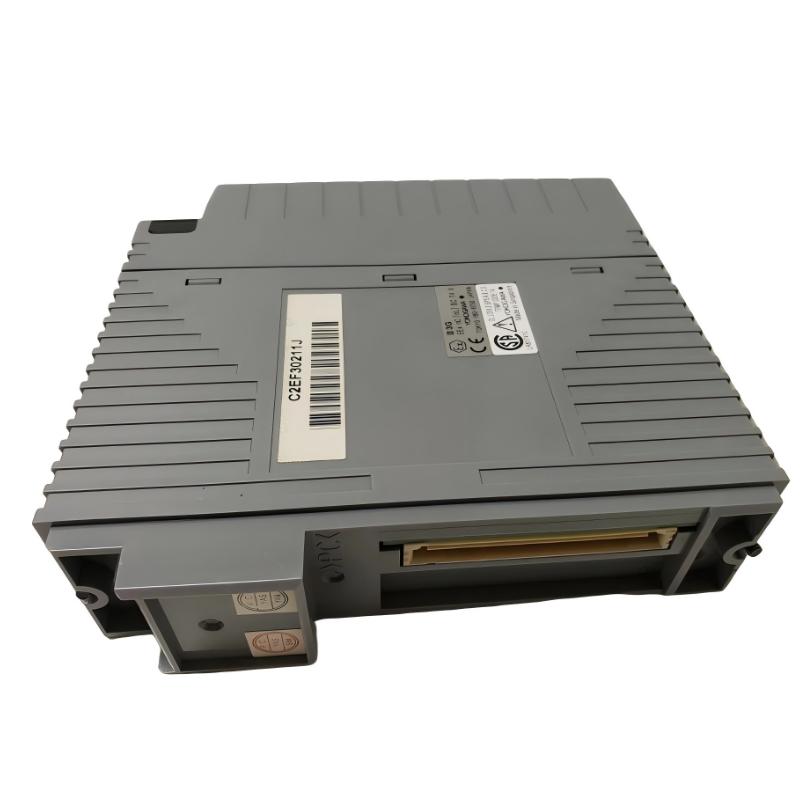

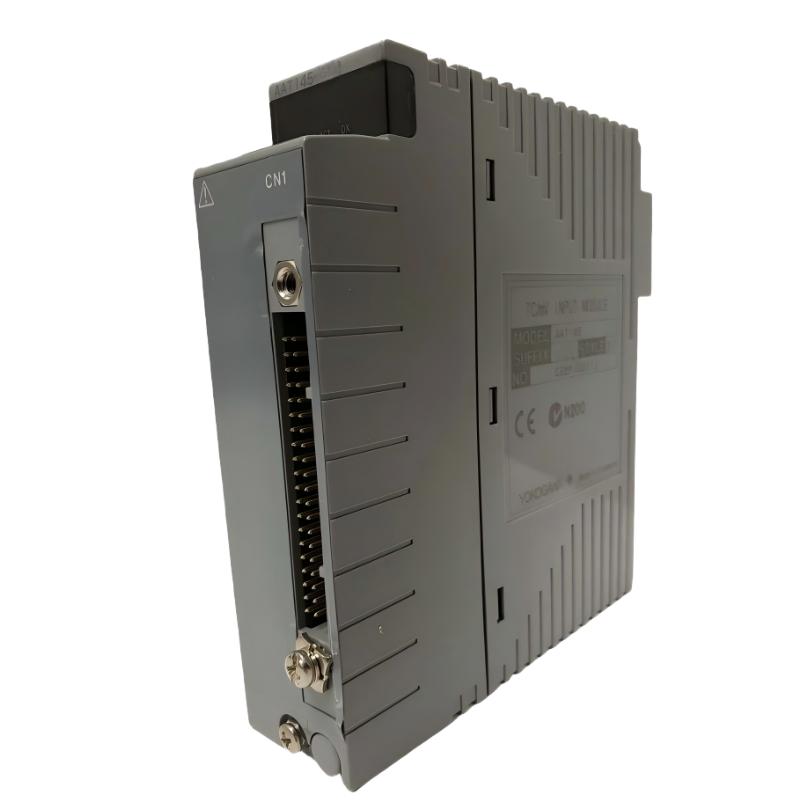

The Yokogawa AAT145 TC/mV Input Module is a high-precision analog input module developed for industrial applications that depend on accurate thermal and millivolt signal monitoring. It is especially suited for facilities where process temperature directly impacts production quality and operational safety.
With dependable signal conversion, compact installation dimensions, and seamless system compatibility, the AAT145 offers engineers a practical and efficient solution for modern process control. Its robust performance makes it suitable for both new automation projects and system upgrades.
Technical Specifications
| Parameter | Specification |
|---|
| Product Name | Yokogawa AAT145 |
| Module Type | TC/mV Input Module |
| Input Signal | Thermocouple / Millivolt |
| Primary Function | Temperature and low-level signal acquisition |
| System Compatibility | Yokogawa process automation systems |
| Installation Type | Rack / panel mounted |
| Signal Performance | High-accuracy industrial conversion |
| Diagnostics | Input status and fault indication |
| Typical Use | Continuous thermal process monitoring |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg (0.4409 lb) |
Thermal Monitoring in Demanding Process Environments
The Yokogawa AAT145 TC/mV Input Module is engineered for reliable acquisition of thermocouple and millivolt signals in industrial control systems. It plays a critical role in maintaining process consistency where temperature accuracy directly affects efficiency, safety, and product quality.
Typical Industry Applications
-
Petrochemical reactor temperature control
-
Industrial furnace and kiln process monitoring
-
Steam generation and boiler supervision
-
Power plant auxiliary temperature loops
-
Pharmaceutical cleanroom thermal validation
-
Food sterilization process control
-
Semiconductor thermal chamber management
Its precise signal handling supports operators in making timely and accurate process adjustments.
Operational Advantages
Precision Signal Capture
Designed for low-level analog input signals, the AAT145 ensures stable and accurate temperature data collection.
Consistent Process Reliability
Reliable input performance helps maintain tighter process tolerances and fewer production deviations.
Strong Interference Resistance
The module supports stable operation in electrically noisy industrial environments.
Efficient System Integration
It fits seamlessly into Yokogawa process automation architectures for centralized monitoring.
Reduced Downtime Risk
Built-in diagnostic visibility helps maintenance teams identify signal issues faster.
Durable Industrial Design
Its rugged structure supports long-term continuous operation in demanding plant conditions.
Technical FAQs
1. What types of temperature sensors are supported?
The AAT145 supports thermocouple inputs as well as millivolt signal sources.
2. Is it suitable for continuous process plants?
Yes. It is designed for stable long-term monitoring in continuous-duty industrial applications.
3. Can it detect sensor disconnection?
Yes. The module can help identify open-circuit and abnormal input conditions.
4. Does it support accurate low-level signal measurement?
Yes. It is optimized for precise thermocouple and millivolt signal conversion.
5. Is it suitable for high-temperature process lines?
Yes. It is commonly used in applications where temperature control is critical.
6. Can it improve process safety?
Yes. Accurate temperature feedback helps operators detect and respond to abnormal conditions.
7. Is it compatible with distributed control systems?
Yes. It is designed for Yokogawa DCS platforms and related process systems.
8. Does it require complex maintenance?
No. Its diagnostic features simplify routine maintenance and troubleshooting.
9. Can it be used in retrofit upgrades?
Yes. It is suitable for replacing older signal input modules in existing systems.
10. Is it effective for multi-point monitoring?
Yes. It supports efficient management of multiple thermal measurement points.
