Product Overview

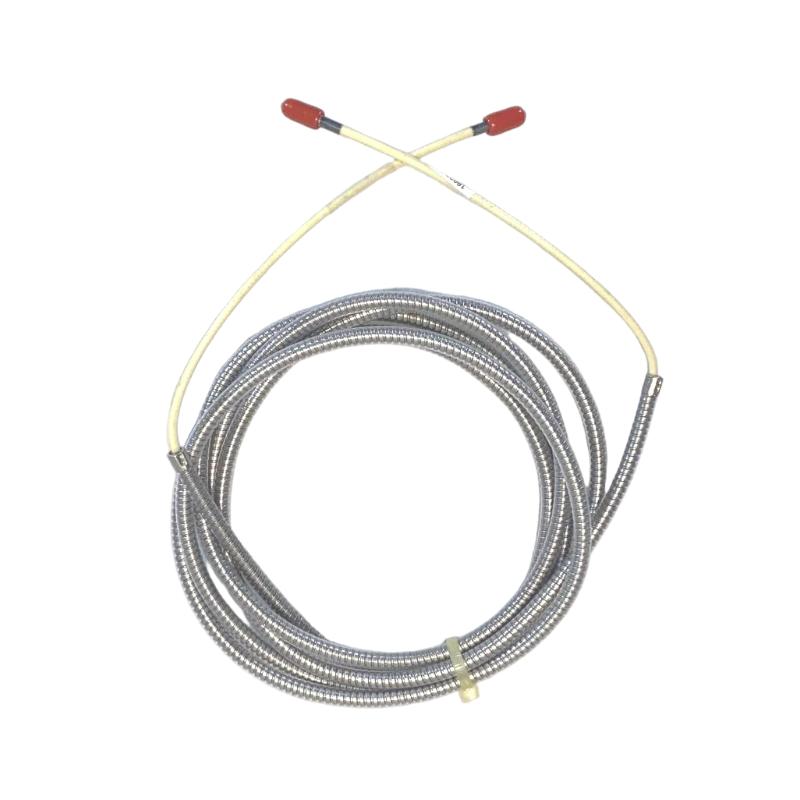

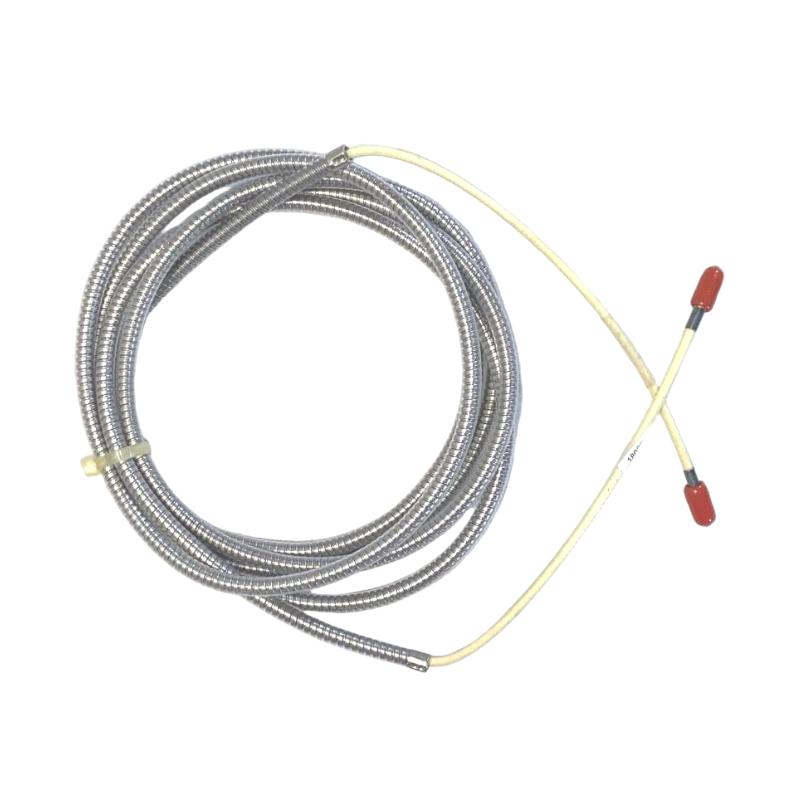

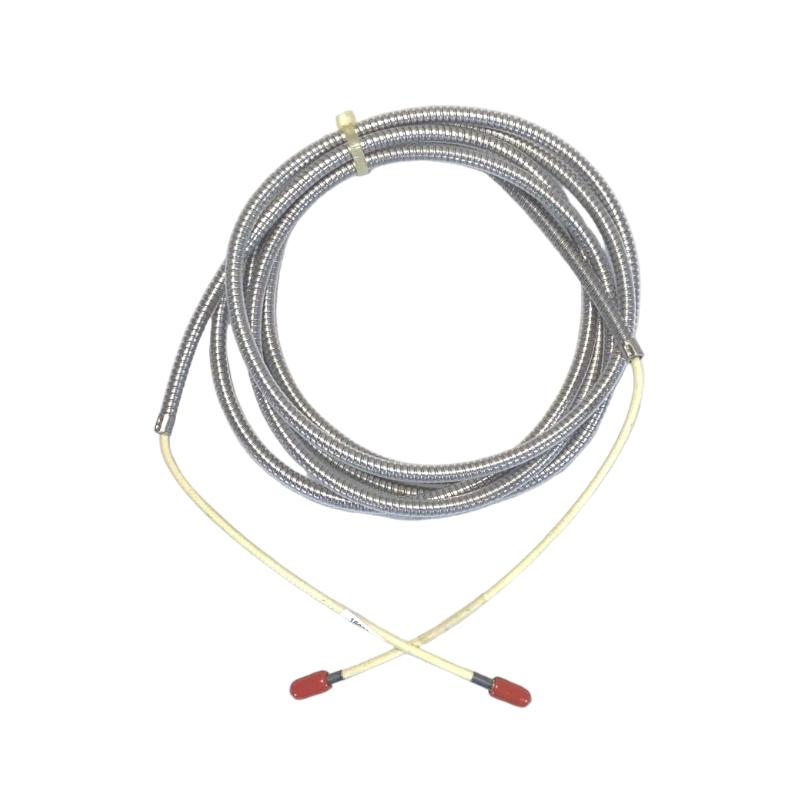

The Bently Nevada 18622-010-01 Extension Cable provides a reliable and flexible solution for extending sensor and module connections in industrial monitoring systems. Its robust construction ensures stable signal transmission in harsh environments, supporting accurate condition monitoring and equipment protection.
Whether for retrofits, new installations, or complex routing scenarios, this cable ensures system flexibility without compromising measurement integrity.
Technical Specifications
| Specification | Details |
|---|
| Product Type | Extension Cable |

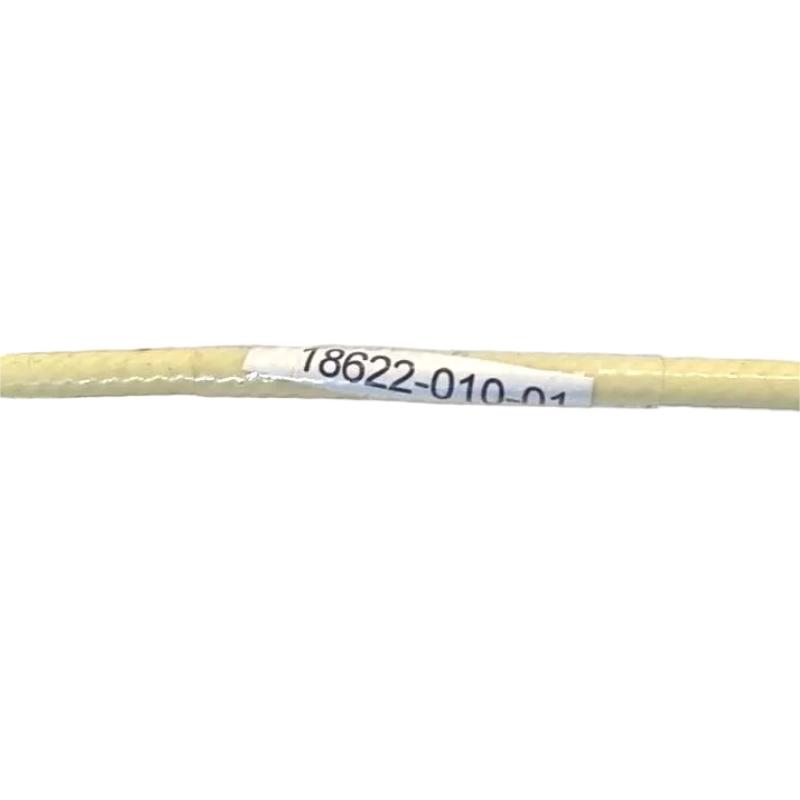

| Model Number | 18622-010-01 |
| Function | Signal extension for sensors and modules |
| Compatibility | Bently Nevada 3300 Series and compatible monitoring systems |
| Cable Length | 10 feet |
| Construction | Industrial-grade flexible jacket with shielding |
| Environmental Resistance | Vibration, EMI, temperature resistant |
| Weight | 3 kg (6.61 lb) |
Application Overview
The Bently Nevada 18622-010-01 Extension Cable is designed to provide flexible connectivity for industrial monitoring systems. It extends sensor or module signals without compromising signal integrity, making it essential in installations where equipment is spaced apart or difficult to access.
Typical applications include:
-
Extending connections between 3300 Series probes and monitoring racks
-
Facilitating remote sensor placement for turbines, motors, and compressors
-
Connecting distributed condition monitoring systems across large plants
-
Supporting flexible installation in retrofit or upgrade projects
-
Enabling secure routing of signals in complex industrial layouts
This cable ensures reliable transmission even in environments where standard-length connections are insufficient.
Advantages
-
Maintains high signal integrity over extended distances
-
Compatible with a wide range of Bently Nevada monitoring systems
-
Durable construction suitable for industrial environments
-
Flexible routing options for complex installations
-
Easy integration with existing sensor and module configurations
-
Reduces the need for additional intermediate signal processing
From a practical standpoint, it simplifies installation and increases system flexibility without sacrificing measurement accuracy.
Technical FAQs
-
What is the primary function of this cable?
To extend sensor or module connections while maintaining signal quality.
-
Is it compatible with 3300 Series proximity probes?
Yes, it is designed for seamless integration with 3300 Series and other compatible modules.
-
Can it be used in high-vibration environments?
Yes, it is engineered to resist mechanical stress and vibration.
-
Does the cable affect signal accuracy?
No, it is constructed to minimize signal loss and interference.
-
Is it suitable for routing through conduits or trays?
Yes, its flexible design allows easy routing in tight or complex layouts.
-
Can multiple extension cables be connected in series?
Yes, but total length should be considered to avoid excessive signal attenuation.
-
Is it resistant to temperature and industrial contaminants?
Yes, the cable jacket is designed for industrial temperature ranges and exposure.
-
Does it require shielding for electrical noise?
Yes, the cable includes shielding to protect against EMI and maintain signal fidelity.
-
Can it support both vibration and temperature sensor signals?
Yes, it is compatible with standard industrial sensor signal types.
-
Is it easy to install and terminate?
Yes, the cable includes industry-standard connectors for straightforward installation.
