Applications

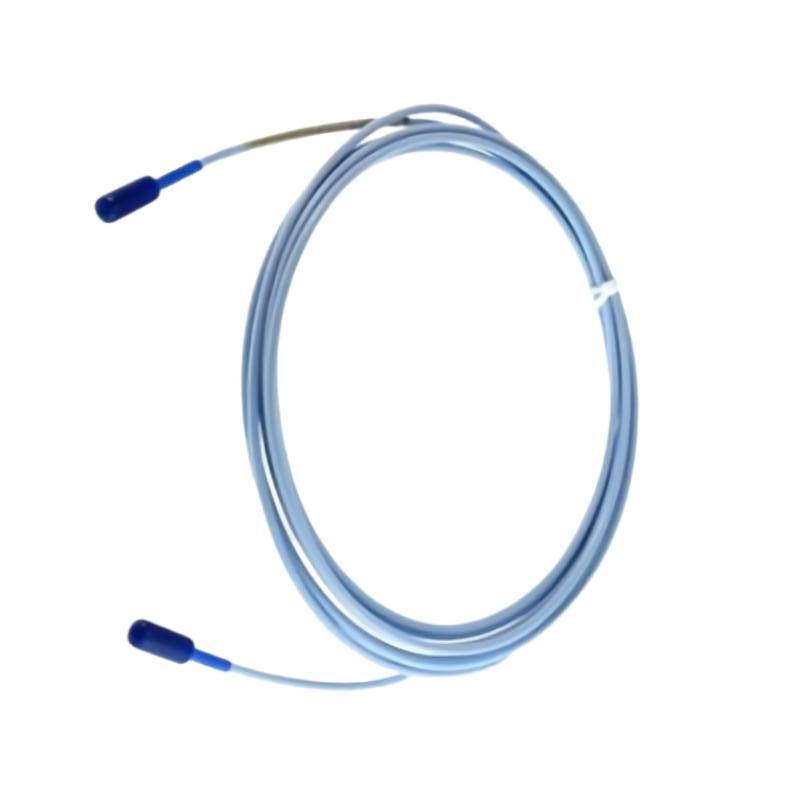

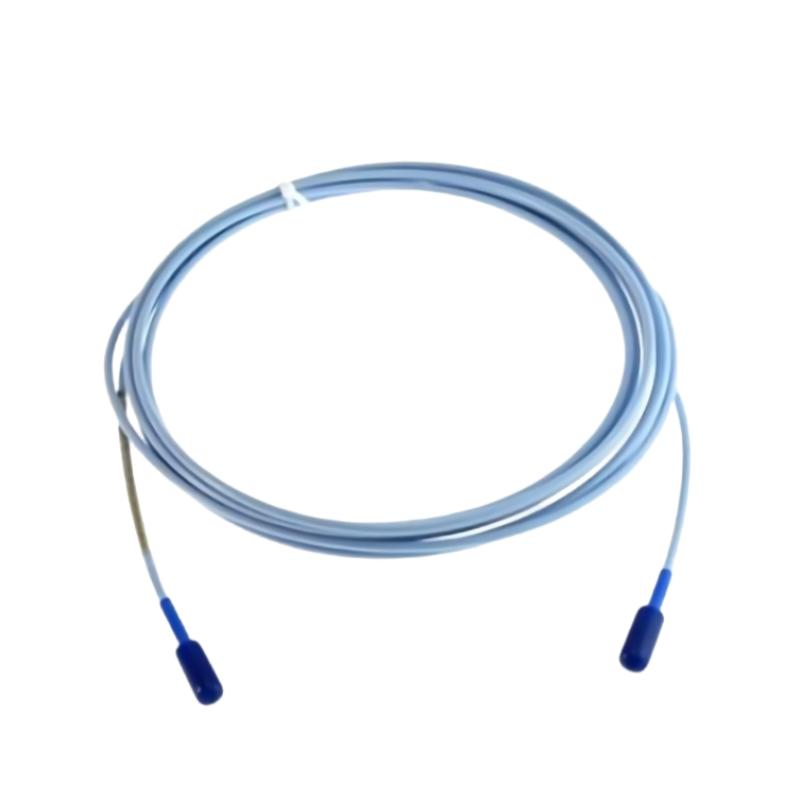

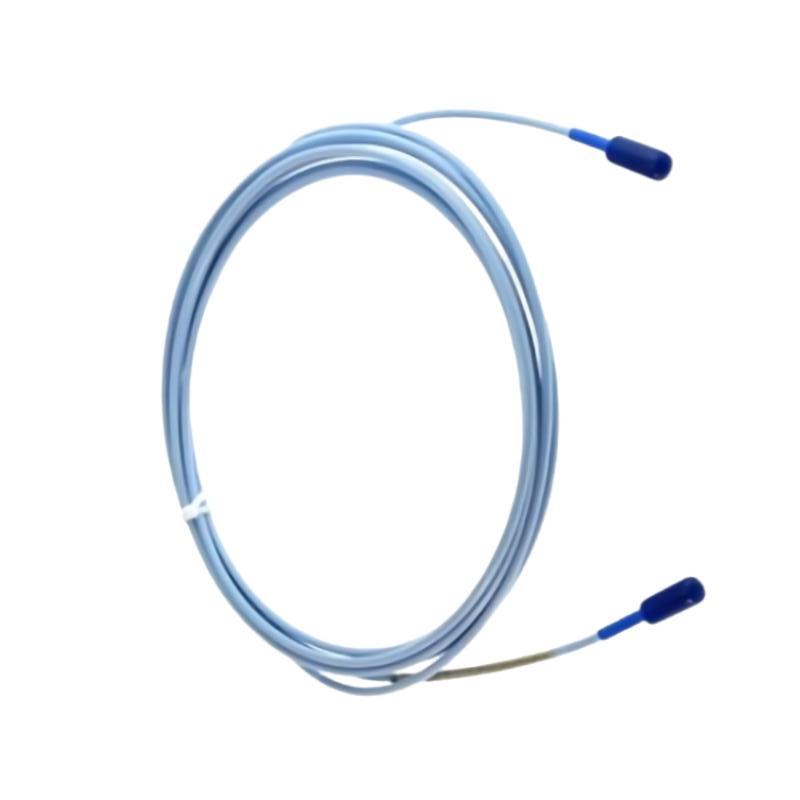

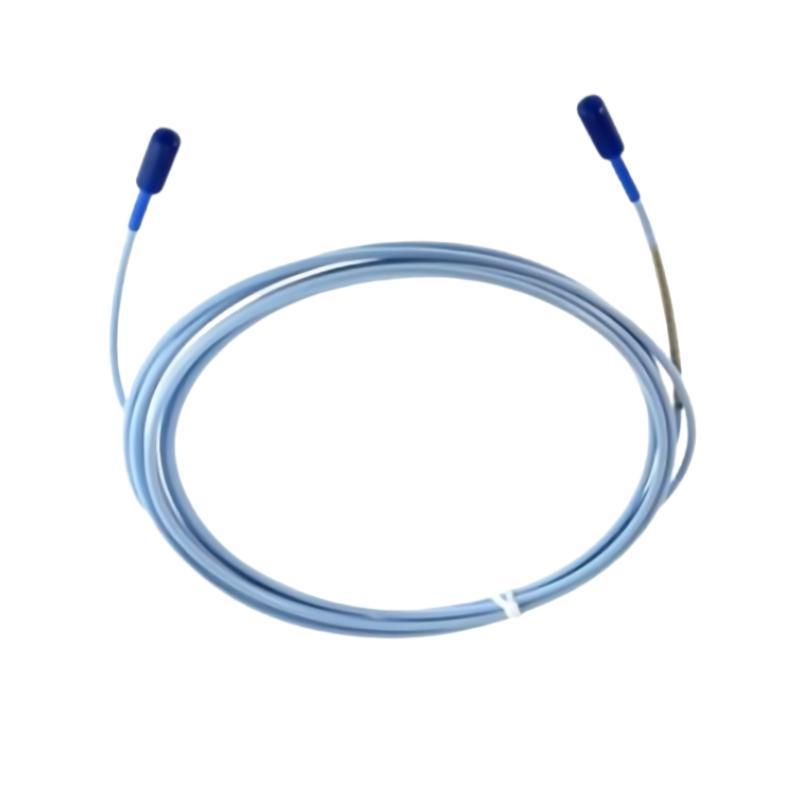

The 164517-090-05-01-05 Near Field Probe is designed for precise monitoring of rotating machinery, particularly in situations where compact probe length is required. Typical applications include:
-
Shaft vibration and displacement monitoring in turbines, compressors, and motors
-
Integration with Bently Nevada 3300 Series vibration monitoring systems
-
High-speed rotating machinery alignment and diagnostics
-
Condition-based maintenance programs in industrial plants
-
Temporary or permanent installations in confined equipment spaces
This probe ensures consistent measurement performance even in industrial environments with mechanical vibration and electrical noise.
Advantages
-
Compact 0.5-meter cable allows use in tight spaces
-
Durable ceramic-tipped sensor provides long-term stability and wear resistance
-
Shielded cable ensures signal integrity in electrically noisy environments
-
Fully compatible with 3300 Series monitoring systems for seamless integration
-
Enables accurate near-field measurements with minimal installation complexity
-
Supports proactive maintenance by detecting early vibration anomalies
Engineers benefit from a combination of ruggedness, precision, and ease-of-use, making it an ideal tool for machinery condition monitoring.
Technical FAQs
-
What is the measurement principle?
Eddy-current proximity sensing with a ceramic-tipped probe for high precision.
-
Is it suitable for high-RPM shafts?
Yes, it can accurately measure displacement on fast-rotating machinery.
-
What is the cable length, and why is it significant?
0.5 meter (1.64 ft), ideal for compact installations where longer cables may be cumbersome.
-
Can it handle industrial temperature ranges?
Yes, rated from -10°C to 70°C (14°F to 158°F).
-
Does it require special calibration?
Standard calibration procedures of the 3300 Series apply; no unique probe-specific calibration is needed.
-
How resistant is it to vibration and shock?
Designed to maintain accuracy under industrial mechanical vibration and minor shocks.
-
Is the probe compatible with other 3300 Series components?
Fully compatible with all 3300 Series sensors and monitoring modules.
-
Can it be used in high EMI environments?
Yes, the shielded cable minimizes interference from electrical noise sources.
-
How is it mounted?
Standard 3300 Series brackets and fixtures are used for secure positioning.
-
Is it suitable for continuous monitoring?
Yes, engineered for long-term, continuous industrial operation.
