Signal Extension and Integrity for DeltaV™ Networks

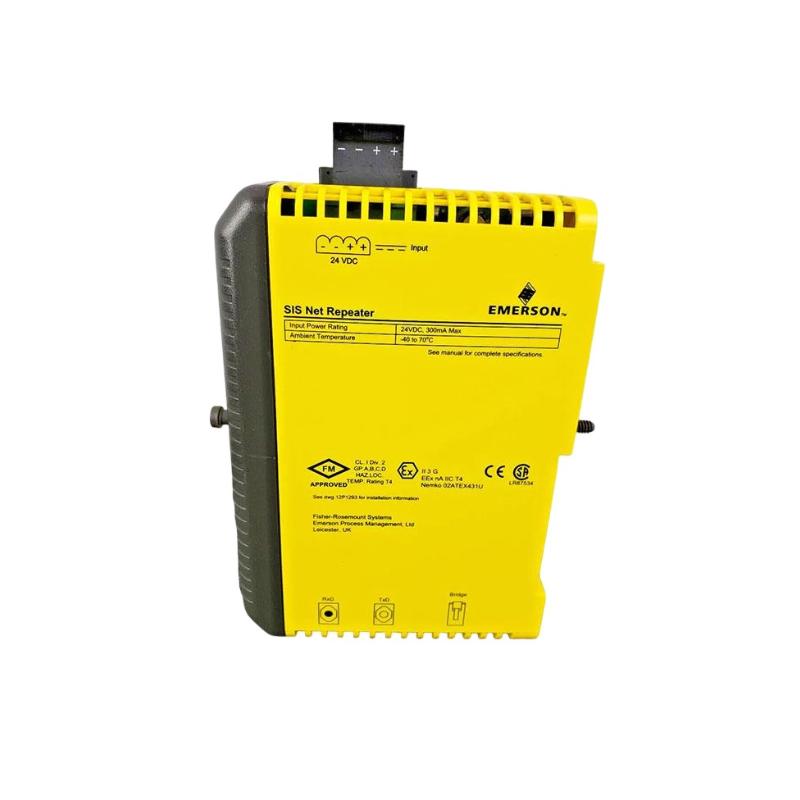

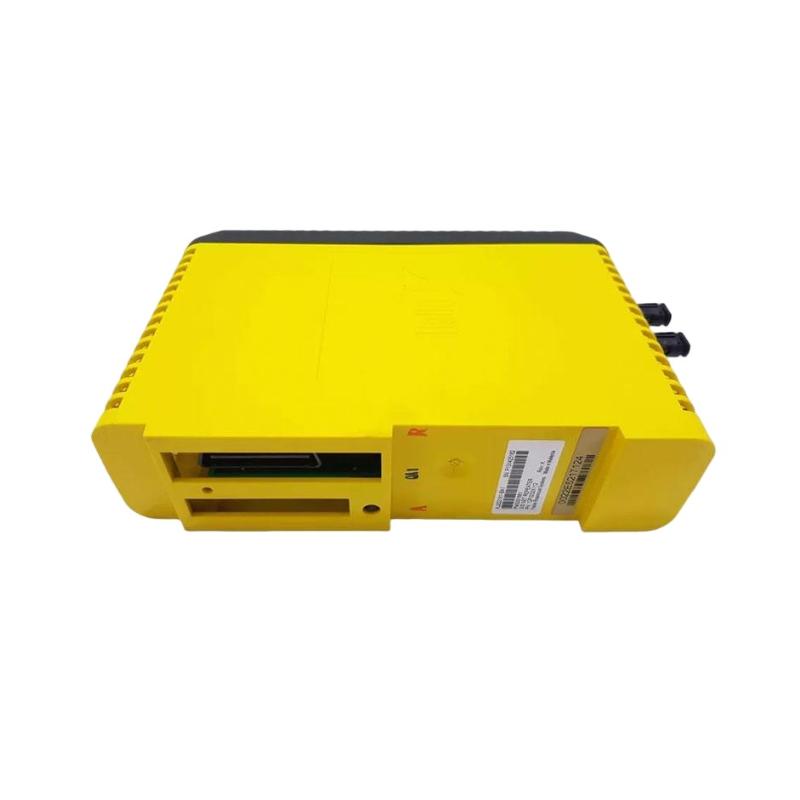

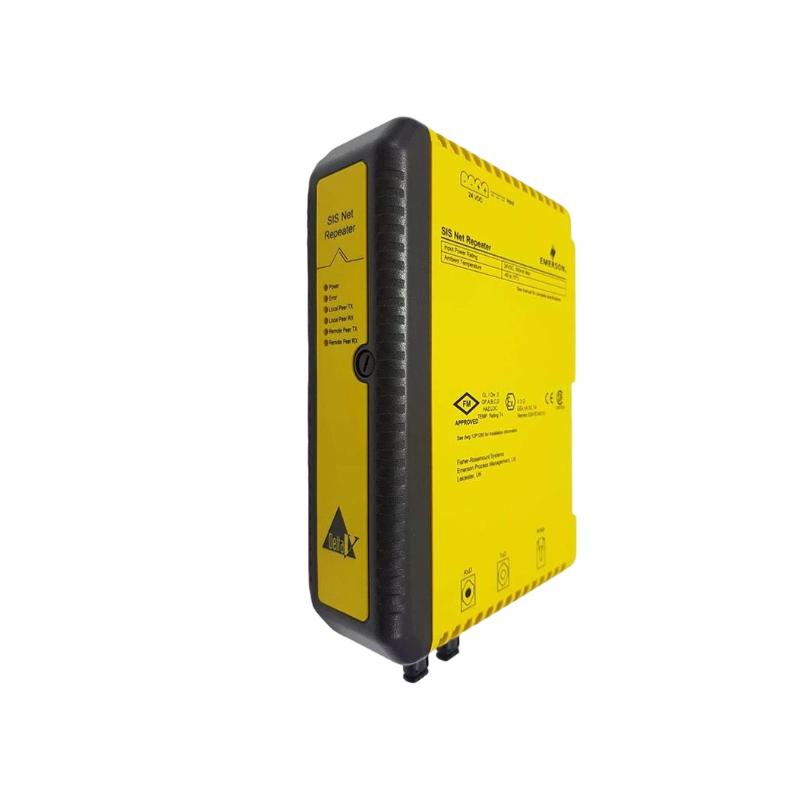

The Emerson KJ2221X1‑BA1 Repeater Module is a specialized communication component designed to extend signal reach and reinforce network integrity within Emerson’s DeltaV™ distributed control systems. By regenerating digital communication signals, it enables reliable data transmission over longer distances, larger I/O networks, or complex plant layouts where signal degradation could otherwise compromise performance.
This repeater module plays a critical role in maintaining robust communication between controllers, I/O carriers, and remote field modules—especially in large‑scale or electrically noisy industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Series | DeltaV™ Distributed Control System |
| Model | KJ2221X1‑BA1 |
| Module Type | Repeater Module |
| Function | Digital signal regeneration |
| Supported Network | DeltaV Control Network / I/O Backplane |
| Signal Type | Digital communication |
| Isolation | Galvanic isolation between segments |
| Power Supply | 24 VDC field power |
| Operating Temperature | ‑20 °C to +70 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Connector Interface | DeltaV backplane slot interface |
| Mounting | DeltaV I/O chassis mount |
| Dimensions (H × W × D) | Approx. 180 × 89 × 40 mm |
| Weight | Approx. 0.85 kg |
Typical Applications
The KJ2221X1‑BA1 Repeater Module is widely used in applications where reliable communication integrity is essential across extended distances or complex system topologies:
-
Large distributed control systems with extended I/O racks
-
Remote I/O locations far from central controllers
-
Electrically noisy plant environments requiring signal reinforcement
-
Process facilities with segmented network zones
-
Control system expansions where the network span exceeds standard limits
By regenerating digital signals, the repeater helps overcome attenuation and preserves communication timing and accuracy.
Typical Applications
The KJ2221X1‑BA1 Repeater Module is widely used in applications where reliable communication integrity is essential across extended distances or complex system topologies:
-
Large distributed control systems with extended I/O racks
-
Remote I/O locations far from central controllers
-
Electrically noisy plant environments requiring signal reinforcement
-
Process facilities with segmented network zones
-
Control system expansions where the network span exceeds standard limits
By regenerating digital signals, the repeater helps overcome attenuation and preserves communication timing and accuracy.
Technical FAQs
-
What is the main function of this module?
It regenerates digital communication signals to extend network reach.
-
Which systems use this repeater?
DeltaV distributed control networks and extended I/O topologies.
-
What type of power is required?
Standard 24 VDC field power.
-
What environments can it operate in?
‑20 °C to +70 °C with high humidity tolerance.
-
Does it support galvanic isolation?
Yes, it isolates network segments to improve reliability.
-
Is it compatible with remote I/O locations?
Yes, especially where signal distance and noise are concerns.
-
How is it mounted?
In DeltaV I/O chassis via standard slot interface.
-
Does it support high‑speed signaling?
Yes, it maintains performance across digital network traffic.
-
Does it require configuration?
Minimal configuration is typically needed beyond physical installation.
-
What issues does it help prevent?
Communication errors, data loss, and timing degradation over long network spans.
