Next‑Generation Safety Intelligence for Critical Control Systems

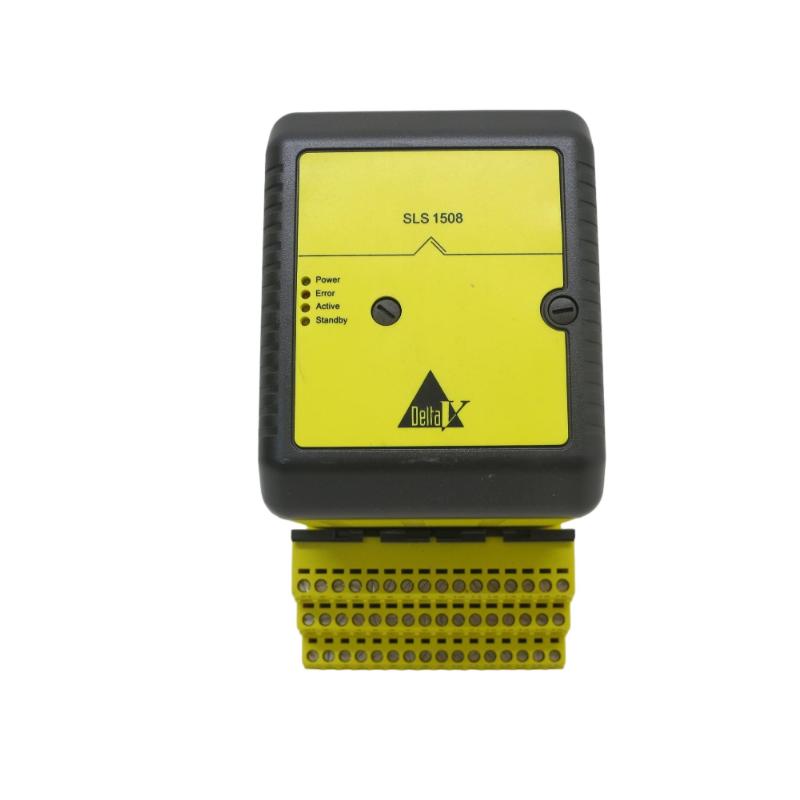

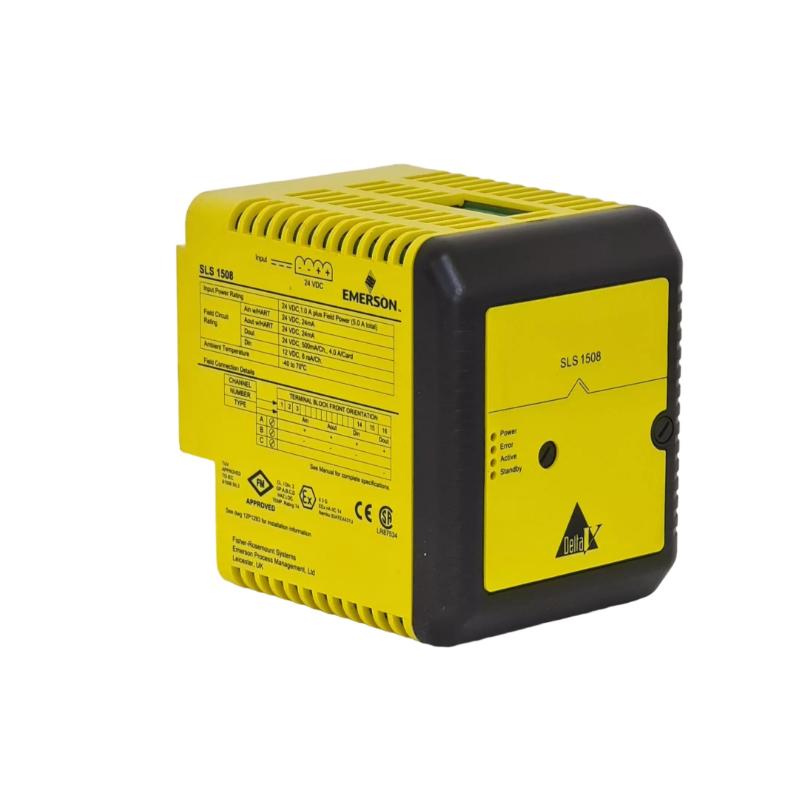

The Emerson SLS1508 Smart Logic Solver with KJ2201X1‑HA1 base is a cornerstone component of the DeltaV™ Safety Instrumented System (SIS), engineered to deliver deterministic, high‑integrity safety control in mission‑critical environments. Combining advanced logic processing with integrated field termination, this module ensures rapid response to abnormal conditions while maintaining system availability.
Designed for industries where safety cannot be compromised, the SLS1508 provides seamless execution of safety logic, real‑time diagnostics, and fault‑tolerant architecture. Its ability to operate in fully redundant configurations makes it a trusted solution for safeguarding complex industrial processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | DeltaV™ Safety Instrumented System (SIS) |
| Model | SLS1508 + KJ2201X1‑HA1 |
| Module Type | Smart Logic Solver with Base |
| Processor Architecture | Dual CPU safety architecture |
| I/O Channels | 16 configurable channels |
| I/O Types | DI, DO, AI (HART), HART two‑state outputs |
| Communication | Dual SISNet + HART |
| Safety Certification | SIL 1 / 2 / 3 compliant |

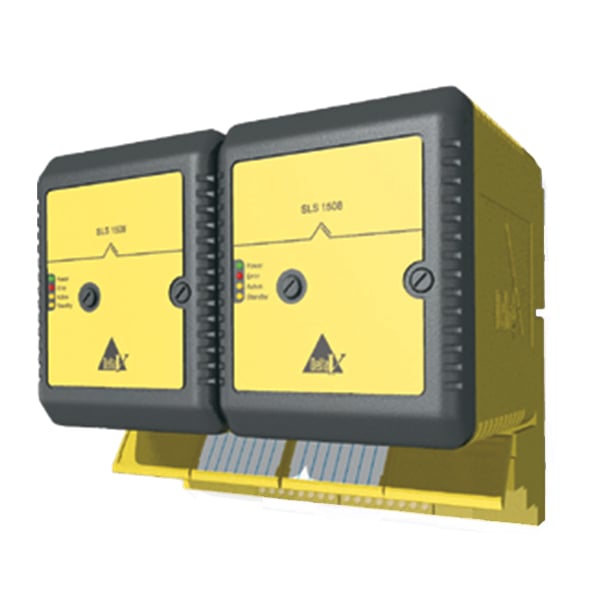

| Redundancy | Fully redundant operation supported |
| Power Supply | 24 VDC (independent SIS power) |
| Local Bus Power | 24 VDC @ 1 A |
| Field Power | Up to 4 A |
| Operating Temperature | ‑40 °C to +70 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Mounting | 8‑wide carrier (odd slots) |
| Dimensions (H × W × D) | Approx. 160 × 160 × 120 mm |
| Weight | Approx. 1.2 kg |
