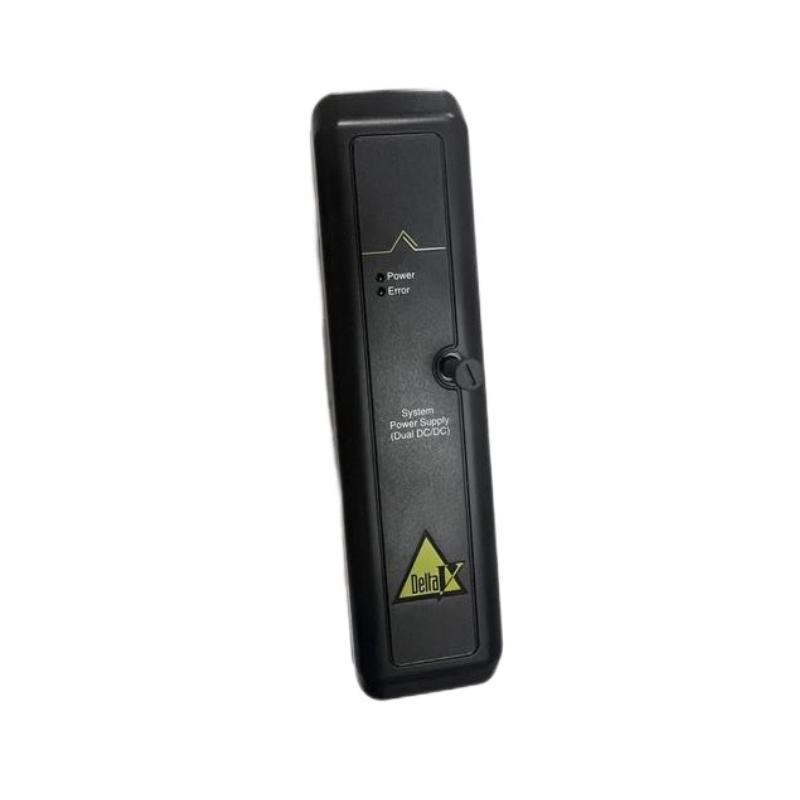

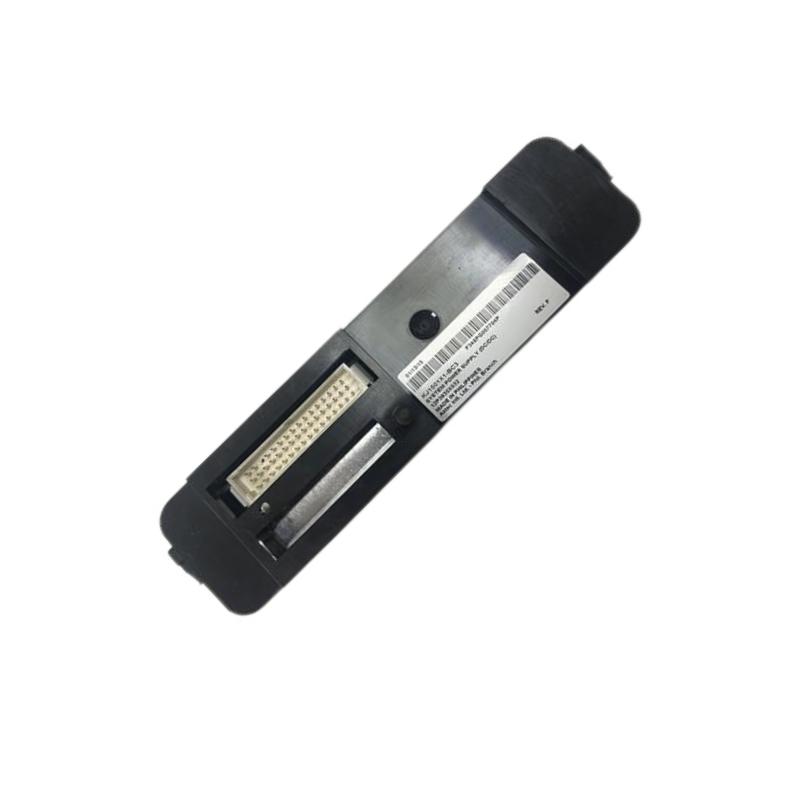

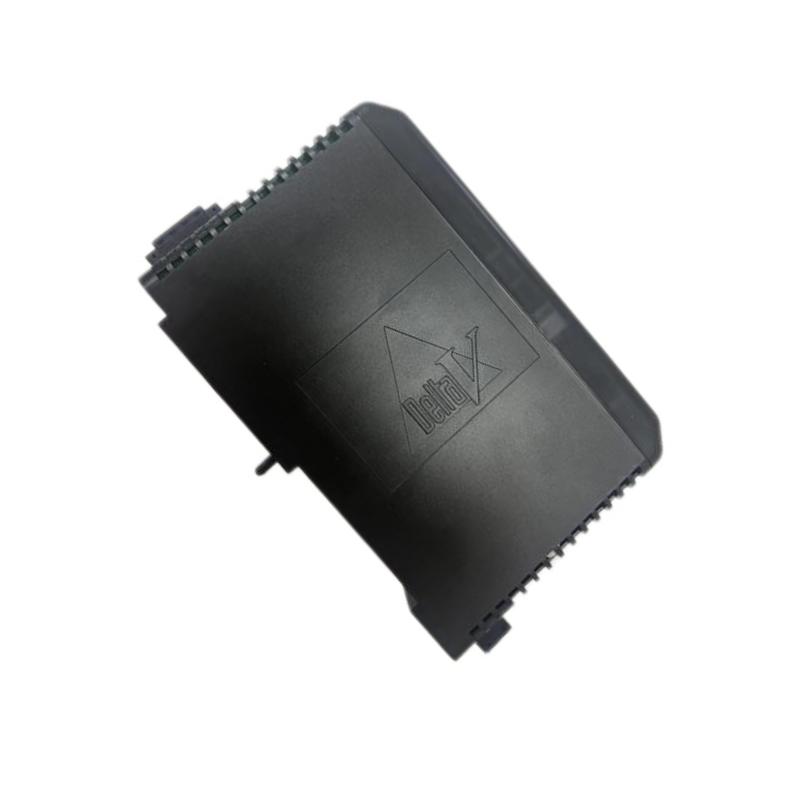

Robust Dual DC Power for High‑Availability Control Systems
The Emerson KJ1501X1‑BC3 System Dual DC Power Supply is engineered to deliver dependable and redundant power within Emerson’s DeltaV™ distributed control architecture. Designed specifically for mission‑critical environments, this dual‑output supply ensures continuous 24 VDC power delivery to I/O racks and associated modules—even in the event of a single supply fault.
With enhanced protection features and support for high‑availability configurations, the KJ1501X1‑BC3 provides both reliability and flexibility for large‑scale automation installations. Its compact design simplifies cabinet integration while maintaining the performance expected in process, manufacturing, and utilities applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | DeltaV™ Distributed Control System |
| Model | KJ1501X1‑BC3 |
| Module Type | System Dual DC Power Supply |
| Output Voltage | Dual 24 VDC outputs |
| Output Current (Total) | Up to 15 A |
| Input Voltage Range | 100–240 VAC (±10%) |
| Frequency | 50/60 Hz |
| Efficiency | Typically >88 % |
| Protection | Overload, short‑circuit, overvoltage protection |
| Redundancy | Designed for high‑availability power configurations |
| Mounting Style | DIN rail / rack mount |
| Operating Temperature | ‑20 °C to +70 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Dimensions (H × W × D) | Approx. 150 × 80 × 130 mm |
| Weight | Approx. 1.2 kg |
