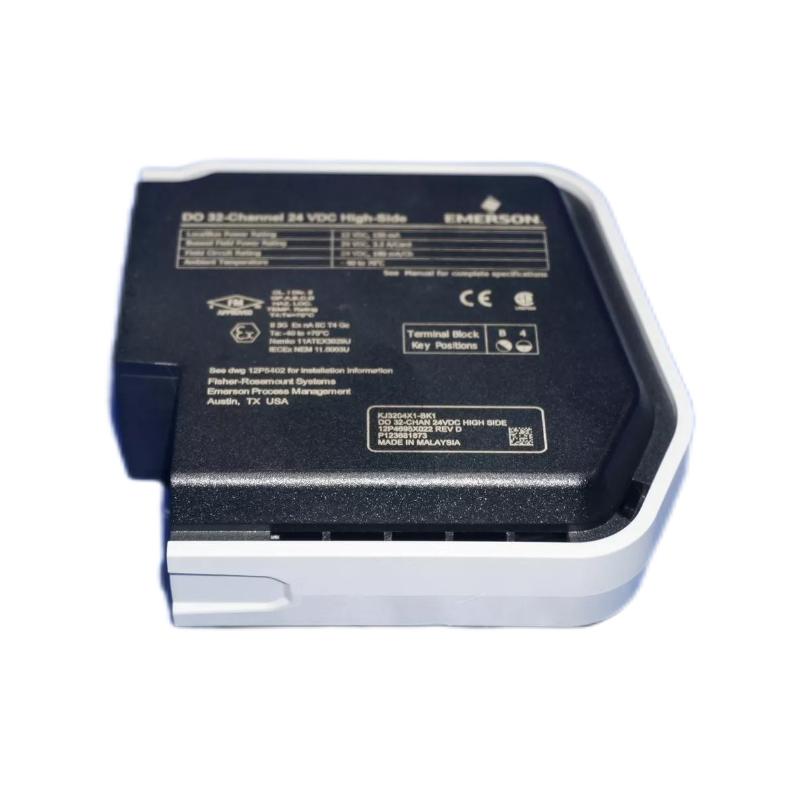

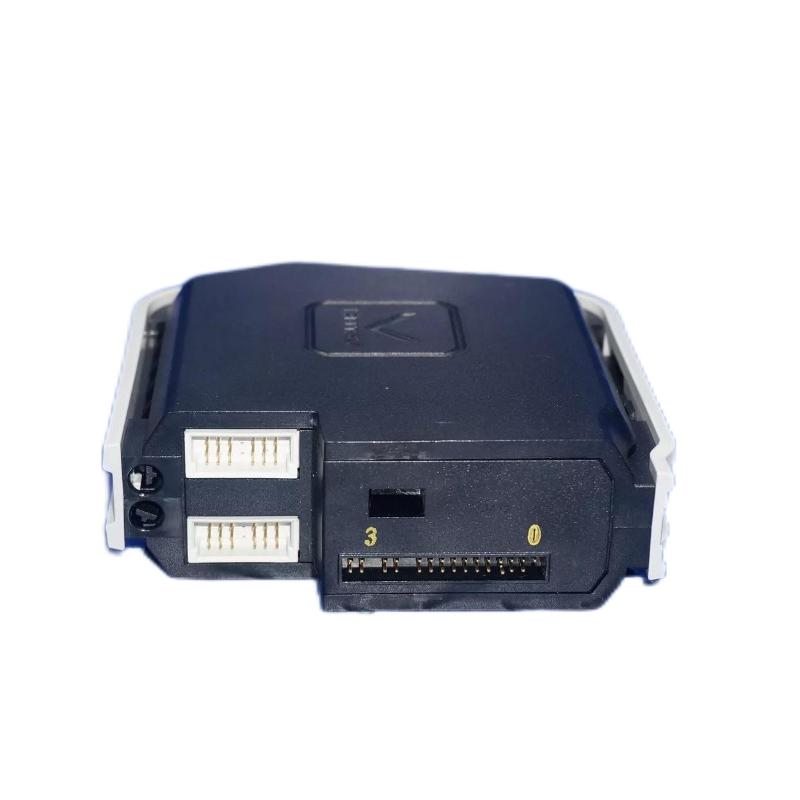

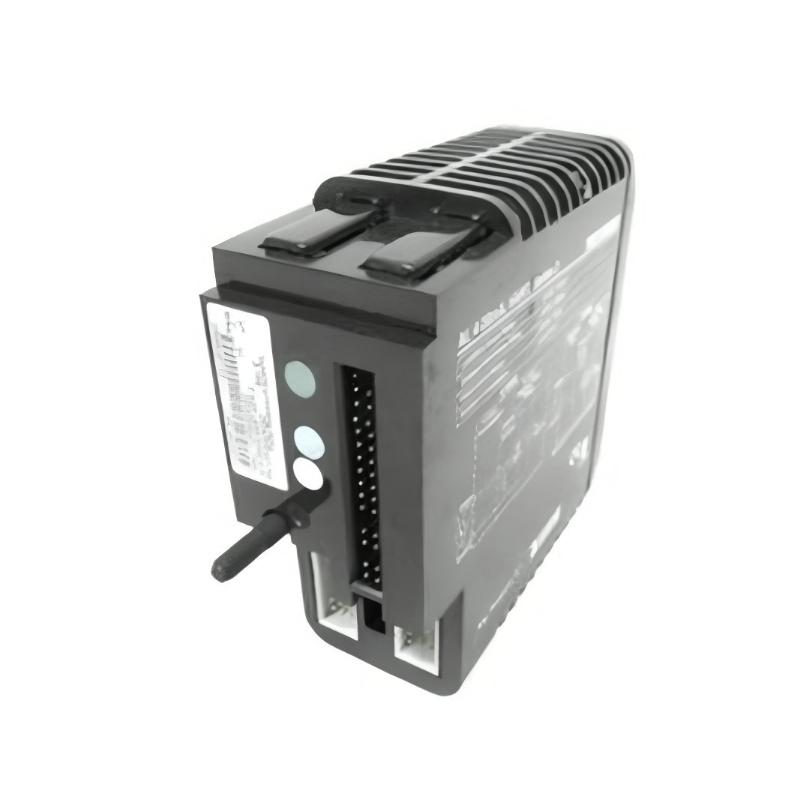

Emerson KJ3204X1-BK1 SE4002S1T2B6 Discrete Output Card

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Emerson KJ3204X1-BK1 SE4002S1T2B6 Discrete Output Card

Name: Emerson KJ3204X1-BK1 SE4002S1T2B6 Discrete Output Card
Brand: Emerson Module
SKU: 6659
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Emerson Module
Item No.:KJ3204X1-BK1 SE4002S1T2B6
Product Origin:USA
Product Dimensions:178 × 89 × 31 mm
Product Weight:0.75kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

High-Density Digital Output for Reliable Automation

The Emerson KJ3204X1-BK1 SE4002S1T2B6 Discrete Output Card is designed to deliver robust digital actuation capabilities within Emerson’s DeltaV™ distributed control system. This discrete output interface provides dependable 24 VDC high-side switching across multiple channels, making it an essential component for control systems where precise and scalable actuation is required.

Built for industrial environments, the KJ3204X1-BK1 excels in applications demanding high output density and rugged performance. Its architecture supports both simplex and redundant configurations, giving system designers flexibility for reliability and safety-critical operations.

Technical Specifications

Parameter	Specification
Product Series	DeltaV™ Distributed Control System
Model	KJ3204X1-BK1
Part Number	SE4002S1T2B6
Module Type	Discrete Output Card
Output Channels	32 high-side discrete outputs
Output Voltage	24 VDC High-Side
Output Current (per channel)	Up to 100 mA (standard); up to 3 A surge capacity*
Local Bus Power	12 VDC @ 150 mA
Field Power	24 VDC @ 3.2 A per card
Operating Temperature	-40 °C to +70 °C
Shock Resistance	10 g half-sine, 11 ms
Vibration Resistance	1 mm P-P (2–13.2 Hz), 0.7 g (13.2–150 Hz)
Relative Humidity	5–95% non-condensing
Dimensions (H × W × D)	Approx. 178 × 89 × 31 mm
Weight	~0.75 kg

Industrial Usage Scenarios

This discrete output card is ideal for environments where reliable digital control is essential:

Process plants requiring high-density switch outputs
Oil & gas facilities controlling solenoids and safety interlocks
Chemical and petrochemical automation systems
Power plants managing relays and actuator drivers
Water, wastewater, and utilities digital actuation networks

Its high channel count reduces cabinet space and wiring complexity for large I/O systems.

Key Advantages

High Channel Density: 32 outputs support multiple devices in compact I/O shelves.
24 VDC High-Side Switching: Compatible with solenoids, relays, and indicator lights.
Rugged Industrial Design: Withstands thermal, shock, and vibration stresses.
Flexible System Integration: Supports simplex or redundant configurations.
Visual Status Feedback: Channel-level LED indicators simplify diagnostics and maintenance.

These features help reduce commissioning time, simplify troubleshooting, and provide long-term reliability.

Technical FAQs

How many discrete outputs are provided?
32 high-side 24 VDC outputs.
What is the typical output current per channel?
100 mA per channel standard, with short surge capacity.
Is this module compatible with DeltaV systems?
Yes, it integrates into DeltaV S-Series and M-Series configurations.
What environments can it operate in?
-40 °C to +70 °C with high vibration and shock tolerance.
Does it support redundancy?
Yes, simplex and redundant system configurations are supported.
What types of loads can it drive?
Solenoids, relays, indicator lights, and other 24 VDC devices.
Are there status indicators for outputs?
Yes, each channel has an LED for visual feedback.
What power does the card require?
12 VDC local bus and 24 VDC field power.
Is it suitable for safety instrumented systems (SIS)?
Can be configured within SIS architectures where appropriate.
How does this card reduce system complexity?
High channel count reduces the number of physical modules required for large I/O installations.
