Precision Signal Acquisition for Critical Control Systems

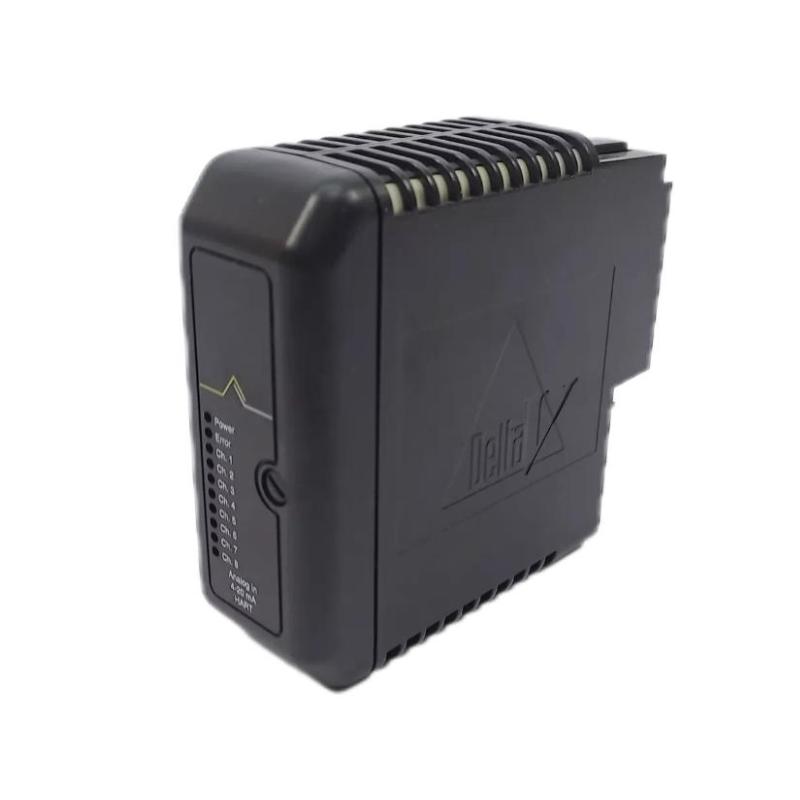

The Emerson KJ3221X1-BA1 12P2531X142 Analog Input Module is designed to deliver highly accurate and reliable signal acquisition within the DeltaV™ distributed control system. Built for demanding industrial environments, this module enables seamless conversion of real-world analog signals into digital data for precise monitoring and control.
Engineered with redundancy and advanced diagnostics in mind, it ensures continuous operation even in critical applications. Its ability to support multiple signal types—including current, voltage, RTD, and thermocouple inputs—makes it a versatile solution for complex process automation scenarios.
Detailed Technical Specifications
| Parameter | Specification |
|---|
| Product Series | DeltaV™ Distributed Control System |
| Model | KJ3221X1-BA1 |
| Part Number | 12P2531X142 |
| Module Type | Analog Input (AI) Module |
| Input Channels | 2 redundant analog input channels |
| Supported Signals | 4–20 mA, Voltage, RTD, Thermocouple |
| Accuracy | ±0.1% of full scale |
| Communication | HART support (diagnostics & configuration) |
| Redundancy | Full channel redundancy |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 12 VDC LocalBus / 24 VDC Field Power |
| Dimensions (H × W × D) | Approx. 51 × 102 × 127 mm |
| Weight | Approx. 0.2 – 1.0 kg (depending on configuration) |
Typical Application Environments
This analog input module is widely implemented in industries where accurate data acquisition is essential for operational safety and efficiency:
-
Oil & gas platforms requiring continuous process monitoring
-
Chemical processing plants with complex temperature and pressure loops
-
Power generation facilities for turbine and boiler feedback systems
-
Water and wastewater treatment plants for flow and level monitoring
-
Mining and heavy industry applications with harsh environmental conditions
Its redundant architecture ensures uninterrupted data acquisition, making it especially suitable for safety-critical systems.
Core Advantages and Value Proposition
The KJ3221X1-BA1 12P2531X142 stands out due to its robust design and intelligent functionality. The built-in redundancy minimizes downtime risks, ensuring that critical signals are always captured without interruption.
Its multi-signal compatibility reduces the need for multiple module types, simplifying system design and inventory management. Meanwhile, HART communication enhances visibility into field devices, enabling predictive maintenance and faster troubleshooting.
Additionally, the module’s wide operating temperature range and industrial-grade construction guarantee long-term reliability, even in extreme environments. This makes it a dependable choice for both new installations and system upgrades.
Technical FAQs
-
How many input channels are available?
It provides 2 fully redundant analog input channels.
-
What signal types are supported?
It supports current, voltage, RTD, and thermocouple inputs.
-
Does the module support HART communication?
Yes, it allows diagnostics and remote configuration via HART.
-
What is the accuracy level?
Approximately ±0.1% of full scale.
-
Is redundancy built into the module?
Yes, it features full channel redundancy for reliability.
-
What industries commonly use this module?
Oil & gas, power generation, chemical, and water treatment industries.
-
What is the operating temperature range?
-40°C to +85°C.
-
Can it be integrated into existing DeltaV systems?
Yes, it is fully compatible with DeltaV architecture.
-
Does it require frequent maintenance?
No, it is designed for low-maintenance operation.
-
What types of sensors can be connected?
Temperature sensors (RTD/TC), pressure transmitters, and flow sensors.
