Engineered Control for Modern Process Systems

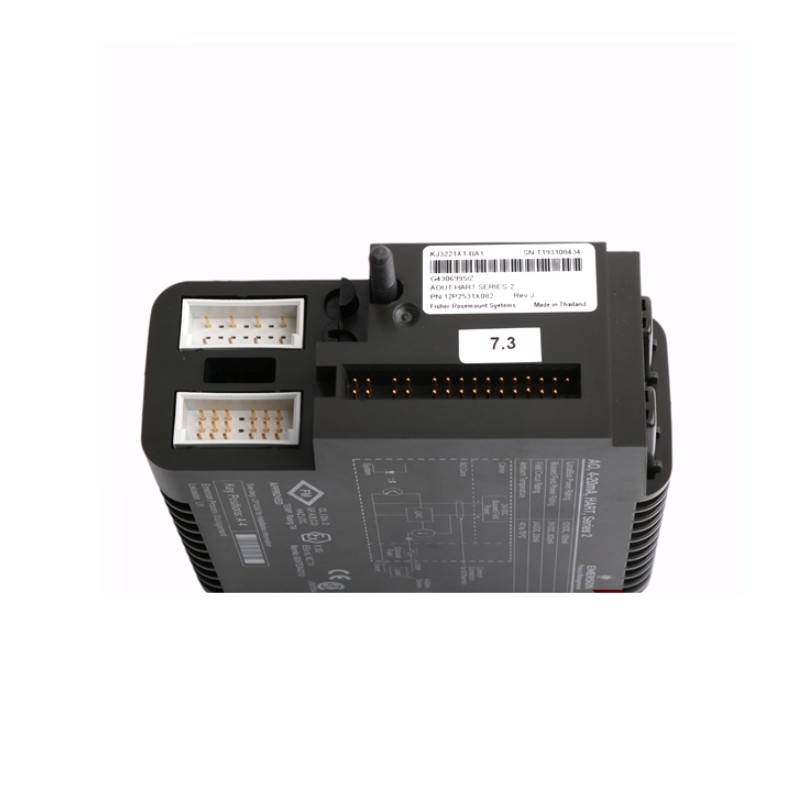

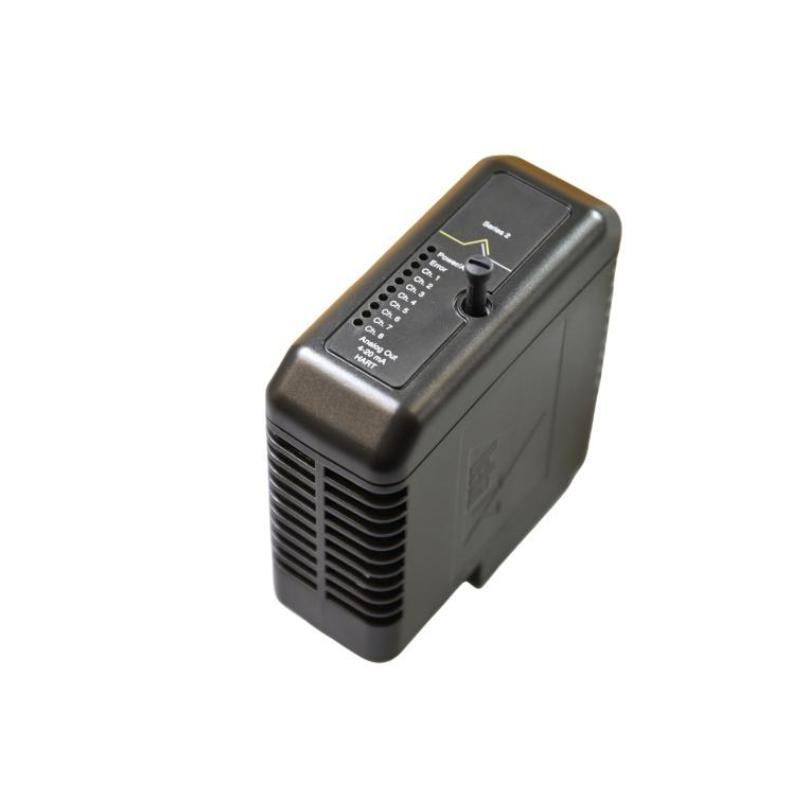

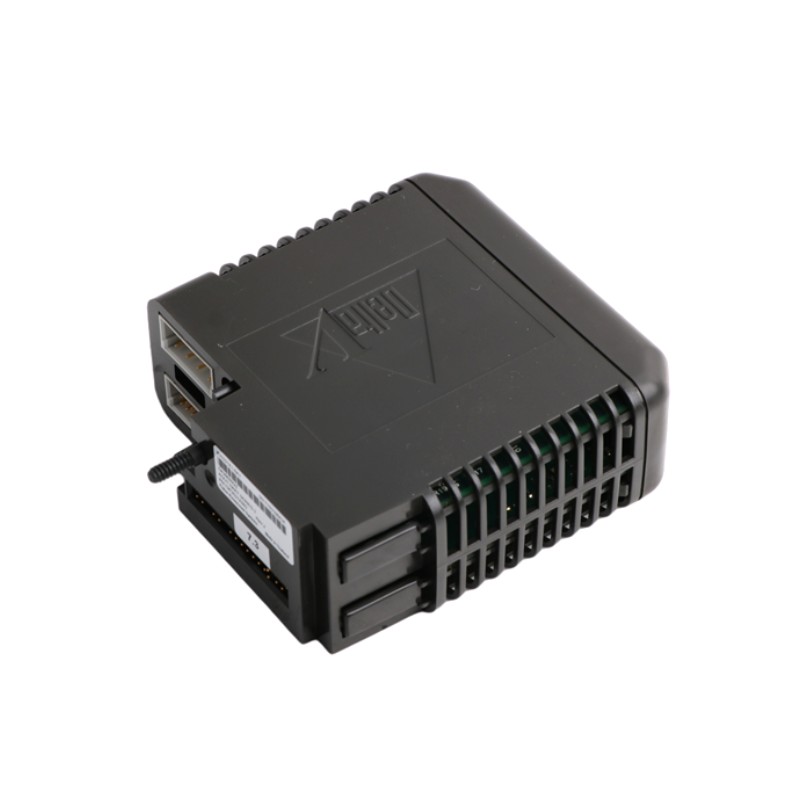

The Emerson KJ3221X1-BA1 12P2531X122 Analog Output Module is a high-precision component within the DeltaV™ distributed control system, purpose-built for converting digital control signals into stable analog outputs. Designed for mission-critical environments, this module ensures accurate signal transmission while supporting advanced device communication through integrated HART technology.
Its compact footprint and robust architecture make it ideal for high-density control cabinets, while its intelligent diagnostics capability enhances operational transparency. For engineers seeking reliability, flexibility, and long-term performance, this module delivers consistent results across complex automation networks.
Technical Specifications at a Glance
| Parameter | Specification |
|---|
| Product Series | DeltaV™ Series 2 |
| Model | KJ3221X1-BA1 |
| Part Number | 12P2531X122 |
| Module Type | Analog Output (AO) Module |
| Output Channels | 8 isolated channels |
| Output Signal | 4–20 mA DC |
| Communication Protocol | HART pass-through |
| Resolution | 16-bit D/A conversion |
| Accuracy | ±0.1% of full scale |
| Isolation | 1500 VDC channel-to-system |
| LocalBus Power | 12 VDC @ 150 mA |
| Field Power | 24 VDC @ 300 mA |
| Operating Temperature | -20°C to +70°C |
| Dimensions (H × W × D) | 44 × 108 × 114 mm |
| Weight | Approx. 0.20 kg |
Typical Deployment Scenarios
This module is widely adopted in industries where precision analog control and system reliability are non-negotiable:
-
Oil & gas facilities for valve positioning and flow control
-
Chemical plants requiring continuous process regulation
-
Power generation systems for turbine and actuator management
-
Water treatment plants controlling dosing and pumping systems
-
Pharmaceutical production lines demanding consistent process accuracy
Its ability to maintain stable output signals while enabling digital communication makes it essential for hybrid analog-digital control strategies.
Performance Benefits That Matter
The KJ3221X1-BA1 is designed to elevate both operational efficiency and system intelligence. Its integrated HART functionality allows engineers to access real-time diagnostics and configure field instruments remotely, significantly reducing maintenance time.
With galvanic isolation across channels, the module enhances system protection and minimizes interference risks. Its high-resolution output ensures precise control, even in sensitive applications, while seamless integration into DeltaV systems simplifies engineering and commissioning.
Additionally, the module’s compact and durable design supports installation in space-constrained panels without compromising performance, making it a preferred choice for both upgrades and new installations.
Technical FAQs
-
How many output channels does the module provide?
It offers 8 independent analog output channels.
-
What type of signals are supported?
Standard 4–20 mA current signals.
-
Does it support smart device communication?
Yes, via integrated HART pass-through.
-
What is the accuracy level?
Typically ±0.1% of full scale.
-
Is channel isolation included?
Yes, with 1500 VDC galvanic isolation.
-
What power supply does it require?
12 VDC (LocalBus) and 24 VDC (field power).
-
Can it operate in harsh environments?
Yes, it supports wide temperature ranges and industrial conditions.
-
Is it compatible with DeltaV systems?
Fully compatible with DeltaV Series 2 architecture.
-
Does it require frequent calibration?
No, it maintains stability with minimal calibration needs.
-
What devices can it control?
Control valves, actuators, transmitters, and other field instruments.
