Product Insight & Functional Overview

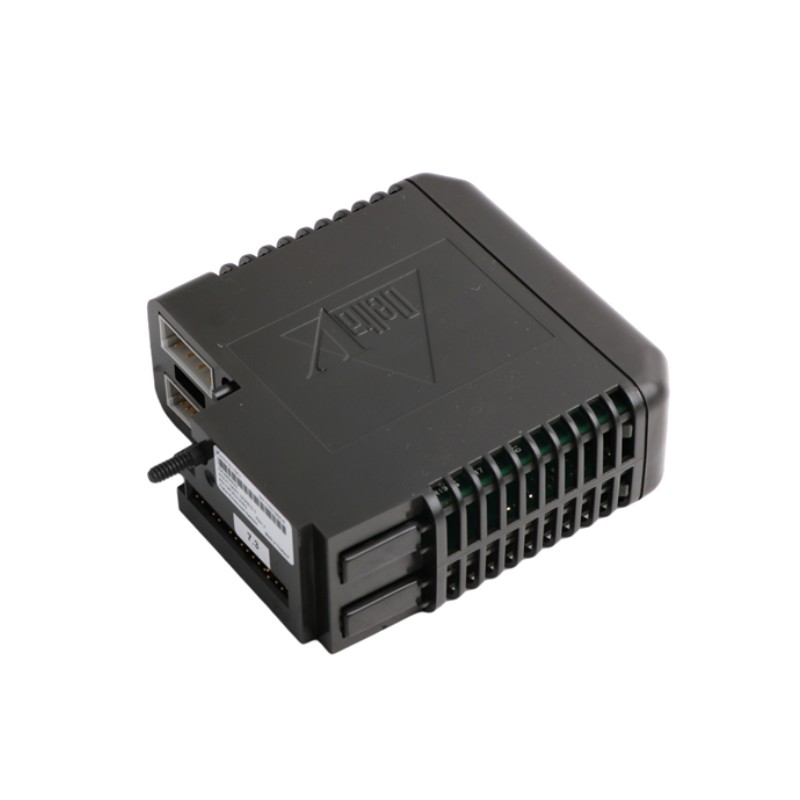

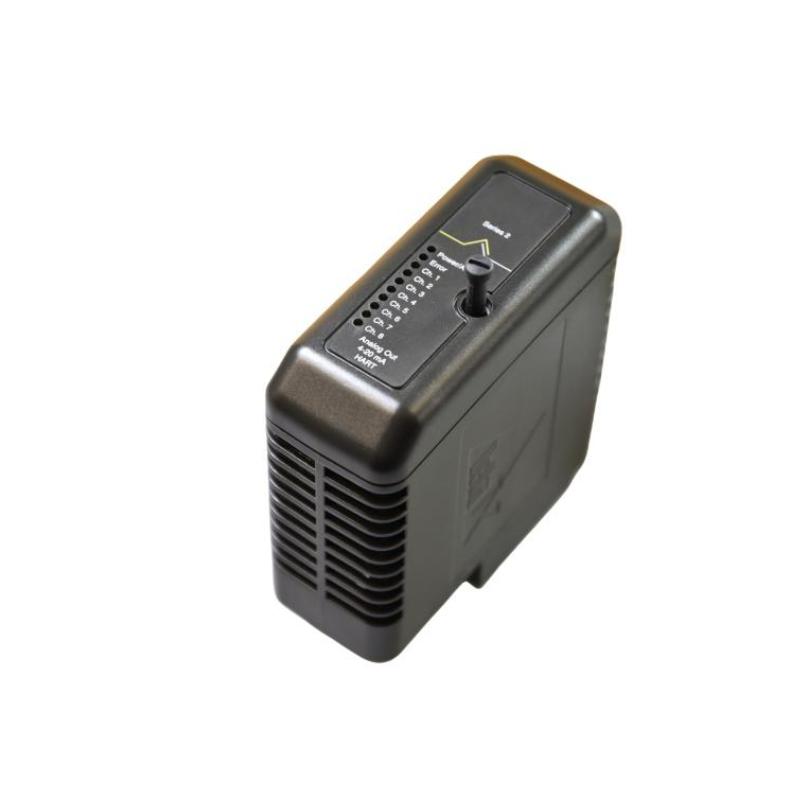

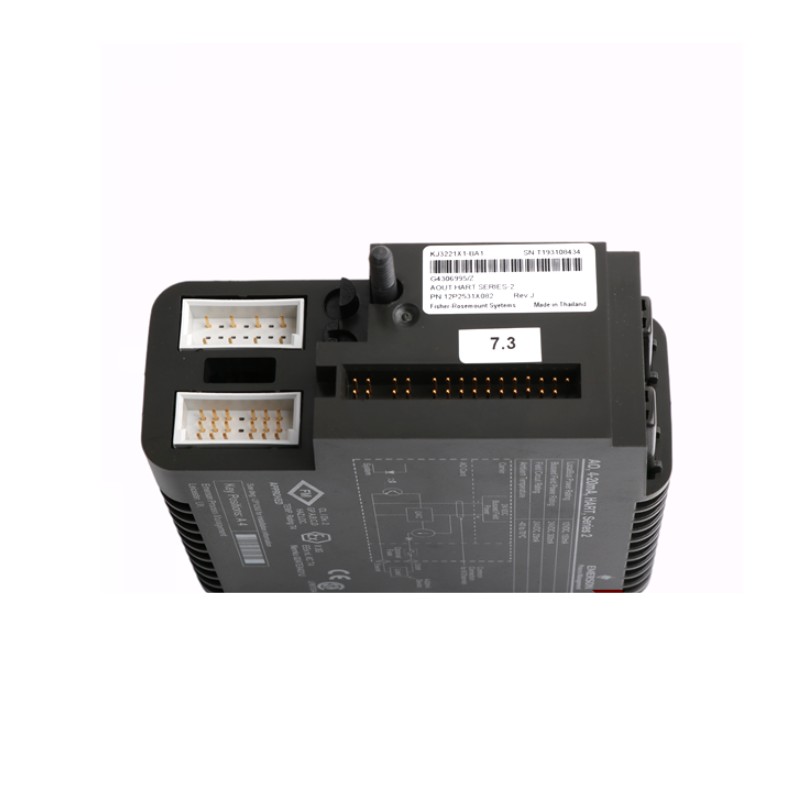

The Emerson KJ3221X1-BA1 Analog Output Module is a precision-engineered component within the DeltaV™ distributed control system, purpose-built for reliable signal conversion in demanding process environments. Designed to bridge digital control logic with real-world field devices, this module ensures stable and accurate analog output performance.
With integrated HART communication capability, it not only transmits 4–20 mA signals but also enables advanced diagnostics and remote device configuration. This dual-functionality significantly enhances operational visibility and reduces maintenance effort, making it a valuable asset in modern industrial automation systems.
Core Technical Details
| Parameter | Specification |
|---|
| Product Series | DeltaV™ Series 2 |
| Module Type | Analog Output (AO) Module |
| Output Channels | 8 isolated channels |
| Signal Range | 4–20 mA DC |
| Communication | HART Protocol (pass-through) |
| Resolution | 16-bit D/A conversion |
| Accuracy | ±0.1% full scale |
| Local Bus Power | 12 VDC @ 150 mA |
| Field Power | 24 VDC @ 300 mA |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | 44 × 108 × 114 mm |
| Weight | Approx. 0.20 – 0.55 kg |
Industrial Use Cases
The KJ3221X1-BA1 module is widely deployed in process-driven industries where precise analog control is essential. Typical applications include:
-
Oil & gas refining systems requiring continuous valve control
-
Chemical processing plants with high-accuracy flow regulation
-
Power generation facilities for turbine and actuator control
-
Pharmaceutical production lines with strict process consistency
-
Water treatment systems managing pumps and dosing equipment
Its ability to maintain stable output signals while supporting digital communication makes it especially suitable for critical control loops.
Why Engineers Choose This Module
The KJ3221X1-BA1 stands out for its combination of precision, reliability, and intelligent communication. The integrated HART capability allows engineers to access real-time diagnostics without interrupting operations, improving uptime and reducing manual intervention.
Its galvanic isolation enhances system safety, while the robust design ensures long-term stability even in harsh industrial environments. Additionally, the module’s compatibility with DeltaV architecture enables seamless system expansion, reducing integration complexity and engineering costs.
Technical FAQs
-
How many output channels are available?
The module provides 8 independent analog output channels.
-
Does it support HART communication?
Yes, it includes HART pass-through for smart device interaction.
-
What signal type does it output?
Standard 4–20 mA analog current signals.
-
Is the module suitable for hazardous environments?
Yes, it supports ATEX and IECEx certified installations.
-
What is the operating temperature range?
It operates reliably between -40°C and +70°C.
-
Can it be used in redundant systems?
Yes, it supports redundant configurations in DeltaV systems.
-
What is the accuracy level?
Approximately ±0.1% of full-scale output.
-
Does it require calibration?
No routine calibration is required under normal operation.
-
How is power supplied?
Through the DeltaV LocalBus and field power connections.
-
What type of devices can it control?
Valves, actuators, and other HART-enabled field instruments.
