Product Introduction

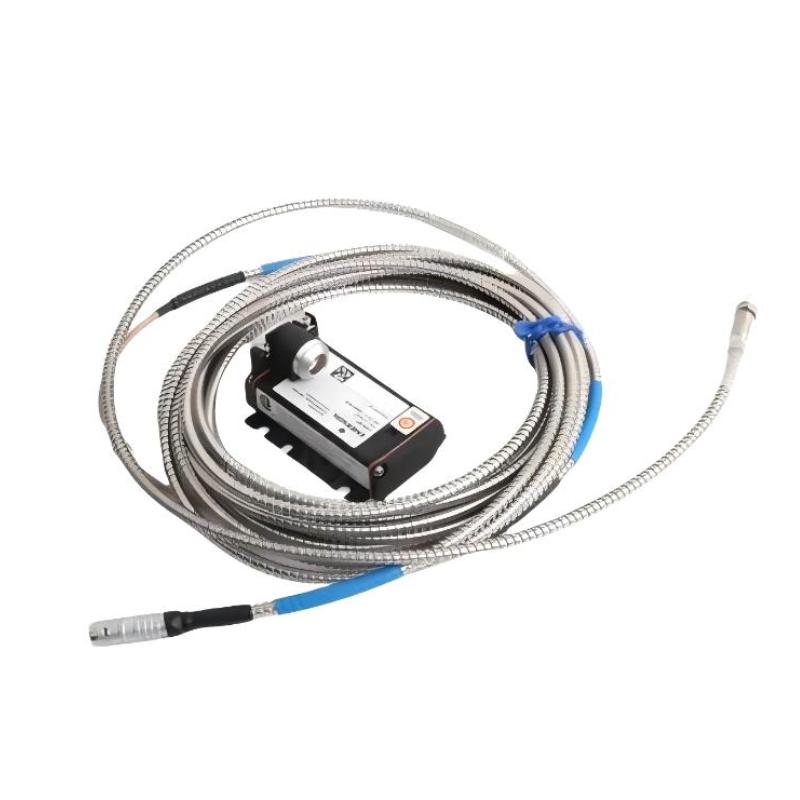

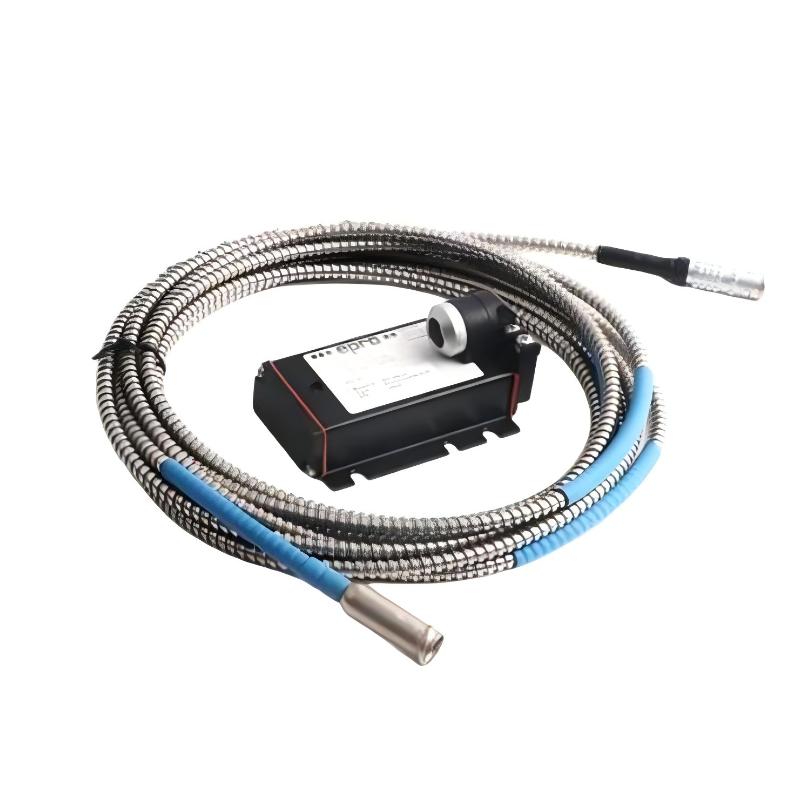

The Epro PR6423/000-131 Eddy Current Sensor combined with the CON031 signal converter forms a monitoring solution developed for industrial rotating equipment. In modern industrial plants, the reliability of turbomachinery is essential for maintaining production efficiency and operational safety.
This sensor system operates using eddy current technology, which generates an electromagnetic field to detect the proximity and movement of conductive materials such as metal shafts. The measurement is performed without physical contact, allowing the sensor to maintain accuracy over extended operational periods.
With its 8 mm probe head diameter, the sensor is suitable for installation in compact monitoring locations within turbines, compressors, and pumps. When integrated into condition monitoring systems, it helps engineers analyze vibration trends and identify early-stage mechanical deviations, supporting predictive maintenance strategies.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model | PR6423/000-131 + CON031 |
| Module Type | Eddy Current Sensor |
| Sensor Technology | Eddy Current Measurement |
| Sensor Head Diameter | 8 mm |
| Measurement Capability | Shaft Displacement and Vibration Monitoring |
| Application | Rotating Machinery Condition Monitoring |
| Installation | Industrial Monitoring Systems |
| Operating Environment | Turbomachinery and Industrial Equipment |
| Dimensions | Standard Industrial Probe Assembly |
| Weight | 0.1 kg |
Application Perspectives in Machinery Protection Systems
The Epro PR6423/000-131 combined with the CON031 signal converter is a precision eddy current sensor system designed for monitoring shaft displacement and vibration in rotating industrial machinery. With an 8 mm sensor head diameter, the probe is commonly installed in monitoring points where consistent measurement accuracy is required for equipment protection.
Typical application scenarios include:
-
Steam and gas turbine monitoring systems in power plants
-
Compressor protection installations in oil and gas processing facilities
-
Rotating equipment monitoring in petrochemical refineries
-
Pump vibration monitoring in chemical production lines
-
Industrial machinery health monitoring platforms
-
Predictive maintenance systems in large-scale manufacturing plants
In these environments, the sensor system provides reliable real-time measurement data, helping maintenance engineers detect abnormal operating conditions before they develop into major mechanical issues.
Operational Advantages
Accurate Shaft Position Monitoring
The sensor detects subtle displacement changes in rotating shafts, supporting precise machine diagnostics and performance evaluation.
Advanced Non-Contact Sensing Method
Eddy current technology allows measurement without physical interaction with the shaft surface, improving durability and long-term reliability.

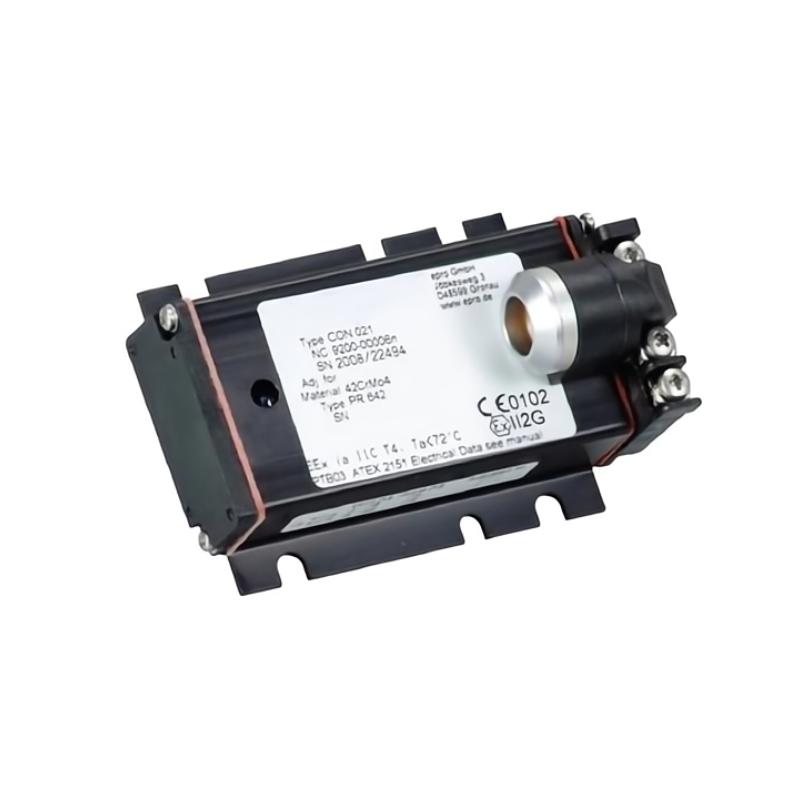

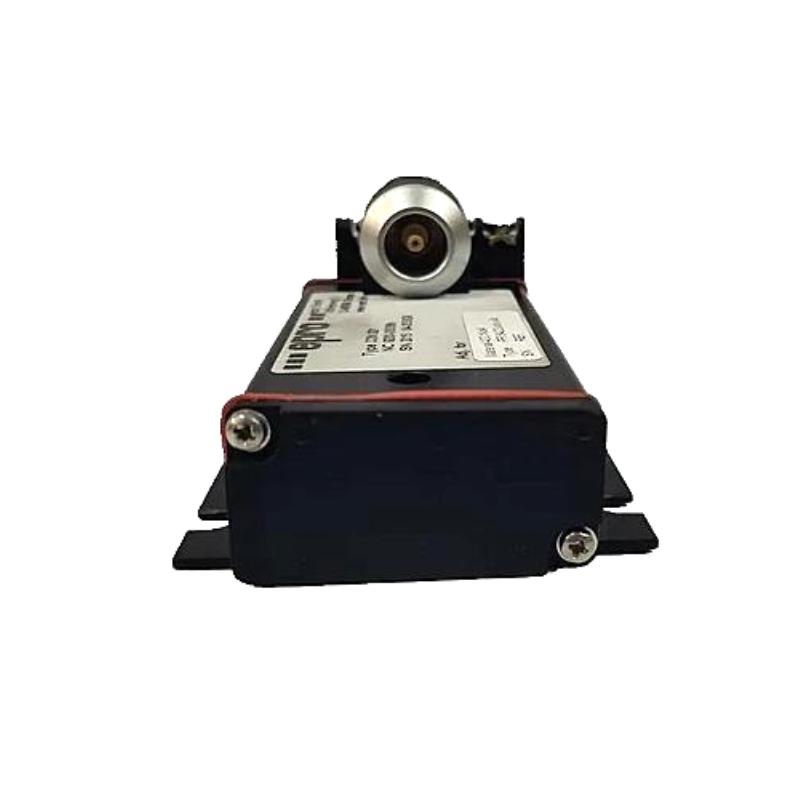

Signal Conditioning via CON031 Module
The CON031 converter processes the probe signal and provides a stable interface for machinery monitoring systems.
Designed for Continuous Industrial Operation
The sensor system is suitable for equipment that operates around the clock in demanding industrial environments.
Compact 8 mm Sensor Head
The small probe diameter enables installation in tight mechanical structures commonly found in turbomachinery housings.
Technical FAQs
1. What is the purpose of the PR6423/000-131 + CON031 sensor system?
It is used to measure shaft displacement and vibration in rotating machinery to support equipment protection and condition monitoring.
2. What function does the CON031 module perform?
The CON031 acts as a signal converter that stabilizes and transmits the measurement signal to monitoring systems.
3. Is the sensor suitable for high-speed rotating equipment?
Yes, it is designed for use in turbines, compressors, and other high-speed industrial machinery.
4. Can this sensor system operate continuously?
Yes, it is engineered for continuous monitoring in industrial applications.
5. How does the sensor assist in preventing machinery failures?
By identifying early vibration or displacement changes that indicate mechanical issues such as imbalance or misalignment.
6. Does the sensor require precise installation alignment?
Yes, proper probe positioning ensures accurate measurement results and reliable monitoring performance.
7. Can the system integrate with machinery protection platforms?
Yes, it is commonly connected to vibration monitoring and machinery protection systems.
8. Is the sensor affected by industrial electromagnetic environments?
It is designed to maintain stable operation in typical industrial electromagnetic conditions.
9. What industries typically use this sensor system?
Power generation, oil and gas, petrochemical processing, and heavy manufacturing.
10. What type of measurement data does the sensor provide?
It provides real-time shaft displacement and vibration data for equipment monitoring.
