Product Introduction

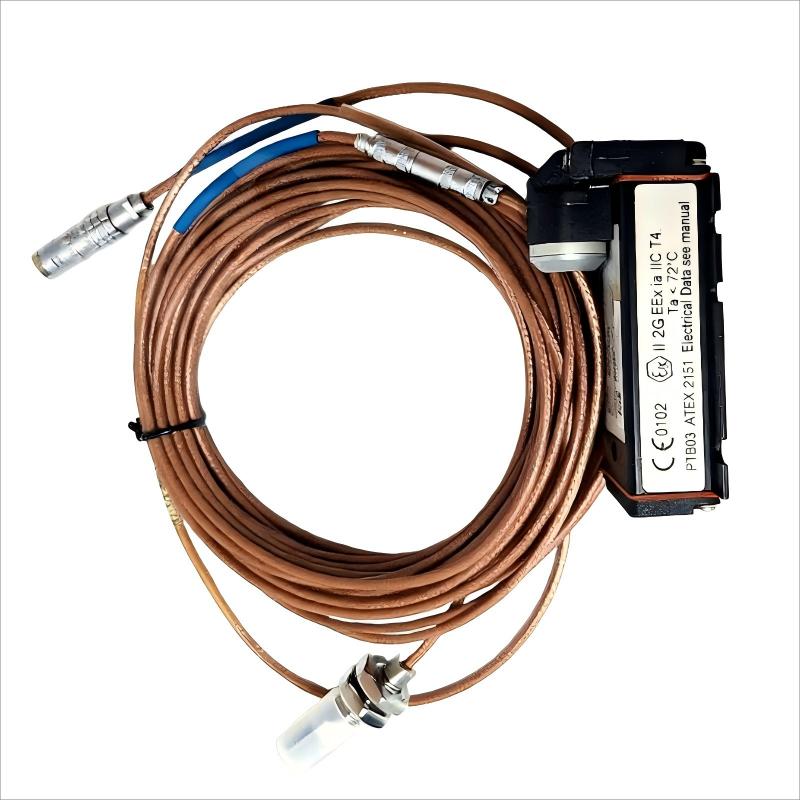

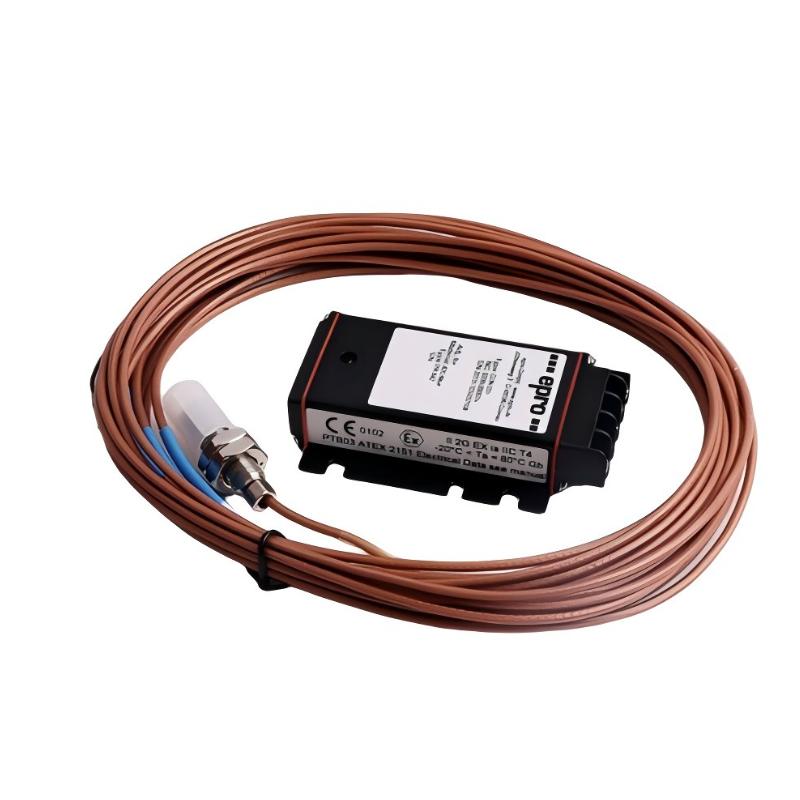

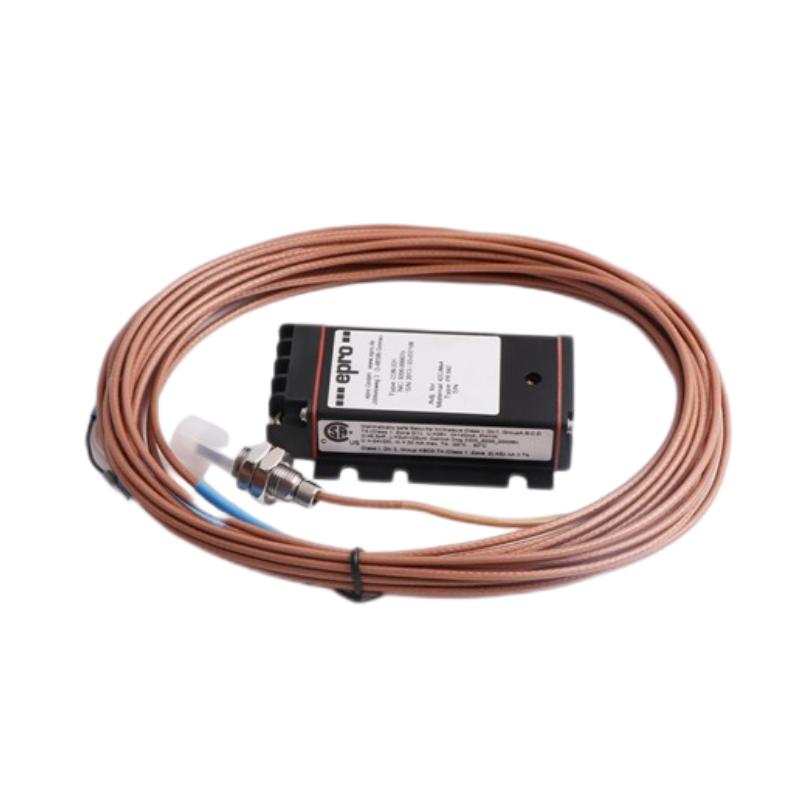

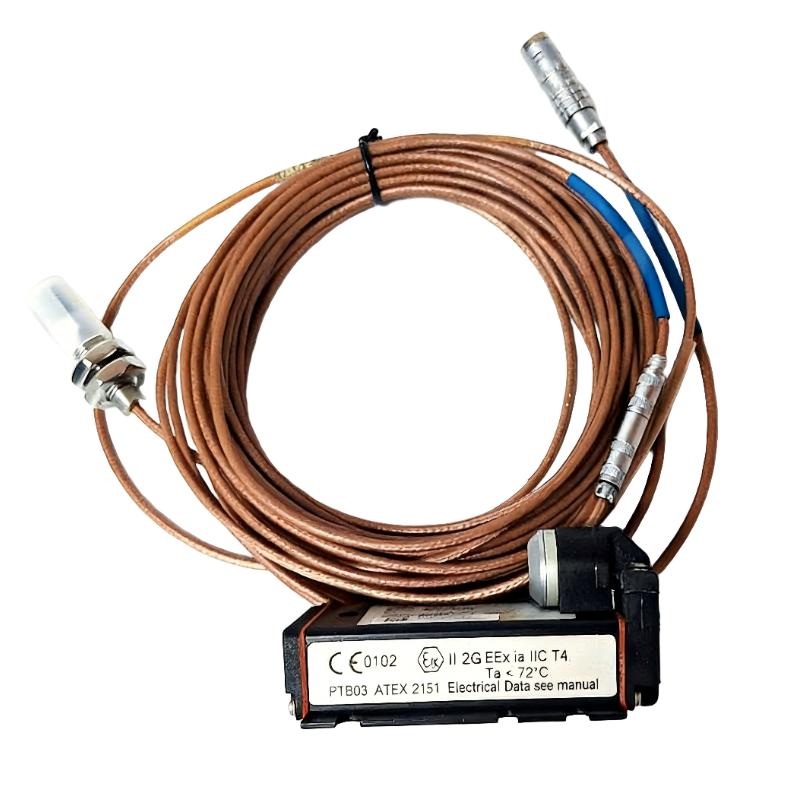

The Epro PR6423/000-031-CN Eddy Current Sensor is part of a machinery monitoring solution developed for precise measurement of shaft movement in rotating equipment. In many industrial processes, continuous monitoring of vibration and displacement is critical to ensuring equipment reliability and preventing unexpected shutdowns.
This sensor uses eddy current technology to measure the position of conductive machine components without direct contact. As a result, it provides consistent measurement accuracy while minimizing mechanical wear. Its compact 8 mm probe head makes it suitable for installations where space inside the machine housing is limited.
Engineers often integrate this sensor into condition monitoring systems that supervise turbines, compressors, and other high-value machinery. By delivering stable and reliable measurement data, it helps operators maintain system efficiency and extend equipment lifecycle.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model | PR6423/000-031-CN |
| Module Type | Eddy Current Sensor |
| Sensor Technology | Eddy Current Measurement |
| Sensor Head Diameter | 8 mm |
| Measurement Type | Non-contact Shaft Displacement / Vibration |
| Application | Rotating Machinery Monitoring |
| Operating Environment | Industrial Automation Systems |
| Dimensions | Standard Industrial Probe Design |
| Weight | 0.1 kg |
Where This Sensor Is Commonly Used
The Epro PR6423/000-031-CN is an eddy current sensor designed for high-accuracy, non-contact measurement of shaft displacement and vibration in rotating machinery. With an 8 mm sensor head diameter, it is particularly suitable for installations where precise monitoring must be performed within limited mechanical space.
Typical application areas include:
-
Turbine monitoring systems in thermal and combined-cycle power plants
-
Compressor protection systems in petrochemical facilities
-
Rotating equipment diagnostics in refineries
-
High-speed industrial pump monitoring
-
Machinery condition monitoring systems in manufacturing plants
-
Predictive maintenance platforms in heavy industry
In these environments, the sensor helps maintenance teams track shaft movement trends and detect early signs of imbalance, misalignment, or mechanical wear.
Key Operational Advantages
Accurate Displacement Detection
The sensor provides reliable shaft displacement measurements, which are essential for monitoring equipment health and preventing mechanical faults.
Non-Contact Measurement Principle
Using eddy current technology, the sensor measures metallic surface movement without physical contact, ensuring consistent performance over long operational periods.
Stable Performance in Industrial Conditions
The design supports operation in environments with vibration, electrical noise, and temperature variation commonly found in industrial plants.
Compact Probe Design
The 8 mm sensor head allows installation in standard machine monitoring ports and tight mechanical housings.
Supports Continuous Equipment Monitoring
The sensor is widely used in systems that run 24/7, providing continuous data for machinery protection and diagnostics.
Technical FAQs
1. What is the primary purpose of the PR6423/000-031-CN sensor?
It is used to measure shaft vibration and displacement in rotating machinery using eddy current sensing.
2. What type of machinery typically uses this sensor?
Turbines, compressors, pumps, and other critical rotating equipment.
3. How does eddy current technology work in this sensor?
It generates an electromagnetic field that reacts to the proximity of a conductive surface, enabling precise position measurement.
4. Can this sensor operate in continuous industrial processes?
Yes, it is designed for continuous operation in industrial monitoring systems.
5. Is the sensor suitable for high-speed rotating equipment?
Yes, it is frequently installed on high-speed shafts where precise displacement measurement is required.
6. Does the sensor require a signal converter to operate?
Yes, in most monitoring systems it is paired with a compatible signal converter for proper signal processing.
7. How does this sensor contribute to predictive maintenance?
By monitoring vibration and shaft position trends, it helps identify early mechanical issues before equipment failure occurs.
8. Can the sensor operate in environments with electromagnetic interference?
It is engineered to maintain measurement stability in typical industrial electromagnetic environments.
9. Is alignment important during installation?
Yes, proper probe alignment and positioning are essential for achieving accurate measurements.
10. What systems typically receive the measurement data from this sensor?
Machinery protection systems, vibration monitoring platforms, and industrial diagnostic systems.
