Product Introduction

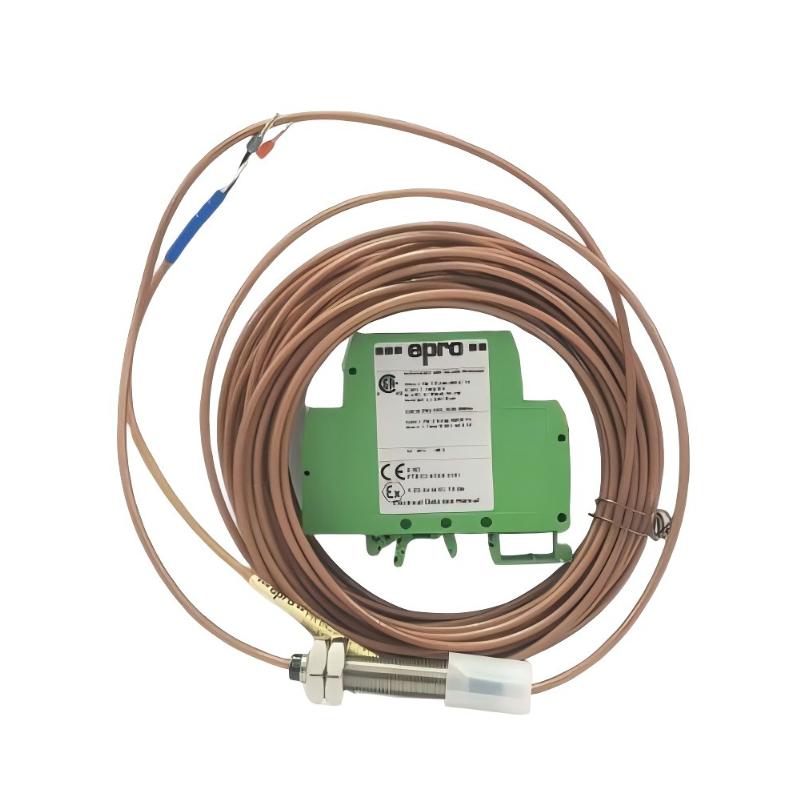

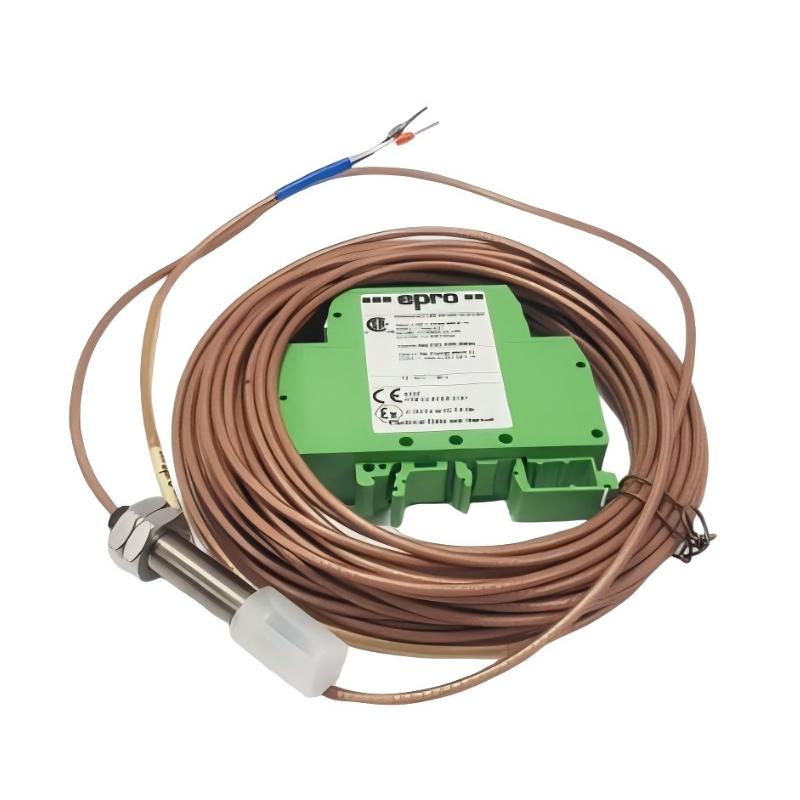

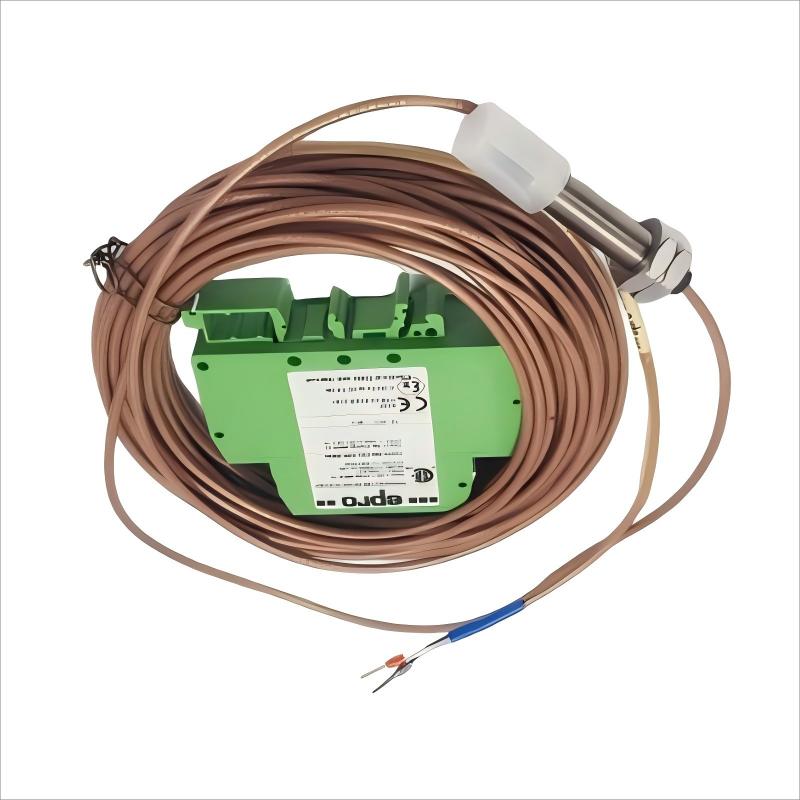

The Epro PR6423/000-031 eddy current sensor combined with the CON041-CN signal converter forms a high-precision measurement solution used in rotating machinery monitoring. The sensor detects changes in the position of metallic shafts by generating an electromagnetic field and analyzing variations caused by shaft movement.
This measurement principle makes it particularly suitable for applications where accurate and stable monitoring is required over long operating cycles. Industries relying on turbines, compressors, and pumps often deploy this type of sensor to ensure early detection of mechanical instability.
The compact 8 mm probe design allows installation in monitoring points that are commonly built into turbomachinery housings. When connected to a machinery protection system, the sensor provides continuous operational data that supports predictive maintenance strategies and helps prevent unexpected equipment downtime.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model | PR6423/000-031 + CON041-CN |
| Module Type | Eddy Current Sensor |
| Sensor Technology | Eddy Current Measurement |
| Sensor Head Diameter | 8 mm |
| Measurement Capability | Shaft Displacement and Vibration Monitoring |
| Application | Rotating Machinery Condition Monitoring |
| Installation | Industrial Monitoring Systems |
| Operating Environment | Industrial Automation and Turbomachinery |
| Dimensions | Standard Industrial Probe Assembly |
| Weight | 0.16 kg |
Typical Deployment Environments
The Epro PR6423/000-031 with the CON041-CN signal converter is an industrial eddy current sensor assembly designed for precise monitoring of shaft movement and vibration in rotating machinery. Featuring an 8 mm sensor head diameter, it is optimized for installations where high measurement stability and compact probe geometry are required.
Common application environments include:
-
Steam turbine monitoring systems in power plants
-
Gas compressors in oil and gas production facilities
-
Centrifugal pumps used in chemical processing lines
-
Turbomachinery protection systems in refineries
-
Industrial rotating equipment used in heavy manufacturing
-
Predictive maintenance platforms for high-value assets
In these environments, the sensor provides reliable non-contact measurement, helping engineers detect early changes in machine behavior before they lead to operational issues.
Engineering Benefits
Precision Shaft Monitoring
The sensor is built to measure shaft displacement and vibration accurately, supporting machinery protection and performance diagnostics.
Non-Contact Measurement Technology
Eddy current sensing eliminates physical contact with the monitored surface, reducing wear and ensuring long-term measurement stability.
Integrated Signal Conversion
The CON041-CN module conditions the probe signal and provides consistent output for integration into monitoring and protection systems.
Designed for Turbomachinery Reliability
This sensor assembly is widely used in critical rotating equipment where monitoring accuracy directly impacts equipment safety.
Compact 8 mm Probe Construction
The small probe head allows installation in tight mechanical housings and standard vibration monitoring ports.
Technical FAQs
1. What is the function of the PR6423/000-031 + CON041-CN sensor system?
It measures shaft displacement and vibration in rotating equipment using eddy current sensing technology.
2. What distinguishes the CON041-CN from other signal converters?
It is configured to work specifically with the PR6423 probe series, ensuring stable signal conditioning within compatible monitoring systems.
3. Can this sensor operate in continuous monitoring systems?
Yes, it is designed for long-term use in machinery protection and condition monitoring applications.
4. Is the sensor suitable for high-speed turbomachinery?
Yes, it is commonly used in turbines, compressors, and other high-speed rotating equipment.
5. How does eddy current sensing improve reliability?
Because it is non-contact, it avoids mechanical wear and maintains measurement accuracy over long operational periods.
6. Can the sensor detect early mechanical faults?
Yes, changes in shaft displacement or vibration levels can indicate imbalance, misalignment, or bearing issues.
7. Does installation require specific mounting considerations?
Yes, proper probe positioning and alignment are important to achieve accurate measurement performance.
8. What type of systems typically receive the sensor output?
Machinery protection systems, vibration monitoring units, and plant diagnostic platforms.
9. Is the sensor affected by industrial electromagnetic environments?
It is designed to operate reliably in industrial conditions where electrical noise may be present.
10. What maintenance is typically required for this sensor system?
Routine inspection of connections and periodic verification within the monitoring system are generally sufficient.
