Product Introduction

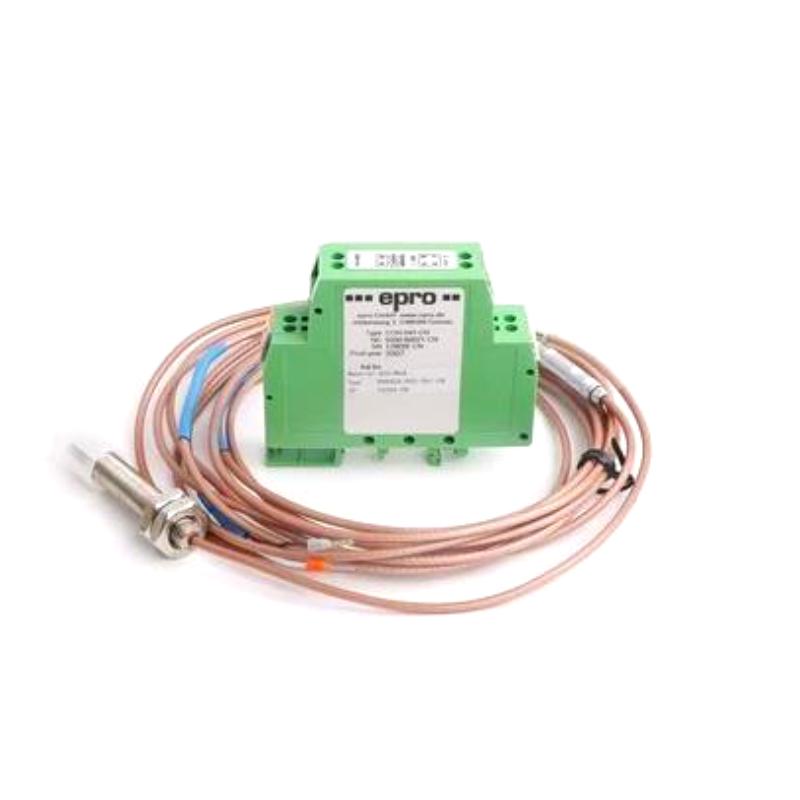

The Epro PR6423/000-031 eddy current sensor combined with the CON041 signal converter is part of a machinery monitoring solution developed for high-reliability industrial environments. The sensor operates using eddy current principles to measure the position and movement of metallic shafts without physical contact, making it ideal for monitoring rotating equipment where precision is critical.
With an 8 mm probe head diameter, the sensor is suitable for installation in compact machine housings and monitoring points where space constraints are common. It is widely deployed in vibration monitoring systems that protect turbines, compressors, and pumps from mechanical instability.
In modern industrial plants, predictive maintenance and condition monitoring are essential for avoiding costly downtime. This sensor assembly contributes to those strategies by providing accurate real-time data that allows maintenance teams to detect early signs of equipment imbalance, misalignment, or mechanical wear.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Epro |
| Model | PR6423/000-031 + CON041 |
| Module Type | Eddy Current Sensor |
| Sensor Technology | Eddy Current Measurement |
| Sensor Head Diameter | 8 mm |
| Measurement Type | Non-contact Shaft Displacement / Vibration |
| Application | Rotating Machinery Monitoring |
| Installation | Industrial Equipment Monitoring Systems |
| Dimensions | Standard Industrial Probe Assembly |
| Weight | 0.16 kg |
Industrial Application Scenarios
The Epro PR6423/000-031 paired with the CON041 signal converter is an eddy current sensor system engineered for precision shaft vibration and displacement monitoring in rotating machinery. With an 8 mm sensor head diameter, it is commonly installed in locations where accurate non-contact measurement is required to protect critical equipment.
Typical applications include:
-
Steam and gas turbines used in power generation facilities
-
Compressors operating in petrochemical and refining plants
-
Large industrial pumps within process industries
-
Turbomachinery monitoring systems in oil and gas operations
-
High-speed rotating equipment in manufacturing plants
-
Condition monitoring systems for predictive maintenance programs
This sensor assembly is widely used in machinery protection systems where continuous monitoring of shaft movement and vibration is essential for preventing mechanical failure and unexpected shutdowns.
Performance Advantages
High-Precision Non-Contact Measurement
The eddy current sensing technology allows accurate measurement of shaft displacement without physical contact, reducing mechanical wear and measurement error.
Optimized for Turbomachinery Monitoring
Designed specifically for vibration and position measurement in critical rotating equipment such as turbines, compressors, and pumps.
Stable Signal Transmission with CON041 Converter
The integrated signal converter ensures consistent signal output suitable for industrial monitoring and protection systems.
Reliable Operation in Harsh Industrial Environments
Engineered to perform under conditions involving temperature variation, electromagnetic interference, and mechanical vibration.
Compact 8 mm Probe Design
The sensor head diameter allows installation in tight machine housings or monitoring points where space is limited.
Technical FAQs
1. What is the primary function of the PR6423/000-031 sensor system?
It measures shaft vibration and displacement in rotating machinery using eddy current sensing technology.
2. Why is eddy current sensing preferred in turbomachinery monitoring?
Because it provides highly accurate, non-contact measurement that is not affected by oil, dust, or mechanical wear.

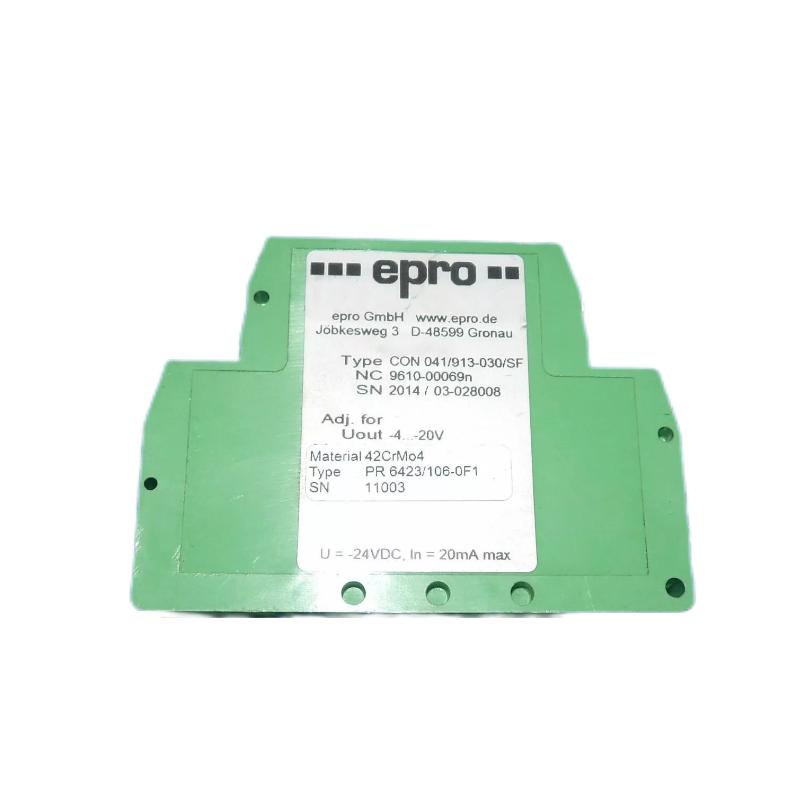

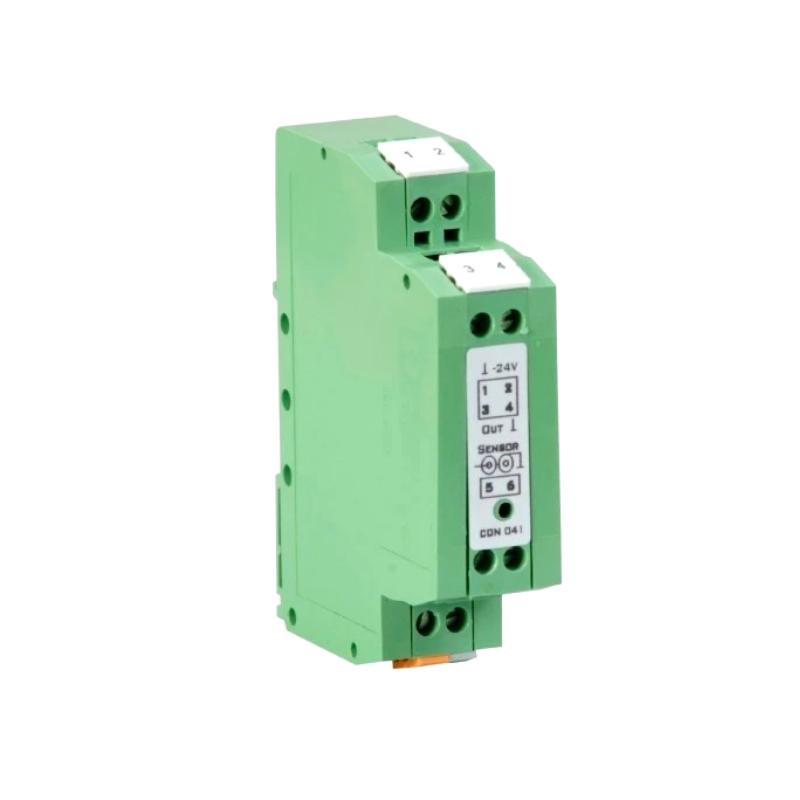

3. What role does the CON041 module play in the system?
The CON041 acts as a signal converter that processes the probe signal and delivers stable output for monitoring systems.
4. Can this sensor be used for continuous condition monitoring?
Yes, it is commonly deployed in continuous monitoring systems designed to protect critical rotating equipment.
5. Is the sensor suitable for high-speed rotating shafts?
Yes, it is specifically designed to measure displacement and vibration in high-speed machinery.
6. Does the sensor require calibration during installation?
Proper system setup and calibration are recommended to ensure measurement accuracy within the monitoring system.
7. Can the sensor integrate with machinery protection systems?
Yes, it is frequently connected to vibration monitoring and protection systems used in industrial plants.
8. How does the sensor maintain measurement stability?
The eddy current technology combined with the signal converter ensures stable and consistent signal output.
9. In which industries is this sensor commonly installed?
Power generation, oil and gas, petrochemical processing, and heavy industrial manufacturing.
10. What type of measurements can this sensor provide?
It is primarily used for shaft displacement, vibration monitoring, and position measurement in rotating equipment.
