High-Speed Signal Acquisition for Precision Monitoring

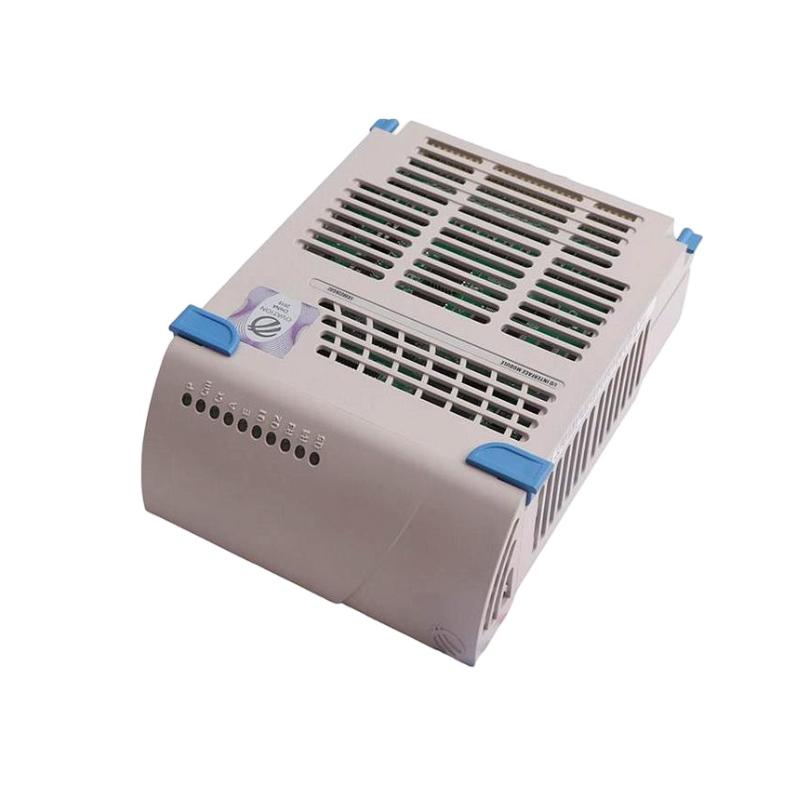

The Ovation 5X00717G01 Analog Input Module is engineered for high-speed and high-accuracy signal acquisition within Emerson Ovation Distributed Control Systems (DCS). Designed to capture both voltage and current signals from field instruments, this module enables precise monitoring of critical process variables such as pressure, flow, and temperature.
With its fast sampling capability and robust isolation design, the 5X00717G01 ensures reliable data conversion even in electrically demanding industrial environments. It is particularly suited for applications requiring rapid response and high-resolution measurement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Ovation |
| Model | 5X00717G01 |
| Module Type | Analog Input Module |
| Input Channels | 8 isolated analog inputs |
| Input Signal Types | Voltage (±100 mV to ±10 V), Current (4–20 mA) |
| Resolution | 14-bit |
| Sampling Rate | 50/60 samples per second |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel isolation |
| Input Impedance | Up to MΩ range (configurable) |
| Surge Protection | Integrated input protection |
| Power Supply | Rack/backplane powered or external field support |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 0–95% non-condensing |
| Dimensions (HxWxD) | Approx. 90 × 178 × 100 mm |
| Weight | Approx. 0.5 kg |
| Mounting | Rack or panel integration |
