Reliable Discrete Input Sensing for Industrial Control

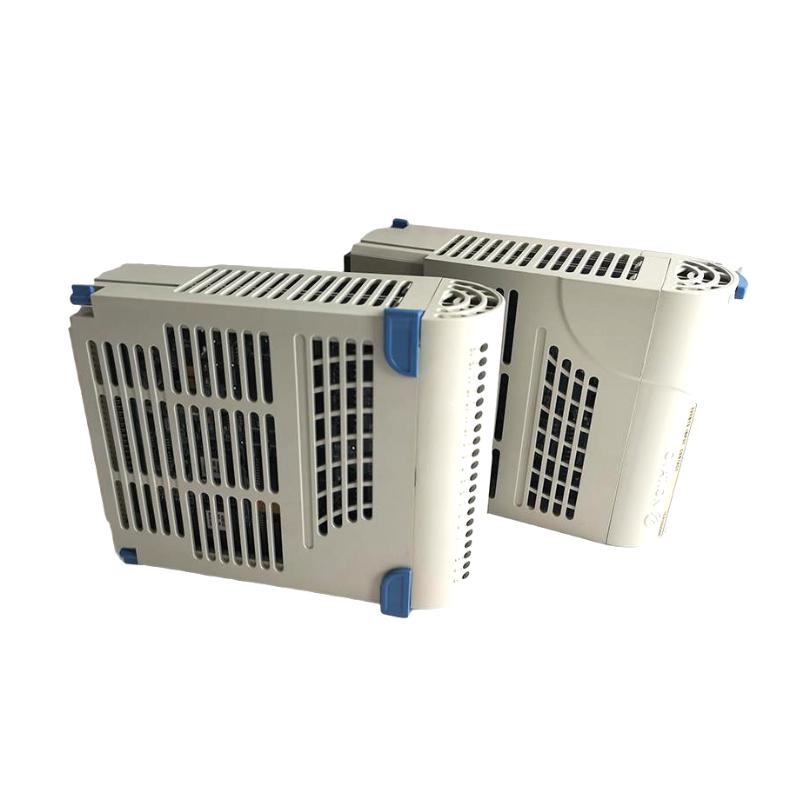

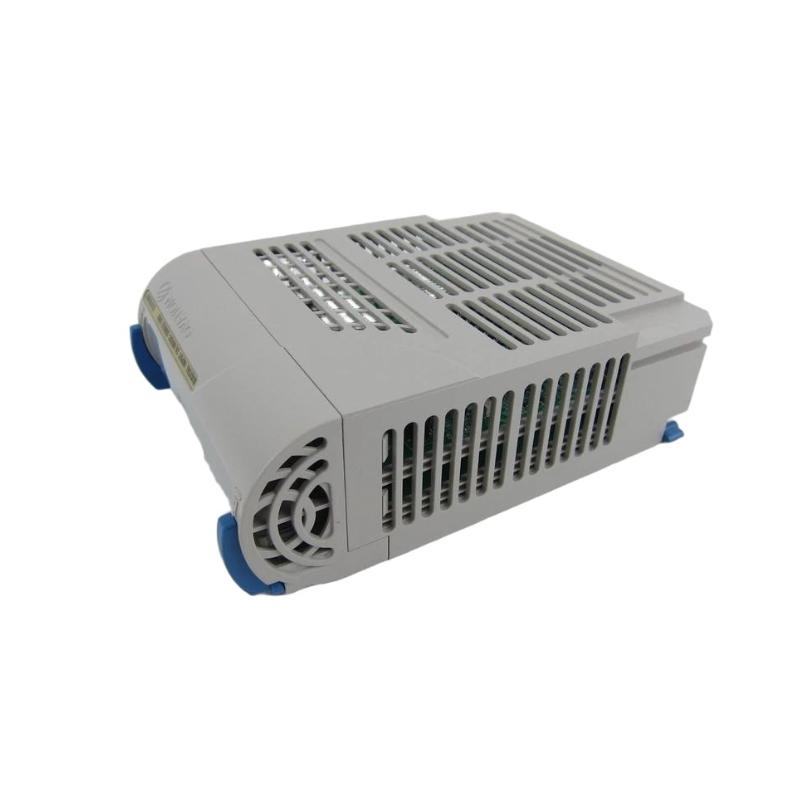

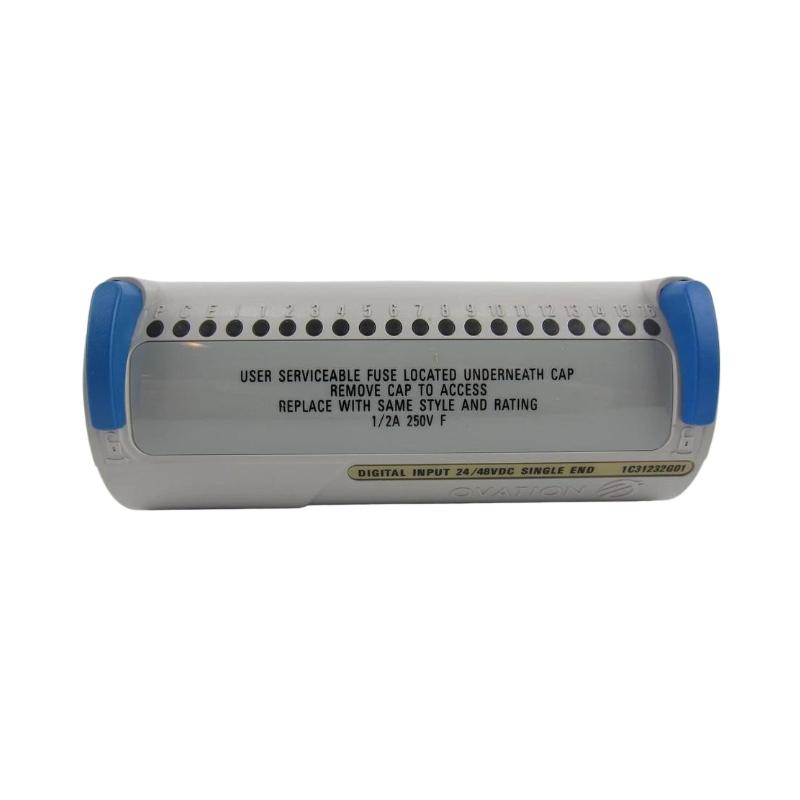

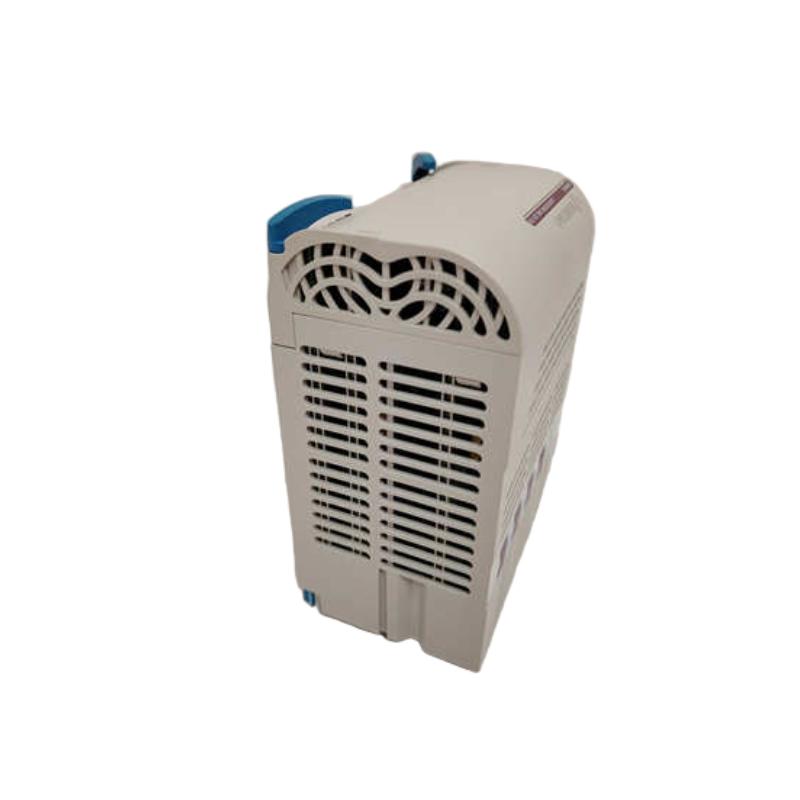

The Ovation 1C31232G01 Digital Input Module is a core component of the Emerson Ovation Distributed Control System (DCS), engineered to accurately receive and condition digital field signals. It provides dependable detection of discrete input devices such as switches, sensors, and status contacts, enabling precise control logic execution in demanding industrial environments.
Built with robust input circuitry and a standardized backplane interface, this module supports seamless integration into Ovation rack systems. It ensures consistent, low‑latency signal acquisition and simplifies troubleshooting with straightforward wiring and diagnostics.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Emerson Ovation |
| Model | 1C31232G01 |
| Module Type | Digital Input Module |
| Input Channels | 16 discrete inputs |
| Input Type | Sinking or sourcing compatible |
| Input Voltage | 24 VDC nominal |
| Input Current | 4 mA typical per channel |
| Isolation | Optical isolation per channel group |

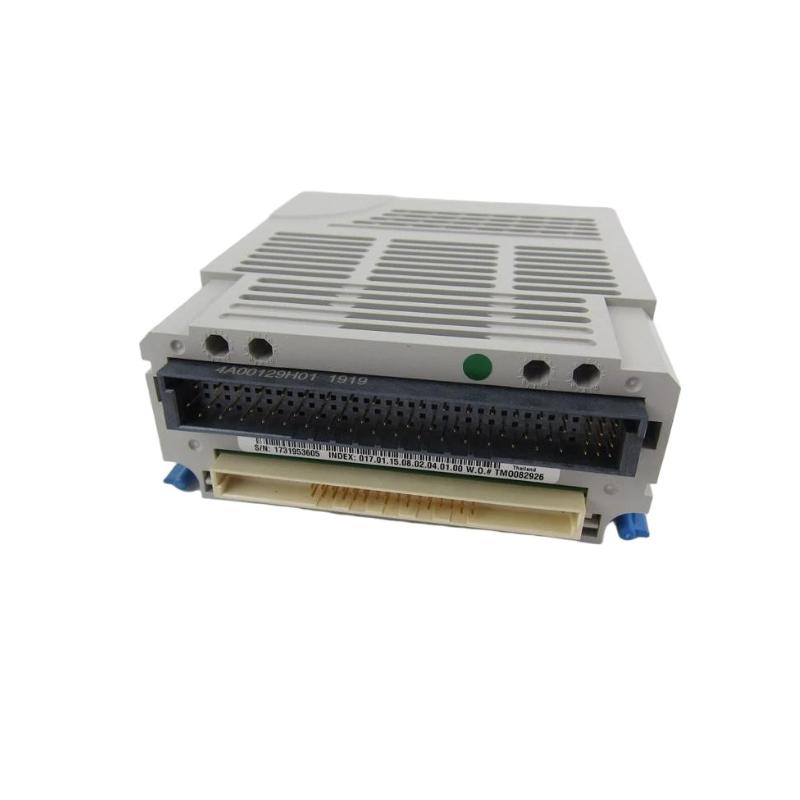

| Backplane Interface | Standard Ovation rack connector |
| Power Source | Rack backplane power |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | –40 to 70 °C |
| Humidity | 5 % to 95 % non‑condensing |
| Dimensions (HxWxD) | Approx. 125 × 35 × 160 mm |
| Weight | Approx. 0.28 kg |
| Mounting | Rack slot installation |
Typical Applications
The 1C31232G01 Digital Input Module is widely used across industrial automation systems requiring accurate and resilient discrete signal monitoring:
-
Monitoring limit switches on machinery and conveyors
-
Reading status of valves, pumps, and safety interlocks
-
Detecting pushbutton and operator panel inputs
-
Integrating field sensor logic into DCS control strategies
-
Alarm, status reporting, and system interlock detection
Technical FAQs
1. How many discrete inputs does the module support?
It provides 16 digital input channels.
2. What voltage does the module accept from field devices?
24 VDC nominal input voltage.
3. Can it handle both sinking and sourcing inputs?
Yes, it is compatible with both sinking and sourcing input types.
4. What type of isolation is used?
Optical isolation is used per channel group to enhance noise immunity.
5. Does it require an external power supply?
No, it is powered directly from the Ovation rack backplane.
6. What environments is the module designed for?
Typical industrial ambient conditions up to 55 °C and non‑condensing humidity.
7. How is wiring terminated?
Field wiring is typically connected via front‑accessible screw terminals.
8. Can this module be hot‑swapped?
Hot‑swap capability depends on overall system and rack configuration.
9. What maintenance practices are recommended?
Periodic inspection of input terminations and proper cable management help ensure long‑term reliability.
10. Can it interface with other automation systems?
Yes, when integrated through the Ovation I/O network and system logic.
