Foundation for Reliable Relay Output Modules

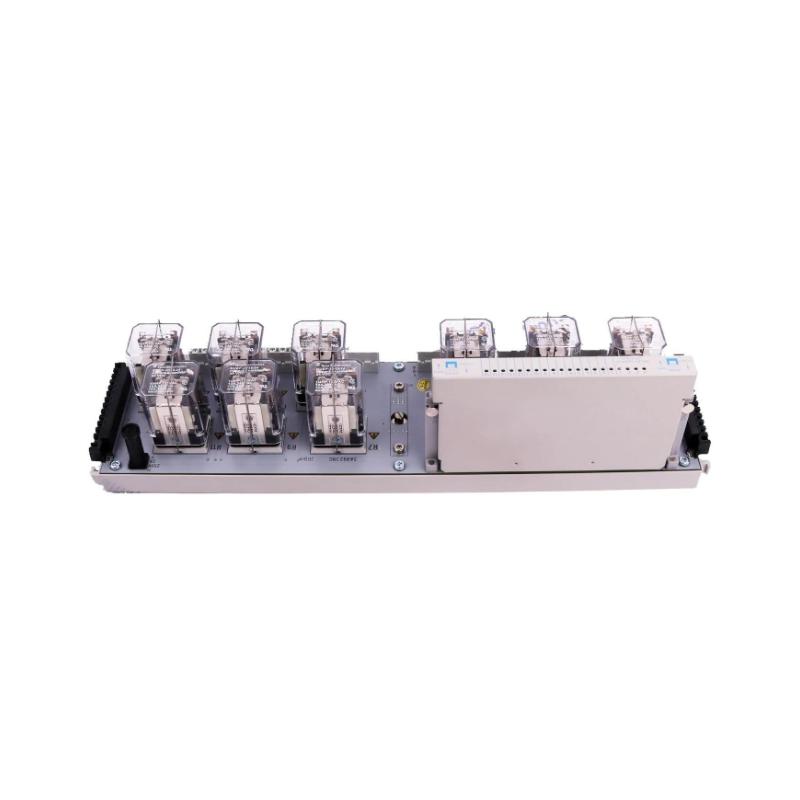

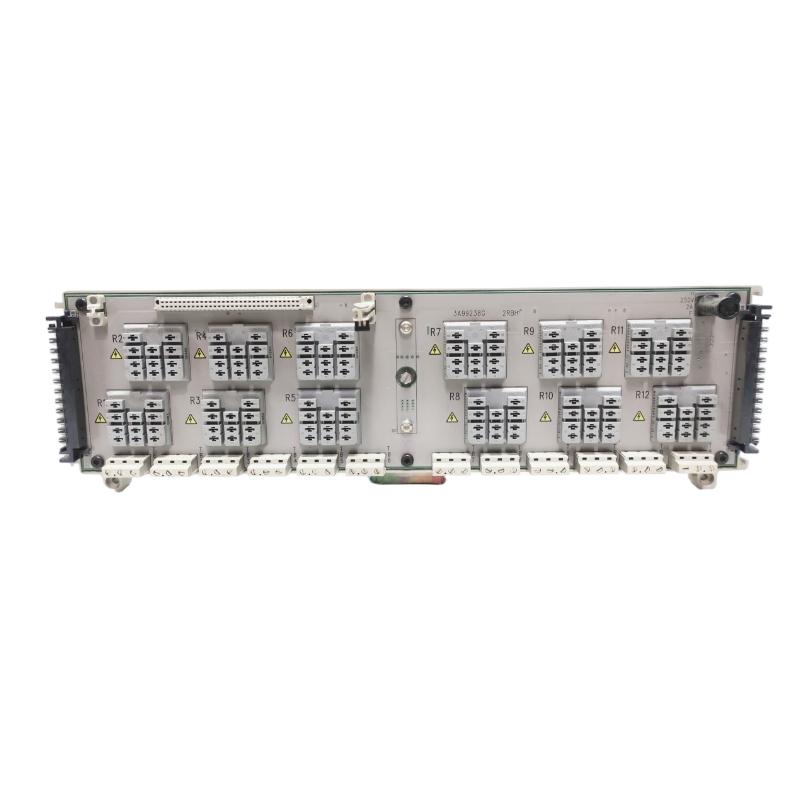

The Ovation 1C31222G01 Relay Output Base is a purpose‑built mount and connection platform designed to support relay output modules within Emerson’s Ovation Distributed Control System (DCS). It provides a stable and organized mechanical and electrical interface, ensuring secure installation of relay output cards and seamless communication with the Ovation backplane.

This base assembly is engineered to simplify field wiring, reduce installation errors, and support consistent relay operation in demanding industrial environments. Its robust construction and modular design make it ideal for both new installations and system expansions.

Technical Specifications

Parameter	Specification
Manufacturer	Emerson Ovation
Model	1C31222G01
Module Type	Relay Output Base
Supported Modules	Relay Output Modules (compatible with Ovation rack)
Slot Type	Single relay module slot
Backplane Interface	Standard Ovation rack connector
Wiring Interface	Terminal blocks for relay field connections
Power Source	Rack backplane power
Operating Temperature	0 to 55 °C
Storage Temperature	–40 to 70 °C
Humidity	5 % to 95 % non‑condensing
Dimensions (HxWxD)	Approx. 125 × 35 × 150 mm
Weight	Approx. 0.20 kg
Mounting	Rack or panel mount compatible

Applications

The 1C31222G01 Relay Output Base is designed for automation systems that require organized, reliable discrete output control:

Field actuator and solenoid switching
Alarm and indicator control circuits
Output stages for interlocks and safety signals
Pump, fan, and small device control via relays
General on/off output applications in process automation

Advantages

Secure Module Integration: Provides a stable and precise interface for relay output modules within the Ovation rack system.
Simplified Wiring: Front‑accessible terminal blocks help streamline field wiring and diagnostics.
Standard Backplane Compatibility: Designed to work with Ovation’s standardized rack backplane connectors for reliable communication.
Modular Expansion: Easy to install or replace as system requirements grow.
Industrial Durability: Built to perform under typical industrial environmental conditions, supporting long‑term reliability.

Technical FAQs

1. What modules does this base support?
Relay output modules designed for the Ovation platform.

2. How is field wiring connected?
Field wiring is typically terminated to front‑facing screw terminal blocks on the base.

3. Does the base require external power?
No; it draws power from the Ovation rack backplane.

4. Is the base compatible with other DCS/PLC brands?
Compatibility is specific to Ovation backplane interfaces; adapters may be needed for other systems.

5. What is the operating temperature range?
0 °C to 55 °C.

6. Can it be mounted outside a cabinet?
Yes, but environmental protection is recommended in harsh conditions.

7. Is the base hot‑swappable?
Hot‑swap ability depends on system configuration and rack design.

8. How is the base mounted?
Panel or rack installation using standard screws.

9. What safety considerations are recommended?
Follow standard electrical safety and isolation practices for relay circuits.

10. What is the approximate size and weight?
Approx. 125 × 35 × 150 mm; ~0.20 kg.
