Product Introduction

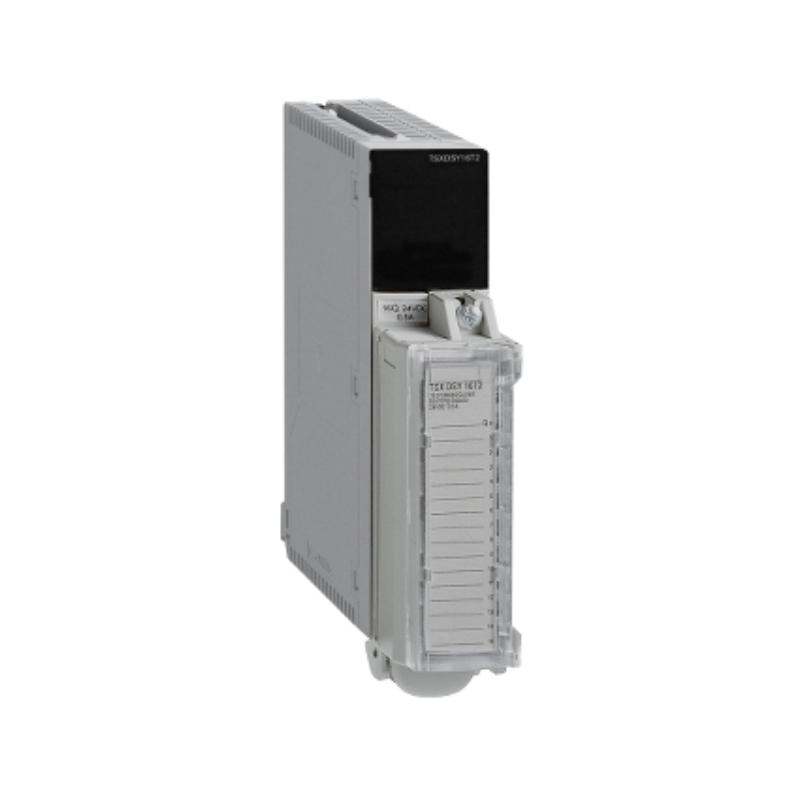

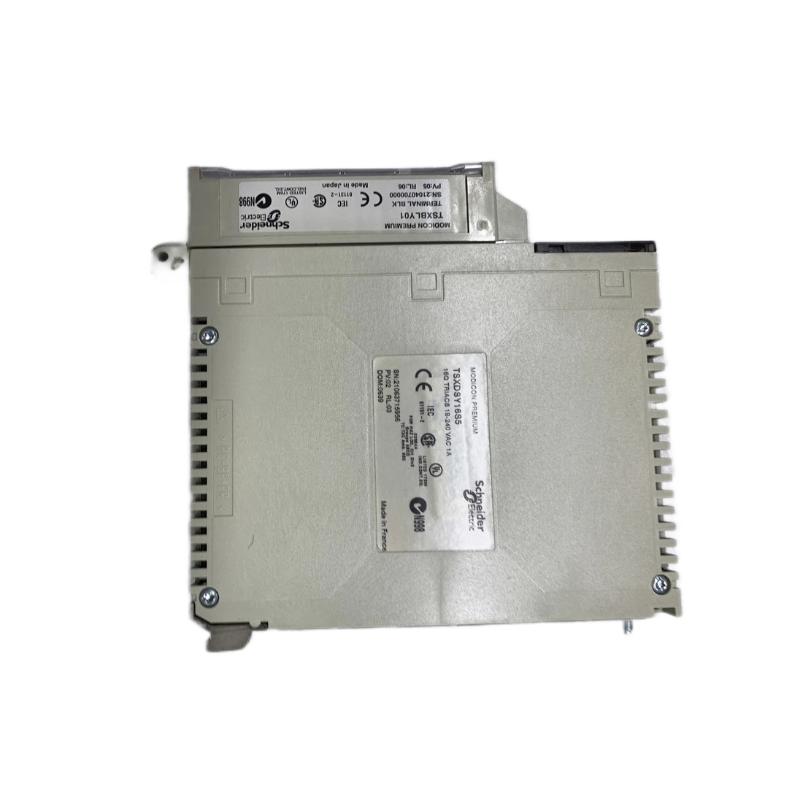

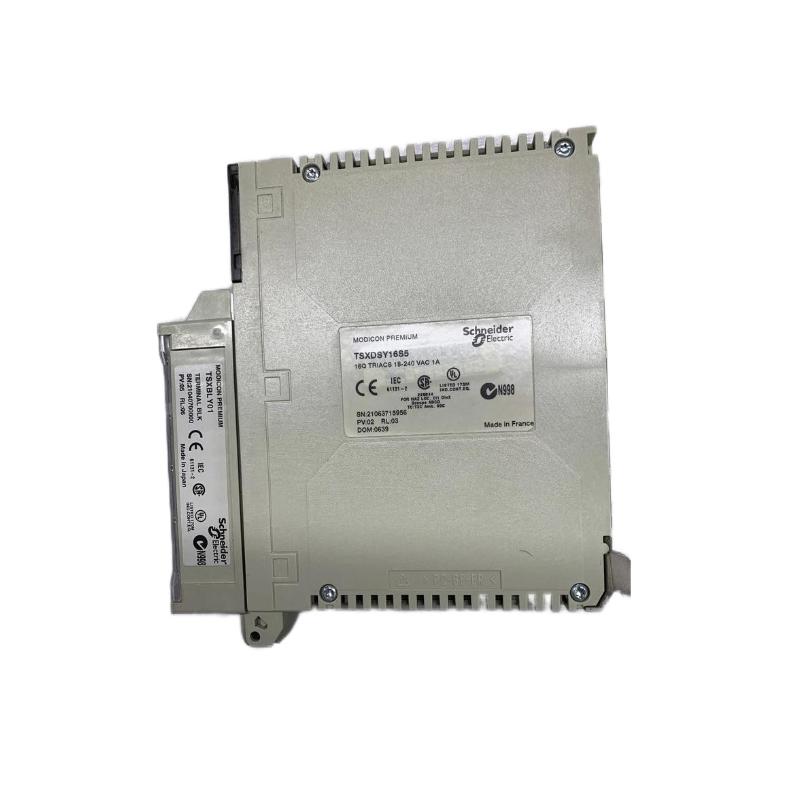

The Schneider TSXDSY16S5 Discrete Output Modules are engineered as dependable digital output interfaces for the Modicon TSX Micro PLC platform. Built to deliver reliable switching performance in industrial automation environments, these modules translate PLC logic into real‑world actuation signals. Their robust design and versatile output capabilities make them ideal for controlling solenoids, contactors, indicator lights, and other industrial devices.
With 16 high‑capacity discrete outputs, the TSXDSY16S5 series provides precise load control and long service life. Designed for heavy‑duty industrial applications, these modules ensure consistent performance even under demanding electrical loads and continuous operation.
Technical Specifications
| Specification | Details |
|---|
| Product Model | TSXDSY16S5 |
| Manufacturer | Schneider Electric |
| Module Type | Discrete Output Module |
| Automation Platform | Modicon TSX Micro |
| Output Points | 16 channels |
| Output Type | Electromechanical relay outputs |
| Contact Configuration | Normally Open (N/O) |
| Rated Load Voltage | 250 V AC / 30 V DC |
| Rated Load Current | 5 A per channel |
| Minimum Switching Load | 10 mA, 5 V DC |
| Operating Voltage (Control) | 24 V DC |
| Output Response Time | Approx. 10 ms |
| Connection Method | Screw terminal blocks |
| Slot Format | Full‑format TSX Micro module |
| Power Consumption | Standard PLC output load |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | ‑25°C to 70°C |
| Relative Humidity | 5–95% (non‑condensing) |
| Dimensions (L × W × H) | 26 × 18 × 5.5 cm |
| Weight | Approx. 0.50 kg |
| Mounting | TSX Micro rack or DIN‑rail (with adapter) |
Industrial Applications
Manufacturing Equipment Control
Used extensively to drive actuators, solenoids, and contactors in automated manufacturing cells where reliable output switching is essential.
Material Handling Systems
Controls conveyor motors, diverters, and gate actuators in warehouse automation and logistics systems.
Packaging & Assembly Lines
Provides dependable output control for indicator lights, alarms, and machine motion sequences in fast‑paced production environments.
Process Industries
Interfaces with valves, pumps, and other process control devices that require dependable discrete switching.
OEM Machine Integration
Machine builders value its straightforward wiring and robust output capacity when integrating digital control into custom equipment.
Key Advantages
Robust Relay Output Design
Electromechanical relays provide dependable switching and withstand higher in‑rush currents compared to solid‑state alternatives.
AC and DC Load Support
Outputs are suitable for both AC and DC loads, enhancing flexibility in industrial implementations.
High Current Capacity
Rated up to 5 A per channel, accommodating a wide range of industrial devices without auxiliary relays.
Industrial‑Grade Durability
Designed to operate continuously in harsh environments with wide temperature and humidity tolerance.
Ease of Installation and Maintenance
Standard screw terminal connections and full‑format module design streamline system assembly and servicing.
Technical FAQs
1. What type of outputs does TSXDSY16S5 provide?
It provides 16 electromechanical relay outputs with normally open contacts.
2. What load voltages can this module switch?
Outputs support up to 250 V AC and 30 V DC loads.
3. How much current can each channel handle?
Each channel is rated for up to 5 A of load current.
4. What is the control supply voltage?
The module operates on a 24 V DC control supply typical of PLC systems.
5. What is the approximate response time?
Output switching occurs in approximately 10 ms under standard load.
6. How are devices wired to the module?

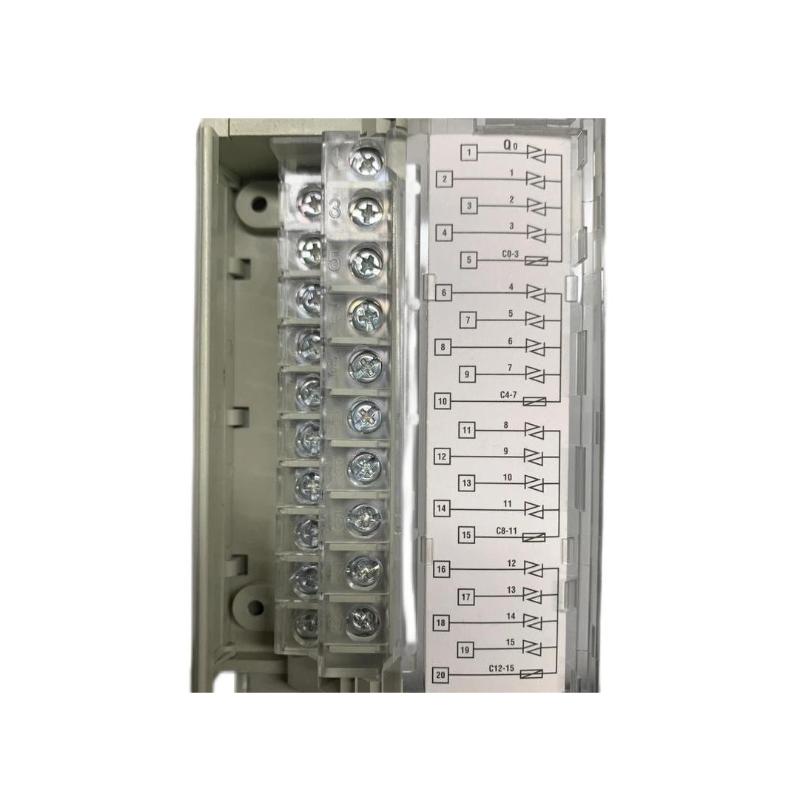

Field devices connect via screw terminal blocks, following standard industrial wiring practices.
7. Can this module be mounted outside a PLC rack?
Yes, with the appropriate DIN‑rail adapter it can be mounted independently of the rack.
8. Does the module support high in‑rush loads?
Electromechanical relays provide robust switching suitable for moderate in‑rush loads; high in‑rush applications may require external suppression devices.
9. What environmental conditions can it withstand?
The module is rated for operation between 0°C and 60°C with non‑condensing humidity.
10. Is overload protection built in?
Overload protection is not integrated; external overload protection devices are recommended based on load characteristics.
