Product Introduction

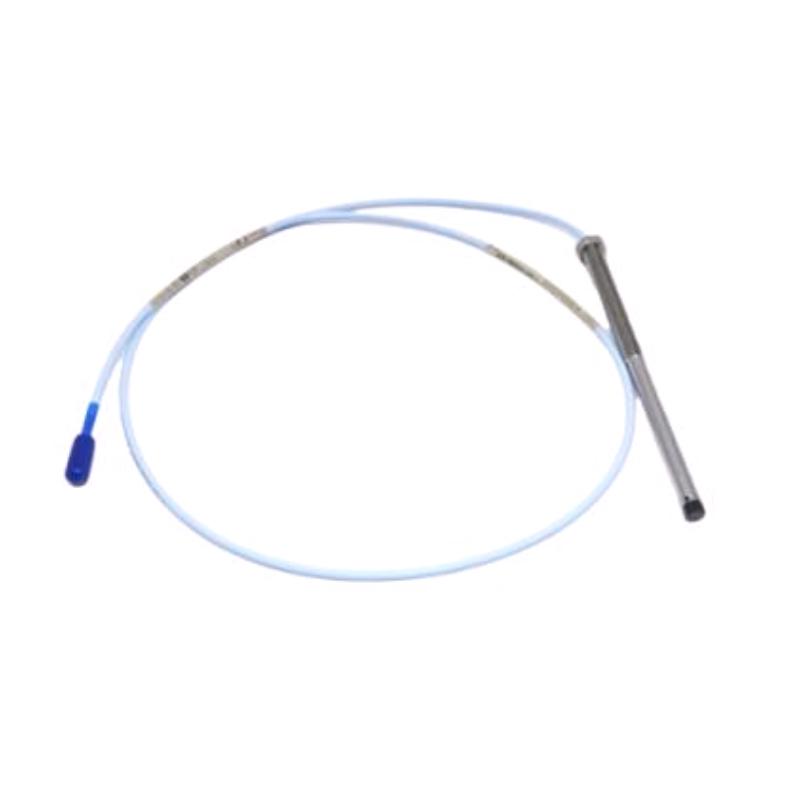

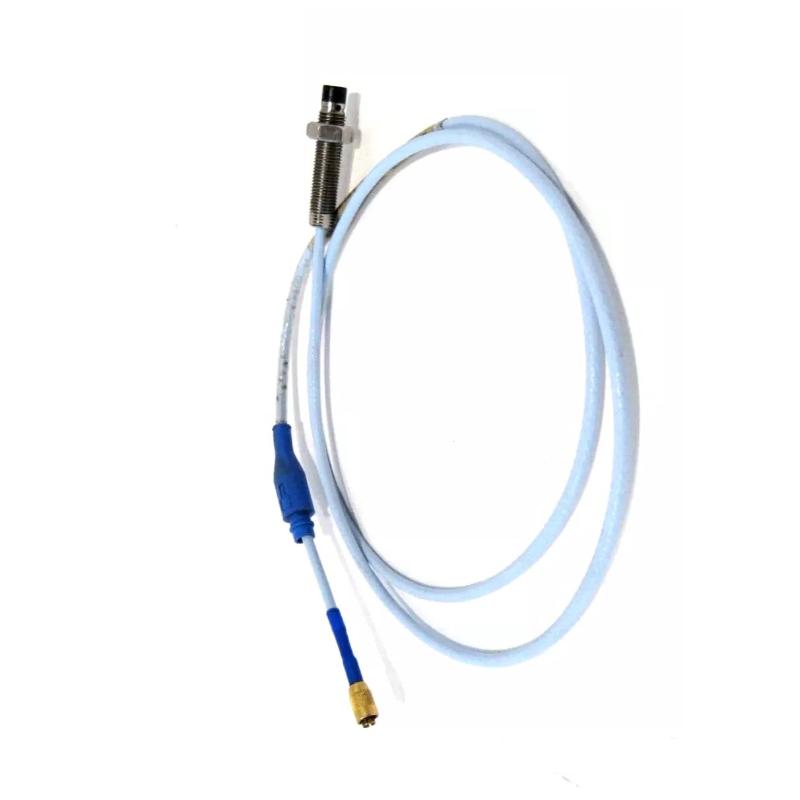

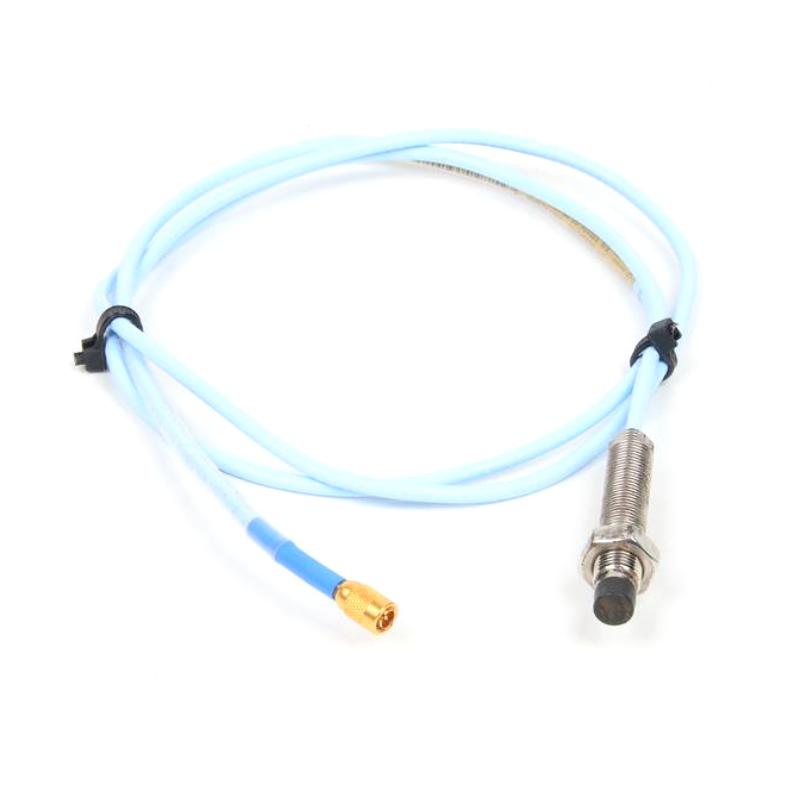

The Bently Nevada 330101‑00‑28‑90‑02‑00 3300 XL 8 mm Proximity Probes are engineered for high-performance shaft vibration and position monitoring in demanding industrial applications. Designed for precision, durability, and seamless integration, these probes provide reliable non-contact measurement in turbines, compressors, generators, and other critical rotating machinery. Their compact 8 mm diameter and robust stainless-steel construction allow easy installation and long-term operation under harsh environmental conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330101‑00‑28‑90‑02‑00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8‑24 UNF, unarmored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 1.95 in (≈49.5 mm) |
| Total Cable Length | 1.0 m (3.3 ft) standard cable |
| Connector | Miniature coaxial ClickLoc™ |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless steel AISI 303/304 |
| Operating Temperature | ‑50 °C to +177 °C (‑58 °F to +351 °F) |
