Product Introduction

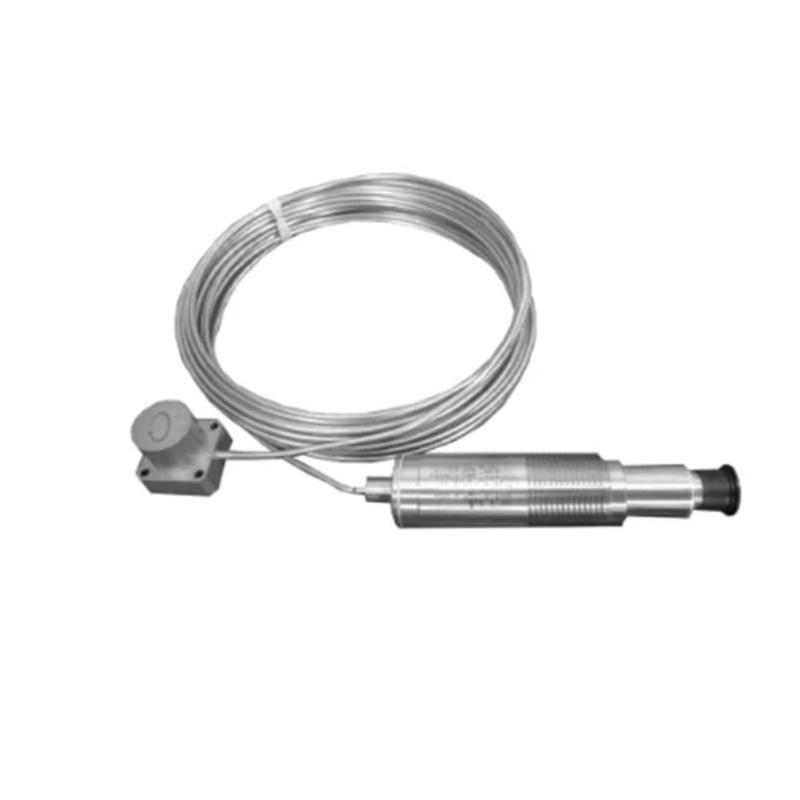

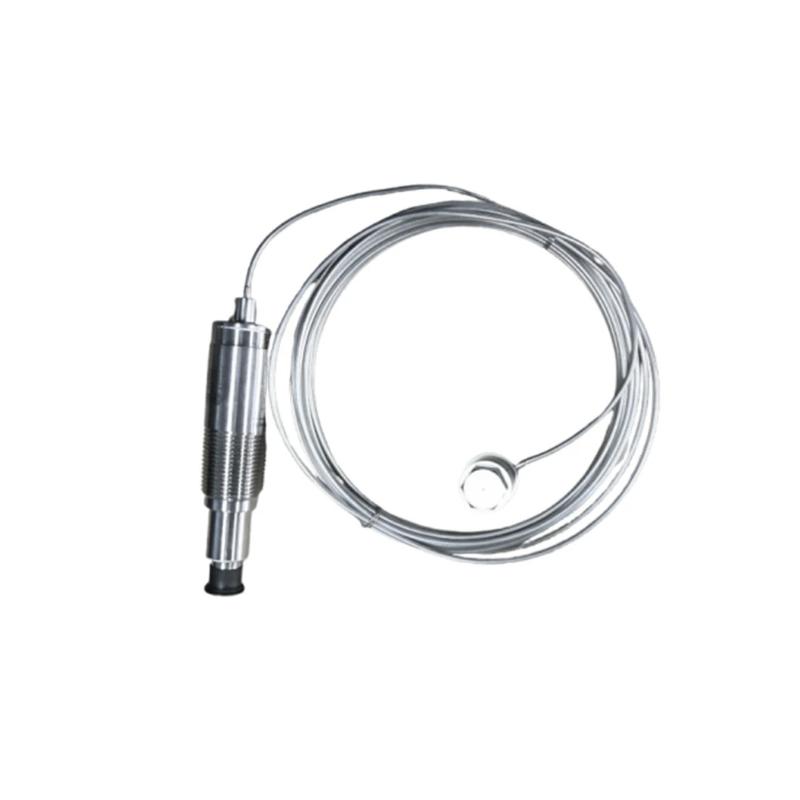

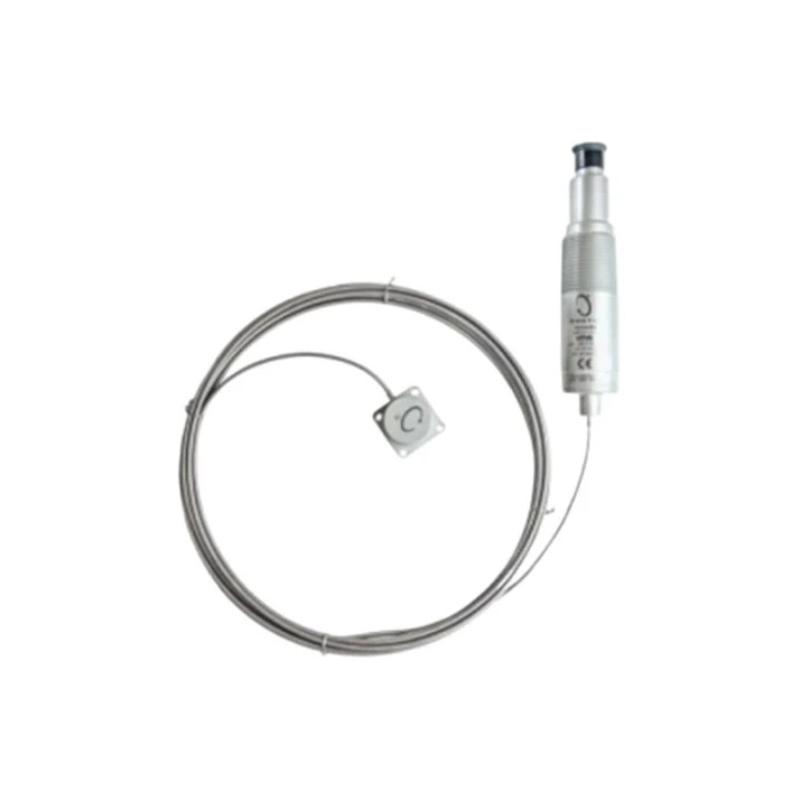

The Bently Nevada 330752-25-05 High Temperature Speed Sensor is a purpose-built rotational speed measurement device designed for extreme industrial environments. It delivers reliable speed data even under elevated temperatures where standard sensors fall short, making it indispensable for mission-critical machinery protection and condition monitoring systems. This sensor combines rugged mechanical design with precise signal generation, supporting dependable feedback for control and protection architectures.

Technical Specifications (Including Dimensions & Weight)

Specification	Description
Product Type	High Temperature Speed Sensor
Brand	Bently Nevada
Model Number	330752-25-05
Sensing Principle	Eddy current (non-contact) speed detection
Output Signal	AC pulse proportional to rotational speed
Operating Temperature Range	Up to 260 °C continuous
Storage Temperature	–40 °C to +300 °C
Connector Type	Military-grade MIL-C-26482
Housing Material	Stainless steel
Sensor Head Diameter	25.4 mm
Mounting Style	Threaded installation
Ingress Protection	IP67 rated
Weight	Approx. 0.715 kg
Dimensions	Sensor head approximately 25.4 mm diameter (overall length varies by mounting)

Application Scenarios

The 330752-25-05 sensor is widely used in sectors where shaft speed feedback under high thermal stress is essential, including:

Gas and steam turbines operating in high-temperature zones
High-speed compressors requiring reliable speed detection
Process plant rotating machinery in petrochemical and power generation
Rotary engines and turbo-machines with limited cooling
Critical industrial systems where early warning of speed anomalies prevents failure

Its design ensures minimal performance degradation even in extreme service conditions.

Key Benefits

Built for elevated temperature service with dependable performance
Non-contact sensing eliminates mechanical wear
AC pulse output compatible with most monitoring and protection systems
Passive operation (no external power required) simplifies installation
Stainless steel housing for excellent durability and corrosion resistance
Dust-tight and water-resistant (IP67) for harsh environments

Technical FAQs

What does the 330752-25-05 measure?
It measures rotational speed by detecting changes in magnetic flux as the shaft rotates.
Can this sensor operate without external power?
Yes — it functions as a passive device and does not require an external power source.
What is the maximum operating temperature?
It is rated for continuous operation up to around 260 °C.
What kind of signal output does it produce?
The sensor produces an AC pulse signal proportional to rotational speed.
What mounting method is used?
It uses a threaded mount for secure attachment to machinery.
Is it suitable for outdoor or washdown environments?
With an IP67 rating, it is resistant to dust and water exposure found in many industrial settings.
Does the connector meet industrial standards?
Yes — it uses a MIL-C-26482 military-grade connector for reliable signal integrity.
Can it be used on turbines and compressors?
Yes — the design is well-suited for high-temperature turbines and compressor shafts.
Does it integrate with standard protection systems?
Yes — its output is compatible with most common monitoring and machinery protection platforms.
Is the housing rugged enough for heavy industry?
Yes — the stainless steel construction offers strong physical resistance against vibration and corrosion.
