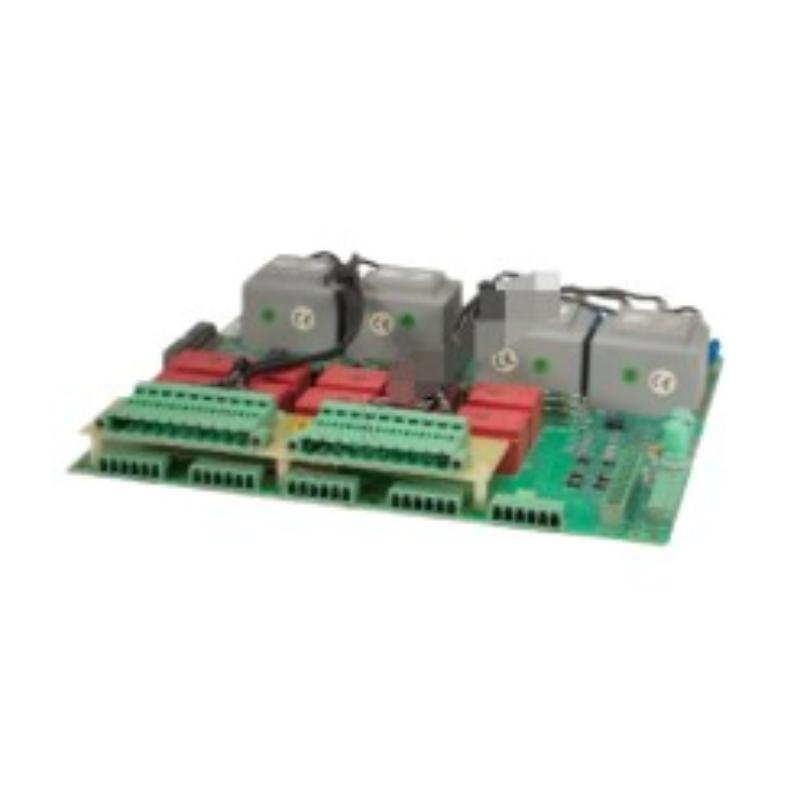

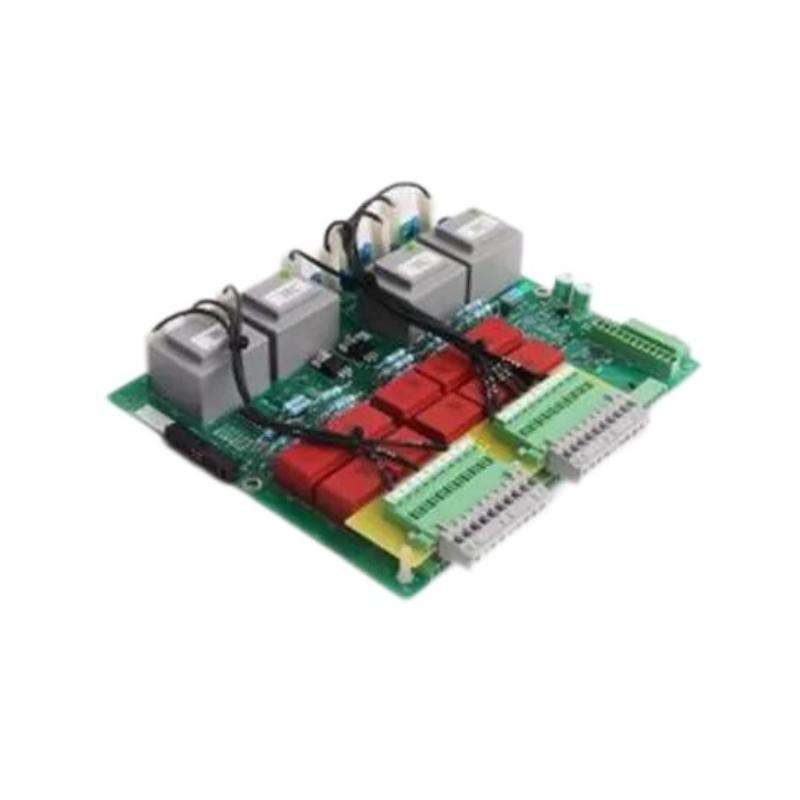

ABB DATX100 3ASC25H208 Pulse Transformer Board

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB DATX100 3ASC25H208 Pulse Transformer Board

Name: ABB DATX100 3ASC25H208 Pulse Transformer Board
Brand: ABB PLC
SKU: 3213
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DATX100 3ASC25H208
Product Origin:Sweden
Product Dimensions:215 x 200 x 35 mm
Product Weight:1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB DATX100 3ASC25H208 Pulse Transformer Board is a specialized industrial accessory designed to enhance signal isolation and noise‑immune pulse transmission for ABB distributed I/O systems. Tailored for the S800 I/O family, this board conditions and isolates pulse signals from field devices before they enter the I/O network. Its rugged design supports reliable performance in electrically noisy industrial environments, ensuring accurate pulse detection and system stability.

Technical Specifications & Physical Details

Specification	Description
Manufacturer	ABB
Model Number	DATX100 (3ASC25H208)
Module Type	Pulse Transformer Board / Signal Isolation Accessory
System Compatibility	ABB S800 I/O Series
Signal Function	Pulse signal isolation and conditioning
Supported Signals	Digital pulse inputs from encoders, proximity switches, speed sensors
Isolation Method	Transformer‑based galvanic isolation
Operating Voltage	Standard industrial signal levels (e.g., 24 V DC signaling)
Operating Temperature	–20°C to +60°C
Mounting	Modular S800 I/O rack or DIN rail adapter

Applications

The DATX100 Pulse Transformer Board is ideal wherever clean pulse signal transmission is critical in industrial automation:

Isolation and conditioning of encoder, speed, and proximity pulse signals
Pulse signal protection in electrically noisy environments (e.g., motor control centers)
Integration with S800 I/O racks for motion controllers or PLC systems
Enhancing measurement reliability in process plants and manufacturing lines
Reducing ground loop interference in distributed field wiring

Advantages

Galvanic isolation: Transformer‑based isolation protects against noise and ground loops.
Signal integrity: Maintains accurate pulse shapes for reliable counting and measurement.
Compact form factor: Fits into S800 I/O racks and control panels without consuming excess space.
Industrial ruggedness: Built to withstand temperature cycles, vibration, and continuous operation.
Flexible connectivity: Supports a range of binary pulse sources from field devices.
Easy integration: Works seamlessly with ABB distributed I/O infrastructures.

Technical FAQs

What is the purpose of the DATX100 board?
It isolates and conditions pulse signals from field devices before they are processed by the I/O system.
Which signal types are supported?
Digital pulses from encoders, proximity switches, and similar sensors.
How does it improve signal quality?
Transformer isolation reduces electrical noise and protects against ground potential differences.
Where is it typically installed?
In S800 I/O racks or mounted in control cabinets near field termination points.
Is galvanic isolation provided?
Yes — transformer‑based isolation separates input pulses from the I/O bus.
Can it handle long field wiring runs?
Yes — it supports reliable pulse conditioning over extended cable distances.
What is the operating temperature range?
–20°C to +60°C, suitable for typical industrial environments.
Does it require external power?
It operates from standard industrial signal power levels without a separate power supply.
Can it be used with non‑ABB systems?
Electrically yes, but performance is optimized for ABB S800 I/O networks.
Which industries benefit most from this module?
Manufacturing, process automation, energy systems, and material handling environments.
