Introduction

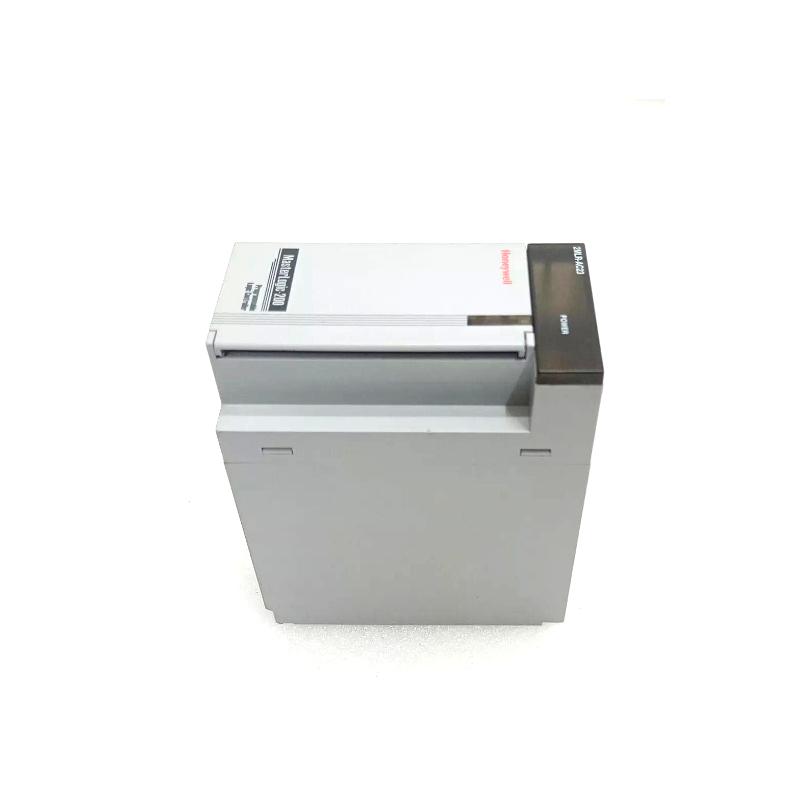

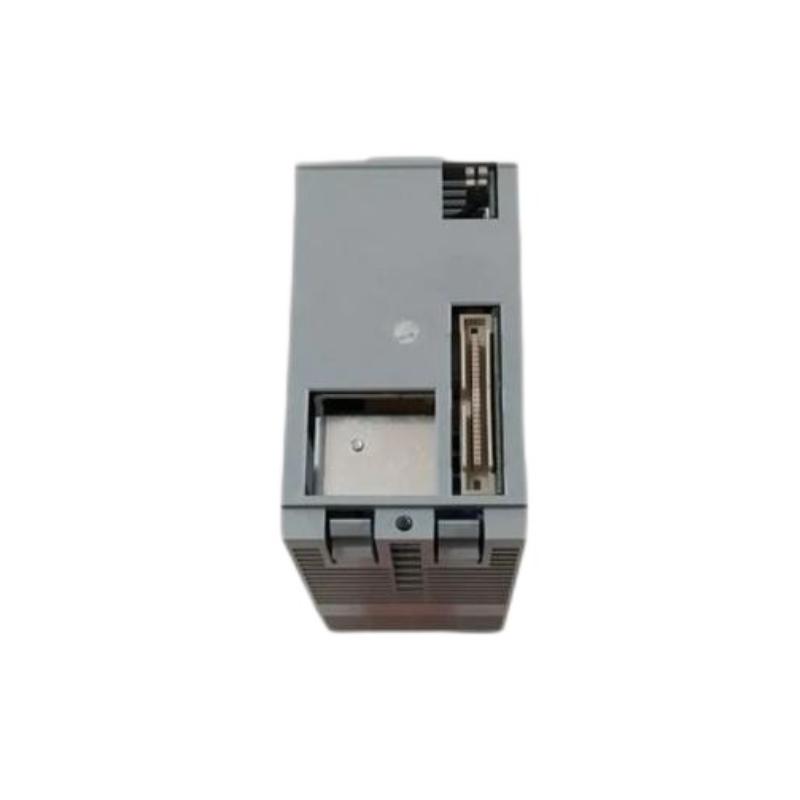

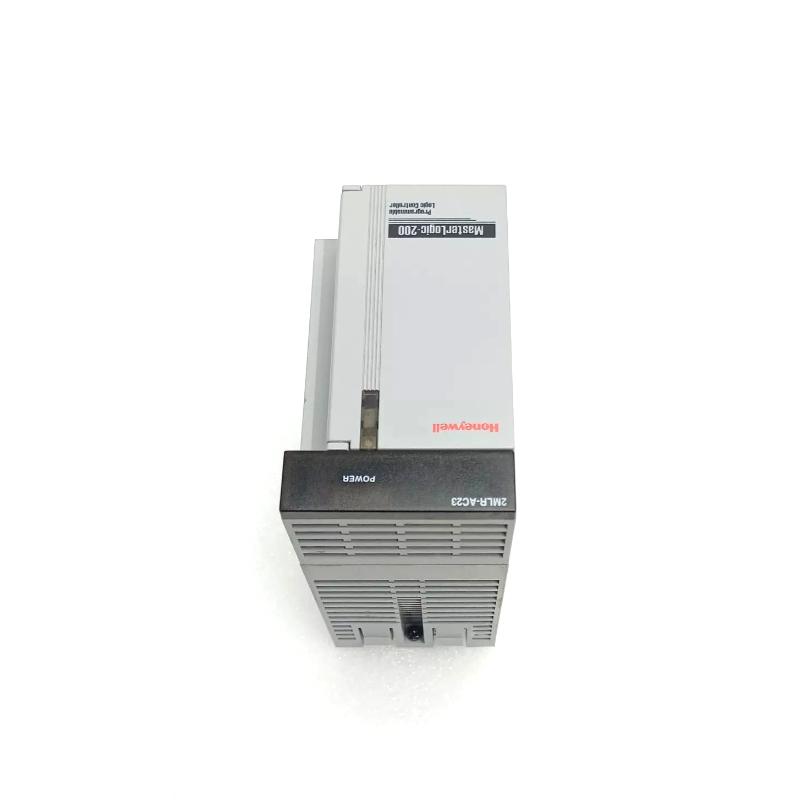

The Honeywell 2MLR-AC23 Redundant Power Supply Module is a robust industrial power solution engineered to deliver high availability and uninterrupted DC power to critical automation systems. Designed for use in MasterLogic™-200 Programmable Logic Controller (PLC) racks, this module supports dual power inputs with intelligent load sharing, providing fault-tolerant operation and minimizing the risk of downtime. Its rugged construction and reliable performance make it an excellent choice for control panels in manufacturing, processing, and other mission-critical environments.
Technical Specifications (Including Dimensions & Weight)
| Specification | Details |
|---|---|
| Model | Honeywell 2MLR-AC23 |
| Module Type | Redundant Power Supply Module |
| Input Voltage | AC 100–240 V, 50/60 Hz |
| Dual Power Inputs | Yes (redundant operation) |
| Output Voltage | DC 5 V nominal |
| Output Current | Up to 6 A per supply path |
| Load Sharing | Automatic, for redundant operation |
| Protection Features | Overload, short-circuit, overvoltage protection |
| Status Indicators | LED indicators for power and fault status |
| Mounting | DIN rail or panel mount |
| Dimensions (W × H × D) | Approx. 60 mm × 95 mm × 90 mm |
| Weight | Approx. 0.42 kg |
| Operating Temperature | –20 °C to +70 °C |
| System Compatibility | MasterLogic-200 PLC series |
